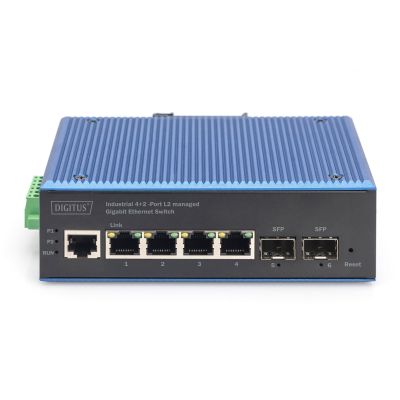

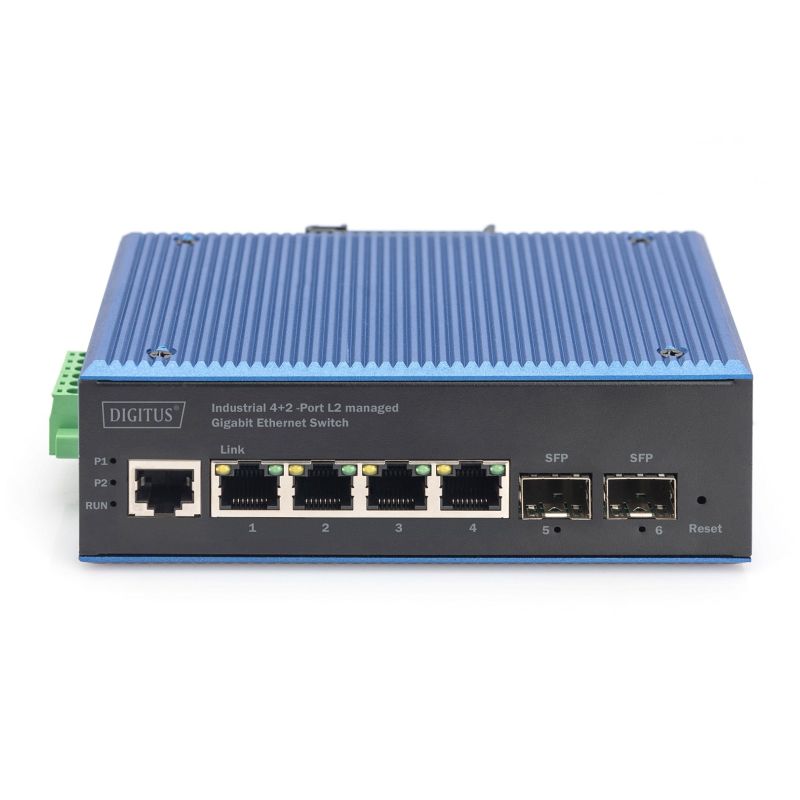

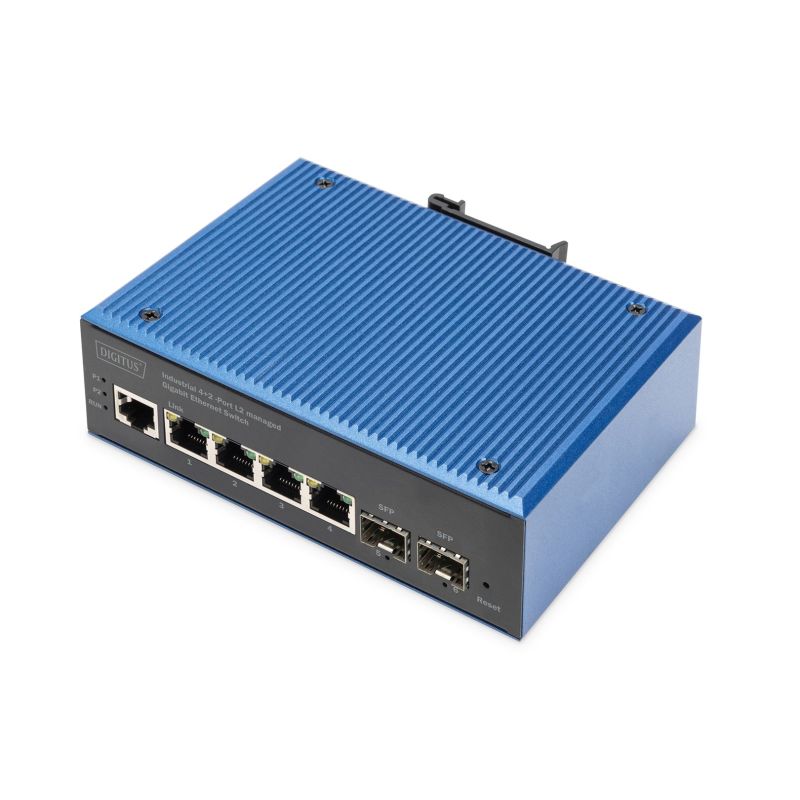

4+2-Port L2 Managed Gigabit Ethernet Industrial Switch 4 x GE RJ45 + 2 SFP Port
4+2-Port L2 Managed Gigabit Ethernet Industrial Switch 4 x GE RJ45 + 2 SFP Port
4+2-Port L2 Managed Gigabit Ethernet Industrial Switch 4 x GE RJ45 + 2 SFP Port
PRICE:
320,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Stackable: No
- Vandal-resistant: No

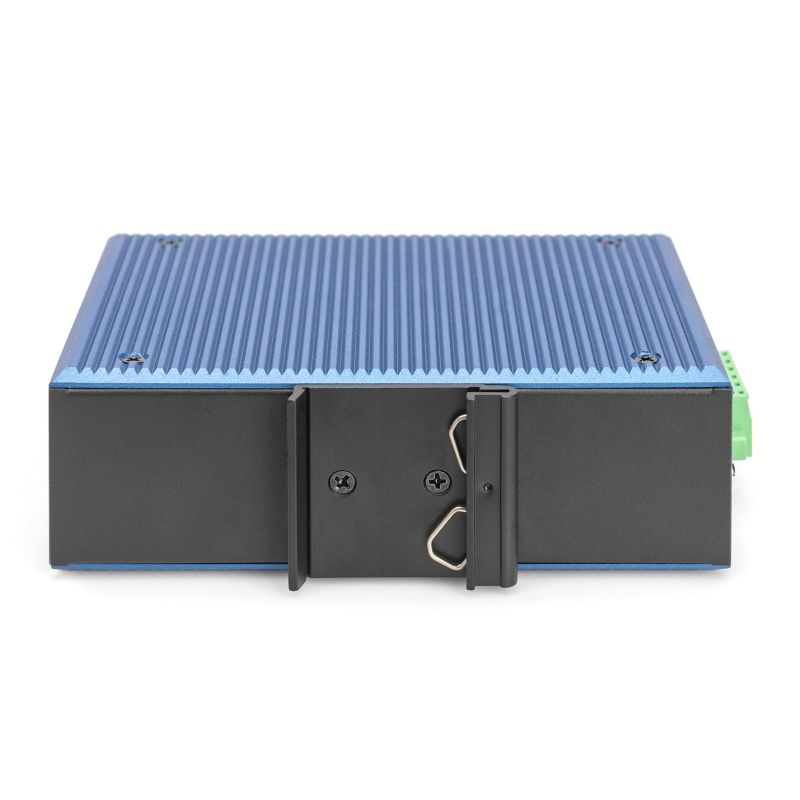

- DIN rail mounting: Yes
- Suitable for external use: No
- Housing material: Metal
- Product color
- Blue
- Black
- IP protection class: IP40
- Rack mounting options: No
- Power
- Protection against sudden voltage increases
- 4 kV
- Yes

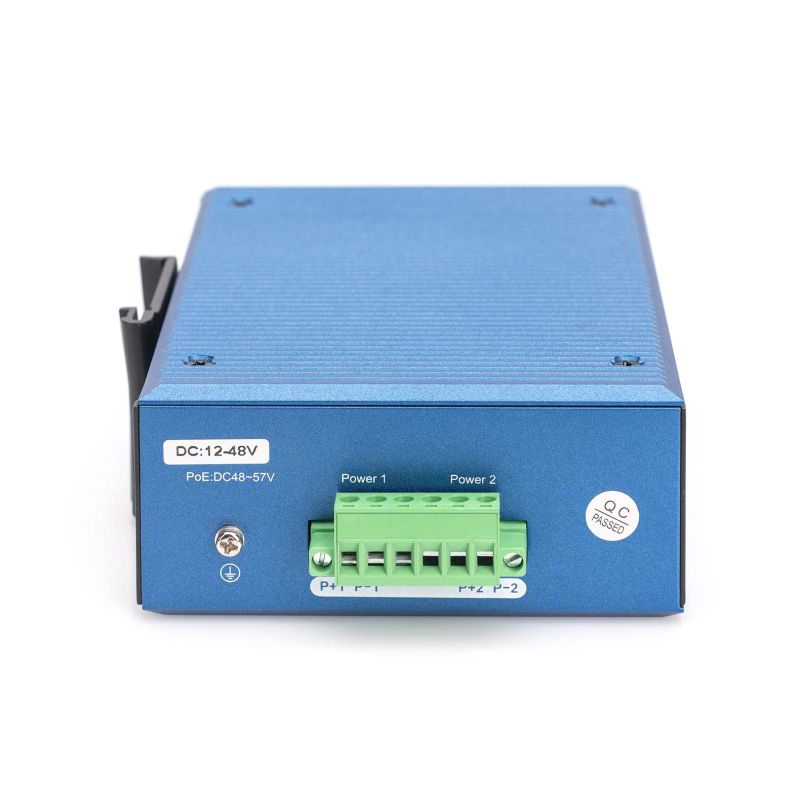

- DC input voltage: 12 - 48 V
- Backup Power Supply (RPS) Support: Yes
- Power source: DC
- Power supply included: Yes
- Power consumption: 5 W
- Protection against sudden voltage increases
- Weight and dimensions
- Product weight: 700 g
- Product width: 143.7 mm
- Product height: 47.7 mm
- Product depth: 104 mm
- Security
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- MAC address filtering: Yes
- Management features
- Switch type: Managed
- Switch Layer: L2
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (storage): -40 - 80 °C
- Temperature range (operation): -40 - 80 °C
- Permissible relative humidity: 5 - 95%
- Relative humidity range: 5 - 95%
- Network
- Traffic Growth Control: Yes
- Port Mirroring: Yes
- Number of VLANs: 4094
- Half-duplex: Yes
- Connection Aggregator: Yes
- 10G Support: No
- Flow Control Support: Yes
- Full duplex: Yes
- Virtual LAN Features
- Protocol-based VLAN
- IP subnet–based VLAN
- Voice VLAN
- MAC address-based VLAN
- Port-based VLAN
- Communication standards: IEEE 802.3x
- VLAN Support: No
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Efficiency
- MTBF (Mean Time Between Failures): 300000 h
- Packaging data
- Packaging capacity: 2221.16 cm³
- Package height: 213 mm
- Package depth: 66 mm
- Package width: 158 mm
- Weight with packaging: 635 g
- Package contents
- User Manual: Yes
- Quick Start Guide: Yes
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Basic RJ-45 Switching Number of Ethernet Ports: 4
- Fiber optic connector: SFP
- Number of SFP modules installed: 2
- Number of Gigabit Ethernet ports: 4
- Other functions
- Bandwidth: 20 Gbit/s
- Ethernet interface type: Gigabit Ethernet
- Logistics data
- Mask with serial number: 85176200
- Country of origin: China
- Data transfer
- Transfer speed: 15 Mpps
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 4.1 MB
- Address table size: 4000 entries
- Store-and-forward: Yes
- Jumbo Frames Expansion: 10240
- Routing/switching capacity: 1 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
| Name | Details |
|---|---|
| Producer | DIGITUS |
