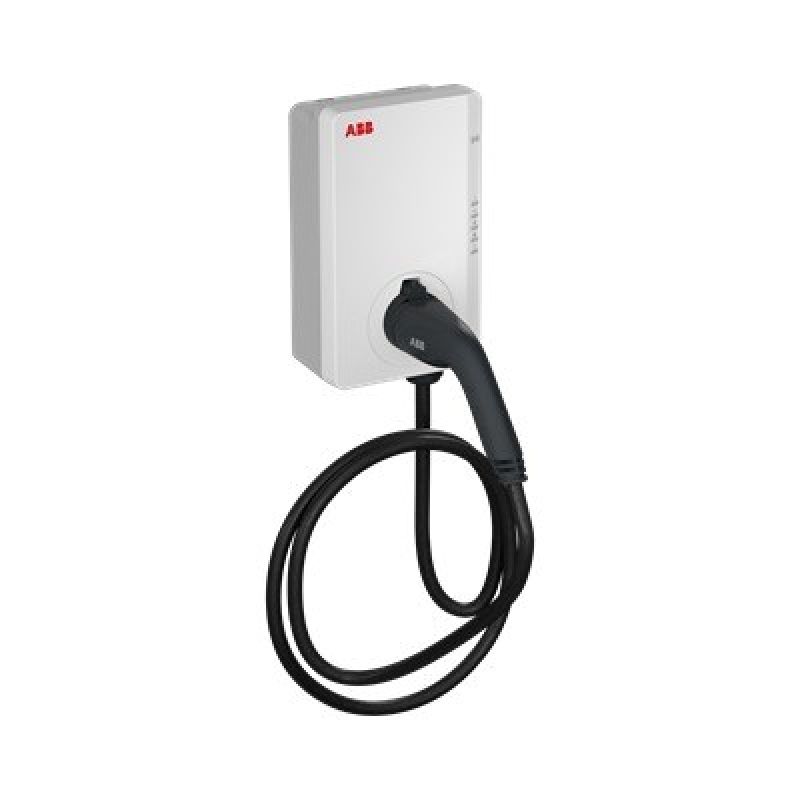

ABB Terra AC W22-G5-RC-V2-0 wallbox Type 2 charging station, 22kW, 5m cable, 3-phase/32A power supply, Bluetooth, Wi-Fi, Ethernet, with RFID reader, GSM/4G modem
ABB Terra AC W22-G5-RC-V2-0 wallbox Type 2 charging station, 22kW, 5m cable, 3-phase/32A power supply, Bluetooth, Wi-Fi, Ethernet, with RFID reader, GSM/4G modem
ABB Terra AC W22-G5-RC-V2-0 wallbox Type 2 charging station, 22kW, 5m cable, 3-phase/32A power supply, Bluetooth, Wi-Fi, Ethernet, with RFID reader, GSM/4G modem
PRICE:
1434,99
€
IN A WAREHOUSE
above 10 pcs
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity: RoHS
- Characteristics
- Product color
- Gray
- Black
- Charging voltage: 320 - 480 V
- Built-in display: No
- Output current: 32 A
- Authentication method: RFID
- LEDs: No
- IP protection class: IP54
- Number of phases: 3
- Charging cable length: 5 m
- Output power: 22 kW
- Housing material: Plastic
- Power protection features
- Overvoltage protection
- Overcurrent
- Mounting type: Wall
- Product color
- Weight and dimensions
- Product depth: 320 mm
- Product width: 195 mm
- Weight with packaging: 6.8 kg
- Product height: 110 mm
- Safety warning
- Warnings
- When performing maintenance or servicing, disconnect the device from the power source.
- Before use, ensure that the appliance is properly installed by a qualified electrician.
- Do not use the device in damp or wet environments to avoid the risk of electric shock.
- Hazard pictogram(s)
- GHS04: Gases under pressure
- GHS05: Substances corrosive to metals
- Warnings
