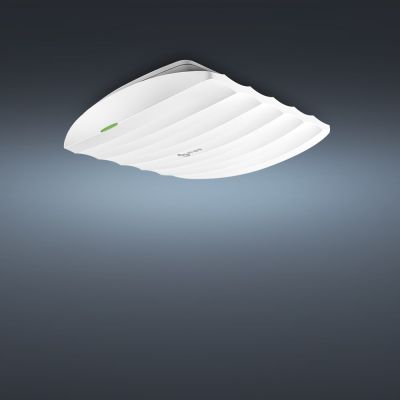

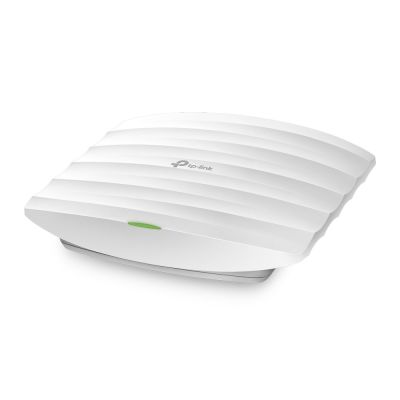

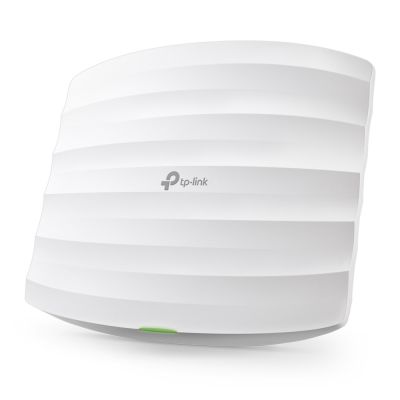

Access Point TP-LINK EAP110 (11 Mb/s - 802.11b, 300 Mb/s - 802.11n, 54 Mb/s - 802.11g)
Access Point TP-LINK EAP110 (11 Mb/s - 802.11b, 300 Mb/s - 802.11n, 54 Mb/s - 802.11g)
Sign up and unlock up to 10% off!
- Characteristics
- Quality of Service (QoS) Support: Yes
- Cabling technology: 10/100Base-T(X)
- 6GHz: No
- Frequency band: 2.4 - 2.4835 GHz
- Maximum data transfer speed: 300 Mbit/s
- Communication standards
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.1x
- IEEE 802.11g
- Wireless Isolation: Yes
- Transmit power (FCC): 21 dBm
- Virtual LAN Features: VLAN Mapping
- Wi-Fi Multimedia (WMM) / (WME): Yes
- 2.4GHz: Yes
- Frequency Limit: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 10 Mbps
- Transmitting power (CE): 19 dBm
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- VLAN support: Yes
- 5GHz: No
- Design
- Intended use: Ceiling, Wall
- Product color: White
- LEDs: Power
- Reset button: Yes
- Power
- PoE Support: Yes
- AC input voltage: 24V
- Power consumption: 2.8 W
- Supported Power over Ethernet (PoE) type: Passive PoE
- Weight and dimensions
- Product height: 29.7 mm
- Product width: 189.5 mm
- Product depth: 170.5 mm
- Security
- MAC address filtering: Yes
- Access Control List (ACL): Yes
- Encryption/Security
- HTTPS
- SSH
- 128-bit WEP
- SNMPv2
- 152-bit WEP
- SNMP
- WPA-PSK
- WPA
- WPA2-Enterprise
- 64-bit WEP
- WPA2-PSK
- Service Set Identifier (SSID) Features: Multiple SSIDs
- Number of SSID supports: 8
- Management features
- Syslog: Yes
- Website management: Yes
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 10 - 90%
- Temperature range (storage): -40 - 70 °C
- Packaging data
- Packaging type: Box
- Weight with packaging: 720 g
- Package depth: 268 mm
- Package height: 69 mm
- Package width: 246 mm
- Package contents
- Quick Start Guide: Yes
- Wires: Alternating Current
- Number of pieces: 1
- Mounting kit: Yes
- PoE adapter included: Yes
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- RoHS
- Certificates of conformity
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Antenna
- Number of antennas: 2
- Antenna type: Internal
- Antenna gain level (max): 4 dBi
- Antenna Direction Type: Omnidirectional Antenna
- Logistics data
- Harmonized System (HS) code: 85176990
- Safety warning
- Warnings
- Electronic products should be recycled at specialized electronic waste collection points.
- Avoid direct contact with water.
- Do not expose to moisture for long periods.
- Warnings
- Sustainable development
- Sustainability: Yes
| Name | Details |
|---|---|
| Producer | TP-LINK |
