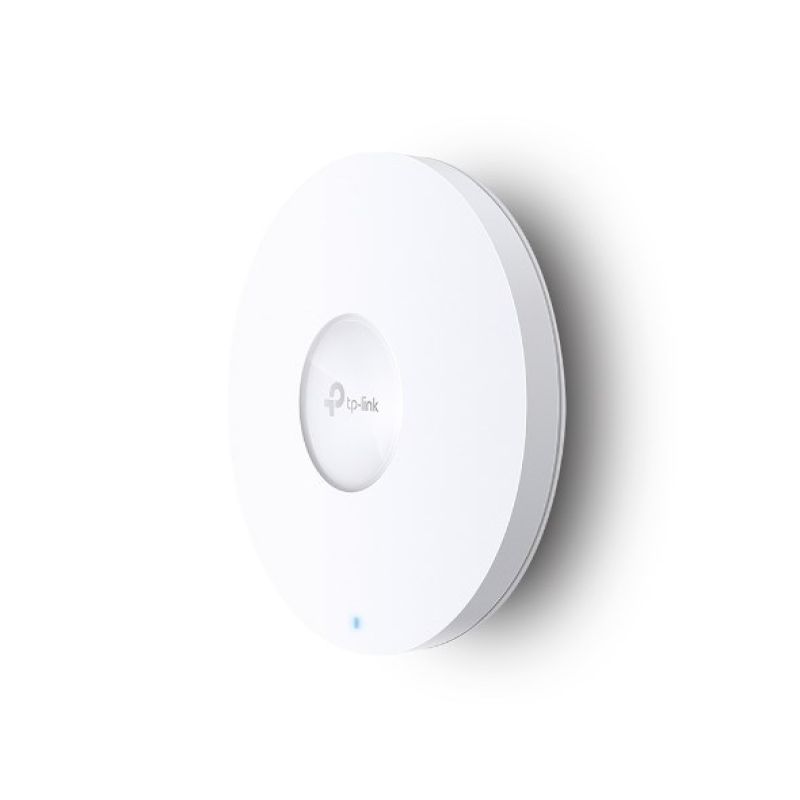

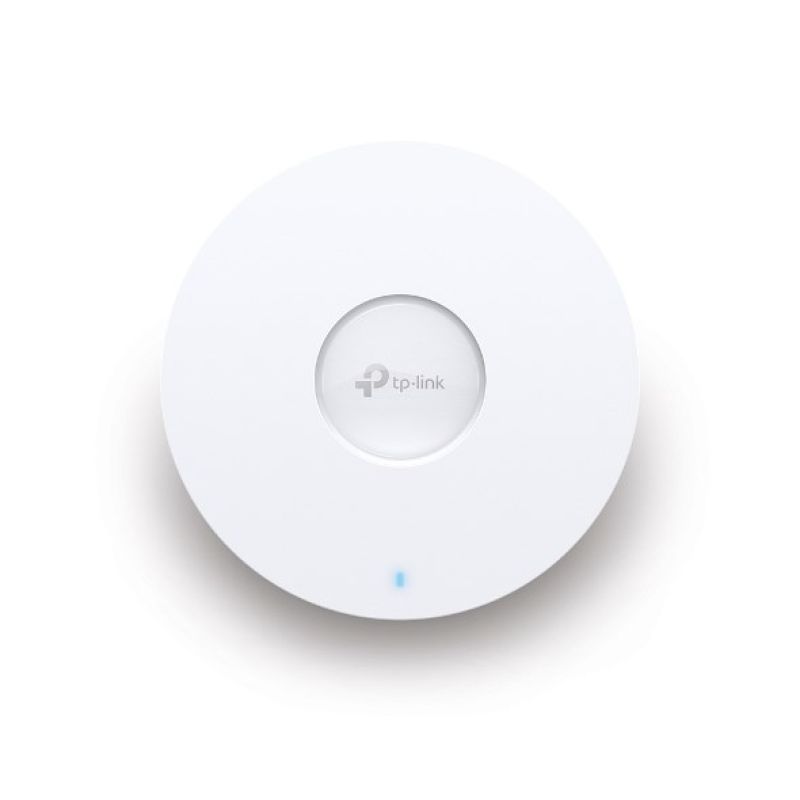

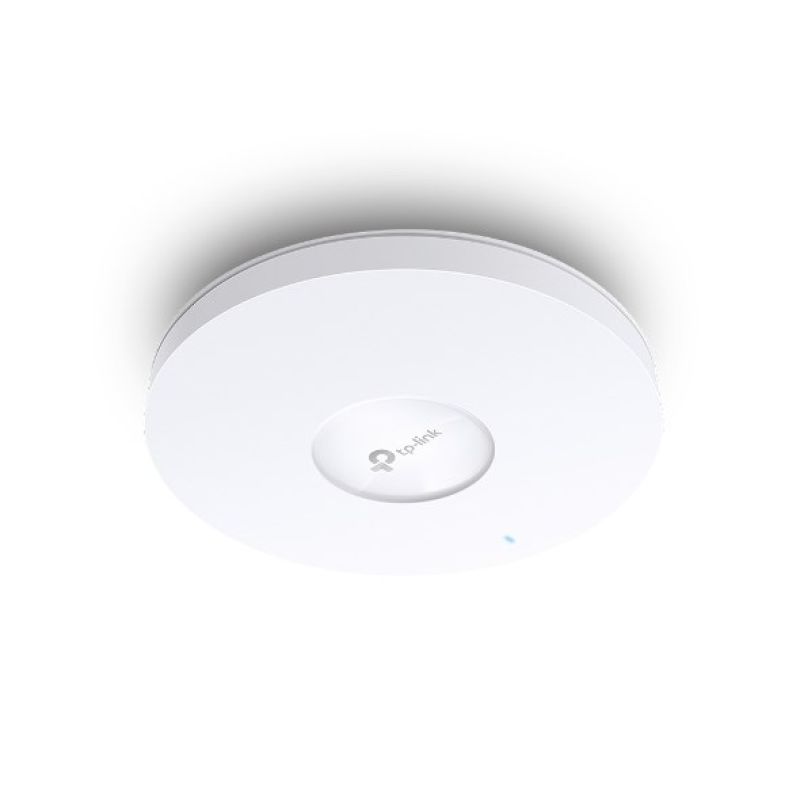

Access Point TP-LINK EAP653
Access Point TP-LINK EAP653
Sign up and unlock up to 10% off!
- Characteristics
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s
- Band Control: Yes
- Image enhancement method: OFDMA
- Communication standards
- IEEE 802.11a
- IEEE 802.11ac
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11h
- Automatic channel selection: Yes
- Number of users: 250 users
- MIMO Type: Multi User MIMO
- Airtime Fairness (ATF): Yes
- Quality of Service (QoS) Support: Yes
- Frequency Limit: Yes
- Maximum data transfer rate (5 GHz): 2402 Mbit/s
- Automatic Channel Scan: Yes
- Flow Control Support: Yes
- Cabling technology: 10/100/1000Base-T(X)
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- BeamForming: Yes
- Match AP Mode Features: Mesh Networks
- 6GHz: No
- VLAN support: Yes
- Transmitting power (CE): 27 dBm
- Transmit power (FCC): 22 dBm
- Maximum data transfer rate: 2976 Mbit/s
- Frequency band: 2.4 - 5 GHz
- ALTHOUGH: Yes
- 2.4GHz: Yes
- 5GHz: Yes
- Design
- Intended use: Ceiling, Wall
- LEDs: Yes
- Reset button: Yes
- Product color: White
- Power
- PoE Support: Yes
- DC voltage range: 12V
- Weight and dimensions
- Product depth: 160 mm
- Product width: 160 mm
- Product height: 33.6 mm
- Security
- Encryption/Security
- SNMP
- HTTPS
- SNMPv2
- WPA
- WPA3
- SSH
- WPA2
- SNMPv3
- MAC address filtering: Yes
- Encryption/Security
- Management features
- Syslog: Yes
- Device software updates: Yes
- Website management: Yes
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Packaging data
- Packaging type: Box
- Package contents
- Quick Start Guide: Yes
- Mounting kit: Yes
- Number of pieces: 1

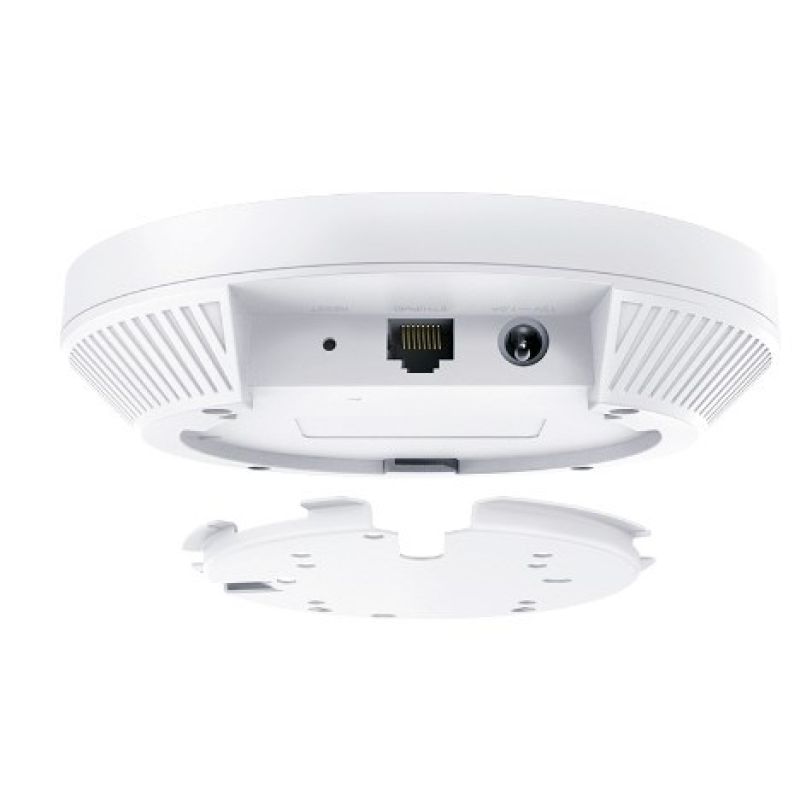

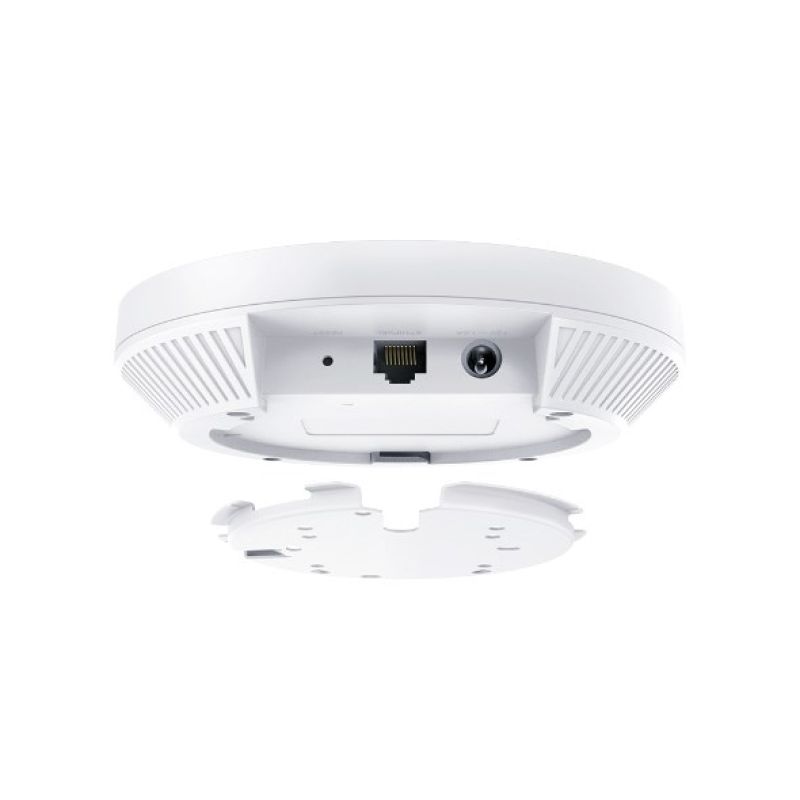

- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- DC output socket: Yes
- Antenna
- Antenna type: Internal
- Safety warning
- Warnings
- Electronic products should be recycled at specialized electronic waste collection points.
- Avoid direct contact with water.
- Do not expose to moisture for long periods.
- Warnings
| Name | Details |
|---|---|
| Producer | TP-LINK |
