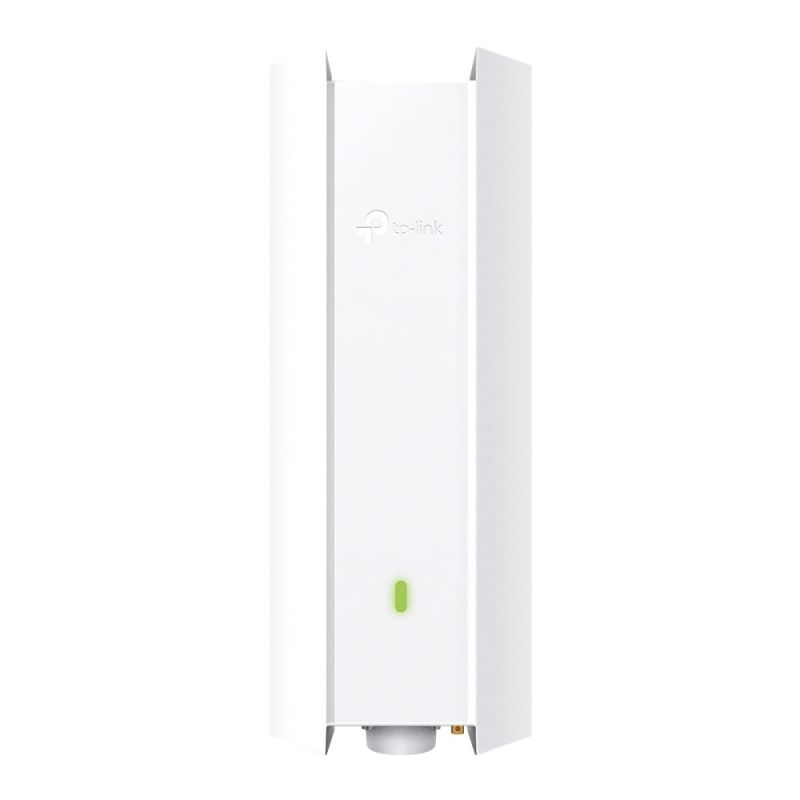

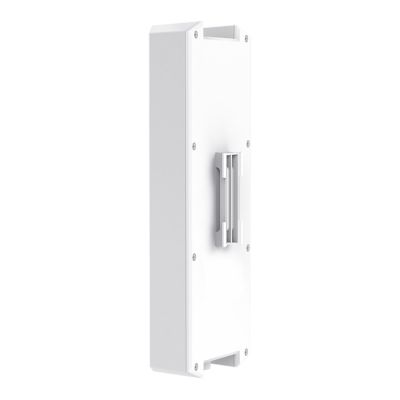

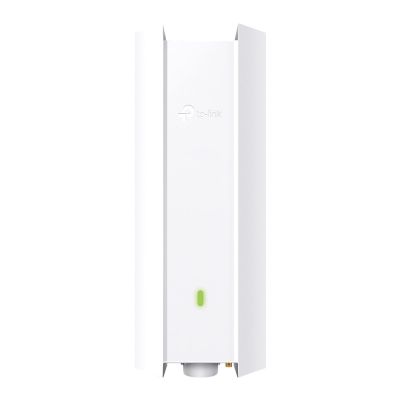

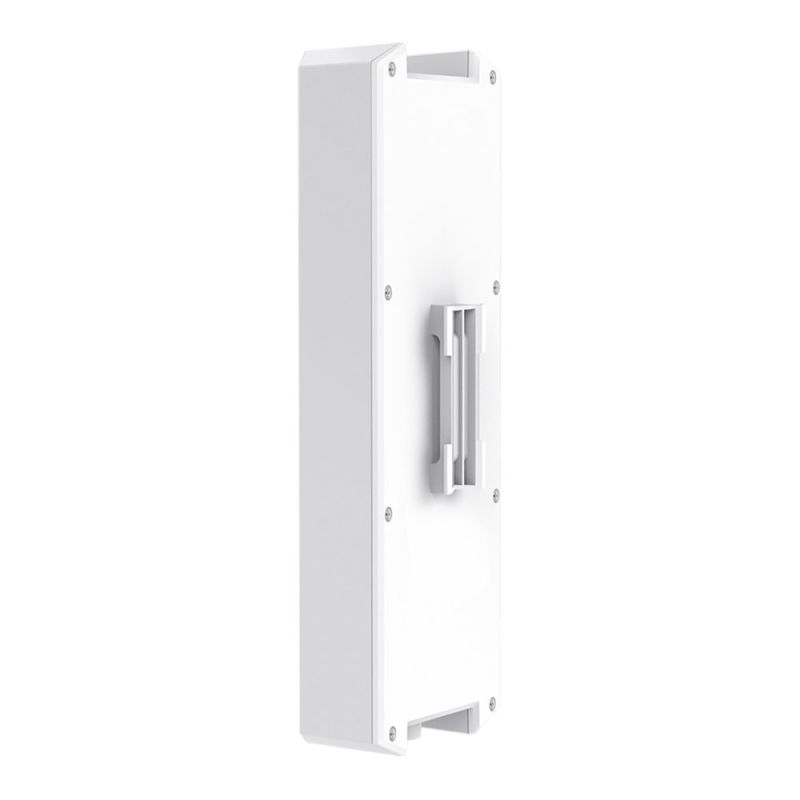

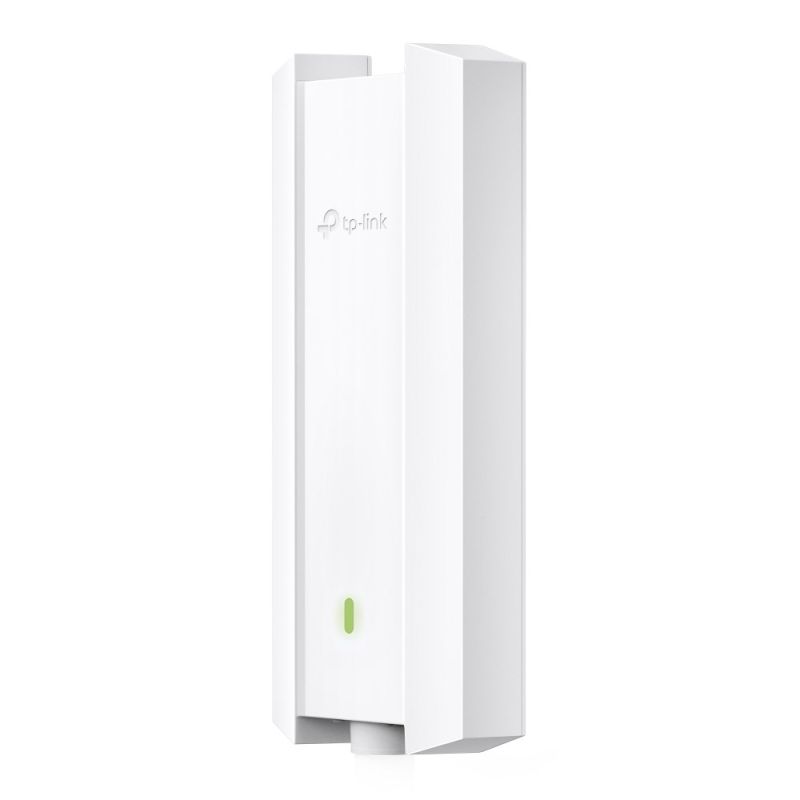

Access Point TP-Link Omada EAP623-Outdoor HD 1800Mbit/s White
Access Point TP-Link Omada EAP623-Outdoor HD 1800Mbit/s White
Sign up and unlock up to 10% off!
- Characteristics
- Maximum data transfer rate (5 GHz): 1201 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
- Band Control: Yes
- Automatic channel selection: Yes
- Quality of Service (QoS) Support: Yes
- Automatic Channel Scan: Yes
- Frequency Limit: Yes
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s
- MIMO Type: Multi User MIMO
- Airtime Fairness (ATF): Yes
- Transmit power (CE): < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
- Number of users: 1020 users
- 6GHz: No
- Transmit power (FCC): < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
- BeamForming: Yes
- VLAN support: Yes
- Communication standards
- IEEE 802.11a
- IEEE 802.11ax
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11ac
- Frequency band: 2.4 - 5 GHz
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- 2.4GHz: Yes
- Maximum data transfer speed: 1800 Mbit/s
- ALTHOUGH: Yes
- 5GHz: Yes
- Design
- Purpose: Rod
- Product color: White
- Reset button: Yes
- LEDs: Yes
- Power
- Supported Power over Ethernet (PoE) type: Passive PoE
- PoE Support: Yes
- Weight and dimensions
- Product depth: 106.5 mm
- Product width: 280.4 mm
- Product height: 56.8 mm
- Security
- Access Control List (ACL): Yes
- Remote Dial-Up Authentication Service (RADIUS): Yes
- Encryption/Security
- SSH
- SNMPv2
- SNMP
- SNMPv3
- MAC address filtering: Yes
- Management features
- Syslog: Yes
- Website management: Yes
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): -30 - 70 °C
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 10 - 90%
- Package contents
- Mounting kit: Yes
- Number of pieces: 1
- Quick Start Guide: Yes
- Ports and interfaces

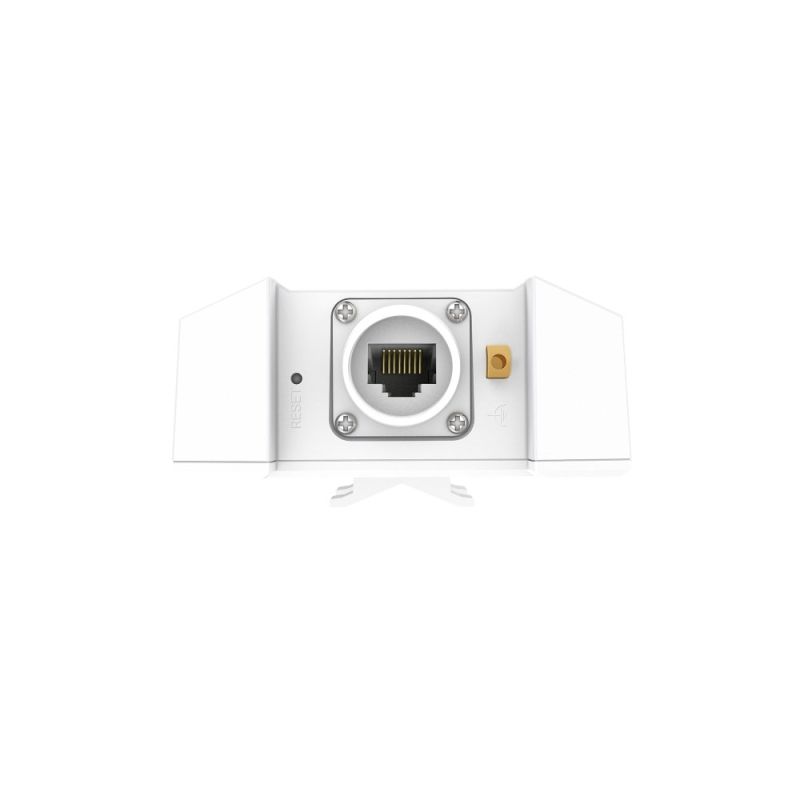

- Number of Ethernet LAN ports (RJ-45): 1
- Antenna
- Number of antennas: 2
- Antenna Features: Integrated Antenna
- Antenna Direction Type: Omnidirectional Antenna
- Antenna type: Internal
- Safety warning
- Warnings
- Electronic products should be recycled at specialized electronic waste collection points.
- Avoid direct contact with water.
- Do not expose to moisture for long periods.
