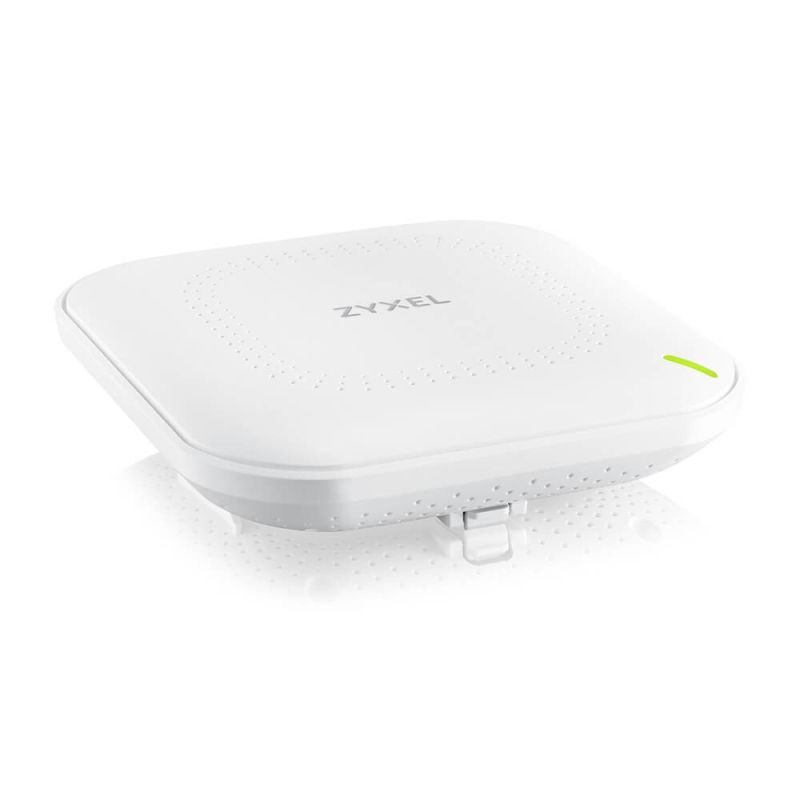

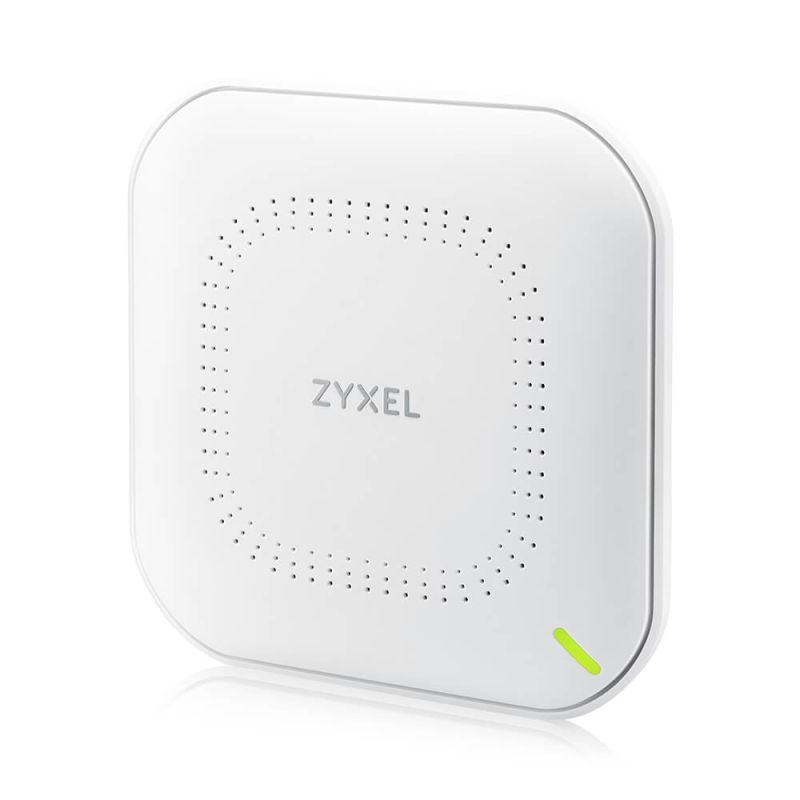

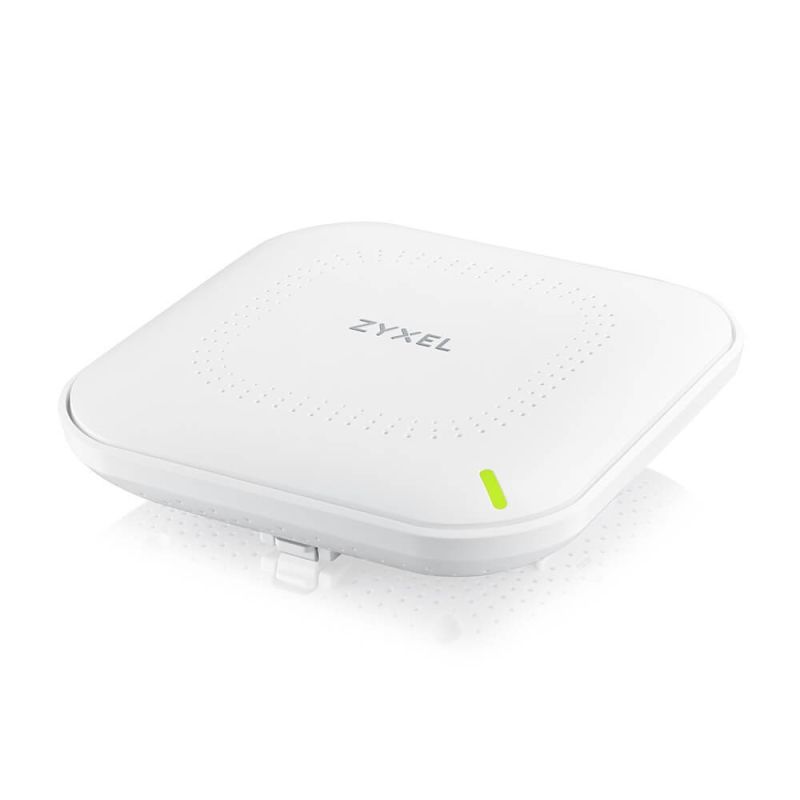

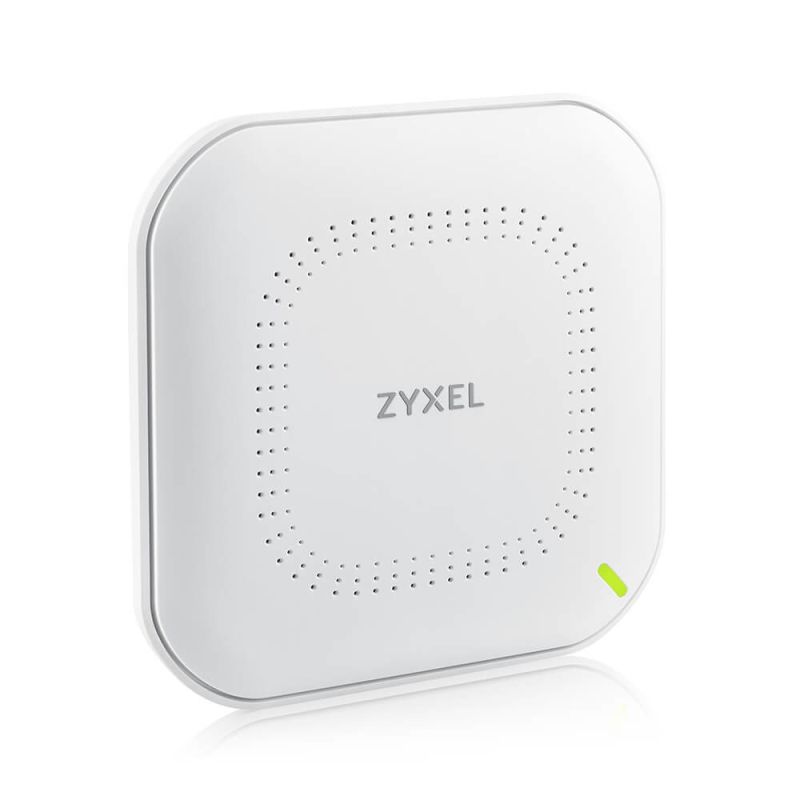

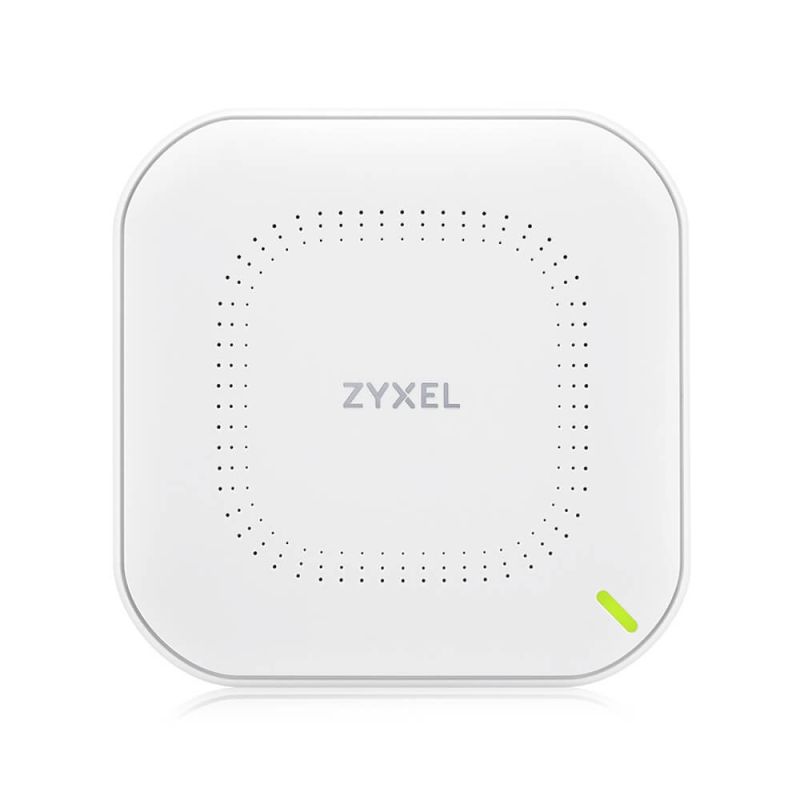

Access Point Wi-Fi 6 Zyxel NWA90AXPRO 2.4GHz(2x2)/5GHz(3x3) PoE+/PoE++
Access Point Wi-Fi 6 Zyxel NWA90AXPRO 2.4GHz(2x2)/5GHz(3x3) PoE+/PoE++
Sign up and unlock up to 10% off!
- Characteristics
- Communication standards
- IEEE 802.11g
- IEEE 802.11ac
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11ax
- IEEE 802.11a
- Maximum data transfer rate (5 GHz): 2400 Mbit/s
- Wi-Fi Multimedia (WMM) / (WME): Yes
- ALTHOUGH: Yes
- Maximum data transfer rate (2.4 GHz): 575 Mbit/s
- VLAN support: Yes
- 2.4GHz: Yes
- Data transfer speed via Ethernet LAN
- 1000 Mbps
- 2500 Mbps
- 5GHz: Yes
- Maximum data transfer speed: 2400 Mbit/s
- MIMO Type: Multi User MIMO
- Communication standards
- Design
- LEDs: Yes
- Intended use: Ceiling
- Product color: White
- Power
- PoE Support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 0.3 A
- Output current: 2 A
- Operating voltage: 12 V
- Weight and dimensions
- Product width: 140 mm
- Product height: 37.5 mm
- Product weight: 352 g
- Product depth: 140 mm
- Security
- Encryption/Security
- EAP
- WPA
- WPA2-Enterprise
- WPA3
- WPA2-PSK
- WPA2
- WEP
- 802.1x RADIUS
- MAC address filtering: Yes
- Encryption/Security
- Management features
- Device software updates: Yes
- Website management: Yes
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 0 - 50 °C
- Permissible relative humidity: 10 - 90%
- Packaging data
- Package depth: 155 mm
- Weight with packaging: 668 g
- Package height: 60 mm
- Package width: 240 mm
- Protocols
- Management protocols: SNMP

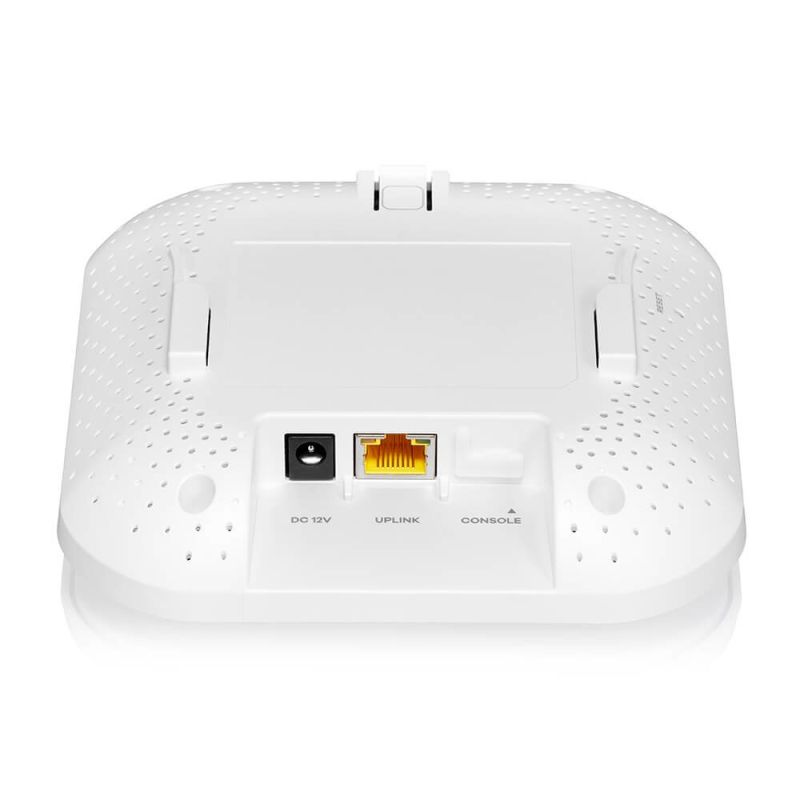

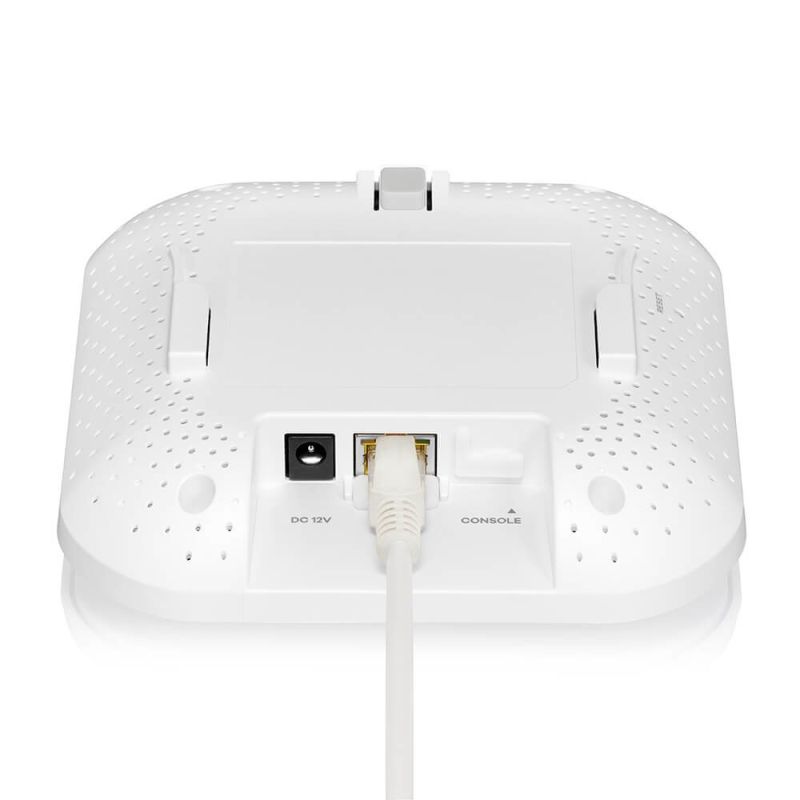

- Ports and interfaces
- DC output socket: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Antenna
- Antenna type: Internal
- Antenna Features: Integrated Antenna
- Number of antennas: 3
- Antenna gain level (max): 4 dBi
- Safety warning
- Warnings
- Risk of electric shock – use caution during installation and use.
- Do not disassemble the device - internal components may be hazardous to the user's health and should only be serviced by qualified personnel.
- Avoid contact with liquids - the device is not waterproof.
- Warnings
