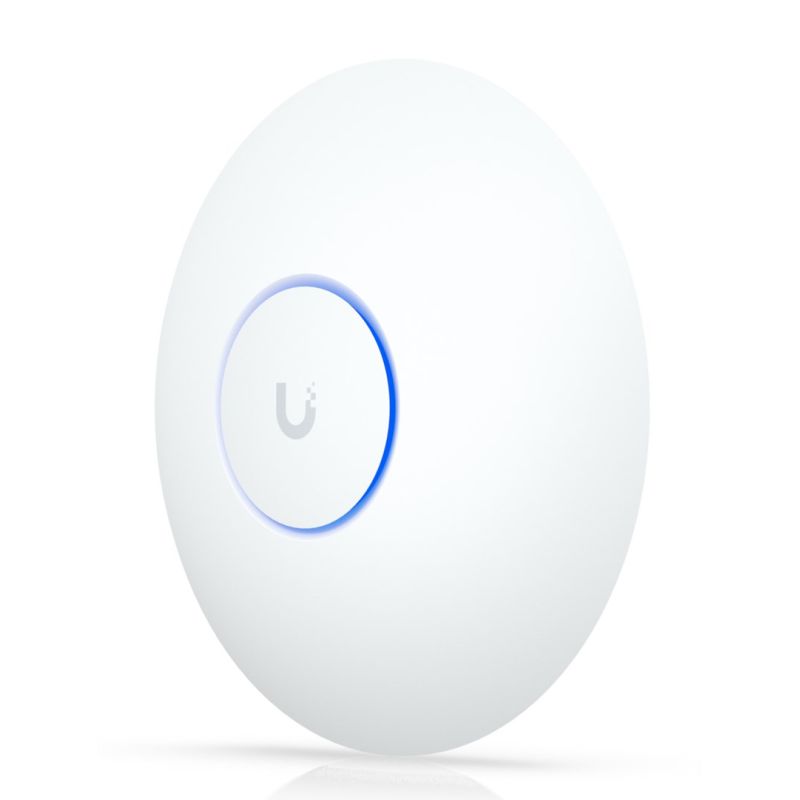

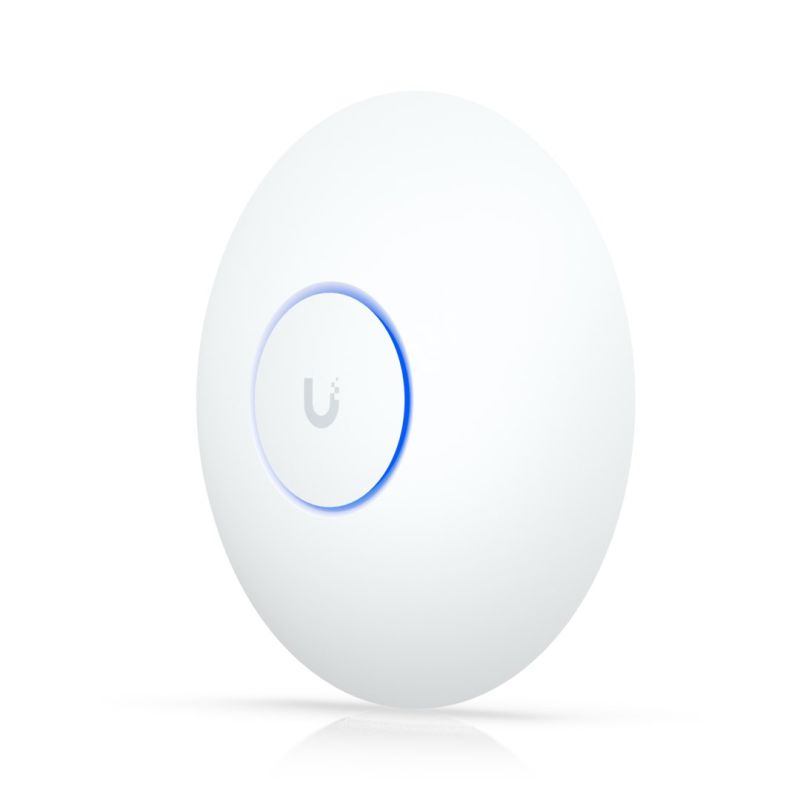

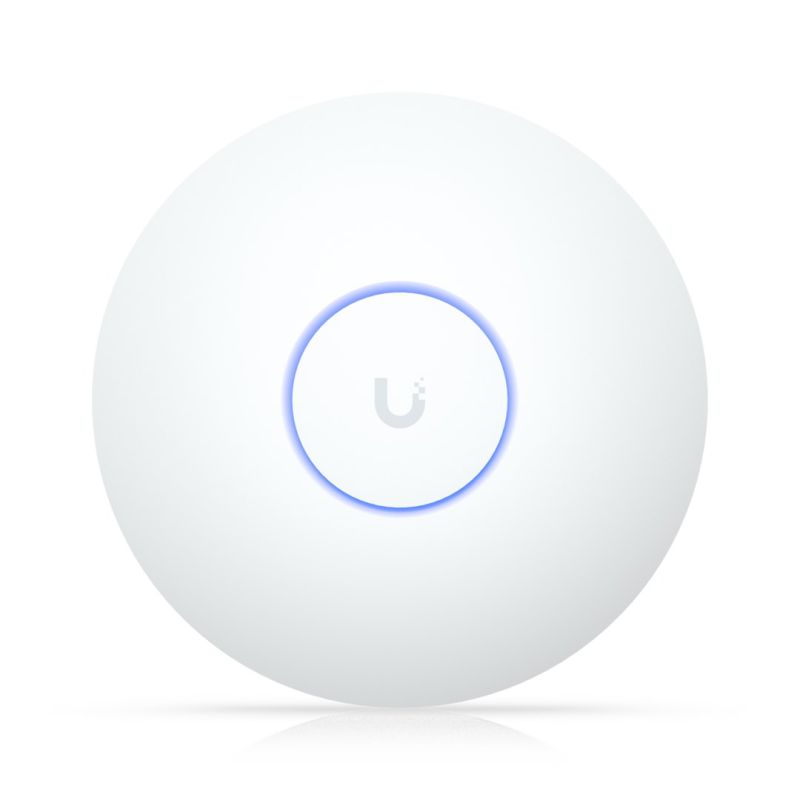

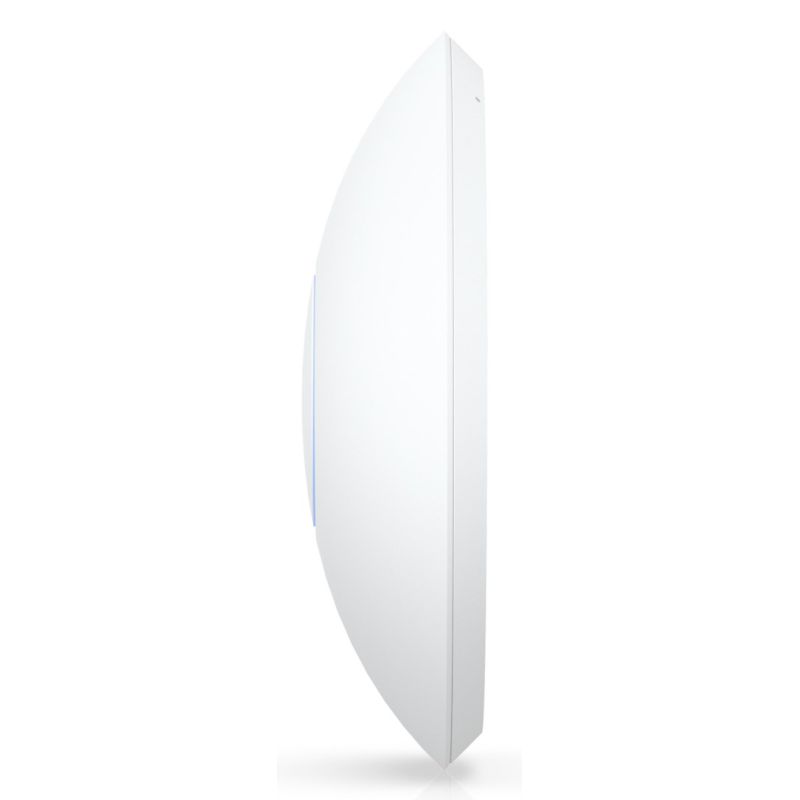

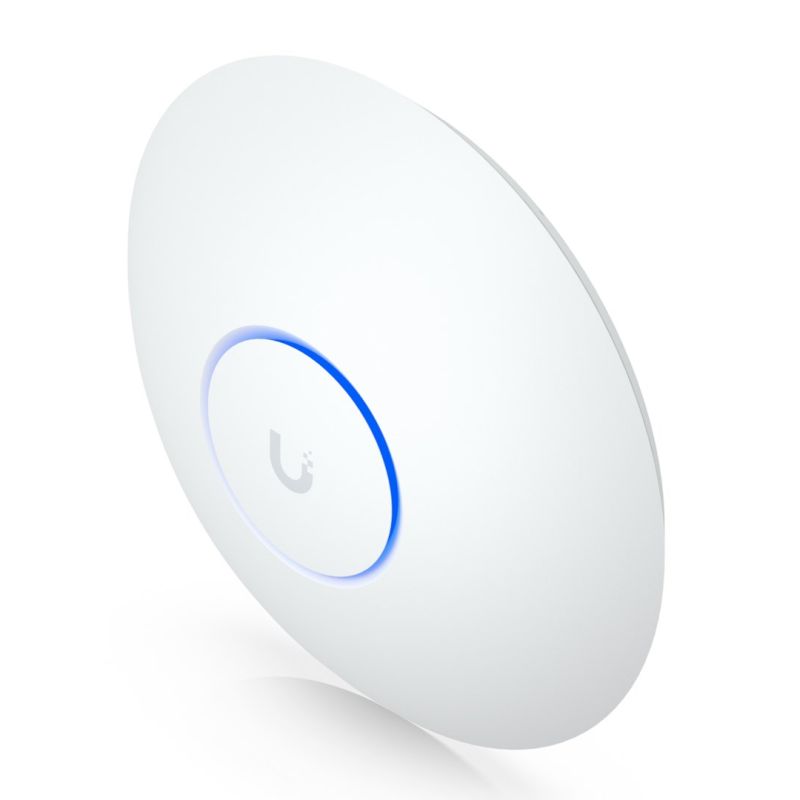

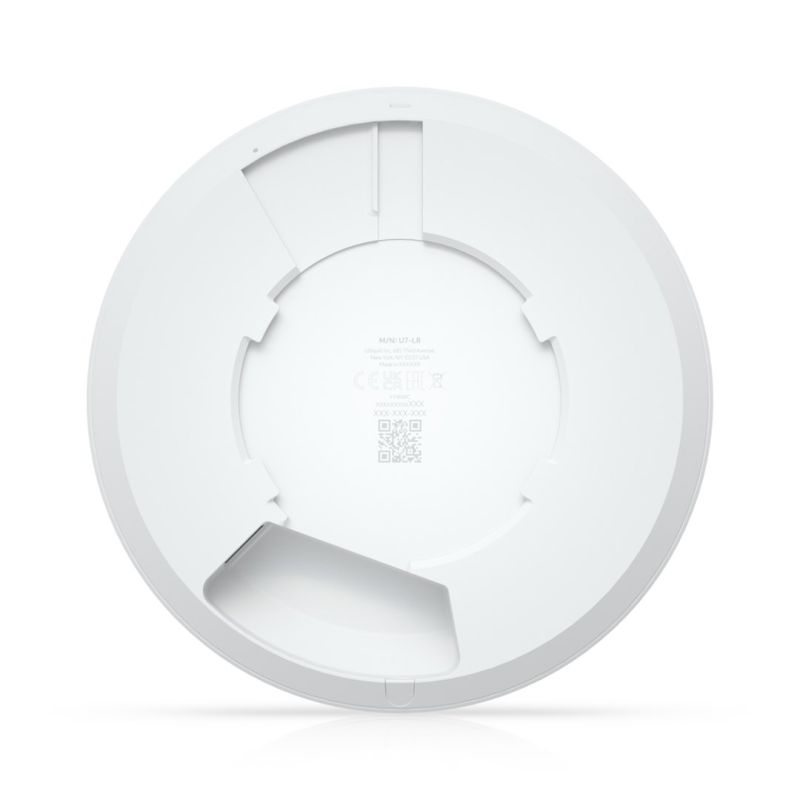

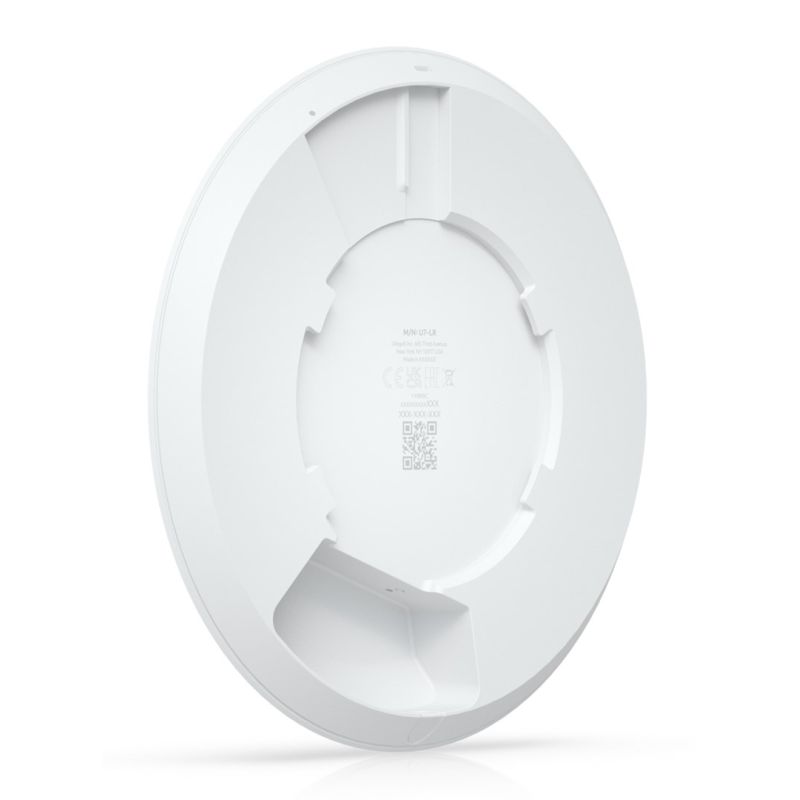

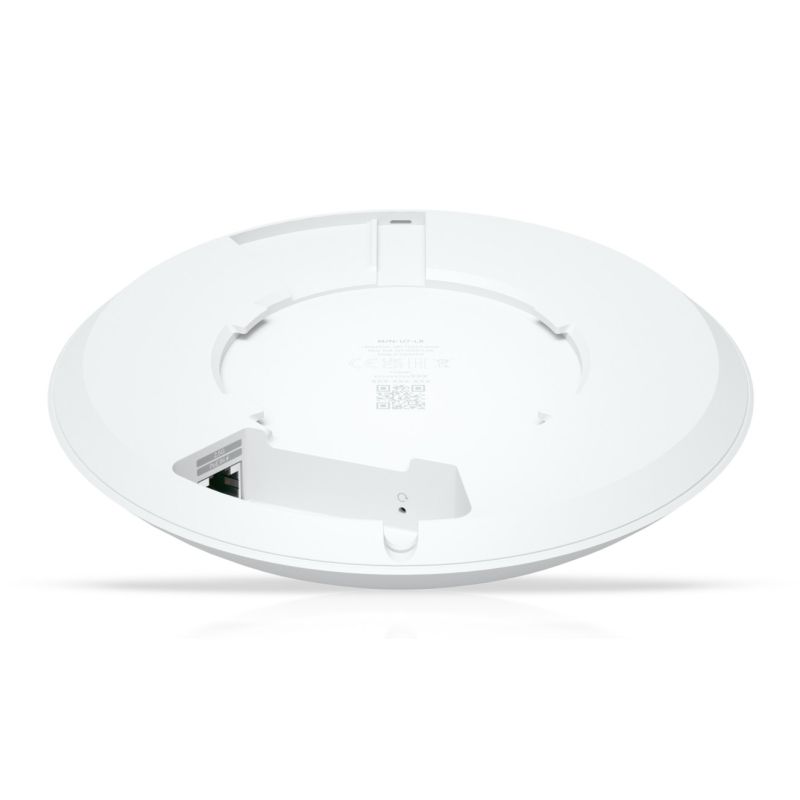

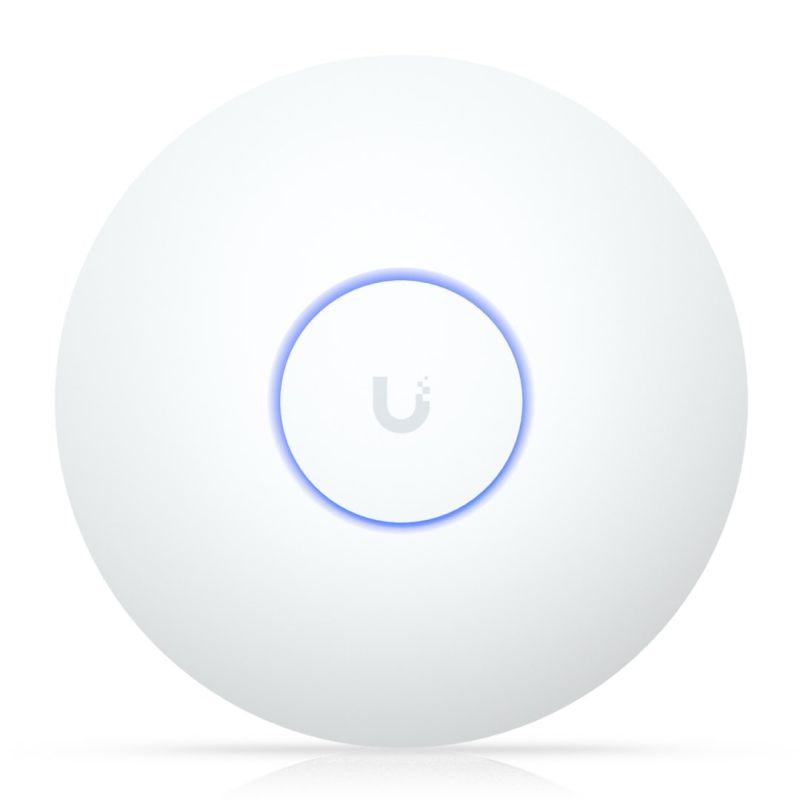

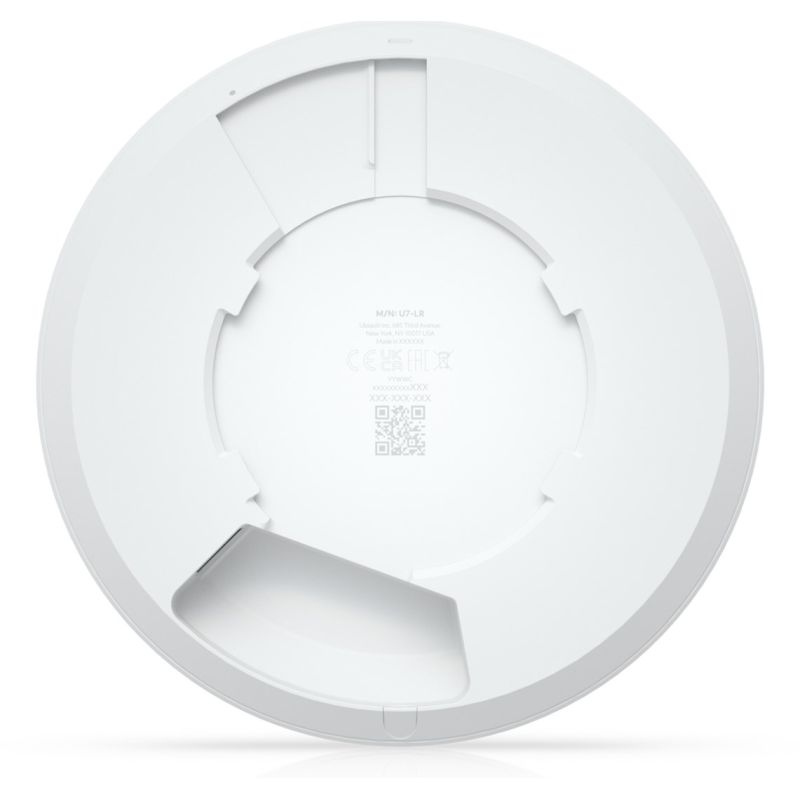

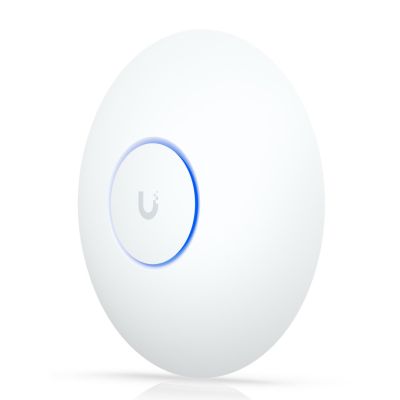

Access Point Wi-Fi 7 Ubiquiti UniFi U7 Long-Range (U7-LR)
Access Point Wi-Fi 7 Ubiquiti UniFi U7 Long-Range (U7-LR)
Sign up and unlock up to 10% off!
- Characteristics
- Match AP mode features: Hotspot 2.0
- Maximum data transfer rate (5 GHz): 4300 Mbit/s
- Maximum data transfer rate (2.4 GHz): 688 Mbit/s
- Band Control: Yes
- Number of users: 300 users
- MIMO Type: Multi User MIMO
- Frequency Limit: Yes
- Fast roaming: Yes
- VLAN support: Yes
- Maximum transmit power (2.4 GHz): 26 dBmW
- 6GHz: No
- Maximum Tx Power (5 GHz): 27 dBmW
- Spatial streams: 5
- Maximum data transfer rate: 7300 Mbit/s
- Communication standards
- IEEE 802.11v
- IEEE 802.11ax
- IEEE 802.11k
- IEEE 802.11ac
- IEEE 802.11n
- IEEE 802.11be
- IEEE 802.11r
- Data transfer speed via Ethernet LAN
- 2500 Mbps
- 1000 Mbps
- Frequency band: 2.4 - 5 GHz
- 2.4GHz: Yes
- ALTHOUGH: Yes
- 5GHz: Yes
- Wireless connection: Yes
- Coverage area: 160 m²
- Design
- Intended use: Ceiling, Wall
- LEDs: Yes
- Housing material: Aluminum, Polycarbonate (PC)
- Reset button: Yes
- Product color: White
- Power
- DC voltage range: 42.5 - 57 V
- PoE Support: Yes
- Power consumption (max): 14 W
- Weight and dimensions
- Product weight: 448 g
- Product depth: 175.7 mm
- Product width: 175.7 mm
- Product height: 43 mm
- Security
- Encryption/Security
- TLS
- PPSK
- Remote Dial-Up Authentication Service (RADIUS): Yes
- Encryption/Security
- Management features
- Access Point Management: Wi-Fi Schedule
- Working conditions
- Temperature range (operation): -30 - 50 °C
- Relative humidity range: 5 - 95%
- Package contents
- Number of pieces: 1

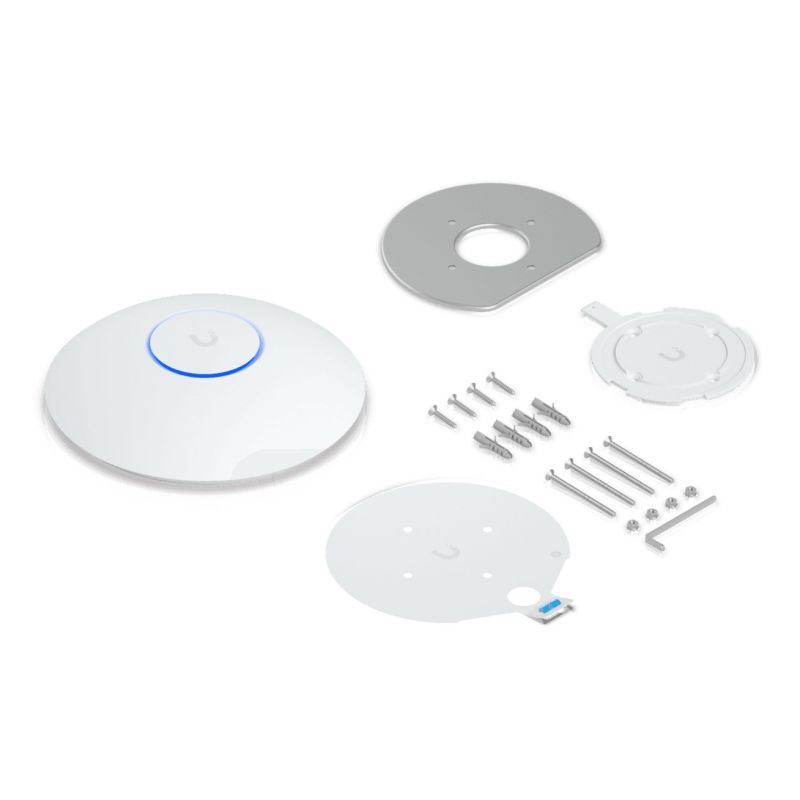

- Mounting kit: Yes
- Certificates
- Certificates of conformity
- Federal Communications Commission (FCC)
- Industry Canada (IC)
- National Defense Authorization Act (NDAA)
- CE
- Certificates of conformity
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Antenna
- Antenna gain level (max): 6 dBi
- Antenna type: Internal
| Name | Details |
|---|---|
| Producer | UBIQUITI |
