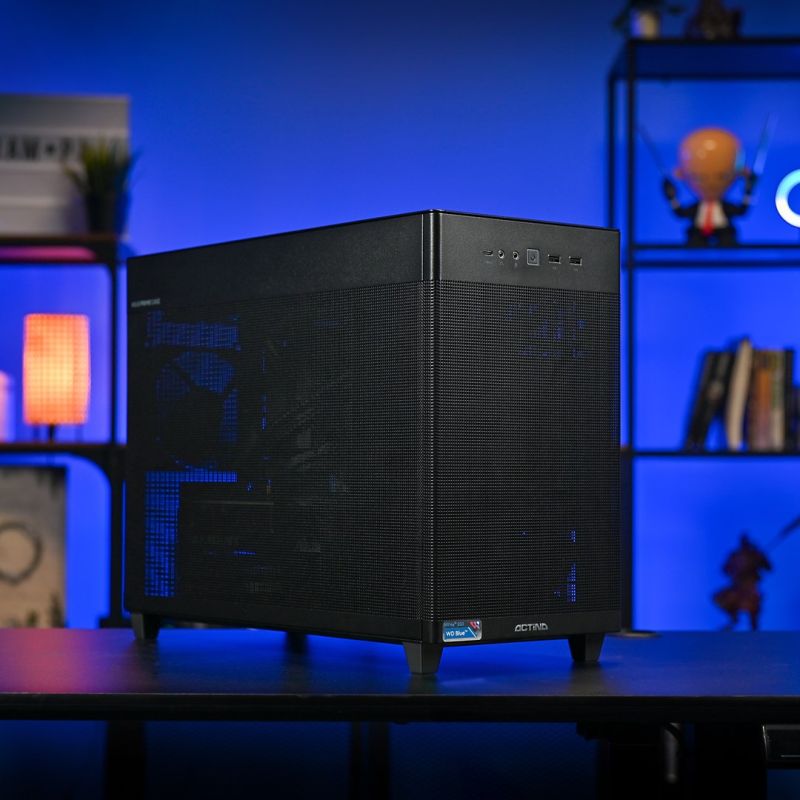

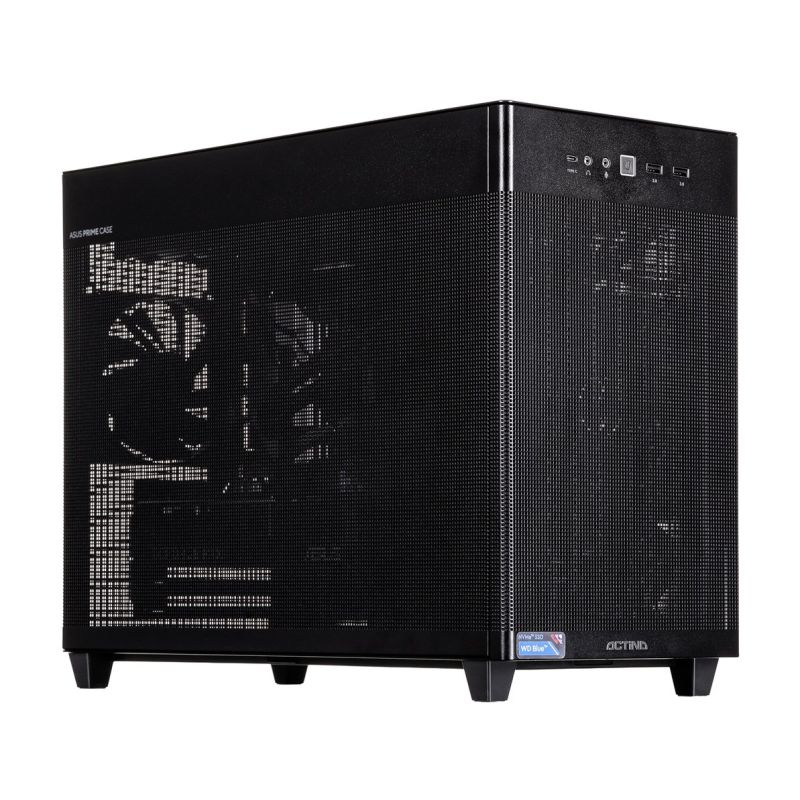

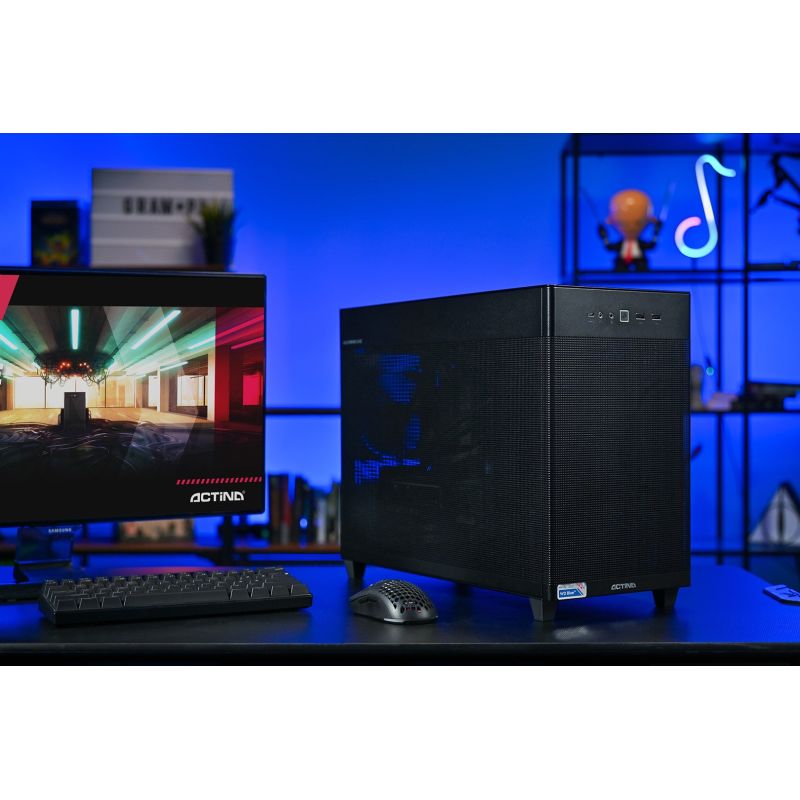

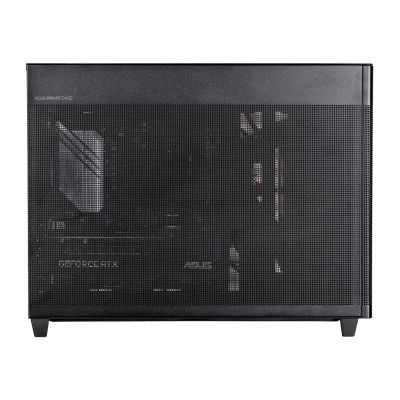

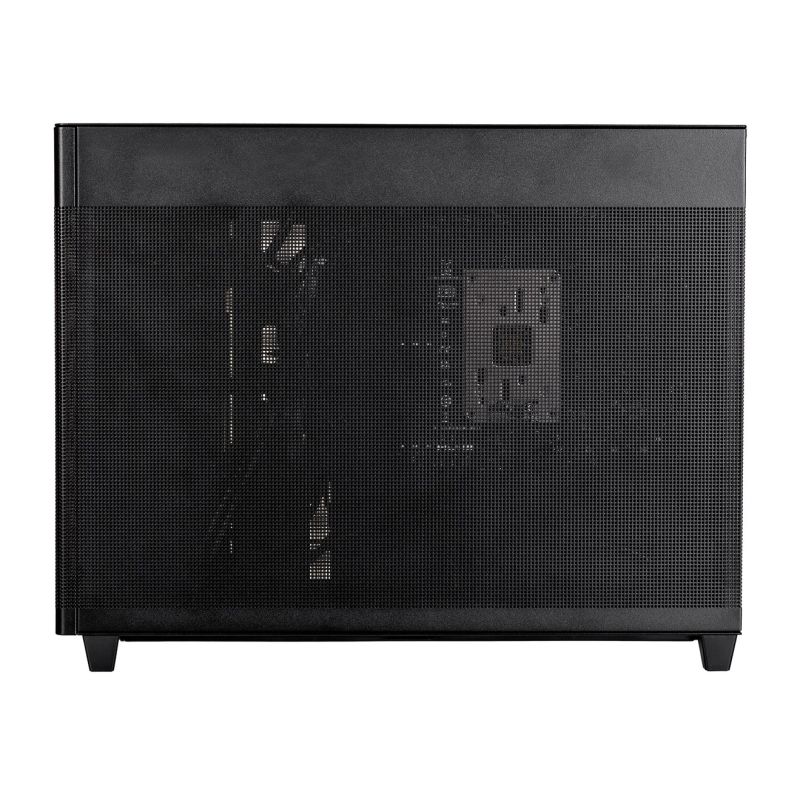

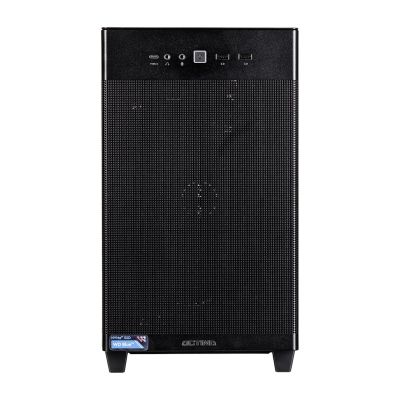

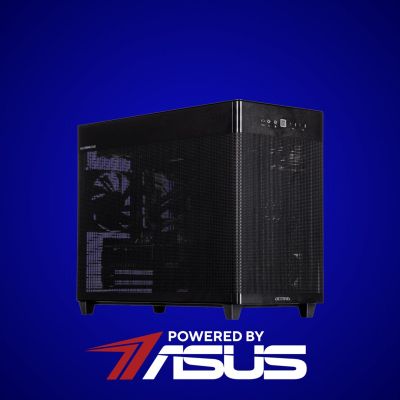

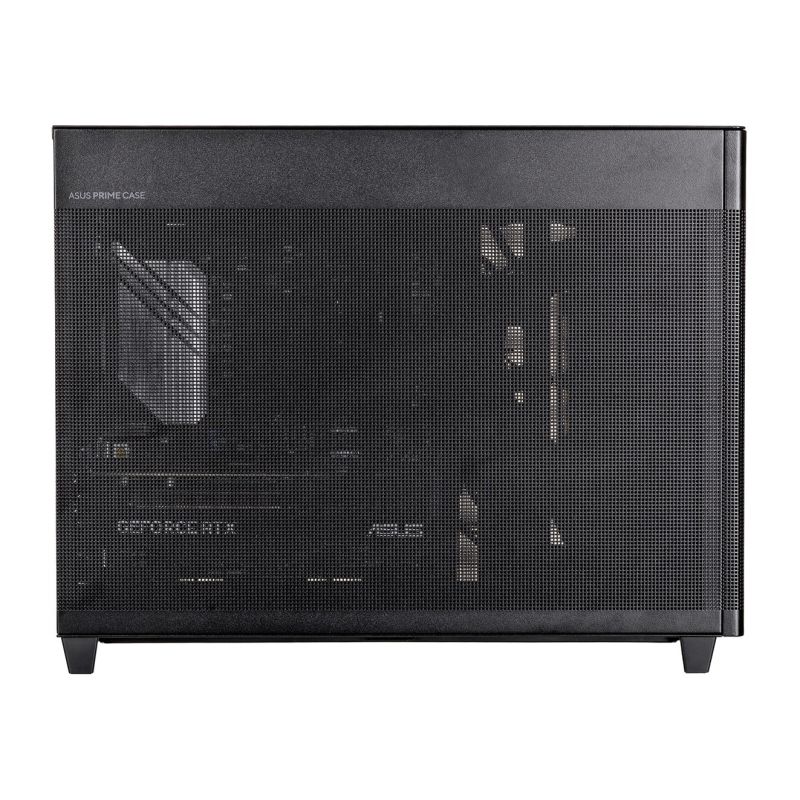

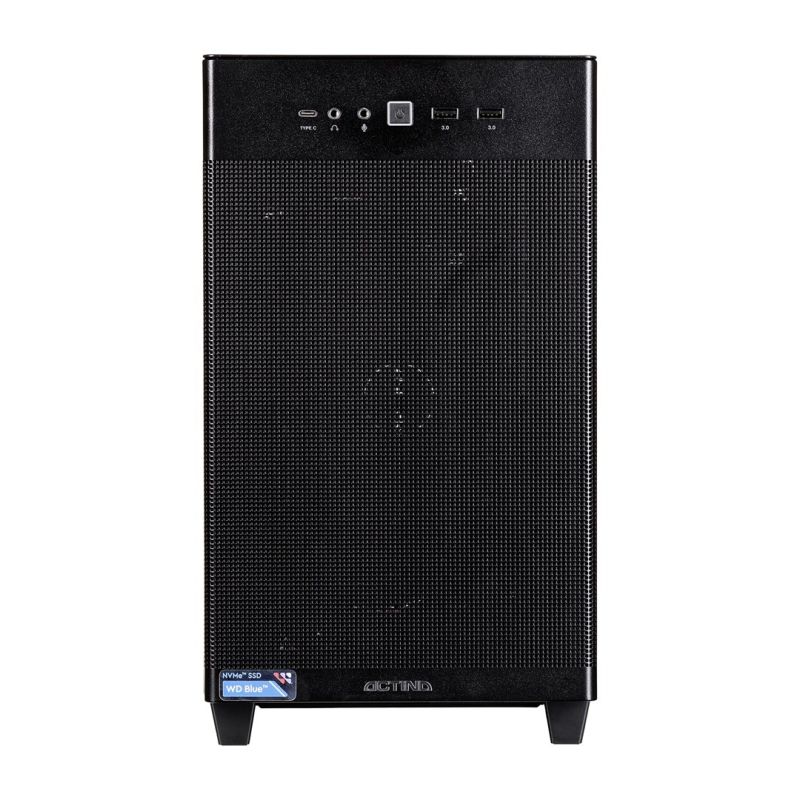

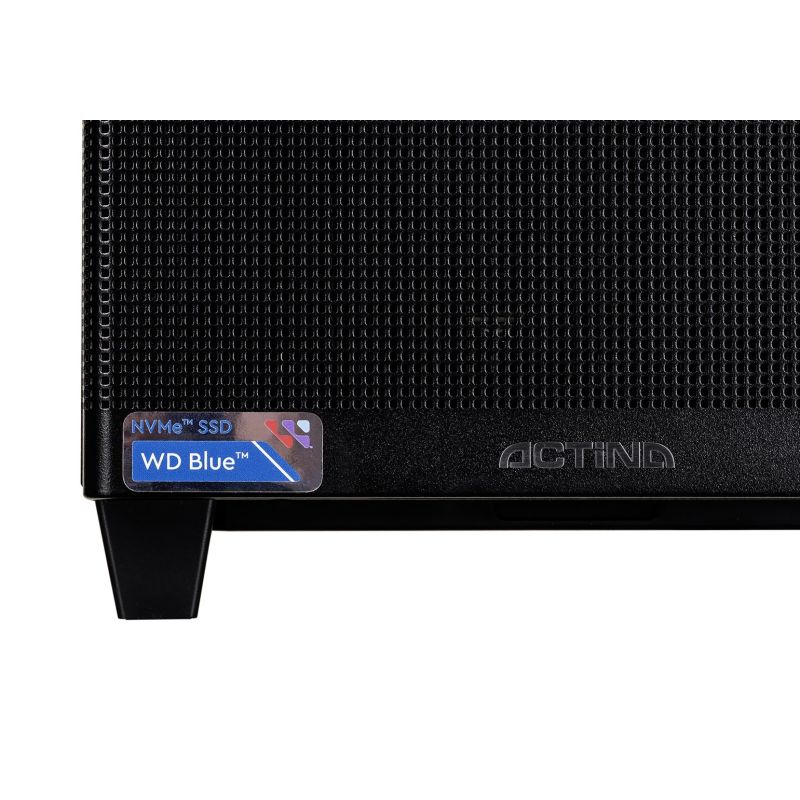

Actina PBA 245/32GB/1TB/RTX5060Ti/650W
Actina PBA 245/32GB/1TB/RTX5060Ti/650W
Sign up and unlock up to 10% off!
- Processor
- Maximum processor clock speed: 5.2 GHz
- Performance-Core Max Turbo Frequency: 4.6 GHz
- Processor generation: Intel Core Ultra (Series 2)
- Number of processor cores: 14
- Performance-Core Max Turbo Frequency: 5.2 GHz
- Processor Cache: 24 MB
- Processor type: Intel Core Ultra 5
- Number of threads: 14
- Processor model: 245KF
- Processor memory type: Smart Cache
- Processor manufacturer: Intel
- Processor clock speed: 3.8 GHz
- Base CPU power: 125 W
- Maximum turbo power: 159 W
- High-performance core base frequency
- 3.6 GHz
- 4.2 GHz
- Efficient cores: 6
- Number of processors: 1
- Processor socket: LGA 1851 (Socket V1)
- Effective cores: 8
- Graphics
- Dedicated graphics card model: NVIDIA GeForce RTX 5060 Ti
- CUDA Technology: Yes
- Built-in graphics card model: Not available
- NVIDIA GameWorks VR: Yes
- Ray tracing acceleration: Yes
- NVIDIA G-SYNC: Yes
- Built-in graphics card: No
- Graphics card memory: 16 GB
- Number of graphics card HDMI ports: 1
- Number of dedicated graphics cards: 1
- Number of DisplayPort ports on the graphics card: 3
- Dedicated graphics card type: GDDR7
- Dedicated graphics card: Yes
- Dedicated GPU manufacturer: NVIDIA
- Memory
- Maximum memory capacity: 256 GB
- RAM: 32 GB
- RAM type: DDR5-SDRAM
- Memory clock speed: 6000 MHz
- Memory Channel Support: Dual Channel
- Memory chip: 2 x 16 GB
- Memory slots: DIMM x 4
- Design
- Product color: Black
- VESA Standard: No

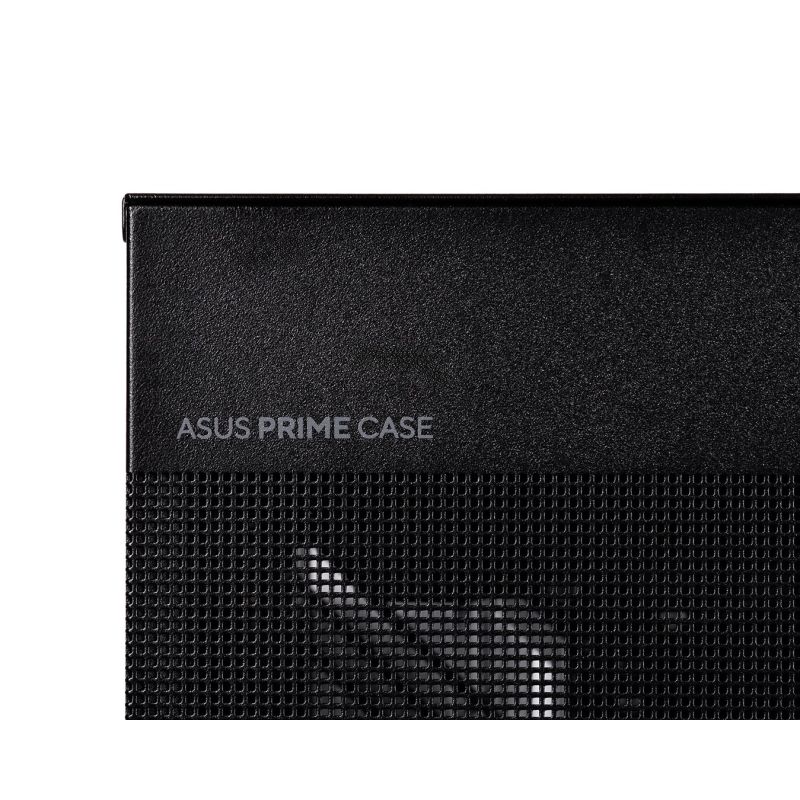

- Case: Mini Tower
- Number of 3.5" bays: 3
- Number of 2.5" bays: 1
- Renovated: No
- Window: No
- Water cooling system: No
- Housing material: Metal, Plastic
- Power
- Power supply: 650 W
- 80 PLUS Certificate: 80 PLUS Bronze
- Power supply input voltage: 100-240 V
- Weight and dimensions
- Product weight: 10 kg
- Product width: 205 mm
- Product depth: 460 mm
- Product height: 350 mm
- Network
- LAN controller: Realtek RTL8125-BG
- Data transfer speed via Ethernet LAN
- 2500
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Antenna type: 2x2
- Bluetooth: Yes
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- 802.11b
- Bluetooth version: 5.3
- Wi-Fi: Yes
- Cabling technology: 10/100/1000Base-T(X)
- Wired LAN: Yes
- Efficiency
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC897
- Motherboard Layout: Intel B860
- Motherboard format: Micro ATX
- Powered by: ASUS
- Product type: PC
- Virtual Reality Support: Yes
- Market positioning: Gaming
- Package contents
- Keyboard included: No
- Mouse Included: No
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 1
- Display
- Display Included: No
- Software
- Installed operating system: None
- Data carrier
- Number of supported storage drive sizes: 7
- Total disk capacity: 1 TB
- M.2 SSD Size: 2280 (22 x 80 mm)
- Integrated card reader: No
- Optical drive: No
- Media: SSD
- Number of installed drives: 1
- Total SSD capacity: 1 TB
- NVMe: Yes
- Intel® Optane™ memory module installed: No
- SSD storage capacity: 1 TB
- Number of SSDs installed: 1
- SSD storage interface: PCI Express
- SSD type: M.2
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Number of SATA III connectors: 4
- S/PDIF Output Port: No
- Number of DisplayPorts: 3
- Microphone: Yes
- Number of rear audio ports: 3
- Fiber NIC port (Flex I/O): No
- Number of USB 2.0 ports: 2

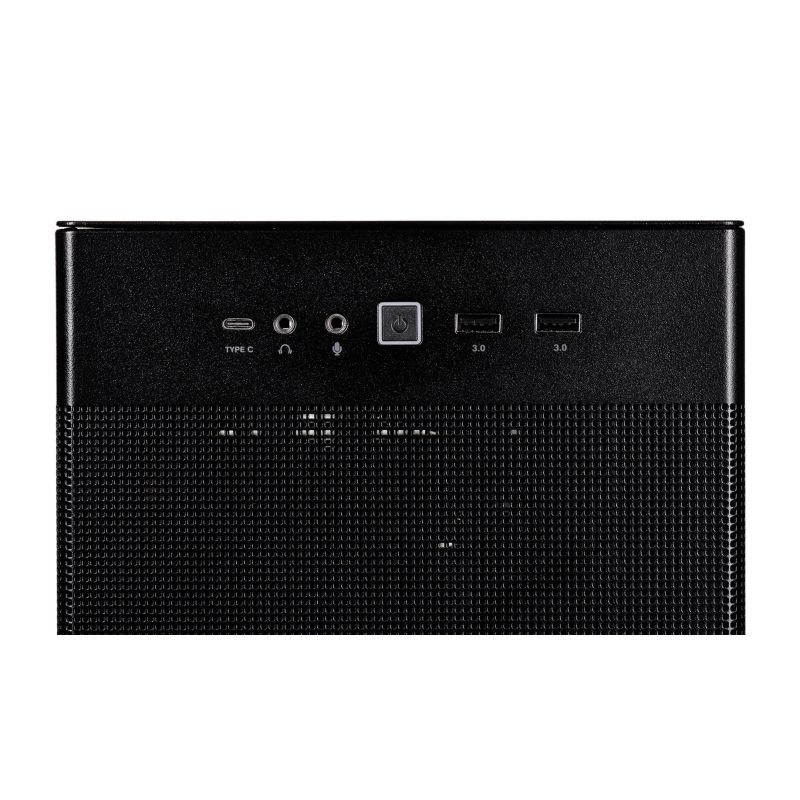

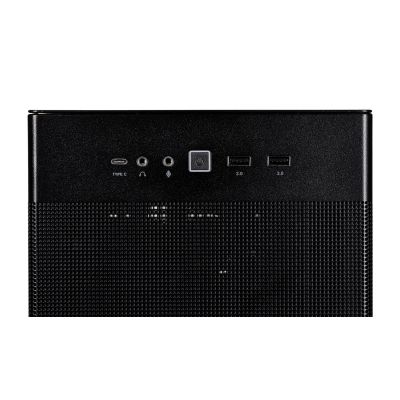

- Number of front USB ports: 3
- DVI Port: No

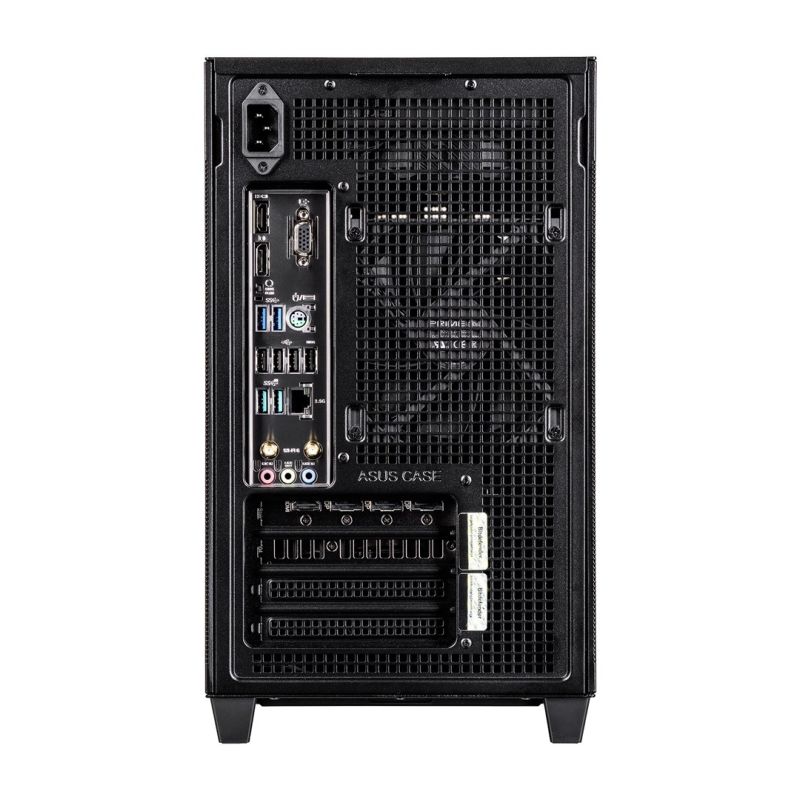

- Number of rear USB ports: 6
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 5
- Number of front audio ports: 2
- Headset/Microphone Combo Port: No
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Headphone outputs: 1
- Line out: Yes
- Intel® Thunderbolt 4 Technology: No
- Line Input: Yes
- Intel® Thunderbolt 5: No
- Other functions
- Built-in microphone: No
- Built-in TV tuner: No
- Neural Processor (NPU)
- Rarity Support: Yes
- Windows Studio Effects Support: Yes
- AI software frameworks powered by NPU
- ONNX RT
- Windows ML
- DirectML
- OpenVINO
- WebNN
- AI data type support on NPU: Int8
- NPU Performance up to: 13 TOPs
- Neural Processing Unit (NPU): Intel AI Boost
- Total CPU Performance Up to: 22 TOPs
| Name | Details |
|---|---|
| Producer | Actina |
