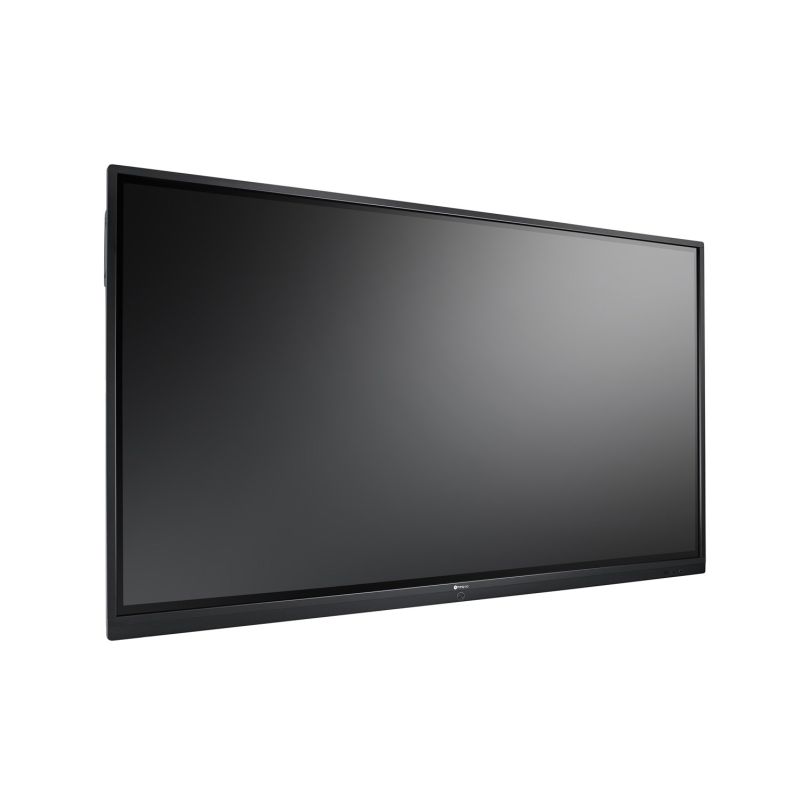

AG NEOVO INTERACTIVE MONITOR 75 INCHES IFP-7502
AG NEOVO INTERACTIVE MONITOR 75 INCHES IFP-7502
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity: RoHS
- Characteristics
- Wall mountable: Yes
- Design
- Mounting type: Wall
- Product type: Interactive flat panel
- VESA Standard: Yes
- Product color: Black
- Intended use: Internal
- Panel mounting interface: 800 x 400 mm
- Power
- Power consumption in standby mode: 0.5 W
- AC input voltage: 100 - 240 V
- Off mode: 0.3 W
- Power consumption: 165 W
- AC input frequency: 50 - 60 Hz
- Energy efficiency class (HDR): A
- Energy efficiency scale: A +++ to D
- Energy efficiency class (SDR): A
- Energy consumption (SDR) per 1000 hours: 240 kWh
- Weight and dimensions
- Display height: 1020 mm
- Display depth: 86 mm
- Display width: 1710 mm
- Display weight: 50.6 kg
- Working conditions
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 10 - 90%
- Temperature range (storage): -20 - 60 °C
- Temperature range (operation): 0 - 40 °C
- Efficiency
- Purpose: Television advertising
- Packaging data
- Package width: 1860 mm
- Packaging depth: 280 mm
- Weight with packaging: 72.9 kg
- Package height: 1140 mm
- Package contents
- Wires
- USB
- Alternating current
- HDMI
- Batteries included: Yes
- Mounting kit: Yes
- Remote control included: Yes
- Remote control: Infrared
- Wires
- Display
- Viewing angle (vertical): 178°
- Screen diagonal: 74.5"
- Horizontal scanning range: 30 - 80 kHz
- HD type: 4K Ultra HD
- Horizontal viewing angle: 178°
- Response time (typical): 5 ms
- Display colors: 1.073 billion colors
- Touchscreen: Yes
- Resolution: 3840 x 2160 px
- LED backlight: Yes
- Native aspect ratio: 16:9
- Spot size: 0.43 x 0.43 mm
- Scanning range (length): 50 - 76 Hz
- Contrast ratio (typical): 1100:1
- Number of simultaneous touch points: 20
- Surface hardness: 8H
- Haze index: 28%
- Matrix type: IPS
- Screen diagonal length (cm): 189 cm
- Multi-touch: Yes
- Touchscreen technology: Infrared
- Display technology: LCD
- Brightness: 350 cd/m²
- RGB color space: NTSC
- Audio
- Number of built-in speakers: 2
- Output power (RMS): 32 W
- Built-in speakers: Yes
- Ports and interfaces
- Number of HDMI ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- RS232 connector: Yes
- HDMI version: 2.0
- Wired LAN: Yes
- Wi-Fi: Yes
- USB port: Yes
- DVI Port: No
- Number of HDMI input ports: 3
- Number of HDMI output ports: 1
- VGA (D-Sub) inputs: 1
- USB Version: 2.0/3.2 Gen 1 (3.1 Gen 1)
- Number of USB ports: 6
- Logistics data
- Harmonized System (HS) code: 85285210
- Computer system
- Number of processor cores: 4
- Built-in processor: Yes
- Installed operating system: Android 8.0
- Supported Windows operating systems
- Windows Vista
- Windows XP
- Windows 8
- Windows 10
- Windows 2000
- Windows 11
- Windows 7
- Mac operating systems supported: Yes
- RAM: 3 GB
- Built-in memory: 16 GB
- Processor architecture: ARM Cortex-A53+Cortex-A73
- Computer system type: System on Chip (SoC)
- Computer system: Yes
| Name | Details |
|---|---|
| Producer | AG Neovo |
