Akyga AK-B1-420 Power Supply (420 W; Passive; 120 mm)
Akyga AK-B1-420 Power Supply (420 W; Passive; 120 mm)
Akyga AK-B1-420 Power Supply (420 W; Passive; 120 mm)
PRICE:
24,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: RoHS
- Design
- Product color: Gray

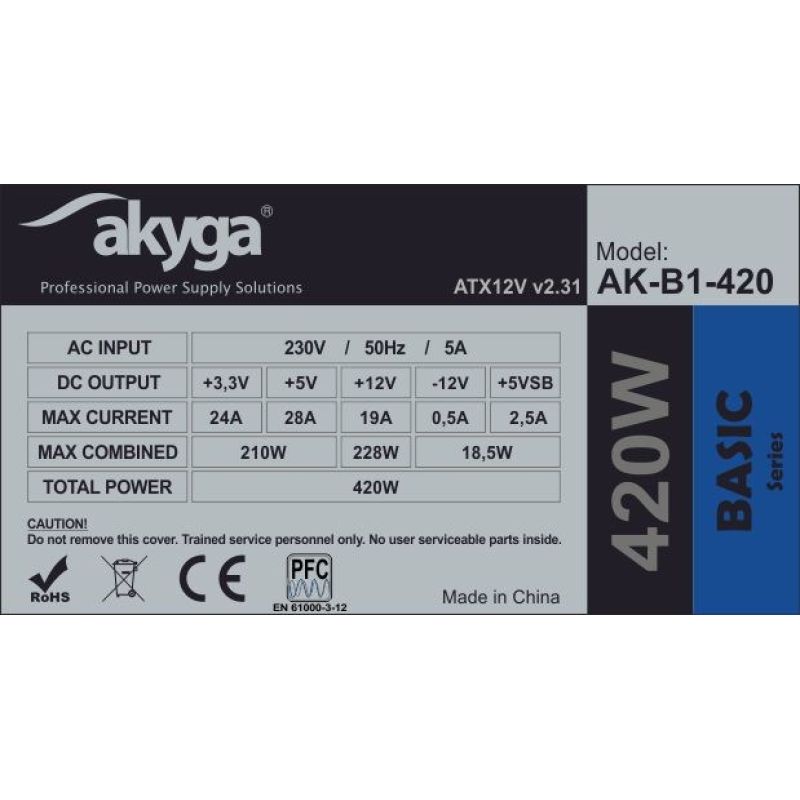

- Power
- Maximum output current (+3.3V): 24 A
- Total power (-12V): 18.5 W
- Total power: 420 W
- AC input voltage: 230 V
- Total power (+3.3V): 210 W
- Power protection features
- Protection against overvoltage
- Overcurrent
- Overload protection
- Short circuit
- Low voltage protection
- AC input frequency: 50 Hz
- Maximum output current (+5 Vsb): 2.5 A
- Total power (+12V): 228 W
- Input current: 5 A
- Total power (+5V): 210 W
- Total power (+5 Vsb): 18.5 W
- Maximum output current (-12V): 0.5A
- Efficiency: 70%
- Maximum output current (+12V): 19A
- Maximum output current (+5V): 28A
- Weight and dimensions
- Product depth: 140 mm
- Product width: 150 mm
- Product height: 85 mm
- Product weight: 1.04 kg
- Working conditions
- Temperature range (operation): 5 - 50 °C
- Efficiency
- ATX version: 2.31
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- Power supply type (PSU): ATX
- Packaging data
- Packaging type: Box
- Package depth: 196 mm
- Package width: 151 mm
- Weight with packaging: 1.05 kg
- Package height: 86 mm

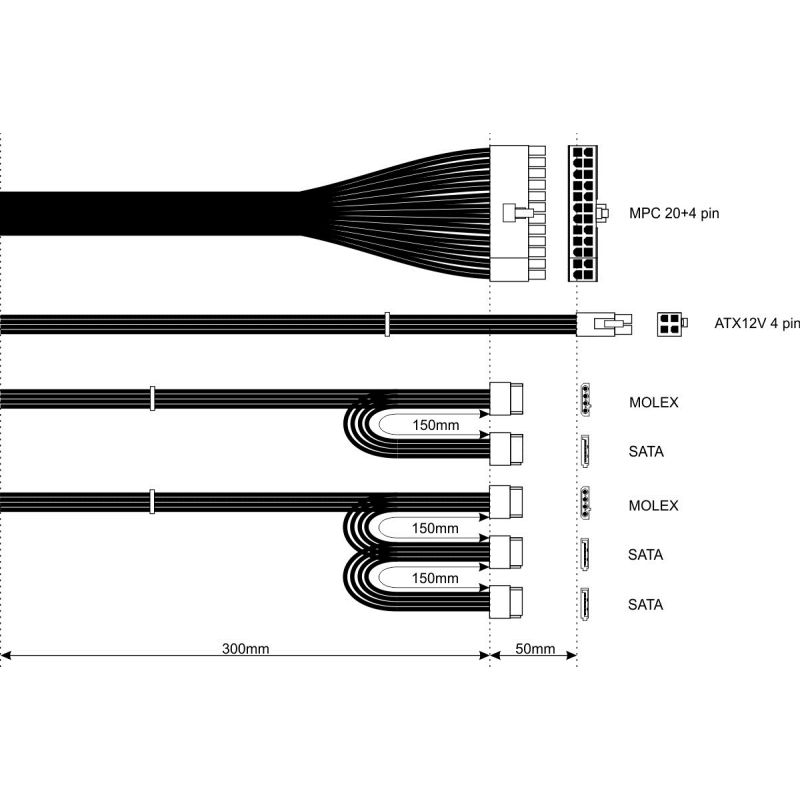

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 2
- P4 CPU connector (4-pin): 1
- ATX Power Supply Connector (20-pin): Yes
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 3
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Warnings
