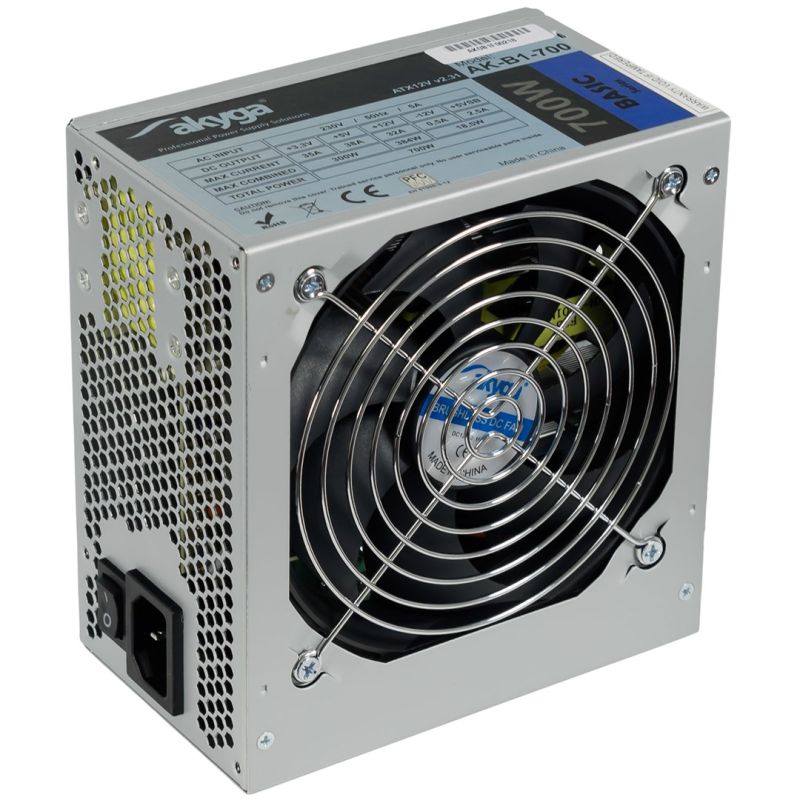

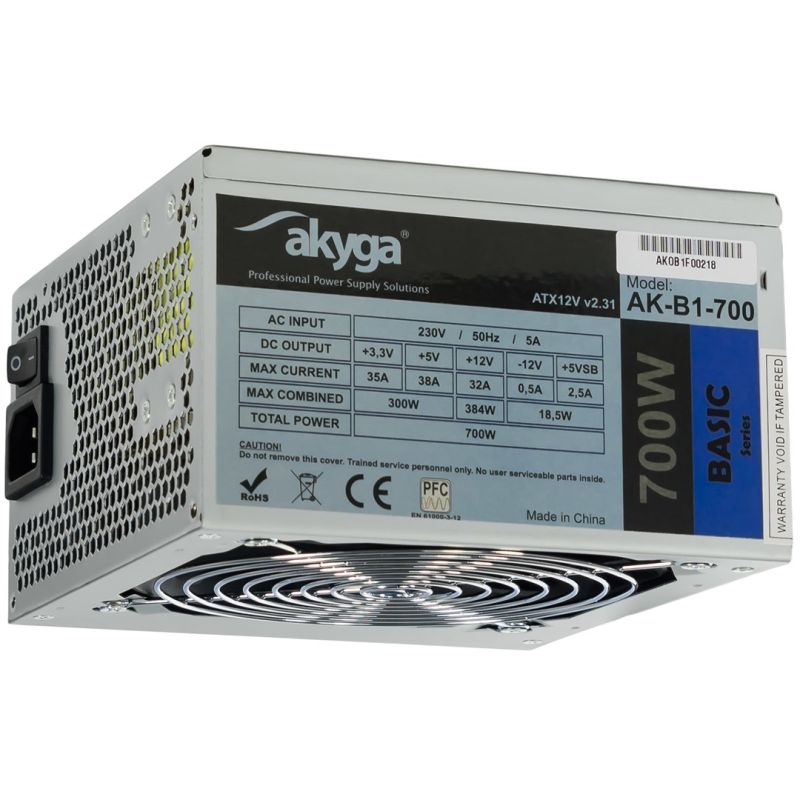

Akyga AK-B1-700 Power Supply (700 W; Passive; 120 mm)
Akyga AK-B1-700 Power Supply (700 W; Passive; 120 mm)
Akyga AK-B1-700 Power Supply (700 W; Passive; 120 mm)
PRICE:
56,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity: RoHS
- Design
- Number of fans: 1 fan
- Built-in switch: Yes
- Product color: Gray
- Fan bowl diameter: 12 cm
- Cooling type: Active
- Fan location: Side

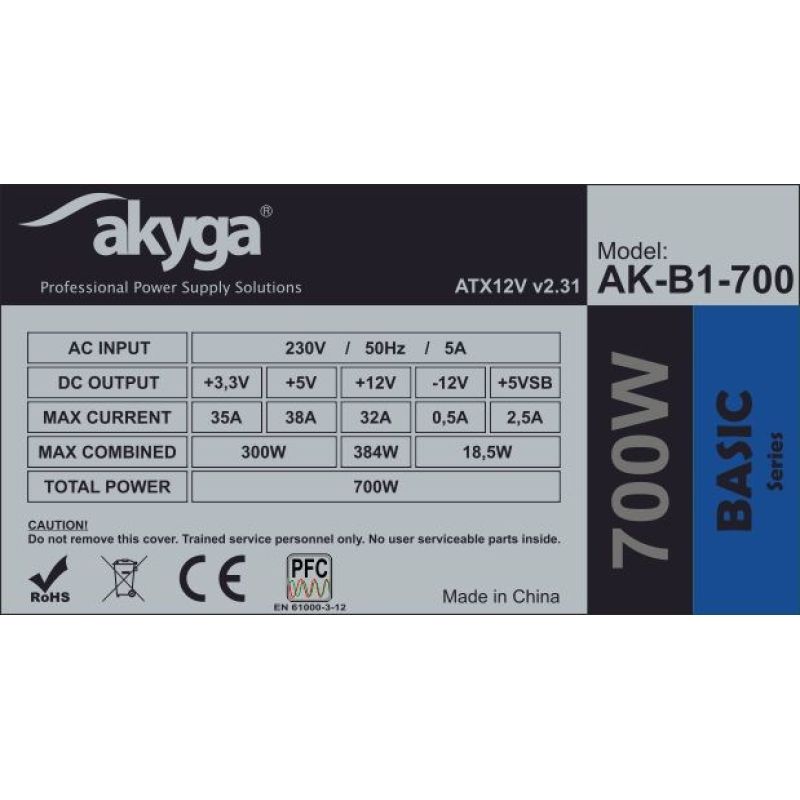

- Power
- Maximum output current (+3.3V): 35 A
- Maximum output current (+5 Vsb): 2.5 A
- Maximum output current (+12V): 32A
- Total power (+12V): 384 W
- AC input frequency: 50 Hz
- PFC (Power Factor Correction) Type: Passive
- Efficiency: 70%
- Total power (+5V): 300 W
- Total power (-12V): 18.5 W
- Total power (+5 Vsb): 18.5 W
- AC input voltage: 220 - 230 V
- Total power: 700 W
- Power protection features
- Overload protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Total power (+3.3V): 300 W
- Maximum output current (-12V): 0.5A
- Maximum output current (+5V): 38A
- Weight and dimensions
- Product width: 150 mm
- Product height: 85 mm
- Product weight: 1.26 kg
- Product depth: 160 mm
- Working conditions
- Temperature range (operation): 5 - 50 °C
- Efficiency
- Power supply type (PSU): ATX
- ATX version: 2.31
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- Packaging data
- Packaging type: Box
- Package depth: 260 mm
- Package width: 180 mm
- Package height: 95 mm
- Weight with packaging: 1.33 kg

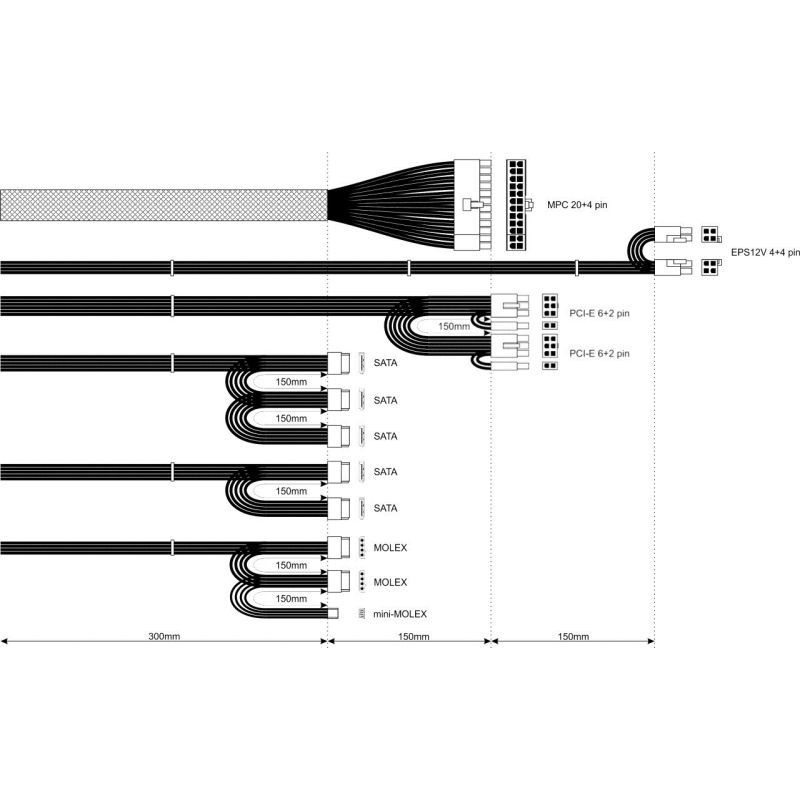

- Ports and interfaces
- Number of SATA power connectors: 5
- Peripheral (Molex) Power Cable Length
- 300
- 150
- SATA power cable length
- 300
- 150
- PCI Express power connectors (6+2 pin): 2
- Wiring Type: Non-Modular
- Peripheral (Molex) Power Connectors (4-pin): 2
- EPS power connector (4+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- PCI Express power cable length: 45 cm
- Motherboard cable length: 45 cm
- Other functions
- EPS cable length: 60 cm
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | Akyga |
