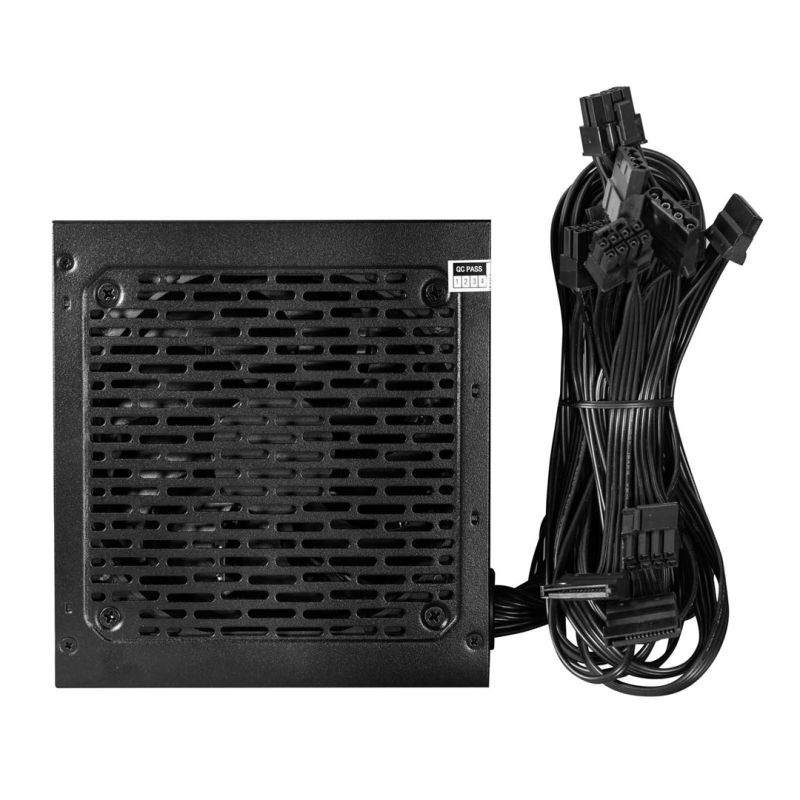

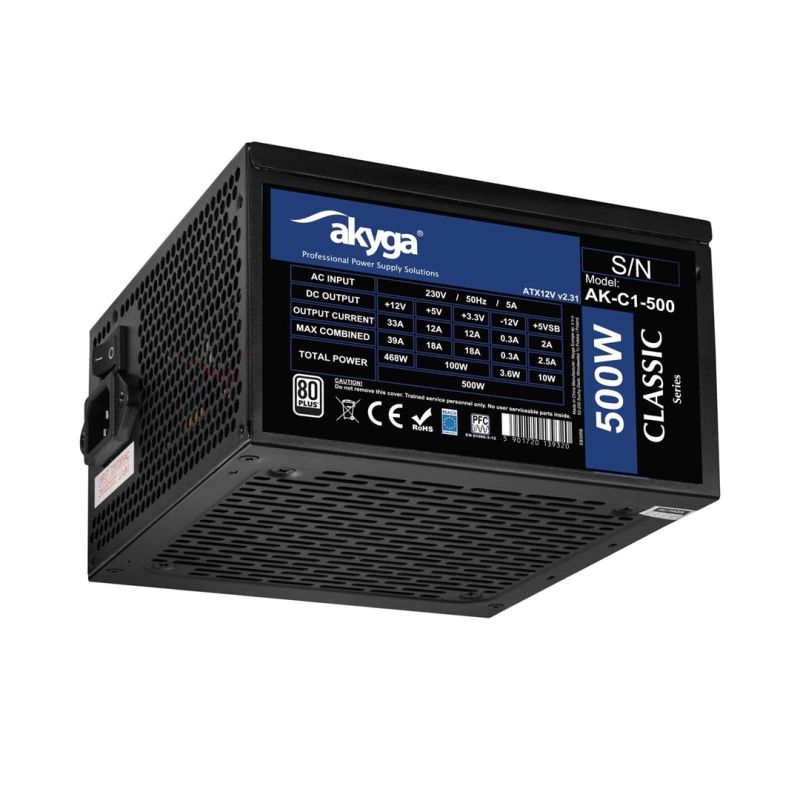

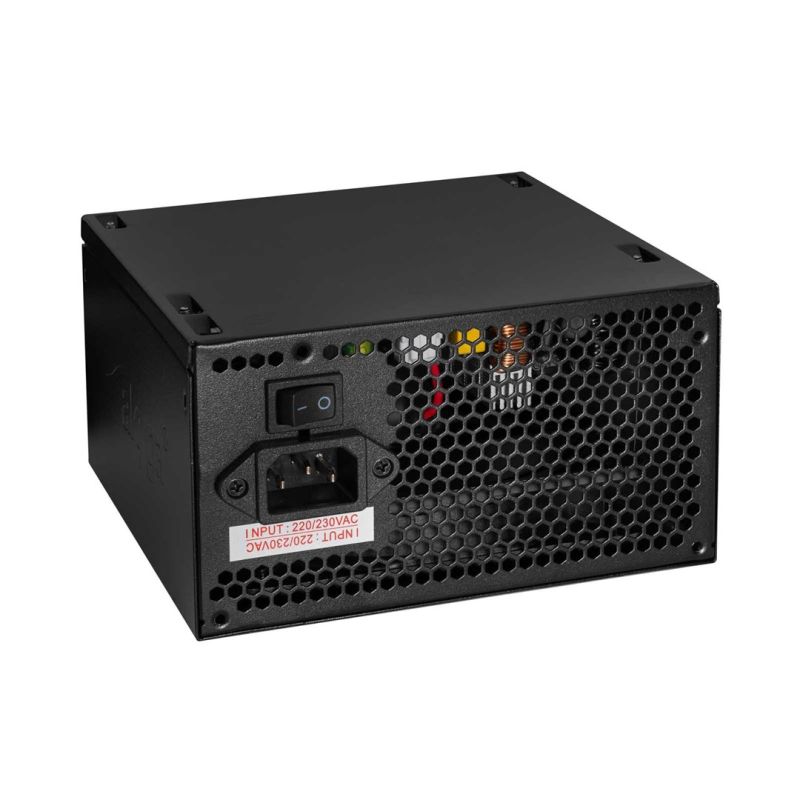

Akyga AK-C1-500 Power Supply Module 468 W 24-pin ATX ATX Black
Akyga AK-C1-500 Power Supply Module 468 W 24-pin ATX ATX Black
Akyga AK-C1-500 Power Supply Module 468 W 24-pin ATX ATX Black
PRICE:
74,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Fan bowl diameter: 12 cm
- Fan Location: Top
- Cooling type: Active
- Number of fans: 1 fan
- Product color: Black
- Power
- Power protection features
- Short circuit
- Overheating protection
- Under total voltage
- Protection against overvoltage
- Overcurrent
- Overload protection
- Total power (+12V): 468 W
- Efficiency: 80%
- Total power (+3.3V): 100 W
- Maximum output current (+3.3V): 12 A
- Maximum output current (+12V): 33A
- Total power (+5V): 100 W
- Total power: 468 W
- Maximum output current (+5V): 12A
- Peak power: 500 W
- AC input voltage: 230 V
- Power protection features
- Weight and dimensions
- Product width: 145 mm
- Product depth: 150 mm
- Product height: 85 mm
- Product weight: 1.32 kg
- Working conditions
- Temperature range (operation): 5 - 50 °C
- Efficiency
- Power supply type (PSU): ATX
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS
- ATX version: 2.31
- Packaging data
- Package height: 100 mm
- Package width: 180 mm
- Package depth: 235 mm
- Weight with packaging: 1.88 kg
- Packaging type: Box
- Certificates
- Certificates of conformity
- CE
- REACH
- RoHS
- Certificates of conformity

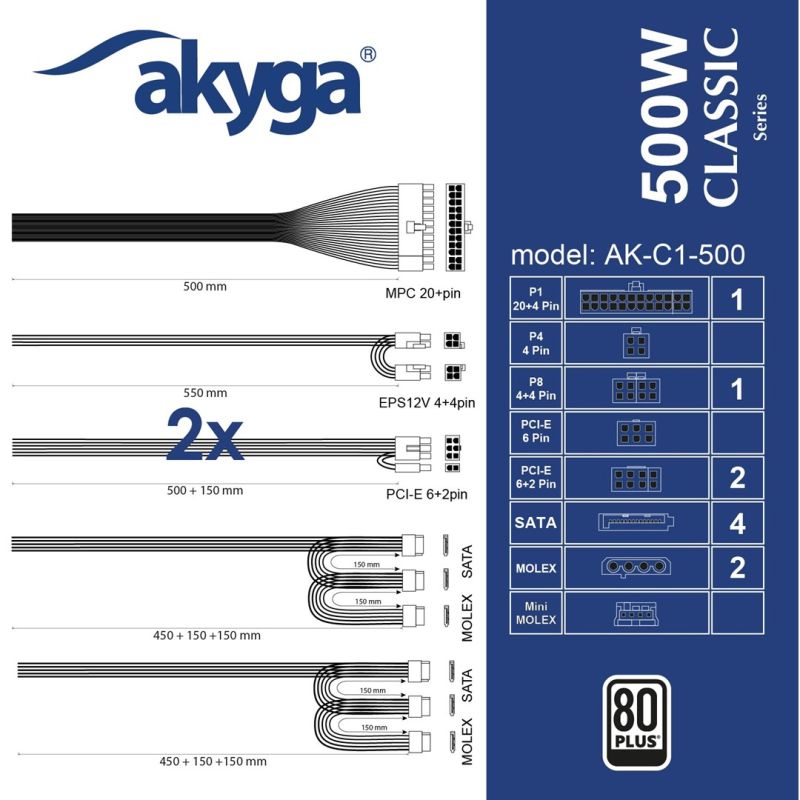

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 2
- Wiring Type: Fully Modular
- PCI Express power connectors (6+2 pin): 2
- CPU power cable length: 55 cm
- SATA power cable length: 450 mm
- Motherboard cable length: 50 cm
- EPS power supply connector (8-pin): Yes
- ATX power supply connector (20+4 pin): Yes
- EPS power connector (4+4 pin): Yes
- PCI Express slot: Yes
- Peripheral (Molex) Power cable length: 450 mm
- CPU power supply connector (4+4 pin): Yes
- ATX power socket (24-pin): Yes
- Number of SATA power connectors: 4
- Motherboard power connector: 24-pin ATX
| Name | Details |
|---|---|
| Producer | Akyga |
