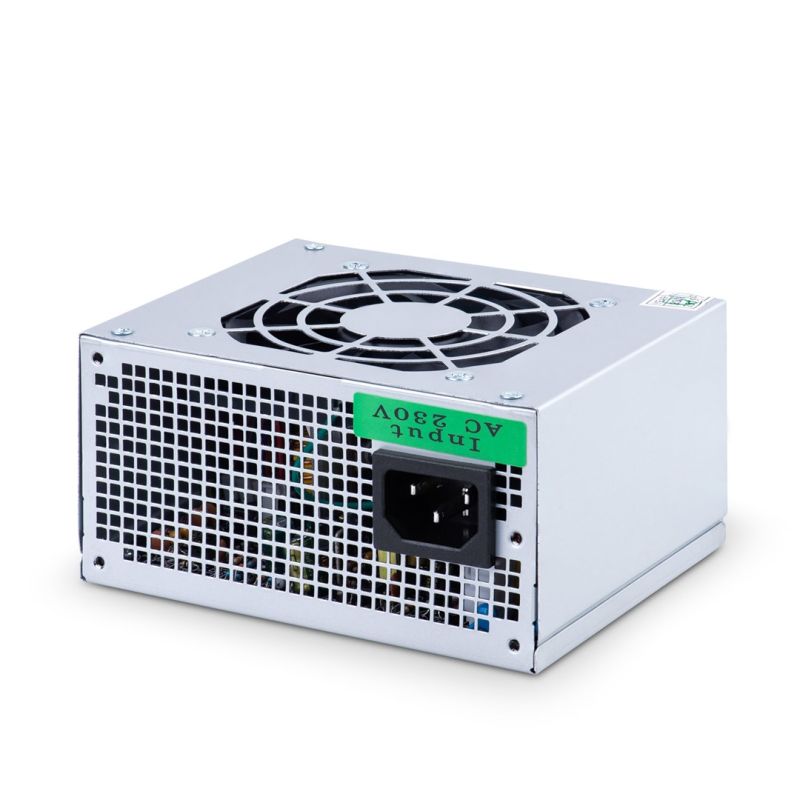

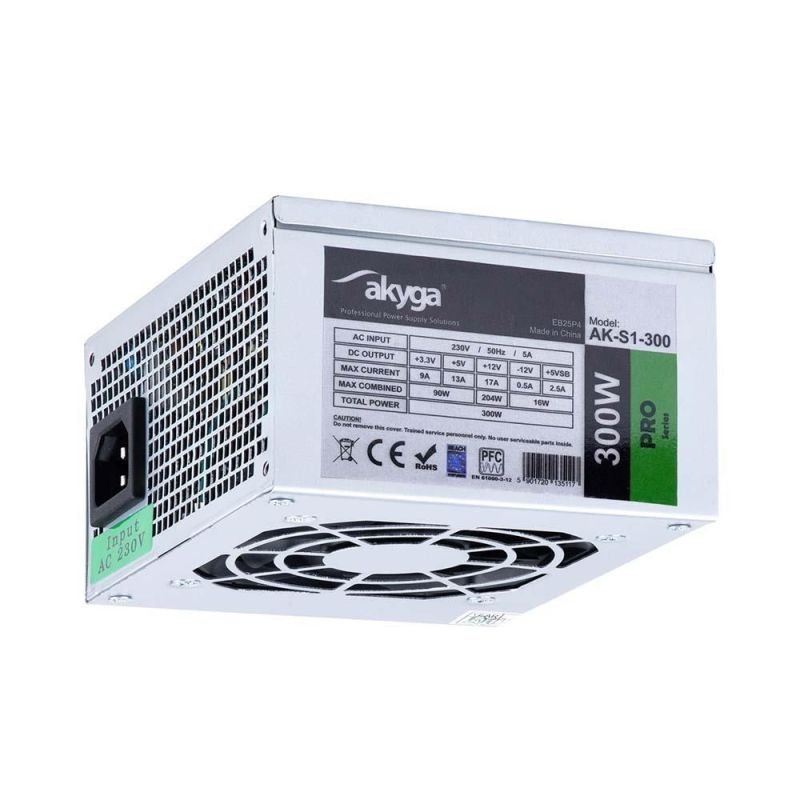

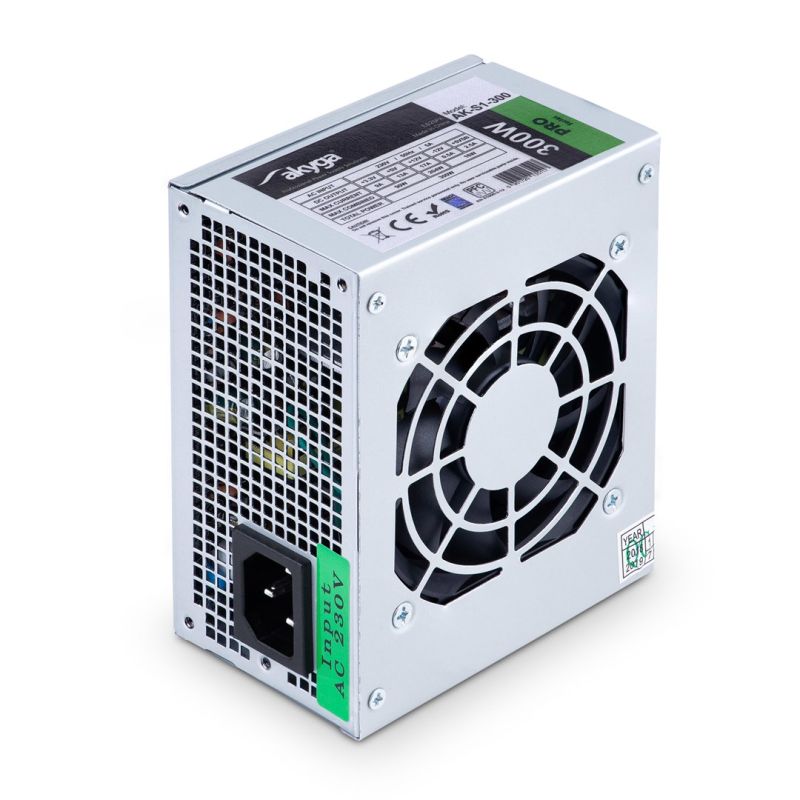

Akyga AK-S1-300 Power Supply Module 300 W 20+4 pin ATX SFX Silver
Akyga AK-S1-300 Power Supply Module 300 W 20+4 pin ATX SFX Silver
Akyga AK-S1-300 Power Supply Module 300 W 20+4 pin ATX SFX Silver
PRICE:
49,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Silver
- Fan bowl diameter: 8 cm
- Cooling type: Active
- Number of fans: 1 fan
- Fan Location: Top
- Power
- Power protection features
- Overload protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Overheating protection
- Total power (+5 Vsb): 16 W
- Total power (-12V): 16 W
- Total power (+3.3V): 90 W
- Input current: 5 A
- AC input frequency: 50 - 60 Hz
- Maximum output current (-12V): 0.5A
- Total power: 300 W
- Maximum output current (+3.3V): 9 A
- AC input voltage: 230 - 240 V
- Total power (+12V): 204 W
- Maximum output current (+5 Vsb): 2.5 A
- PFC (Power Factor Correction) Type: Passive
- Efficiency: 70%
- Maximum output current (+12V): 17A
- Total power (+5V): 90 W
- Maximum output current (+5V): 13A
- Peak power: 300 W
- Power protection features
- Weight and dimensions
- Product depth: 63.5 mm
- Product weight: 600 g
- Product width: 125 mm
- Product height: 100 mm
- Working conditions
- Relative humidity range: 0 - 60%
- Temperature range (operation): 5 - 50 °C
- Permissible relative humidity: 5 - 60%
- Temperature range (storage): 0 - 60 °C
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- Power supply unit (PSU) type: SFX
- Noise level: 30 dB
- Packaging data
- Package depth: 63.5 mm
- Weight with packaging: 700 g
- Package height: 150 mm
- Package width: 125 mm
- Certificates
- Certificates of conformity: RoHS

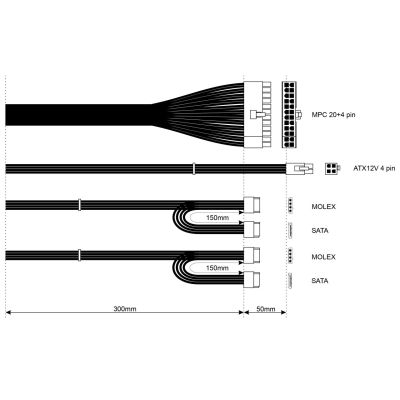

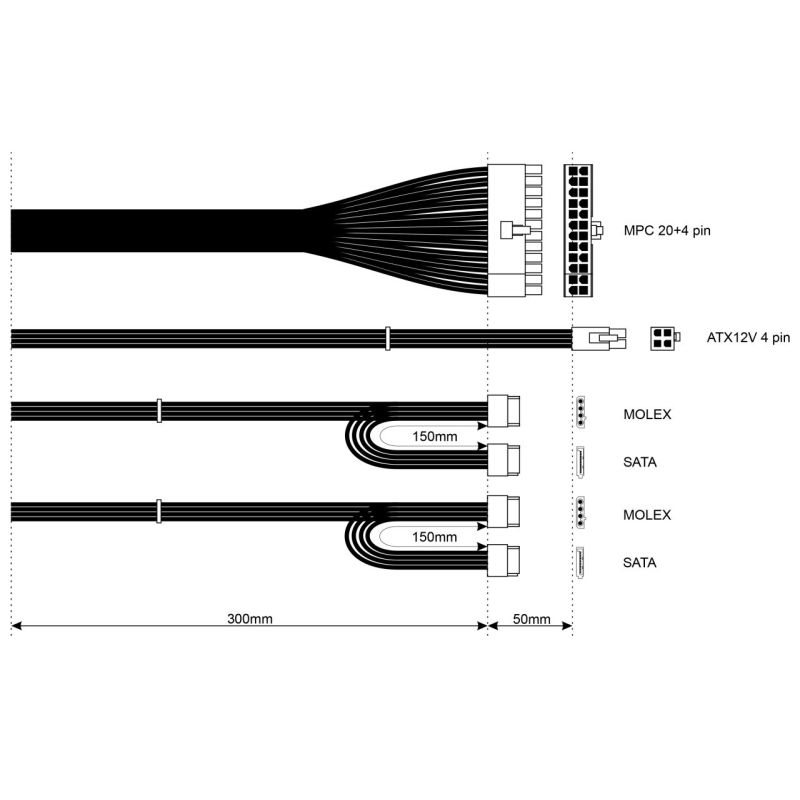

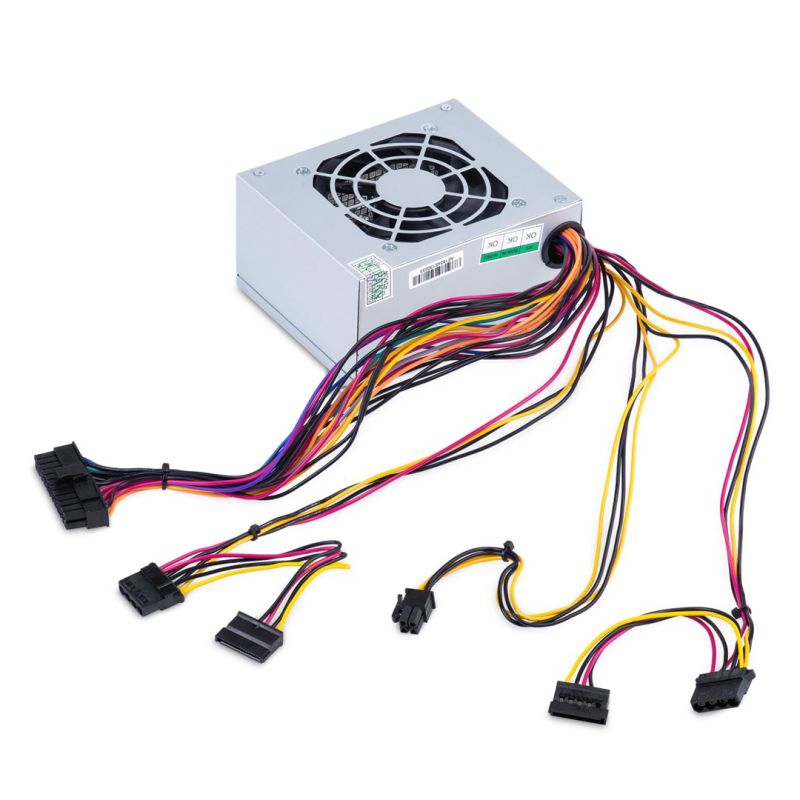

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 2
- ATX power supply connector (20+4 pin): Yes
- SATA power cable length: 350 mm
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 2
- P4 CPU connector (4-pin): 1
- ATX power socket (24-pin): Yes
- CPU power cable length: 40 cm
- Wiring Type: Non-Modular
- Motherboard cable length: 35 cm
- Logistics data
- Country of origin: Poland
| Name | Details |
|---|---|
| Producer | Akyga |
