Akyga AK-U4-350 Power Supply Module 350 W 20+4 pin ATX ATX Black
Akyga AK-U4-350 Power Supply Module 350 W 20+4 pin ATX ATX Black
Akyga AK-U4-350 Power Supply Module 350 W 20+4 pin ATX ATX Black
PRICE:
49,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Power
- Total power (+5V): 85 W
- AC input voltage: 230 V
- Maximum output current (-12V): 0.5A
- Maximum output current (+3.3V): 10 A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+5 Vsb): 2 A
- Total power (+12V): 252 W
- Input current: 5 A
- Maximum output current (+12V): 21A
- AC input frequency: 50 Hz
- Total power: 350 W
- Maximum output current (+5V): 10A
- Total power (-12V): 16 W
- Total power (+5 Vsb): 16 W
- Power protection features
- Undercurrent protection
- Protection against overvoltage
- Overcurrent
- Low voltage protection
- Short circuit
- Total power (+3.3V): 85 W
- Weight and dimensions
- Product height: 85 mm
- Product depth: 150 mm
- Product width: 140 mm
- Product weight: 1.2 kg
- Working conditions
- Temperature range (operation): 5 - 50 °C
- Efficiency
- 80 PLUS Certificate: 80 PLUS Bronze
- Power supply type (PSU): ATX
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- ATX version: 2.31
- Packaging data
- Weight with packaging: 1.43 kg
- Package depth: 222 mm
- Packaging type: Box
- Package height: 95 mm
- Package width: 155 mm
- Certificates
- Certificates of conformity: RoHS

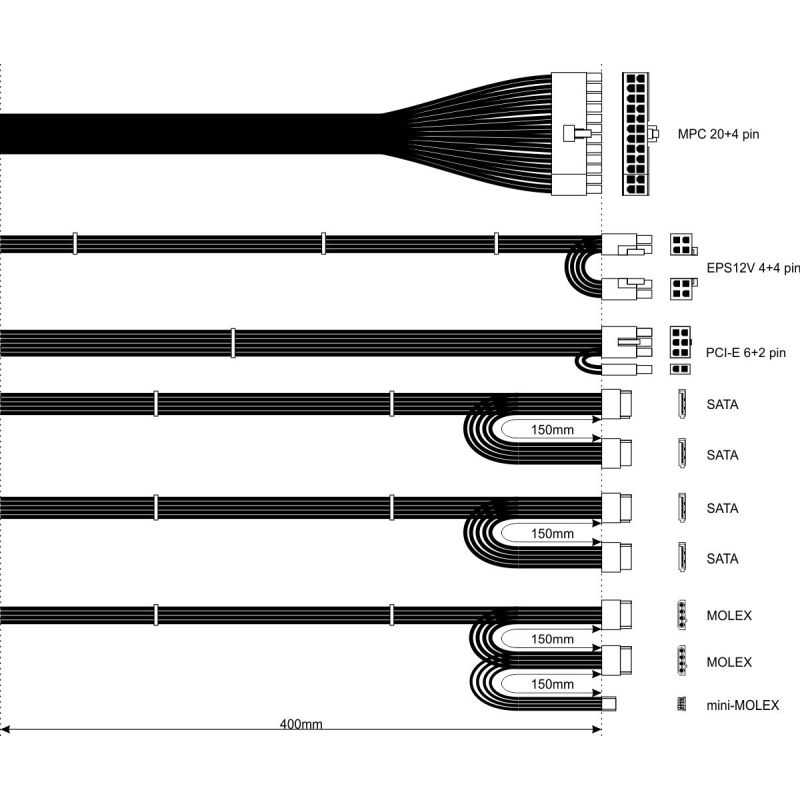

- Ports and interfaces
- PCI Express power connectors (6+2 pin): 1
- Number of SATA power connectors: 4
- Motherboard power connector: 20+4 pin ATX
- Wiring Type: Non-Modular
- Peripheral (Molex) Power Connectors (4-pin): 2
| Name | Details |
|---|---|
| Producer | Akyga |
