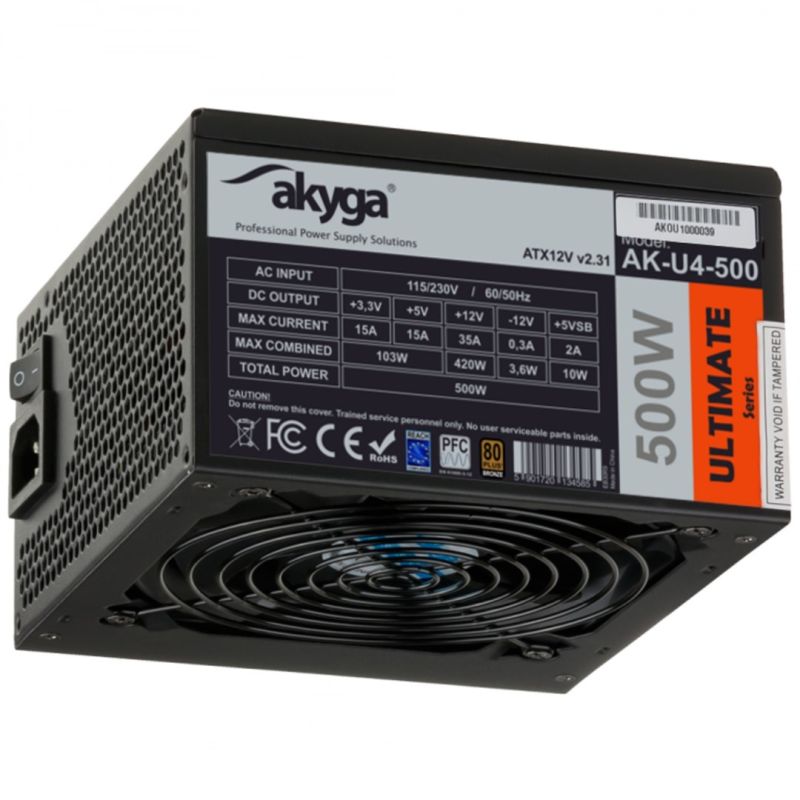

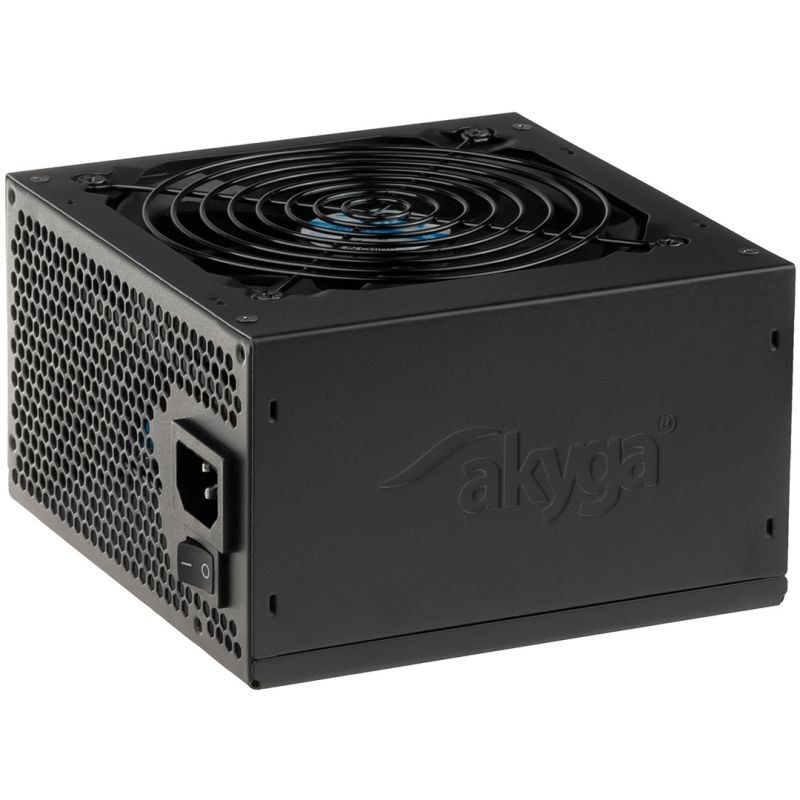

Akyga AK-U4-500 Power Supply Module 500 W 20+4 pin ATX ATX Black
Akyga AK-U4-500 Power Supply Module 500 W 20+4 pin ATX ATX Black
Akyga AK-U4-500 Power Supply Module 500 W 20+4 pin ATX ATX Black
PRICE:
74,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Fan bowl diameter: 12 cm
- Number of fans: 1 fan
- Power
- Input current: 5 A
- Power protection features
- Low voltage protection
- Protection against overvoltage
- Short circuit
- AC input voltage: 230 V
- Total power (+5V): 103 W
- Total power (+3.3V): 103 W
- Maximum output current (+5V): 15A
- PFC (Power Factor Correction) Type: Active
- Total power: 500 W
- Efficiency: 80%
- Total power (+12V): 420 W
- Weight and dimensions
- Product weight: 1.26 kg
- Product height: 85 mm
- Product depth: 140 mm
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 5 - 50 °C
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Bronze
- Power supply type (PSU): ATX
- ATX version: 2.31
- Packaging data
- Packaging type: Box
- Package depth: 222 mm
- Package width: 155 mm
- Weight with packaging: 1.33 kg
- Package height: 95 mm
- Certificates
- Certificates of conformity: RoHS

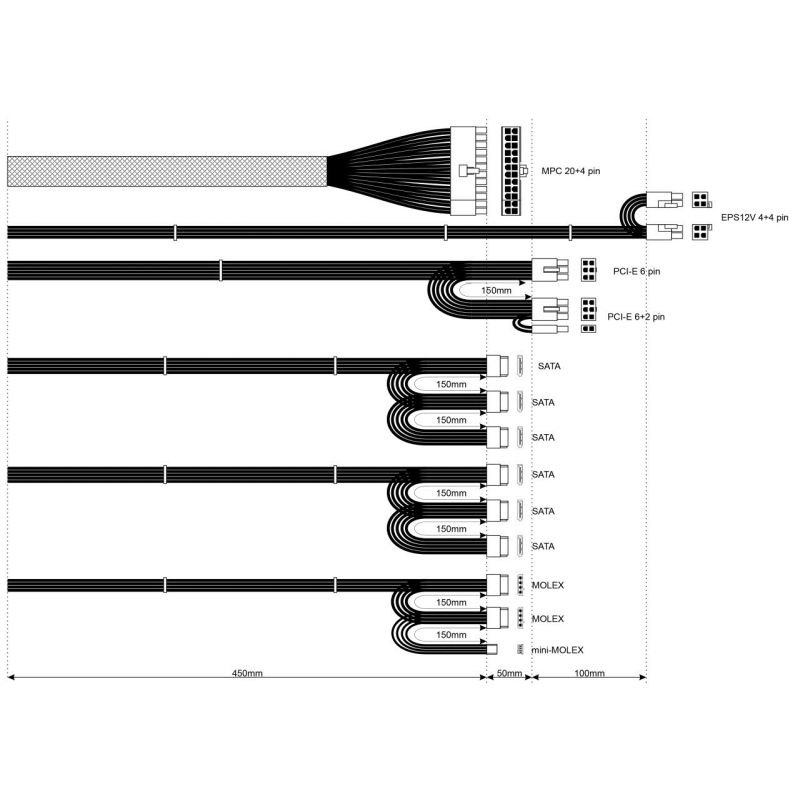

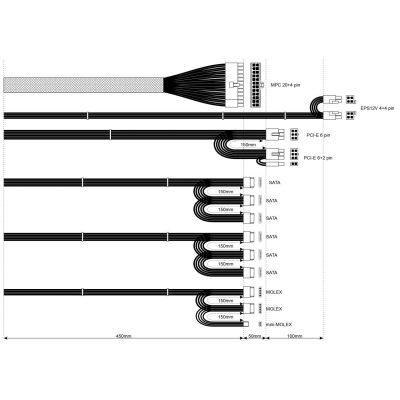

- Ports and interfaces
- EPS power supply connector (8-pin): Yes
- Wiring Type: Non-Modular
- Peripheral (Molex) Power Connectors (4-pin): 2
- Motherboard power connector: 20+4 pin ATX
- PCI Express Power (6-pin): 1
- PCI Express power connectors (6+2 pin): 1
- Number of SATA power connectors: 6
