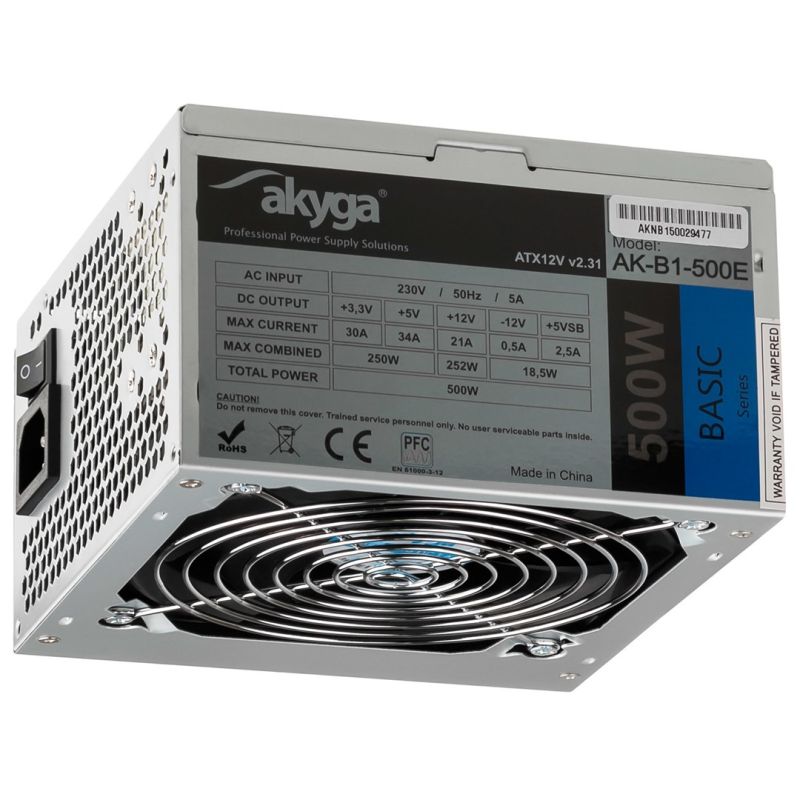

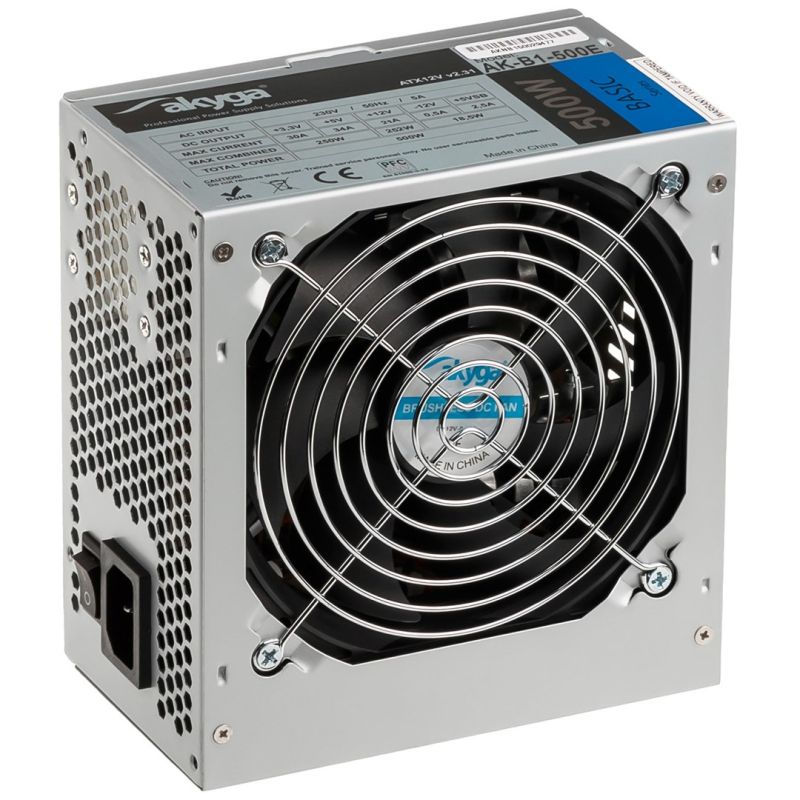

Akyga Basic AK-B1-500E Power Supply (500 W; Passive; 120 mm)
Akyga Basic AK-B1-500E Power Supply (500 W; Passive; 120 mm)
Akyga Basic AK-B1-500E Power Supply (500 W; Passive; 120 mm)
PRICE:
29,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: RoHS
- Design
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Product color: Gray
- Built-in switch: Yes

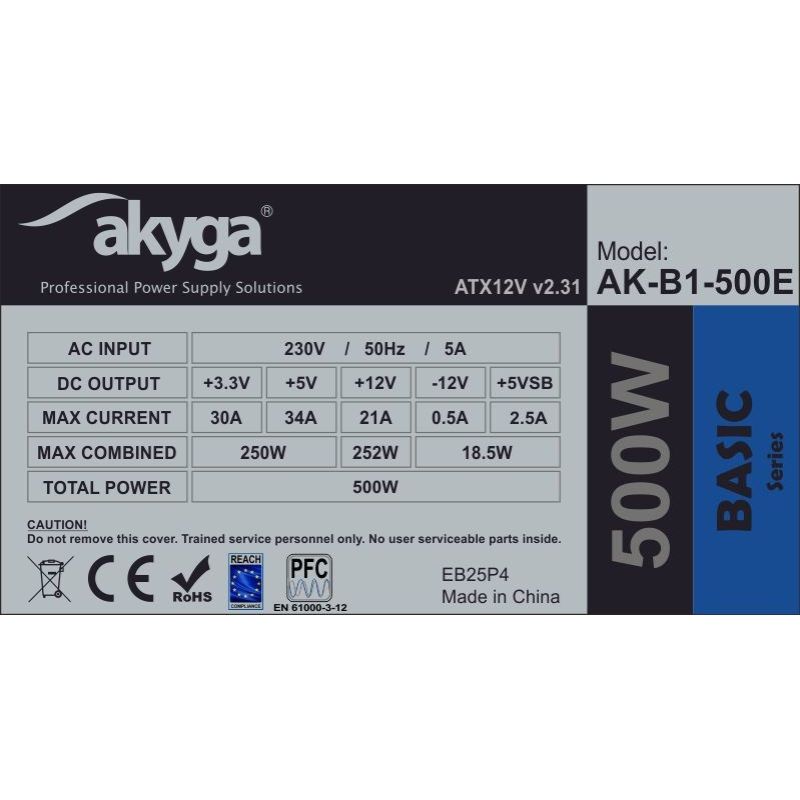

- Power
- Total power (+5V): 250 W
- Total power (+12V): 252 W
- Maximum output current (+5V): 34A
- Maximum output current (+3.3V): 30 A
- Total power (+3.3V): 250 W
- Maximum output current (+12V): 21A
- Input current: 5 A
- AC input voltage: 220 V
- PFC (Power Factor Correction) Type: Passive
- Total power: 500 W
- Weight and dimensions
- Product width: 150 mm
- Product weight: 1.01 kg
- Product height: 85 mm
- Product depth: 140 mm
- Working conditions
- Temperature range (operation): 5 - 50 °C
- Efficiency
- Power supply type (PSU): ATX
- Supported motherboard type: ATX
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- ATX version: 2.31
- Packaging data
- User Manual: Yes
- Packaging depth: 220 mm
- Package height: 95 mm
- Packaging type: Box
- Weight with packaging: 1.09 kg
- Package width: 160 mm

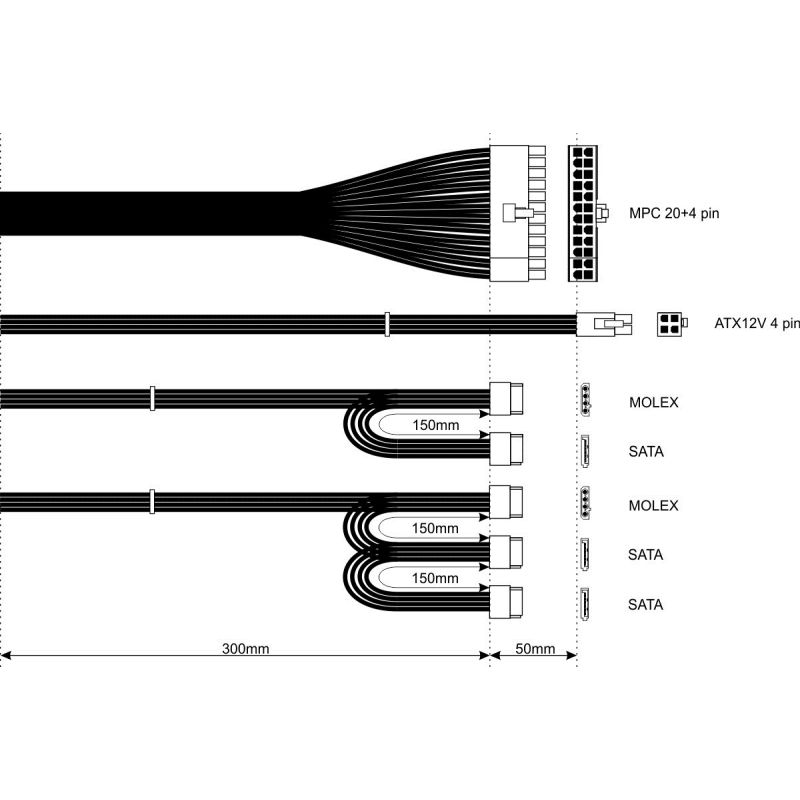

- Package contents
- Cables: Peripheral (Molex) to SATA 3.3, SATA
- Ports and interfaces
- ATX power connector (12+4 pin): Yes
- Peripheral (Molex) Power Cable Length: 300
- Number of SATA power connectors: 3
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) Power Connectors (4-pin): 2
- EPS power supply connector (8-pin): No
- SATA power cable length: 300
- Other functions
- Number of cables: 4
- Fan Controller: Yes
- Voltage tolerance: 70%
- Warranty card: Yes
- Safety warning
- Warnings
- Do not open the housing – risk of electric shock.
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | Akyga |
