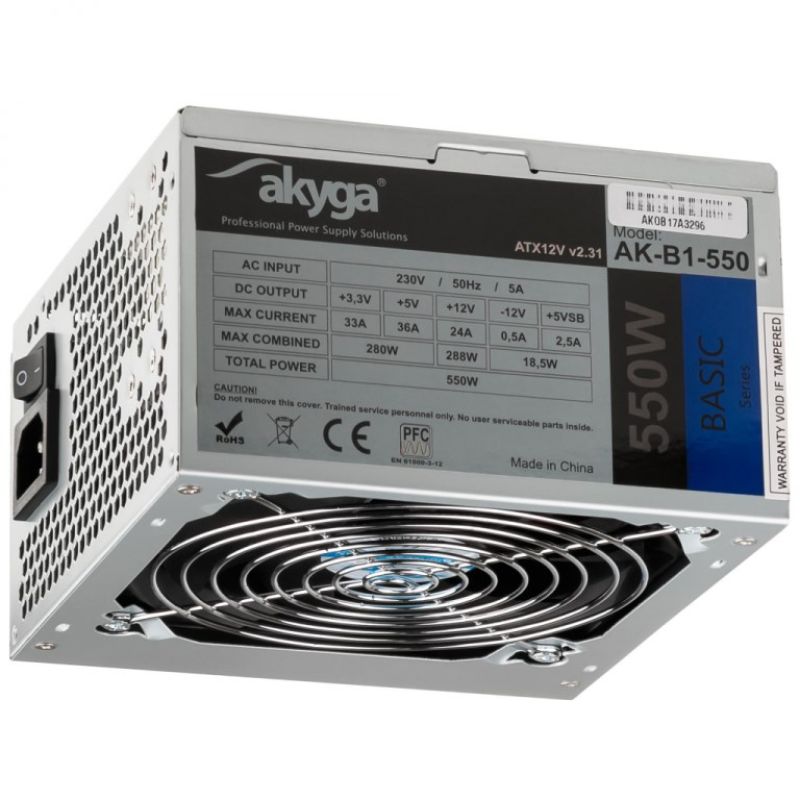

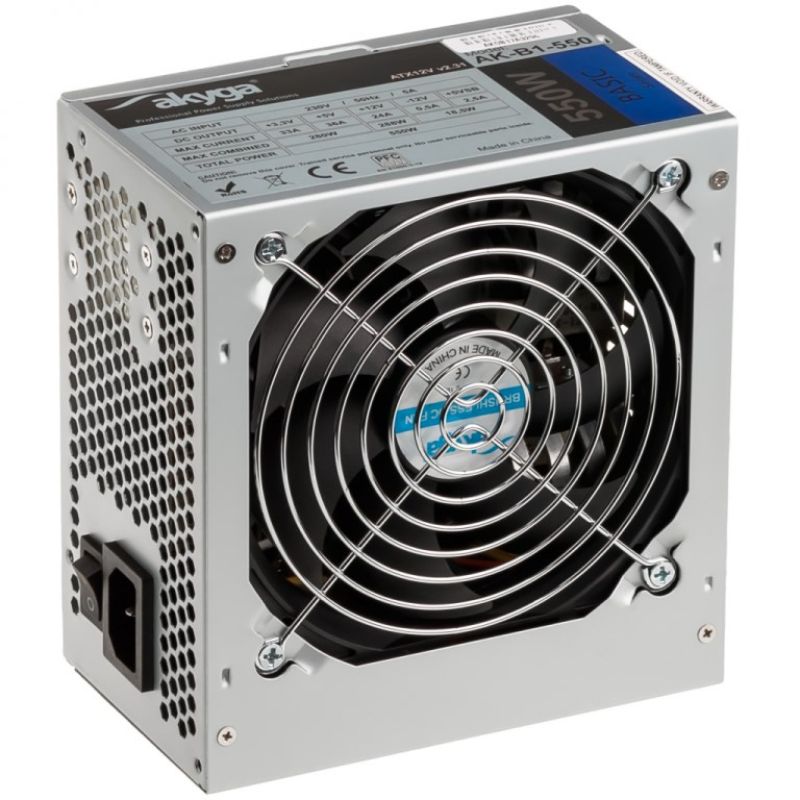

Akyga Basic AK-B1-550 Power Supply (550 W; Passive; 120 mm)
Akyga Basic AK-B1-550 Power Supply (550 W; Passive; 120 mm)
Akyga Basic AK-B1-550 Power Supply (550 W; Passive; 120 mm)
PRICE:
39,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: RoHS
- Design
- Fan Location: Top
- Cooling type: Active
- Product color: Gray
- Fan bowl diameter: 12 cm
- Built-in switch: Yes
- Number of fans: 1 fan

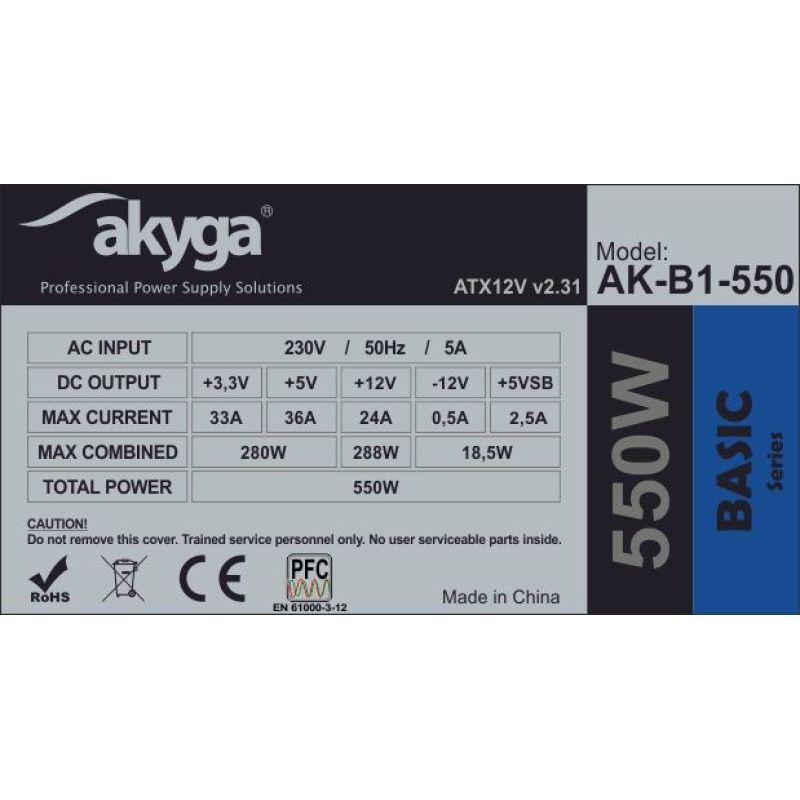

- Power
- Total power (+5V): 280 W
- Power protection features
- Overload protection
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Total power (+3.3V): 280 W
- Total power (+5 Vsb): 18.5 W
- Maximum output current (+3.3V): 33 A
- Total power (-12V): 18.5 W
- Efficiency: 70%
- Maximum output current (+5V): 36A
- Maximum output current (+12V): 24A
- Peak power: 550 W
- Input current: 5 A
- AC input voltage: 230 V
- Total power: 550 W
- Maximum output current (-12V): 0.5A
- Maximum output current (+5 Vsb): 2.5 A
- Total power (+12V): 288 W
- Weight and dimensions
- Product depth: 140 mm
- Product height: 85 mm
- Product weight: 1.04 kg
- Product width: 150 mm
- Working conditions
- Temperature range (operation): 5 - 50 °C
- Efficiency
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- ATX version: 2.31
- Supported motherboard type: ATX
- Power supply type (PSU): ATX
- Packaging data
- Weight with packaging: 1.12 kg
- User Manual: Yes
- Packaging type: Box
- Package width: 160 mm
- Package height: 95 mm
- Packaging depth: 220 mm

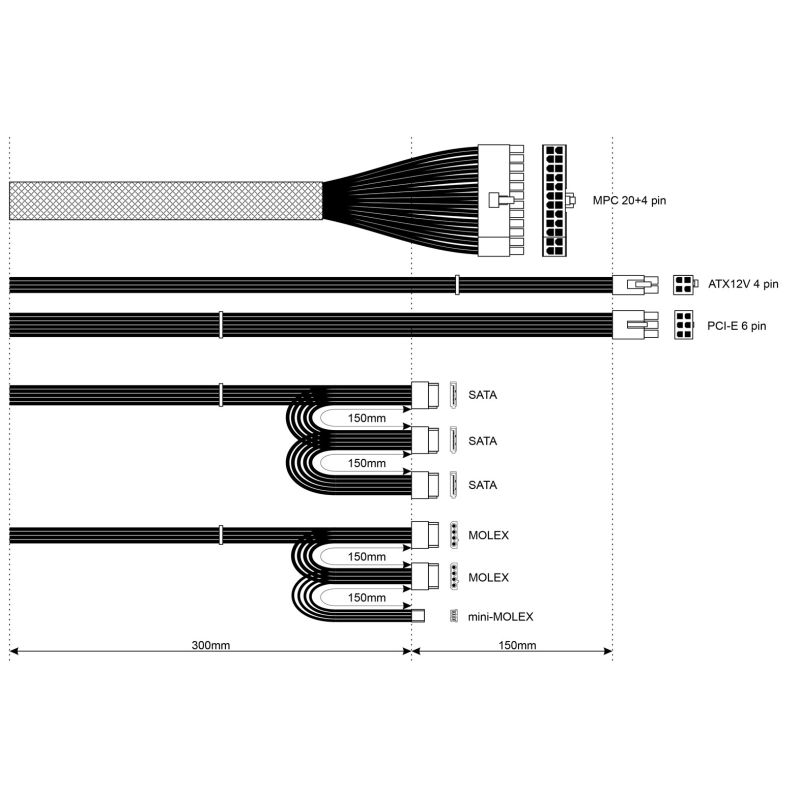

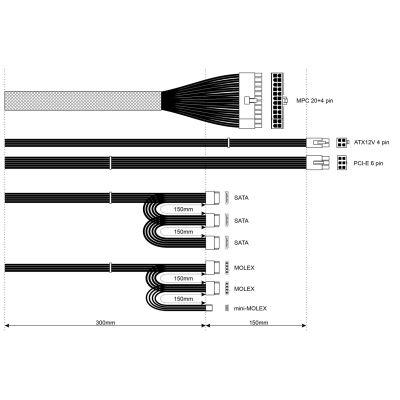

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 2
- Peripheral (Molex) Power Cable Length: 300
- Motherboard power connector: 20+4 pin ATX
- PCI Express Power (6-pin): 1
- SATA power cable length: 300
- Wiring Type: Non-Modular
- CPU power cable length: 45 cm
- P4 CPU connector (4-pin): 1
- Number of SATA power connectors: 3
- Other functions
- Warranty card: Yes
- Safety warning
- Warnings
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Do not open the housing – risk of electric shock.
- Warnings
