Akyga Basic AK-B1-600 Power Supply (600 W; Passive; 120 mm)
Akyga Basic AK-B1-600 Power Supply (600 W; Passive; 120 mm)
Akyga Basic AK-B1-600 Power Supply (600 W; Passive; 120 mm)
PRICE:
46,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Environmental (sustainability) certification: RoHS
- Design
- Product color: Gray
- Number of fans: 1 fan
- Fan bowl diameter: 12 cm
- Power
- Maximum output current (+5 Vsb): 2.5 A
- Total power (+12V): 312 W
- Power protection features
- Overload protection
- Low voltage protection
- Protection against overvoltage
- Overcurrent
- Short circuit
- Total power (-12V): 18.5 W
- Total power (+3.3V): 300 W
- Total power (+5V): 300 W
- Maximum output current (+5V): 38A
- AC input frequency: 50 Hz
- Total power (+5 Vsb): 18.5 W
- Total power: 600 W
- Input current: 5 A
- AC input voltage: 230 V
- Maximum output current (-12V): 0.5A
- PFC (Power Factor Correction) Type: Passive
- Maximum output current (+12V): 36A
- Maximum output current (+3.3V): 35 A
- Efficiency: 70%
- Weight and dimensions
- Product width: 150 mm
- Product weight: 1.12 kg
- Product height: 87 mm
- Product depth: 140 mm
- Working conditions
- Temperature range (operation): 5 - 50 °C
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- Intended use: PC
- Power supply type (PSU): ATX
- ATX version: 2.31
- Packaging data
- Weight with packaging: 1.19 kg
- Packaging depth: 220 mm
- Package height: 95 mm
- Package width: 160 mm
- Packaging type: Box

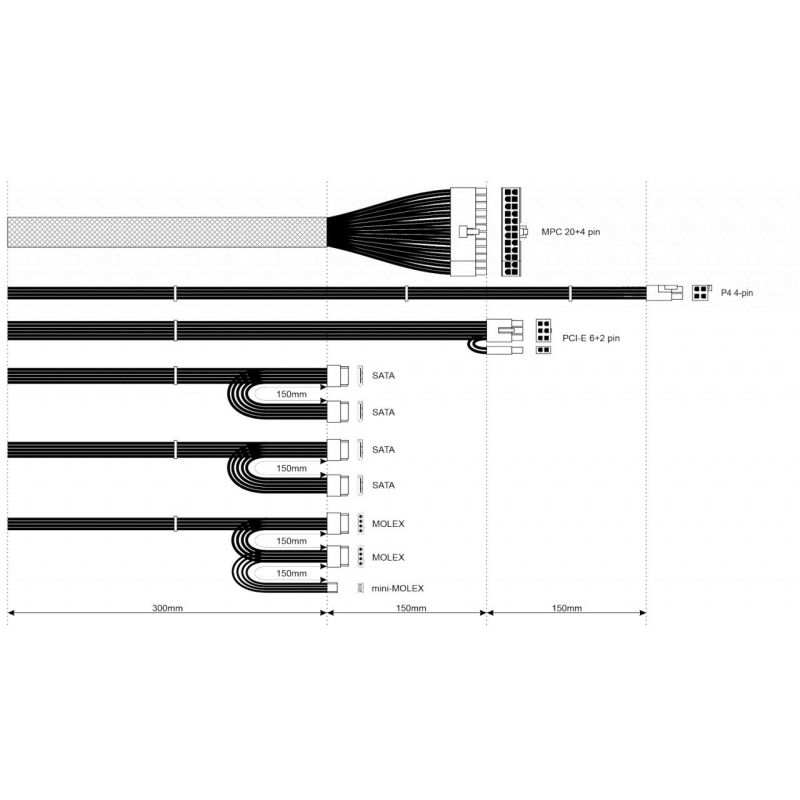

- Ports and interfaces
- Peripheral (Molex) Power Connectors (4-pin): 2
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 4
- EPS power supply connector (8-pin): No
- PCI Express power connectors (6+2 pin): 1
- Safety warning
- Warnings
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Do not open the housing – risk of electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | Akyga |
