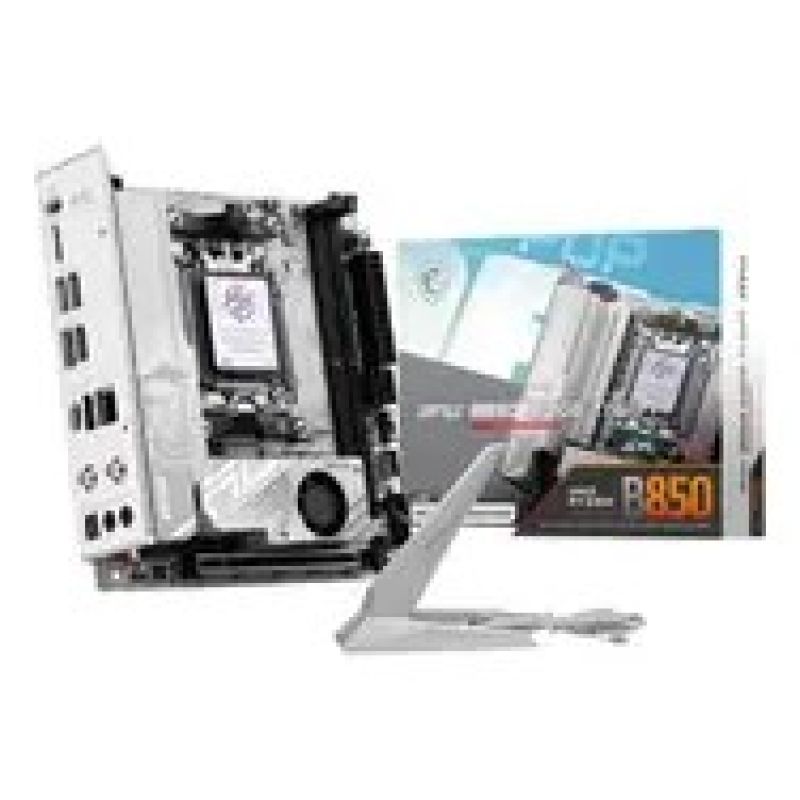

AMD B850 SAM5 MITX/MPG B850I EDGE TI WIFI MSI Motherboard
AMD B850 SAM5 MITX/MPG B850I EDGE TI WIFI MSI Motherboard
AMD B850 SAM5 MITX/MPG B850I EDGE TI WIFI MSI Motherboard
PRICE:
434,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Graphics
- Built-in graphics card: No
- Memory
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Supported memory clock speed (max): 8200 MHz
- Maximum memory capacity: 128 GB
- ECC Compatibility: Non-ECC
- Characteristics
- Motherboard format: Mini ITX
- Chipset Board Family: AMD
- Motherboard Layout: AMD B850
- Product color: Gray
- Audio output channels: 7.1 ch.
- Intended use: PC
- Weight and dimensions
- Product depth: 170 mm
- Product width: 170 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Housing intrusion sensor connector: Yes
- TPM Connector: Yes
- CPU fan connector: Yes
- Number of case fan connectors: 6
- Number of SATA III connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Number of USB 2.0 ports: 1
- Number of CPU fan connectors: 1
- Network
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 4 (802.11n)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6E (802.11ax)
- LAN controller: Realtek RTL8126
- Ethernet interface type: 5 Gigabit Ethernet
- Wi-Fi: Yes
- Wired LAN: Yes
- Bluetooth version: 5.4
- Package contents
- Antenna Included: Yes
- Cables: SATA
- Screws Included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, NVMe, SATA III
- RAID Service: Yes
- RAID levels
- 1
- 0
- Rear Panel I/O Ports
- S/PDIF Output Port: Yes
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3
- Supported USB type
- USB Type-C
- USB Type-A
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- HDMI version: 2.1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- Other functions
- Quick Installation Guide: Yes
| Name | Details |
|---|---|
| Producer | MSI |
