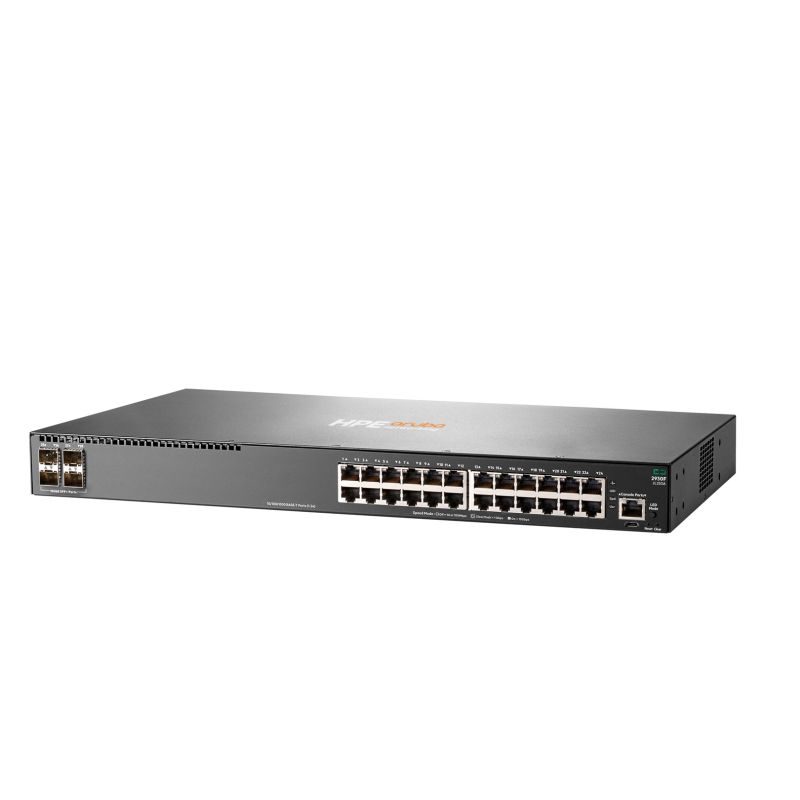

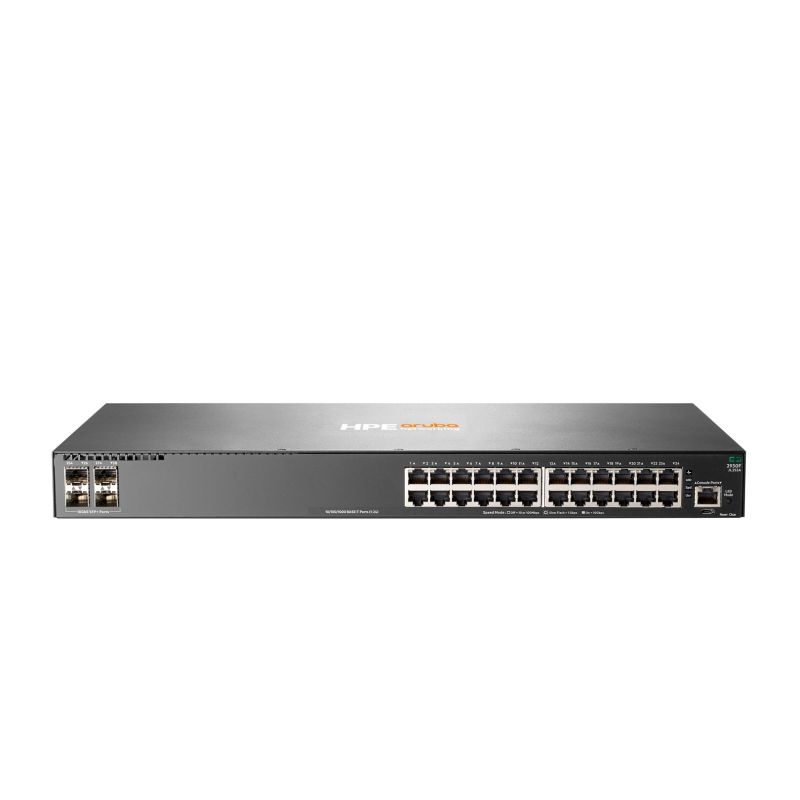

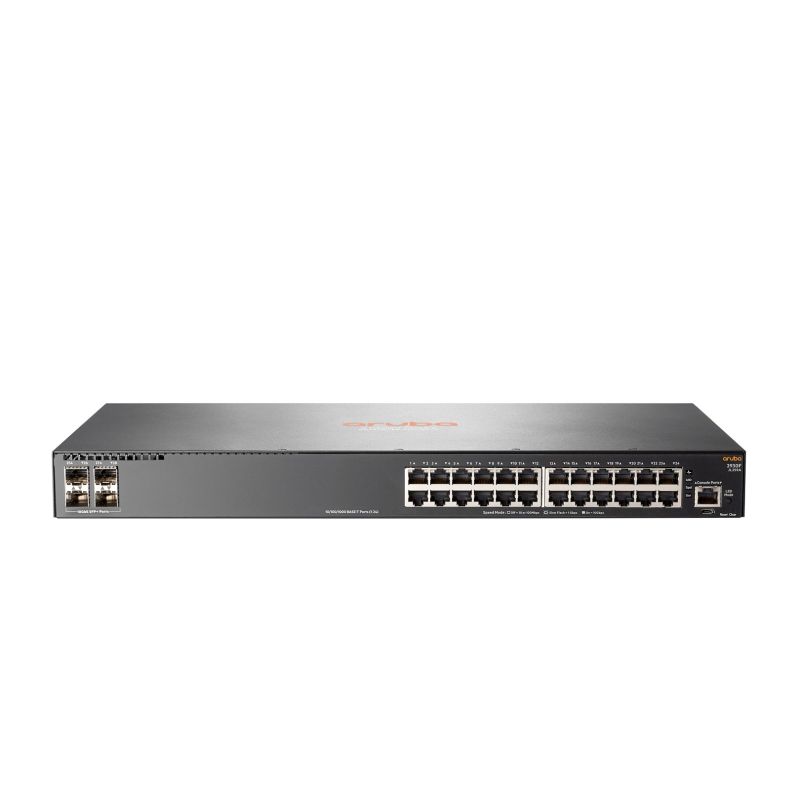

Aruba 2930F 24G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray
Aruba 2930F 24G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray
Aruba 2930F 24G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray
PRICE:
1432,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Product color: Gray
- Layout: 1U
- Rack mounting options: Yes
- Stackable: Yes
- Power
- AC input voltage: 200 - 240 V
- Power supply included: Yes
- Power consumption: 19.5 W
- Power consumption (max): 29.3 W
- AC input frequency: 50 - 60 Hz
- Power consumption: 29.3W (maximum)
- Weight and dimensions
- Product height: 43.9 mm
- Product width: 43.9 mm
- Product depth: 442.5 mm
- Product weight: 2.41 kg
- Security
- Supports SSH/SSL: Yes
- IGMP snooping: Yes
- DHCP functions: DHCP server
- Access Control List (ACL): Yes
- Management features
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Switch Layer: L3
- Traffic Classification: Yes
- Switch type: Managed
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 15 - 95%
- Temperature range (operation): 0 - 45 °C
- Heat emission: 100 BTU/h
- Network
- Communication standards
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3
- Full duplex: Yes
- 10G Support: No
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-TX
- 10BASE-T
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
- Auto Detection: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- IP forwarding: Yes
- Routing position: 10000
- Flow Control Support: Yes
- Frequency Limit: Yes
- Communication standards
- Efficiency
- Built-in processor: Yes
- Internal memory capacity: 1 GB
- Processor model: ARM Cortex-A9
- Memory type: DDR3-SDRAM
- Processor clock speed: 1016 MHz
- Protocols
- IPv6 FIB entries: 5000
- IPv4 FIB: 10000
- Path Selection Protocol: IP
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP Module slots: 4
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Console port: RJ-45
- Other functions
- Weight (imperial): 2.41 kg (5.31 lbs)
- Dimensions (WxDxH) (imperial): 43.9 x 442.5 x 200.2 mm (1.73 x 17.4 x 7.88")
- Latency: 1000 Mb Latency: < 3.8 µs
- Memory and processor: Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 56 Gbit/s
- Address table size: 32768 entries
- Throughput: 41.7 Mpps
- Latency (1 Gbps): 3.8 µs
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
| Name | Details |
|---|---|
| Producer | Hewlett-Packard |
