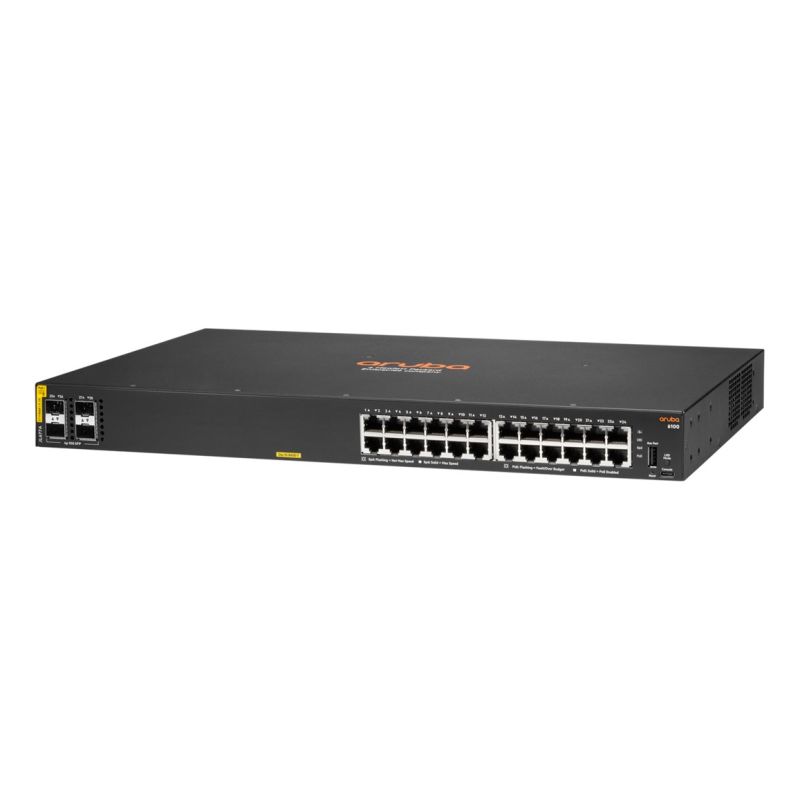

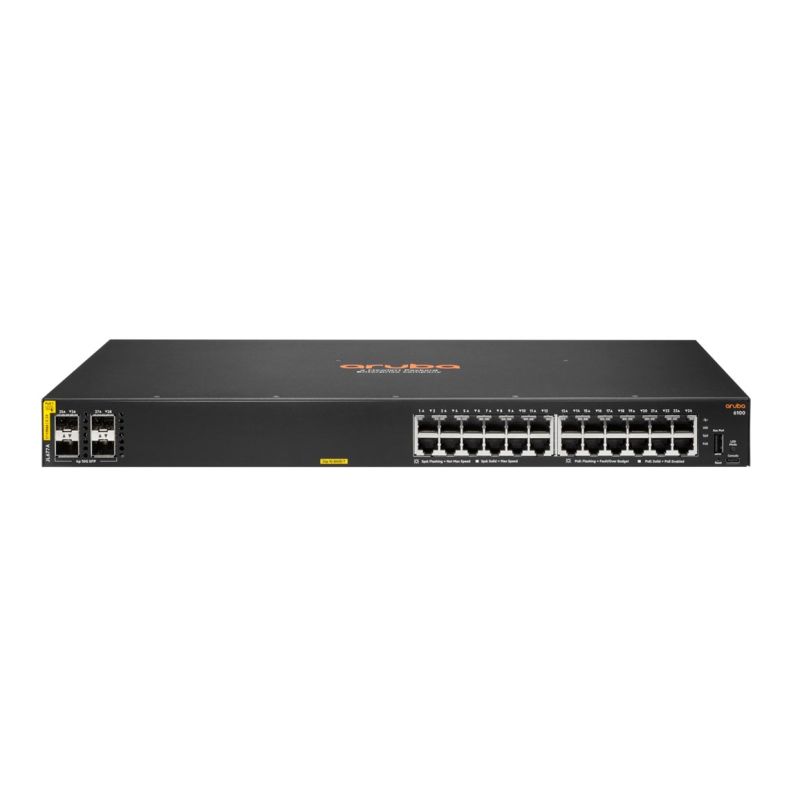

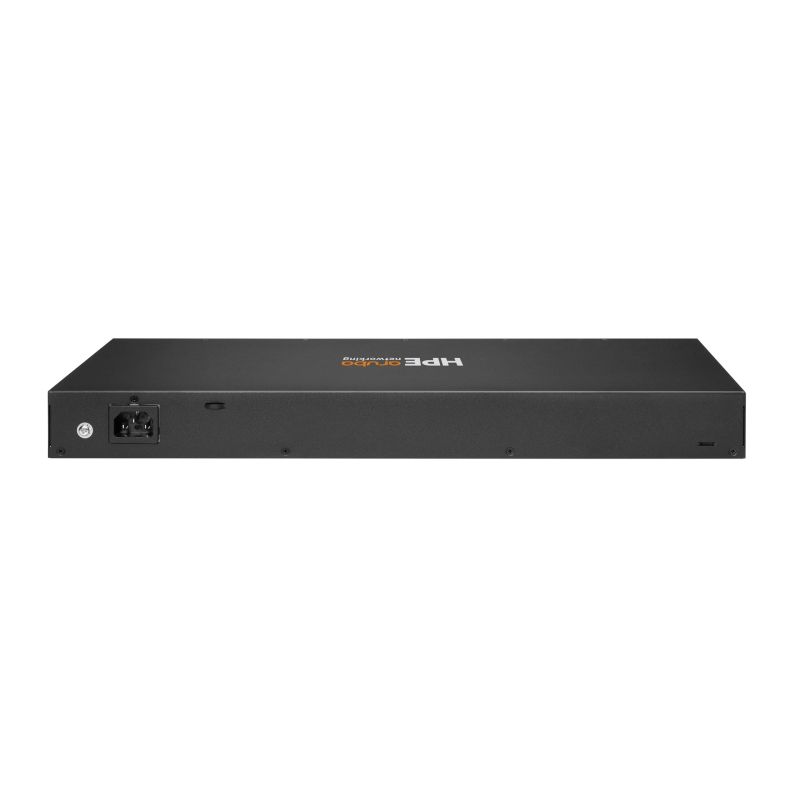

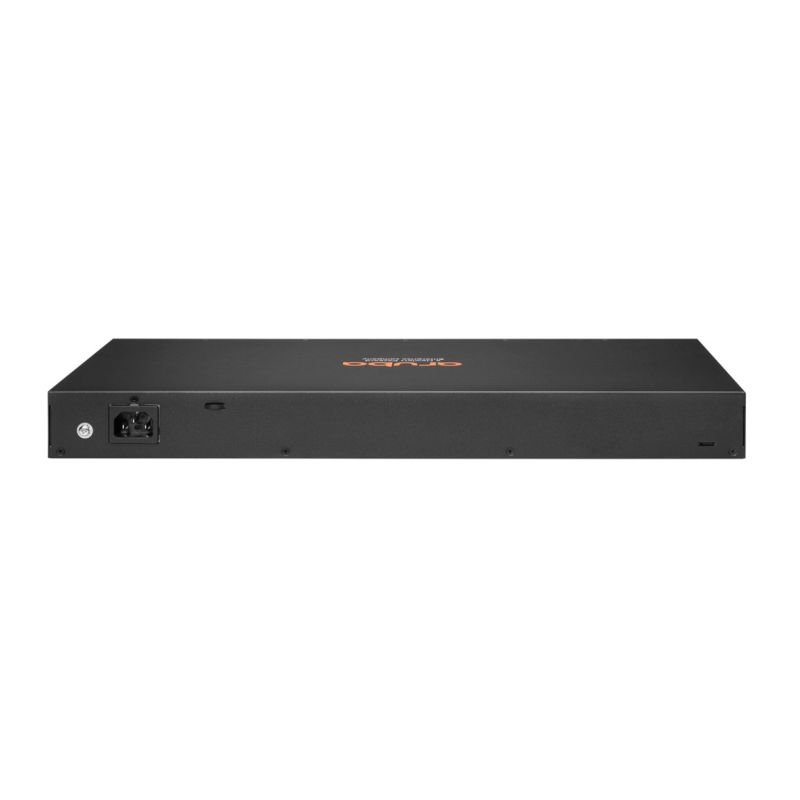

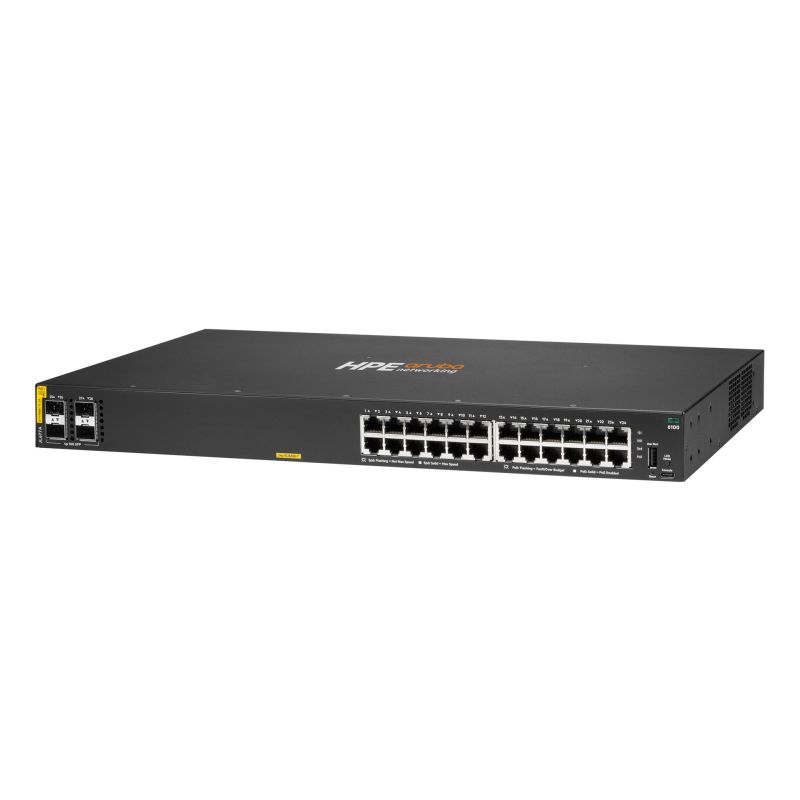

Aruba 6100 24G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) PoE Support 1U Black
Aruba 6100 24G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) PoE Support 1U Black
Aruba 6100 24G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) PoE Support 1U Black
PRICE:
2757,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Layout: 1U
- Airflow Direction: Side to Side Airflow
- Stackable: Yes
- Product color: Black
- Power
- Power supply included: Yes
- Power source: AC
- Power consumption (max): 32.7 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Weight and dimensions
- Product depth: 268 mm
- Product height: 44 mm
- Product width: 442 mm
- Product weight: 4.2 kg
- Security
- IGMP snooping: Yes
- DHCP functions: DHCP client
- Authentication type: RADIUS, TACACS+
- Access Control List (ACL): Yes
- Authentication: MAC-based authentication
- Management features
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Switch Layer: L3
- Working conditions
- Relative humidity range: 15 - 95%
- Permissible relative humidity: 15 - 90%
- Temperature range (operation): 0 - 45 °C
- Temperature range (storage): -40 - 70 °C
- Network
- Port Mirroring: Yes
- VLAN support: Yes
- Flow Control Support: Yes
- Connection Aggregator: Yes
- 10G Support: Yes
- Spanning Tree Protocol: Yes
- Communication standards
- IEEE 802.1D
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1w
- IEEE 802.3
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3ab
- IEEE 802.1p
- Efficiency
- Built-in processor: Yes
- Virtual stacking (pcs): 16
- Processor model: ARM Cortex-A9
- Flash memory size: 16 MB
- Internal memory capacity: 4 GB
- Processor clock speed: 1016 MHz
- Memory type: DDR3-SDRAM
- Ports and interfaces
- Number of SFP+ Module slots: 4
- Console port: USB
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Routing/switching capacity: 128 Gbit/s
- Latency (1 Gbps): 1.5 µs
- Latency (10 Gbps): 1.8 µs
- Address table size: 8192 entries
- Throughput: 95.2 Mpps
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 12.38 MB
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 370 W
- PoE Support: Yes
- Multicast functions
- Multicast Support: Yes
- Safety warning
- Warnings
- Ensure the device is adequately ventilated during operation.
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Do not open the casing or attempt to repair it yourself.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | High Peak |
| Colour | Black |
