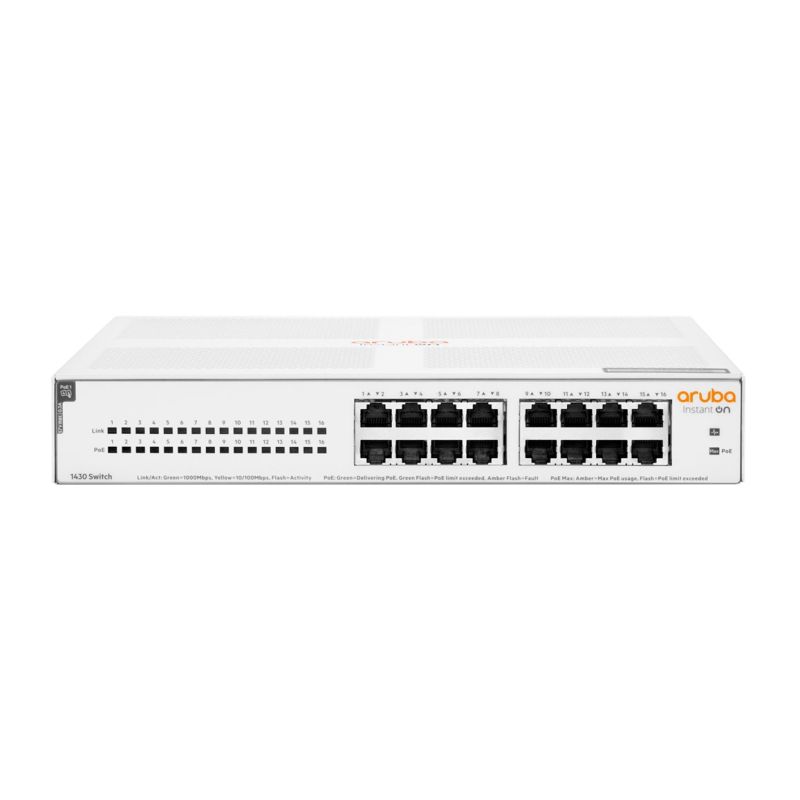

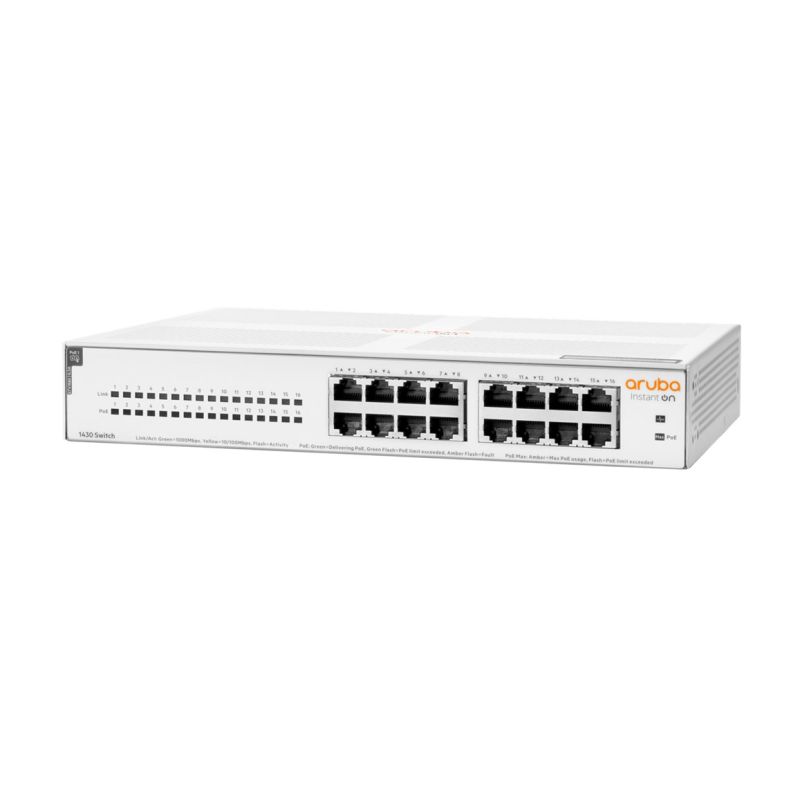

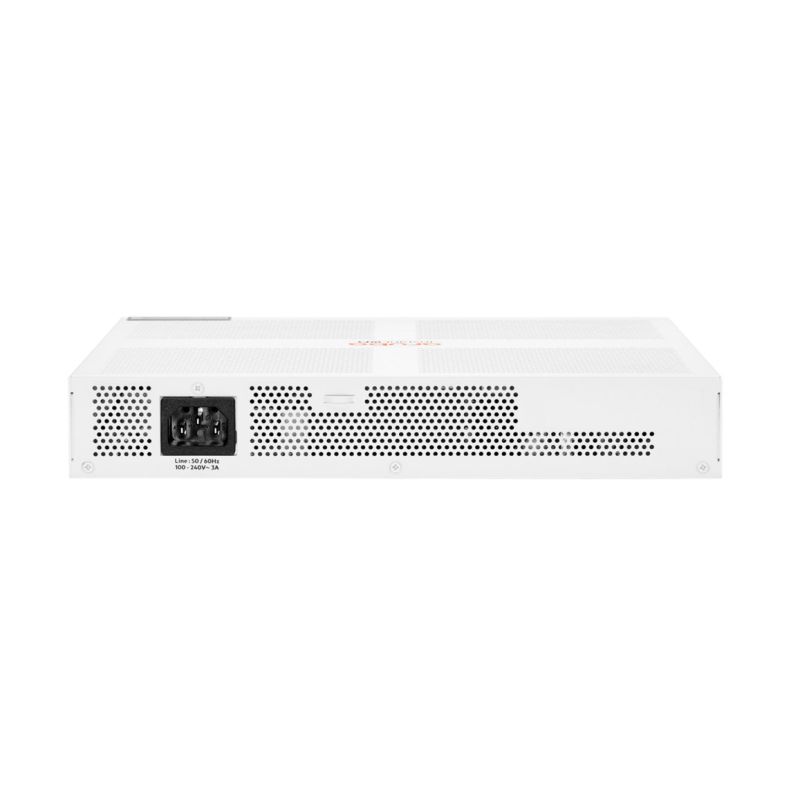

Aruba Instant On 1430 16G Class4 PoE 124W Unmanaged L2 Gigabit Ethernet (10/100/1000) PoE Support 1U White
Aruba Instant On 1430 16G Class4 PoE 124W Unmanaged L2 Gigabit Ethernet (10/100/1000) PoE Support 1U White
Aruba Instant On 1430 16G Class4 PoE 124W Unmanaged L2 Gigabit Ethernet (10/100/1000) PoE Support 1U White
PRICE:
434,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Layout: 1U
- Rack mounting options: Yes
- Product color: White
- Power
- Number of power units: 1
- Power source: AC
- Power consumption (max): 147 W
- Power supply included: Yes
- AC input frequency: 50 - 60 Hz
- AC input voltage: 100 - 240 V
- Weight and dimensions
- Product width: 260 mm
- Product weight: 2.09 kg
- Product height: 44 mm
- Product depth: 275 mm
- Management features
- Switch Type: Unmanaged
- Quality of Service (QoS) Support: Yes
- Switch Layer: L2
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Permissible relative humidity: 15 - 90%
- Relative humidity range: 15 - 95%
- Network
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- 1000BASE-T
- 10G Support: No
- Connection Aggregator: Yes
- Full duplex: Yes
- Auto Detection: Yes
- Communication standards
- IEEE 802.3u
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3i
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3
- IEEE 802.3az
- IEEE 802.3at
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Copper Ethernet cabling technology
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Data transfer
- Latency (10-100 Mbps): 2.7 µs
- Address table size: 8192 entries
- Throughput: 23.8 Mpps
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 2 MB
- Latency (1 Gbps): 1.8 µs
- Routing/Switching Throughput: 32 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 124 W
- Safety warning
- Warnings
- Ensure the device is adequately ventilated during operation.
- Do not open the casing or attempt to repair it yourself.
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | High Peak |
