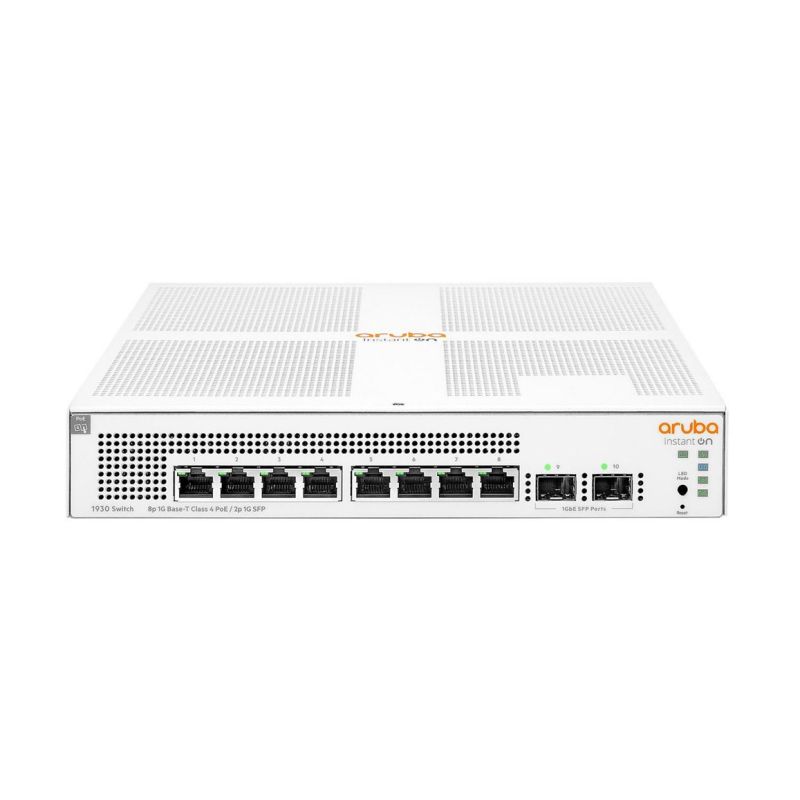

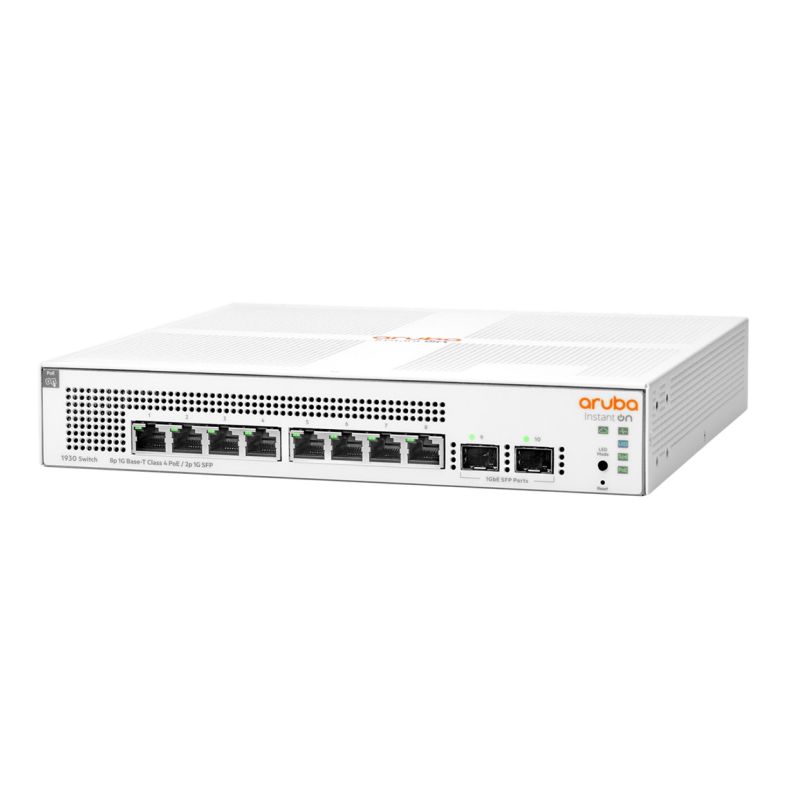

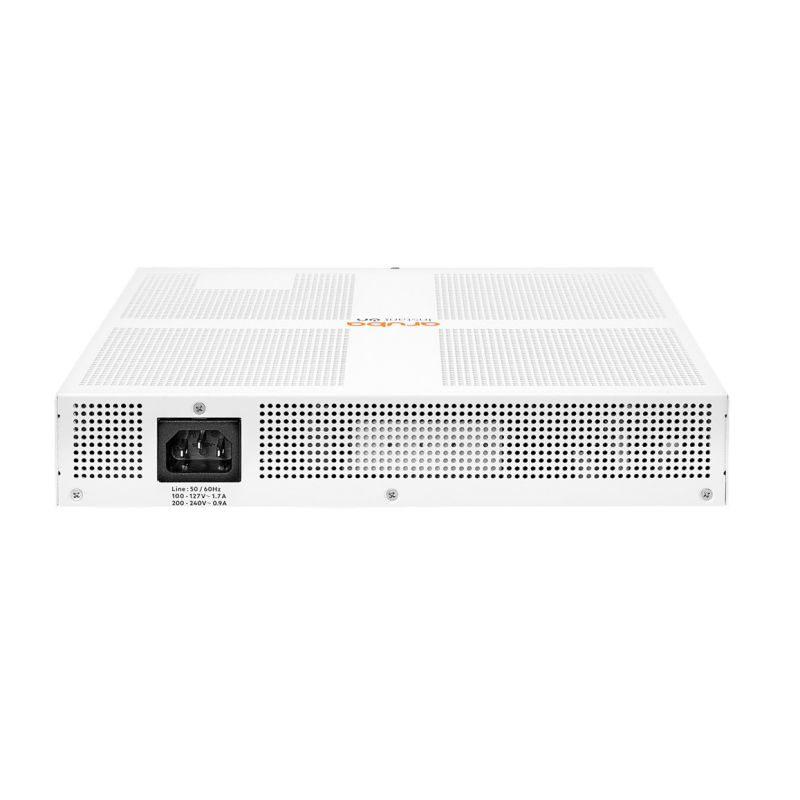

Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U White
Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U White
Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U White
PRICE:
412,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Stackable: No
- Rack mounting options: Yes
- Product color: White
- Layout: 1U
- Power
- Power supply included: Yes
- Power source: AC
- AC input voltage: 100 - 240 V
- Power consumption (max): 150.2 W
- AC input frequency: 50 - 60 Hz
- Weight and dimensions
- Product weight: 1.16 kg
- Product height: 43.9 mm
- Product depth: 254 mm
- Product width: 254 mm
- Security
- IGMP snooping: Yes
- Supports SSH/SSL: Yes
- Management features
- Switch Layer: L2+
- Switch type: Managed
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Working conditions
- Relative humidity range: 15 - 95%
- Permissible relative humidity: 15 - 95%
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Network
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-TX
- 10BASE-T
- 10G Support: No
- Full duplex: Yes
- Number of VLANs: 256
- Auto Detection: Yes
- Flow Control Support: Yes
- Connection Aggregator: Yes
- Frequency Limit: Yes
- Spanning Tree Protocol: Yes
- Port Mirroring: Yes
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Communication standards
- IEEE 802.1p
- IEEE 802.3ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1Q
- IEEE 802.3x
- IEEE 802.1x
- Copper Ethernet cabling technology
- Efficiency
- Memory type: SDRAM
- Flash memory size: 256 MB
- Internal memory capacity: 512 MB
- Processor clock speed: 800 MHz
- Processor model: ARM Cortex-A9
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP Combo Ports: 2
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 20 Gbit/s
- Latency (1 Gbps): 3 µs
- Address table size: 8000 entries
- Latency (10-100 Mbps): 5.2 µs
- Packet buffer memory: 1.5 MB
- Throughput: 14.8 Mpps
- Power over Ethernet (PoE)
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 124 W
- Safety warning
- Warnings
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Avoid contact of the device with liquid.
- Ensure the device is adequately ventilated during operation.
- Do not open the casing or attempt to repair it yourself.
- Make sure the device's ventilation is not blocked.
- Follow electrical safety guidelines.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Aruba Networks |
| Colour | White |
| Department | Electronics |
