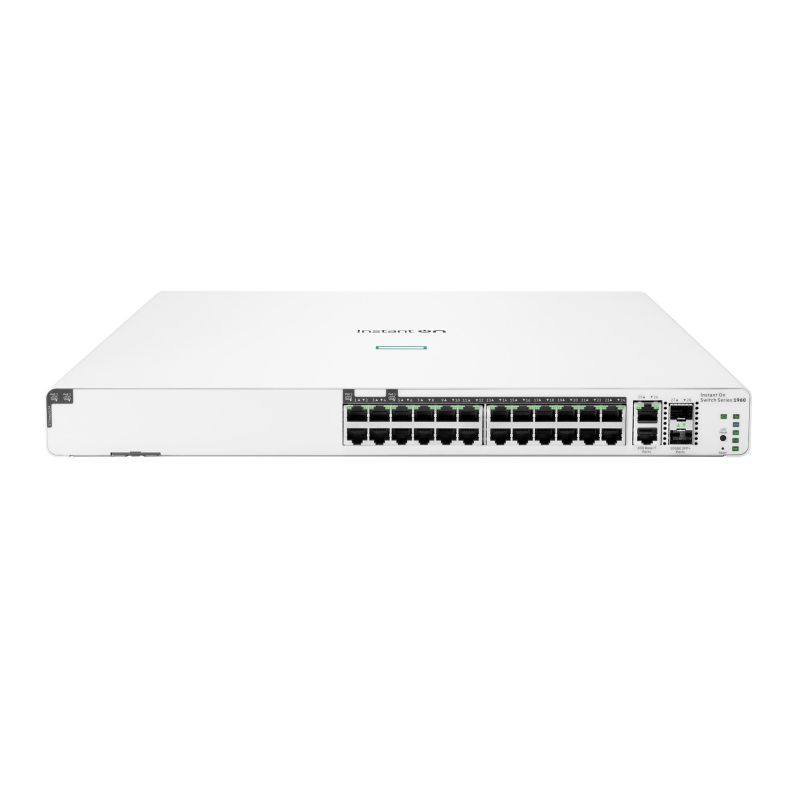

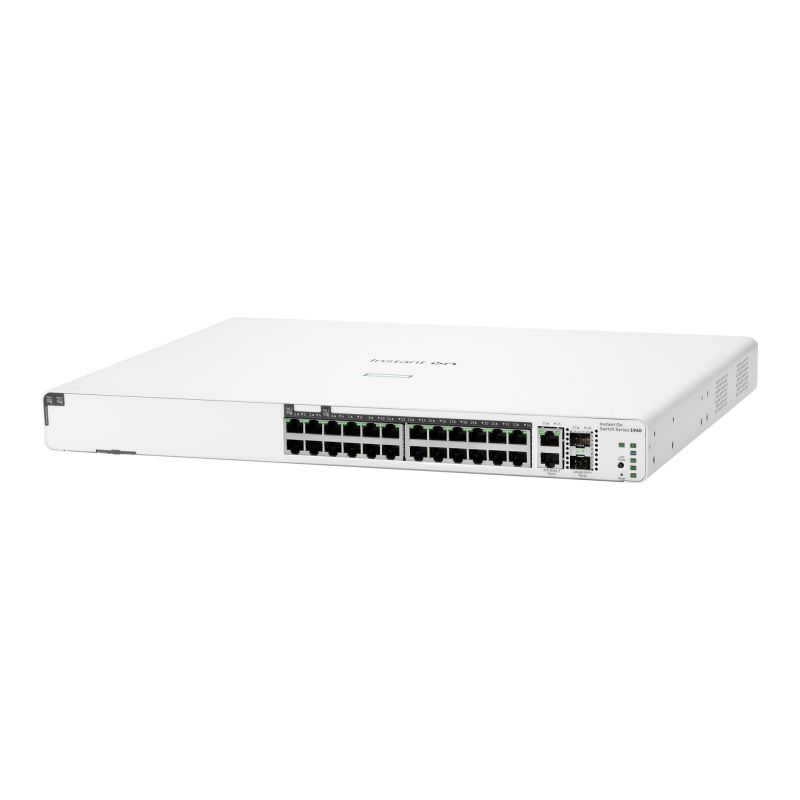

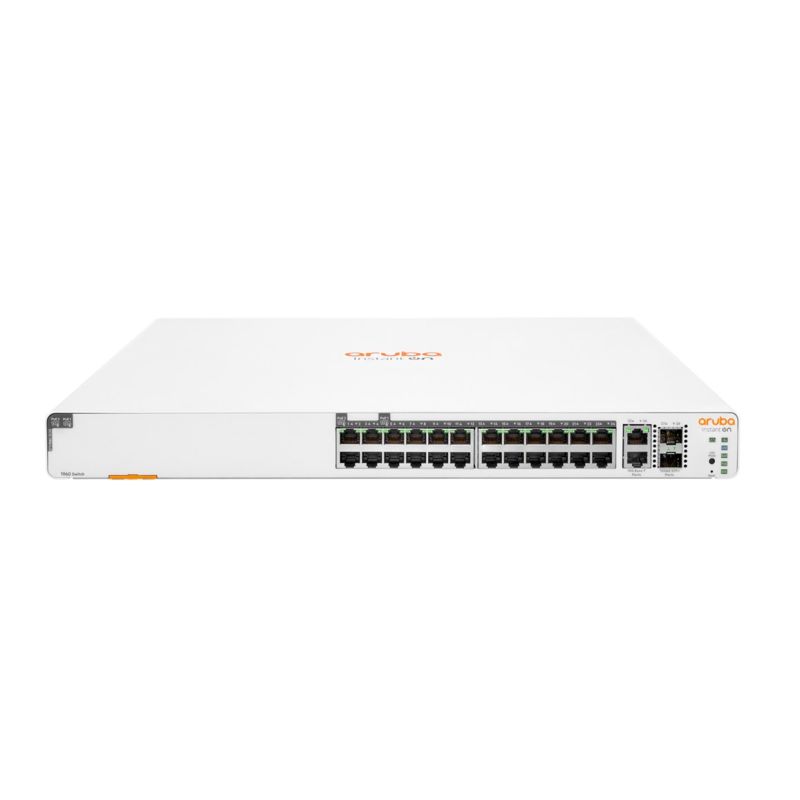

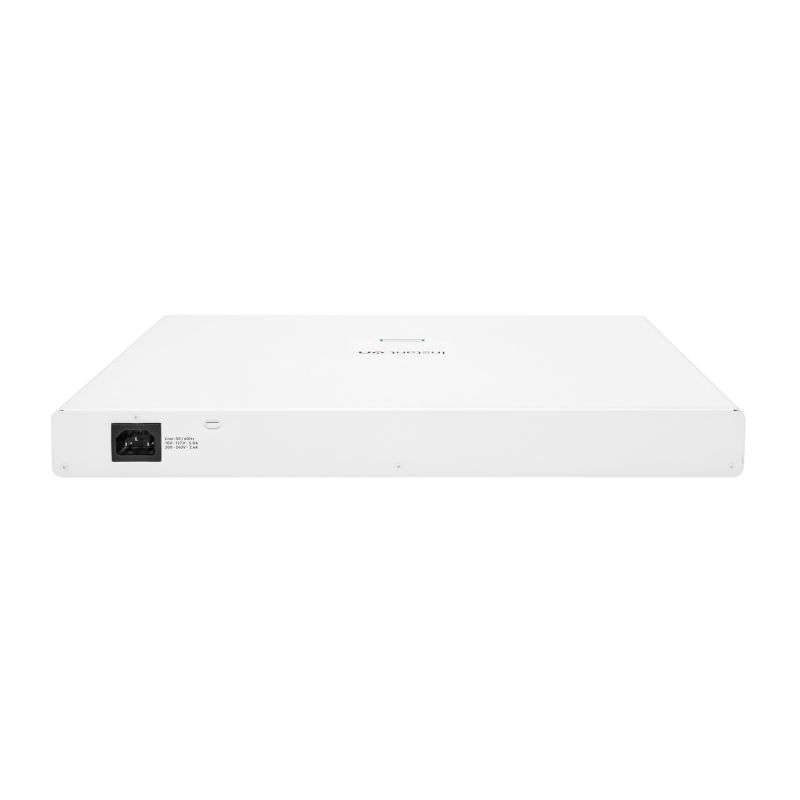

Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U White
Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U White
Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U White
PRICE:
1555,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Product color: White
- Layout: 1U
- Stackable: Yes
- Power
- AC input voltage: 200 - 240 V
- AC input frequency: 50 - 60 Hz
- Power source: AC
- Power consumption (max): 480 W
- Power supply included: Yes
- Power consumption: Maximum: 100-127V: 500W 200-220V: 480W Idle: 100-127V: 40W 200-220V: 80W
- Weight and dimensions
- Product height: 44 mm
- Product width: 350.5 mm
- Product weight: 4.7 kg
- Product depth: 442.5 mm
- Security
- DHCP Features: DHCP snooping
- IGMP snooping: Yes
- Authentication type: RADIUS
- Authentication: Port-based authentication
- Supports SSH/SSL: Yes
- Access Control List (ACL): Yes
- Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Cloud-managed: Yes
- Switch Layer: L2+
- Switch type: Managed
- ARP Inspection: Yes
- System Event Report: Yes
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Permissible operating altitude (above sea level): 0 - 3000 m
- Relative humidity range: 15 - 95%
- Permissible relative humidity: 15 - 90%
- Network
- Communication standards
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3bt
- IEEE 802.1x
- IEEE 802.3z
- IEEE 802.1Q
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.3ab
- IEEE 802.1s
- IEEE 802.1AX
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3ad
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- 10G Support: Yes
- Port Mirroring: Yes
- VLAN support: Yes
- Frequency Limit: Yes
- Spanning Tree Protocol: Yes
- Auto Detection: Yes
- Connection Aggregator: Yes
- Flow Control Support: Yes
- Communication standards
- Efficiency
- Flash memory size: 512 MB
- Internal memory capacity: 1 GB
- Processor clock speed: 800 MHz
- Memory type: DDR3-SDRAM
- Processor model: ARM Cortex-A9
- Built-in processor: Yes
- Physical stacking (pcs): 4
- Protocols
- IPv4 FIB: 32
- IPv6 FIB entries: 32
- IPv4 and IPv6 features: IPv4/IPv6 access-control list (ACL)
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP+ Module slots: 2
- Number of 10G Ethernet ports (copper): 2
- Other functions
- Weight (imperial): 4.72 kg (10.4 lbs)
- Management features: HPE Networking Instant On Cloud; Web browser; SNMP Manager
- Memory and processor: Single-Core ARM v7 Cortex-A9 @800 MHz; 1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Address table size: 16000 entries
- Packet buffer memory: 1.5 MB
- Jumbo Frame Compatible: Yes
- Routing/switching capacity: 128 Gbit/s
- Latency (10 Gbps): 1.1 µs
- Latency (10-100 Mbps): 4.4 µs
- Jumbo Frames Expansion: 9216
- Latency (1 Gbps): 2.2 µs
- Bandwidth: 95 Mpps
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 370 W
- PoE Support: Yes
- Multicast functions
- Multicast Support: Yes
- Safety warning
- Warnings
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Do not open the casing or attempt to repair it yourself.
- Ensure the device is adequately ventilated during operation.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Hewlett-Packard |
| Colour | White |
