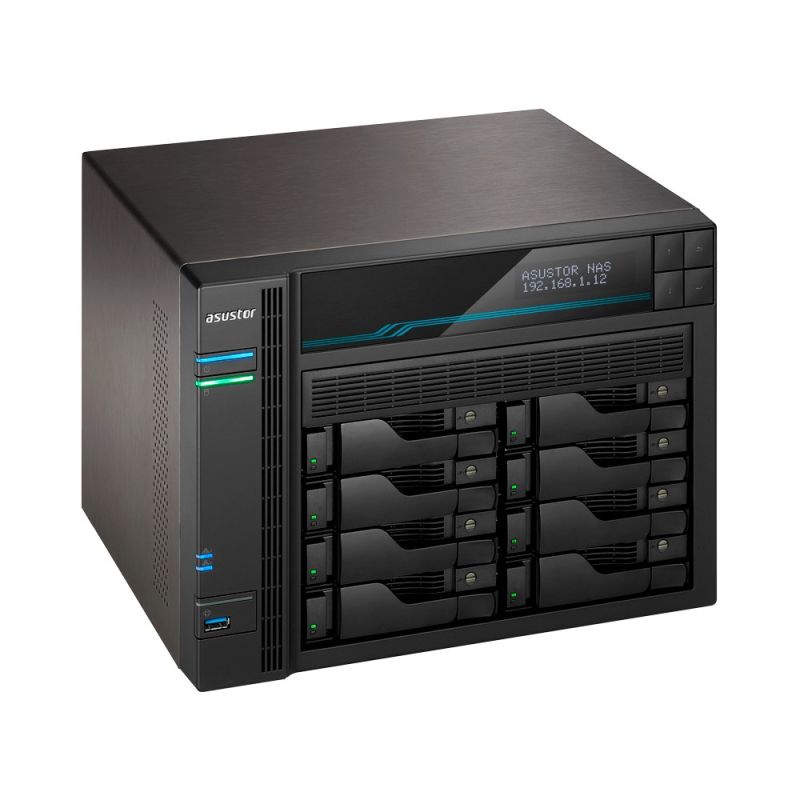

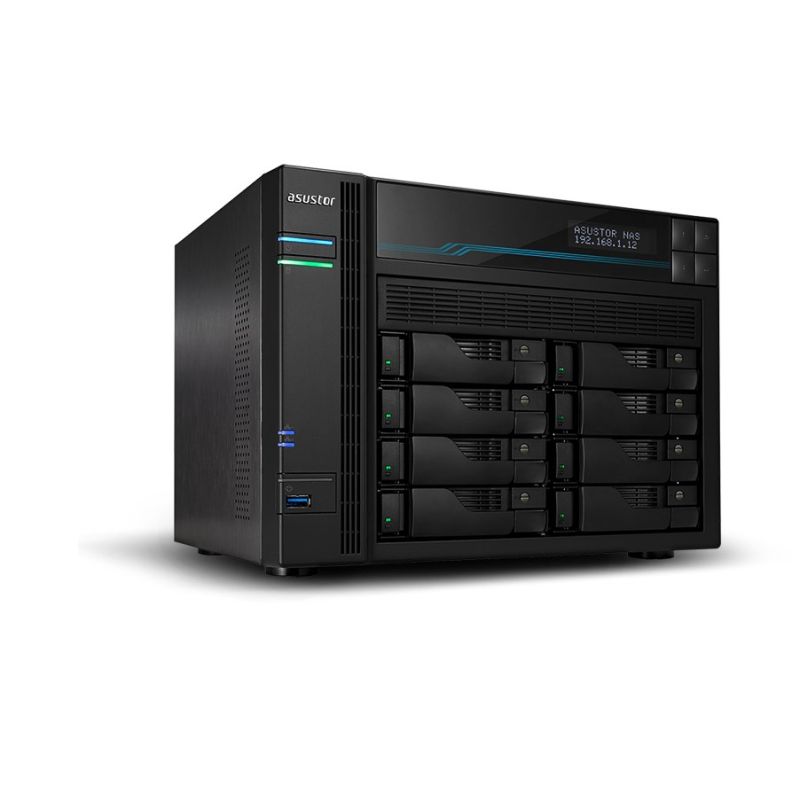

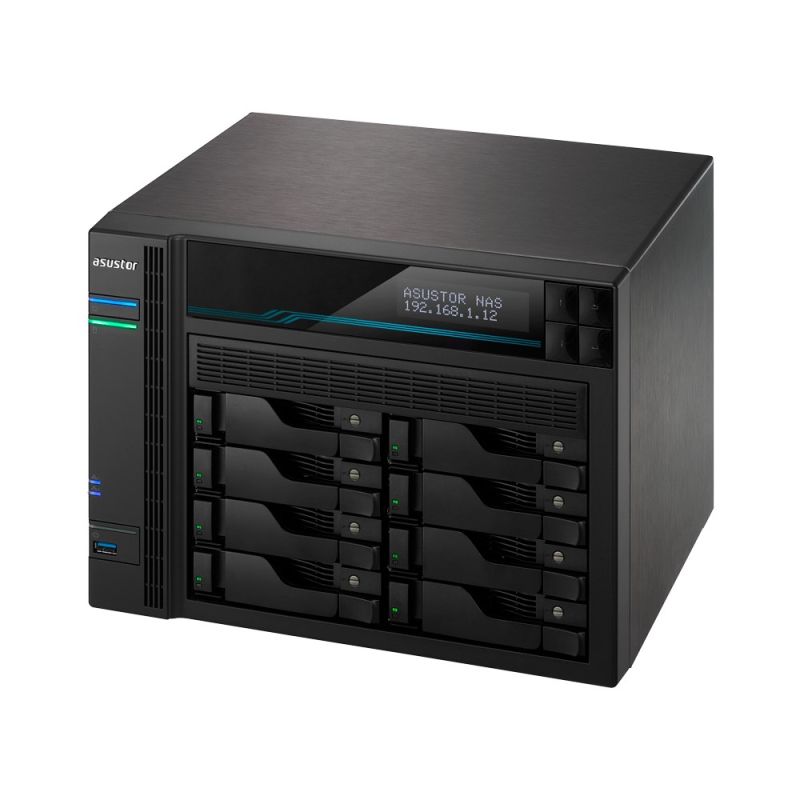

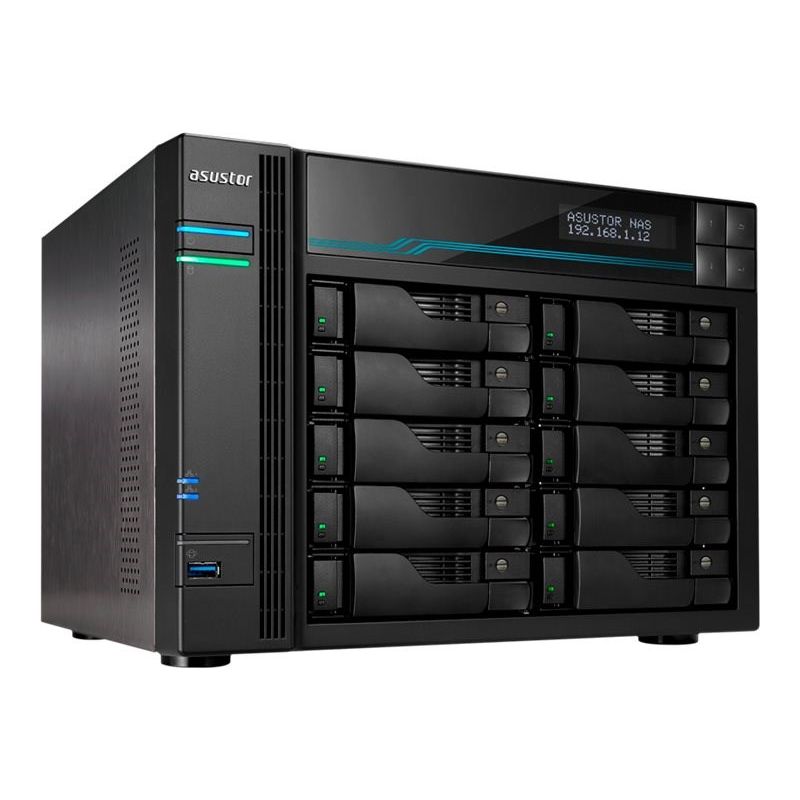

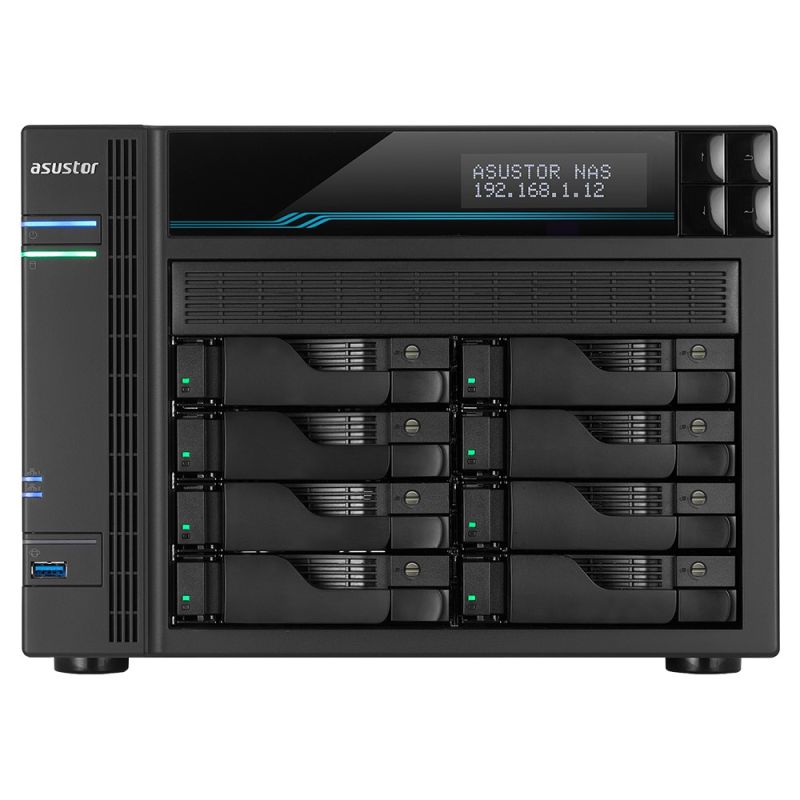

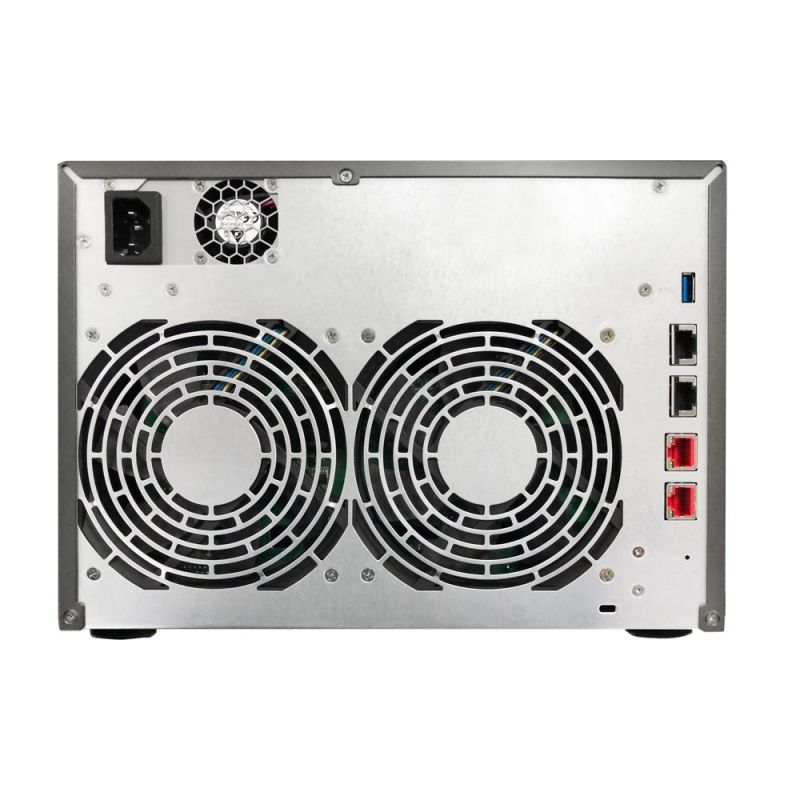

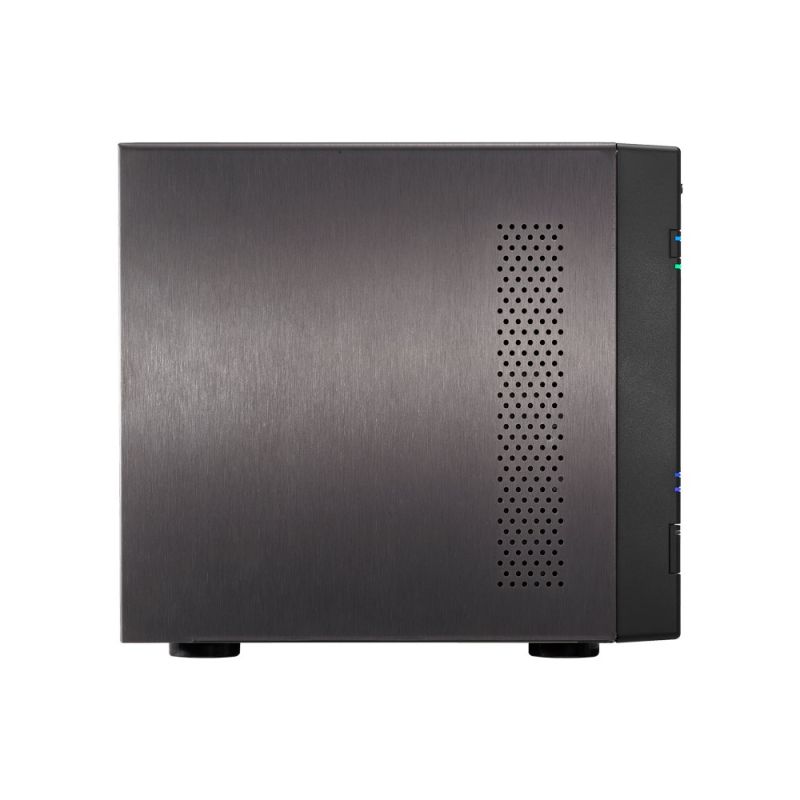

AS6510T NAS; LOCKERSTOR 10, 10x (3.5" SATA HDD/ 2.5" SSD), Intel ATOM C3538, 8GB DDR4 SODIMM (max. 64GB), 2x 10GbE, 2x 5GbE, 2x M.2 2280 NVMe PCIe 3.0, 2x USB 3.2
AS6510T NAS; LOCKERSTOR 10, 10x (3.5" SATA HDD/ 2.5" SSD), Intel ATOM C3538, 8GB DDR4 SODIMM (max. 64GB), 2x 10GbE, 2x 5GbE, 2x M.2 2280 NVMe PCIe 3.0, 2x USB 3.2
AS6510T NAS; LOCKERSTOR 10, 10x (3.5" SATA HDD/ 2.5" SSD), Intel ATOM C3538, 8GB DDR4 SODIMM (max. 64GB), 2x 10GbE, 2x 5GbE, 2x M.2 2280 NVMe PCIe 3.0, 2x USB 3.2
PRICE:
2133,99
€
IN A WAREHOUSE
4 pcs
Goods available on request - delivery time to 10 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Maximum CPU configuration: 1
- Processor type: Intel Atom®
- Processor Code: SR3L7
- Processor Codename: Denverton
- Lithographic process: 14 nm
- Processor package size: 34 x 28 mm
- Stepping: B1
- Slot version (PCI Express): 3.0
- Processor socket: BGA 1310
- Processor manufacturer: Intel
- Conflict-free processor: Yes
- Tcase: 87 °C
- Thermal Design Power (TDP): 15 W
- Maximum internal memory supported by the processor: 256 GB
- Number of threads: 4
- T-Splitter: 100 °C
- Number of processor cores: 4
- Processor clock speed: 2.1 GHz
- Processor Cache: 8 MB
- Processor memory type: Smart Cache
- Processor model: C3538
- Processor operating mode: 64-bit
- Memory
- Flash memory size: 4096 MB
- RAM type: DDR4
- Maximum RAM: 64 GB
- Memory clock speed: 2133 MHz
- Memory type: SO-DIMM
- Memory slots: 2
- RAM: 8 GB
- Design
- Product color: Black
- Housing: Tower
- Number of fans: 2 fans
- Cooling type: Active
- Display type: LCD
- Fan bowl diameter: 12 cm
- Built-in display: Yes
- Power
- AC input voltage: 100 - 240 V
- Power Backup Support (RPS): No
- Power consumption (HDD standby): 41.1 W
- Power supply power: 250 W
- Number of power units: 1
- Power Location: Built-in
- Power consumption: 76.8 W
- Weight and dimensions
- Product weight: 6.4 kg
- Product width: 293 mm
- Product depth: 230 mm
- Product height: 215.5 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 5 - 95%
- Network
- Wake-On-LAN: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10000 Mbps
- 2500 Mbps
- Ethernet LAN support (max): 10000 Mbit/s
- Wired LAN: Yes
- iSCSI Support: Yes
- DHCP server: Yes
- Balance Balance System: Yes
- Supported WLAN adapter: Yes
- Jumbo Frame Compatible: Yes
- Connection Aggregator: Yes
- Dynamic DNS (DDNS): Yes
- Efficiency
- Reset button: Yes
- Website management: Yes
- Encryption/Security
- 256-bit AES
- HTTPS
- SSL/TLS
- SSH
- Photo: Yes
- Supported browsers: Internet Explore 11+, FireFox, Chrome, Safari, Microsoft Edge
- Number of users: 4096 users
- System log: Yes
- Access Control List (ACL): Yes
- Backup function: Yes
- Disk Scan: Yes
- Backup Features
- iSCSI LUN
- Cloud
- Multilingual support: Yes
- Sharing Folder Access Rights Management: Yes
- Universal Plug and Play (UPnP): Yes
- Sharing Folder: Windows ACL
- Noise level, idle: 22 dB
- Built-in UPnP™ AV media server: Yes
- Model: US
- Device class: Home and Home Office
- Built-in iTunes server: Yes
- SMART Support: Yes
- Package contents
- Wires
- LAN (RJ-45)
- Alternating current
- Number of screws: 66
- Wires
- Special features of the processor
- Intel® Hyper Threading Technology (Intel® HT Technology): No
- Intel® Turbo Boost Technology: No
- Built-in options available: Yes
- Intel® OS Guard: Yes
- Intel® Secure Key: Yes
- Intel® Secure Boot: Yes
- Execute Disable Bit (EDB) Technology: Yes
- New AES Instructions (Intel® AES-NI): Yes
- Intel® Virtualization Technology (Directed I/O) (VT-d): Yes
- Intel® QuickAssist Technology: Yes
- Maximum PCI Express lanes: 12
- Intel® Secure Key Technology Version: 1.00
- Intel® VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Boot Technology Version: 1.00
- Intel® Virtualization Technology (VT-x): Yes
- Memory types supported by the processor: DDR4-SDRAM
- Software
- Supported server operating systems
- Windows Server 2008
- Windows Server 2003
- Windows Server 2012
- Installed operating system: ADM
- Linux operating systems supported: Yes
- Supported Windows operating systems
- Windows Vista
- Windows 10
- Windows XP
- Windows 7
- Windows 8
- Operating system version: 3.4
- Supported Mac operating systems
- Mac OS X 10.9 Mavericks
- Mac OS X 10.8 Mountain Lion
- Mac OS X 12.0 Monterey
- Mac OS X 10.6 Snow Leopard
- Mac OS X 10.7 Lion
- Mac OS X 11.0 Big Sur
- Other supported operating systems: Linux
- Supported server operating systems
- Data carrier
- RAID Service: Yes
- Supported hard drive interfaces: SATA III
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 10
- Supported storage drive sizes
- 3.5
- 2.5
- M.2
- Number of M.2 slots (M & B): 2
- RAID levels
- 1
- 6
- 5
- 0
- JBOD
- 10
- Disk capacity: 0 GB
- Online RAID migration: Yes
- Supported file systems
- BTRFS
- HFS+
- FAT32
- NTFS
- ext3
- ext4
- exFAT
- Installed storage device: No
- Types of installed drives: No
- Total installed memory capacity: 0 TB
- Bad Block Scanning: Yes
- Online RAID expansion: Yes
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 4
- USB port: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Other functions
- ARK Processor ID: 97929
- Logistics data
- Harmonized System (HS) code: 84714100
| Name | Details |
|---|---|
| Producer | ASUSTOR |
