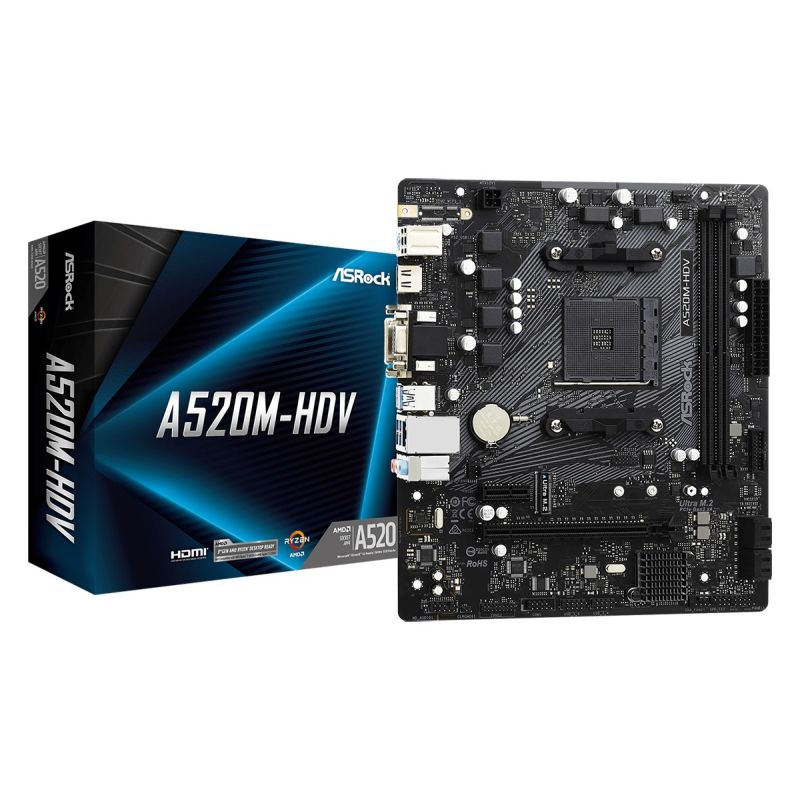

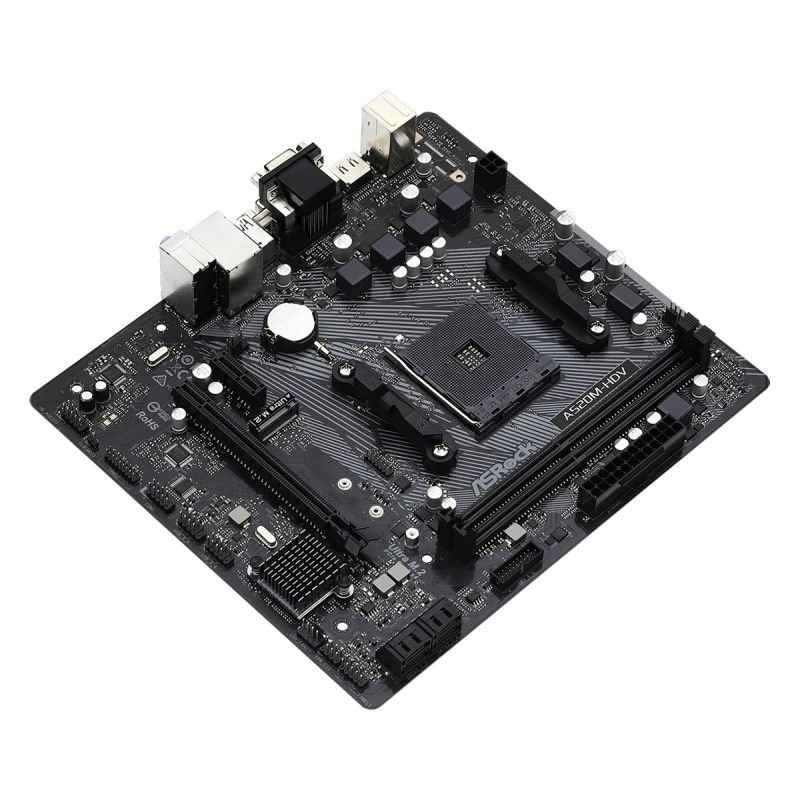

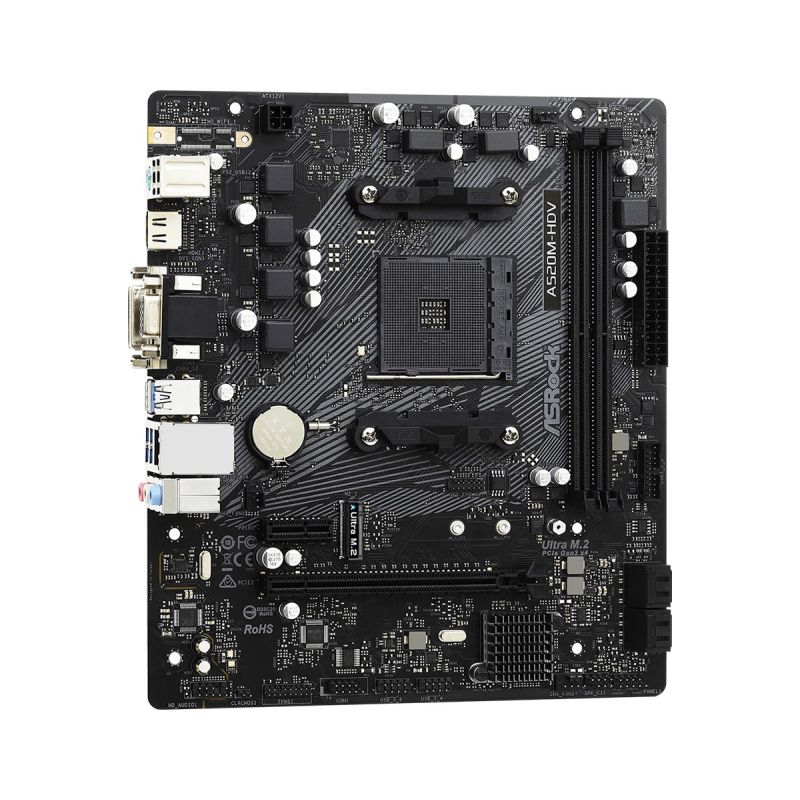

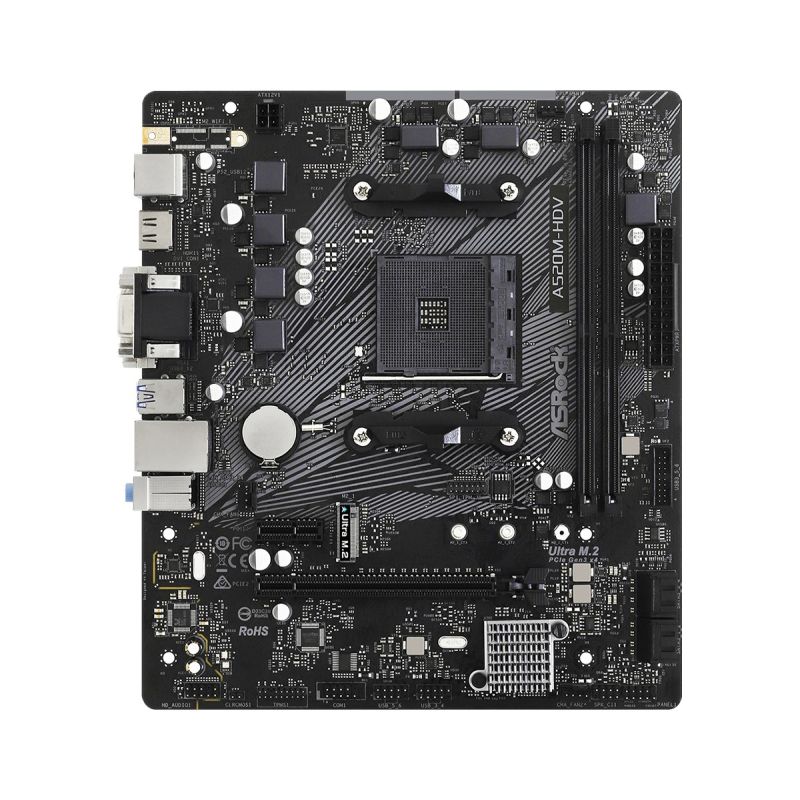

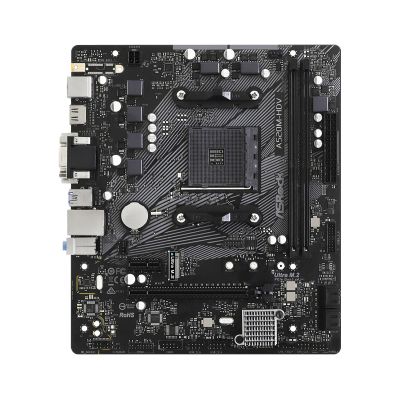

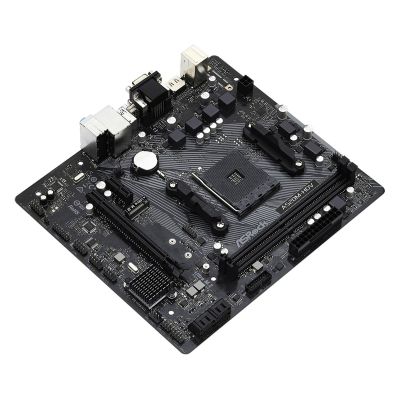

Asrock A520M-HDV motherboard
Asrock A520M-HDV motherboard
Asrock A520M-HDV motherboard
PRICE:
74,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- 3rd Generation AMD Ryzen™ 7
- 3rd Generation AMD Ryzen 5
- 3rd Generation AMD Ryzen™ 3
- 3rd Generation AMD Ryzen™ 9
- Processor socket: Socket AM4
- Processor manufacturer: AMD
- Processor
- Graphics
- Graphics Adapter Family: AMD
- Graphics card: Radeon Vega
- Memory
- Number of memory slots: 2
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory types: DDR4-SDRAM
- Supported memory clock speeds
- 2133 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 3466 MHz
- 2933 MHz
- 4466 MHz
- 3733 MHz
- 4266 MHz
- 3800 MHz
- 4400 MHz
- 4533 MHz
- 3200 MHz
- 2666 MHz
- 4500 MHz
- 4200 MHz
- 4133 MHz
- 3866 MHz
- 4333 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 64 GB
- Characteristics
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product width: 230 mm
- Product depth: 201 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- Front panel audio connector: Yes
- Number of COM sockets: 1
- Number of case fan connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- LAN Controller: Realtek RTL8111H
- Wake-On-LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- Number of supported HDDs: 5
- Supported hard drive interfaces: M.2, Serial ATA III

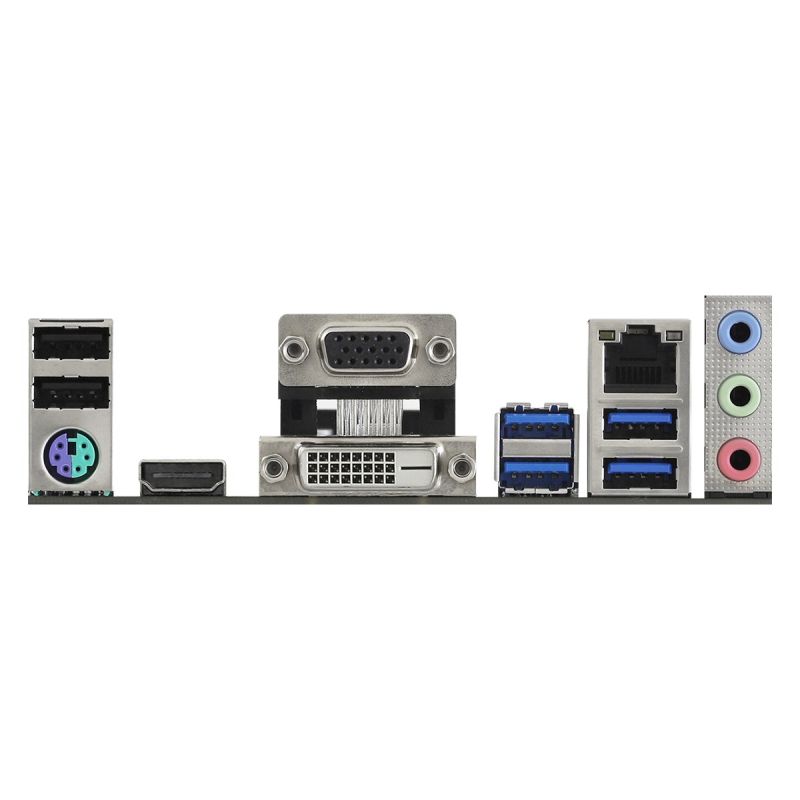

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of VGA (D-Sub) ports: 1
- Microphone: Yes
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- Safety warning
- Warnings
- Avoid direct contact with sensitive electronic components.
- Store away from water and sources of moisture.
- Dispose of in accordance with local regulations regarding electronic waste.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
