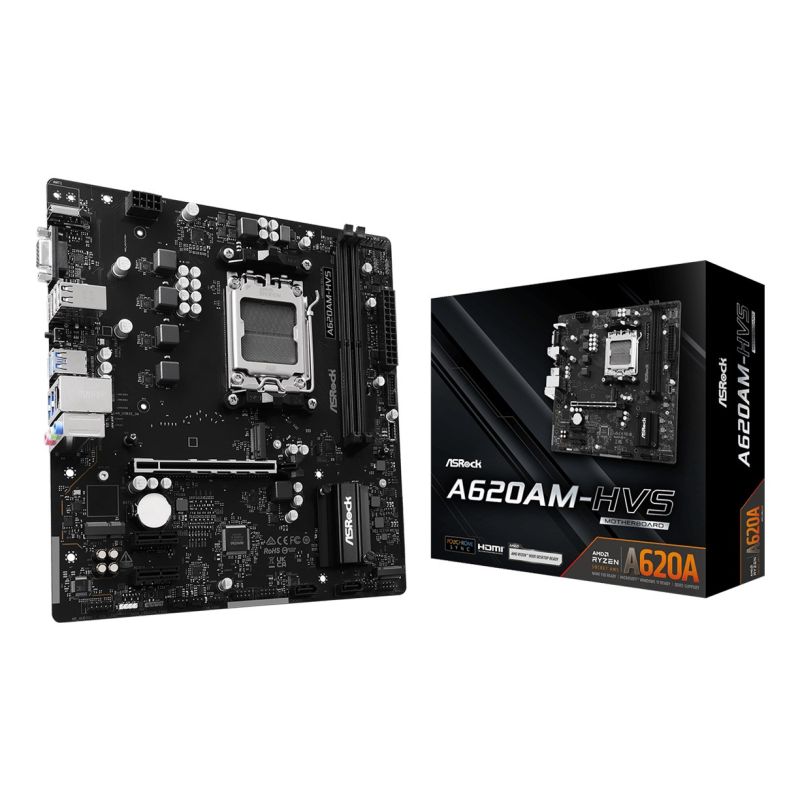

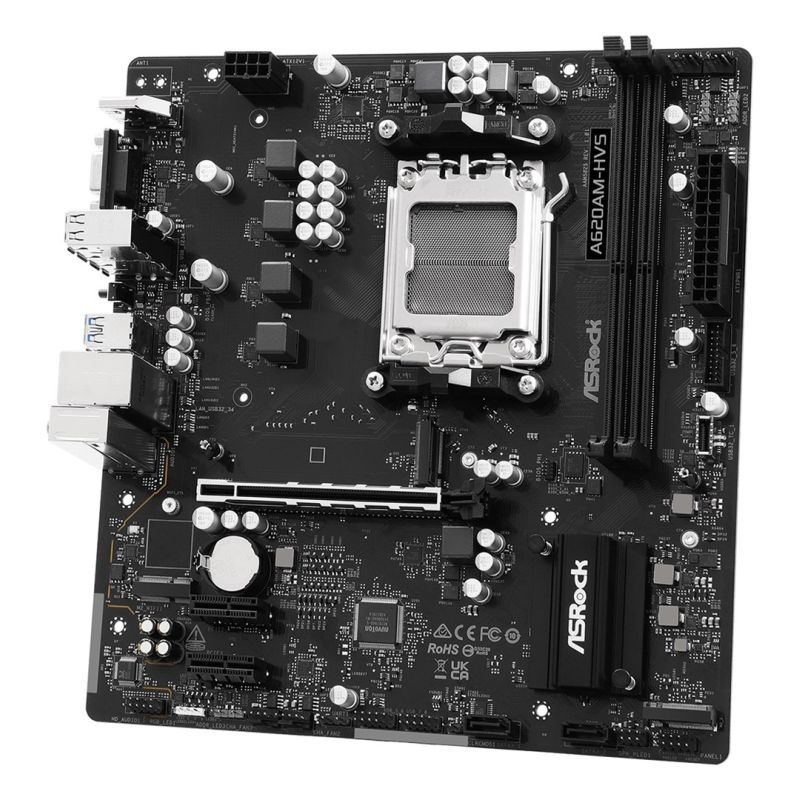

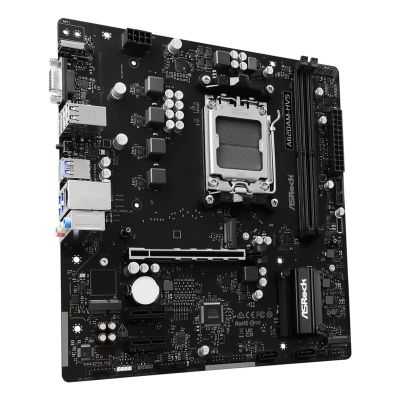

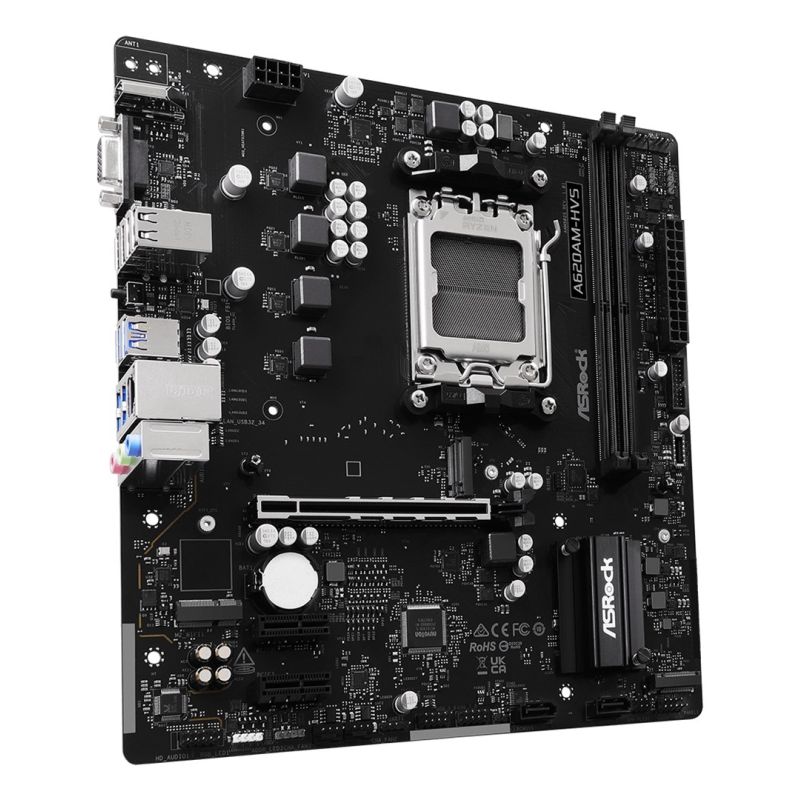

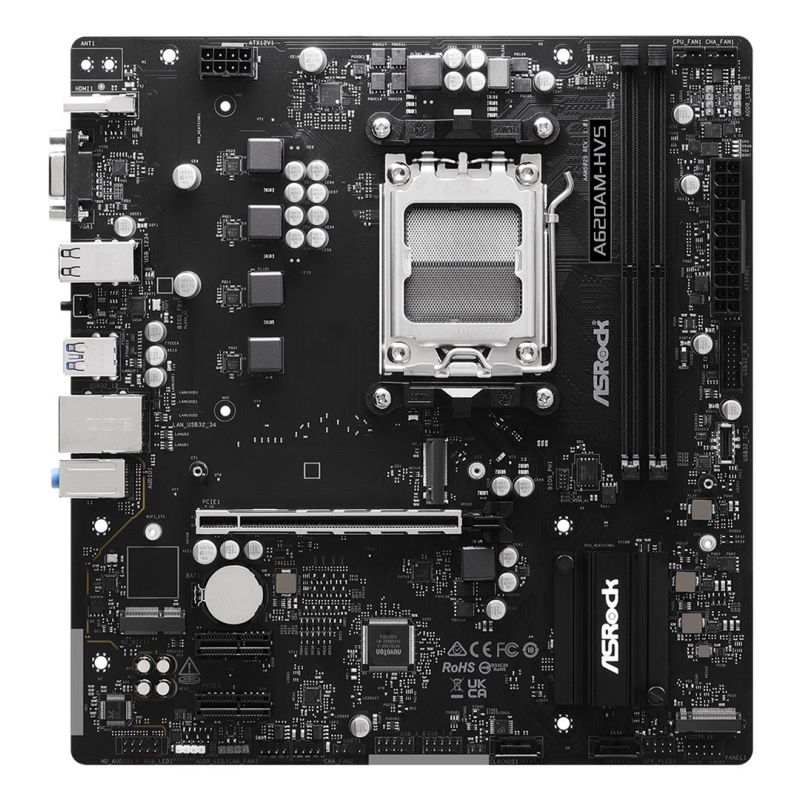

Asrock A620AM-HVS motherboard
Asrock A620AM-HVS motherboard
Asrock A620AM-HVS motherboard
PRICE:
106,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Supported CPU sockets: Socket AM5
- Processor socket: Socket AM5
- Graphics
- HDCP version: 2.3
- High Dynamic Range (HDR) Support: Yes
- HDCP: Yes
- Maximum resolution: 3840 x 2160 px
- Parallel Processing Support: Not Supported
- Memory
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 6800 MHz
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- Characteristics
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Audio output channels: 7.1 ch.
- Product color: Black
- Audio chip: Realtek ALC897
- Motherboard format: Micro ATX
- Chipset Board Family: AMD
- Motherboard Layout: AMD A620A
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 229 mm
- Product width: 244 mm
- Internal I/O
- RGB LED: Yes
- 12V power connector: Yes
- CPU fan connector: Yes
- Number of case fan connectors: 3
- Number of RGB LED connectors: 1
- Number of CPU fan connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- Number of USB 2.0 ports: 2
- Network
- Ethernet network interface type
- Gigabit Ethernet
- Fast Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- LAN Controller: Realtek RTL8111H
- Ethernet network interface type
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Screws Included: Yes
- Cables: SATA
- Memory drivers
- Number of supported storage drive sizes: 4
- RAID levels
- 10
- 1
- 0
- Supported hard drive interfaces: PCI Express 3.0, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes

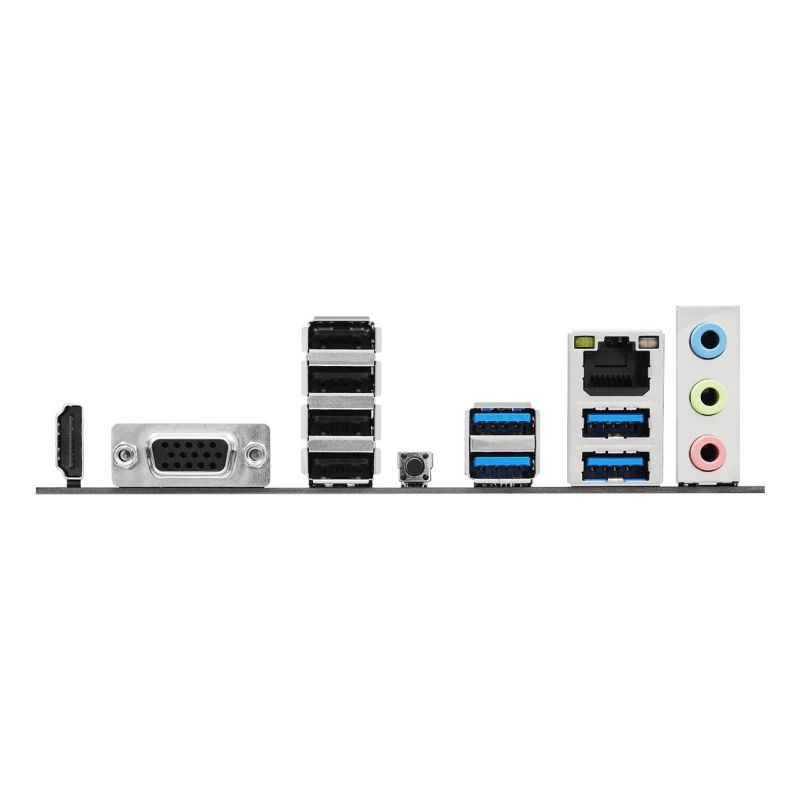

- Rear Panel I/O Ports
- Line Input: Yes
- Number of HDMI ports: 1
- Number of VGA (D-Sub) ports: 1
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- HDMI version: 2.1
- Headphone outputs: 3
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Supported USB type: USB Type-A
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- 1. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 1
| Name | Details |
|---|---|
| Producer | Asrock |
