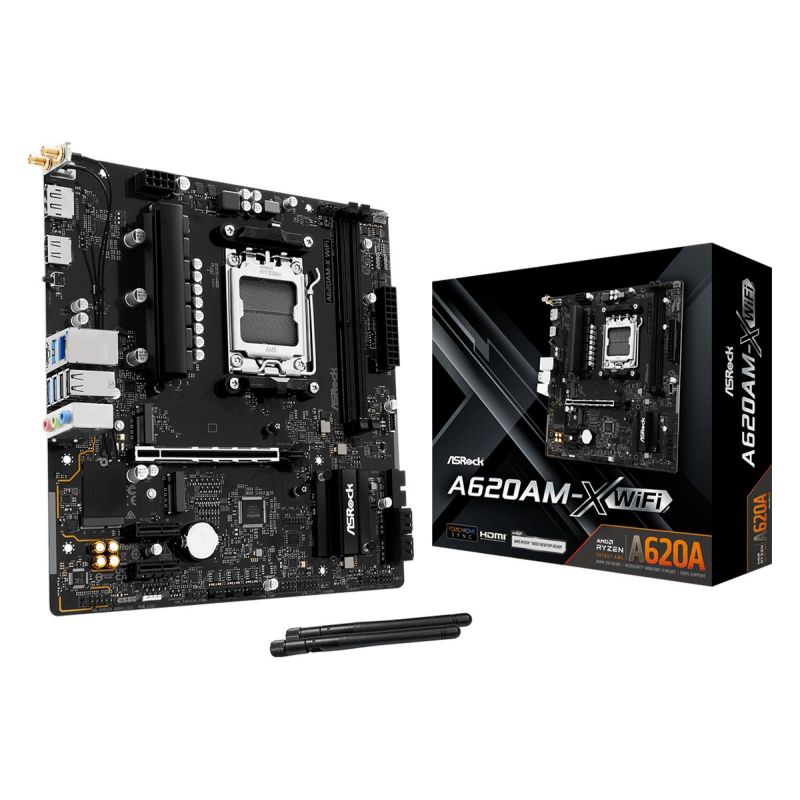

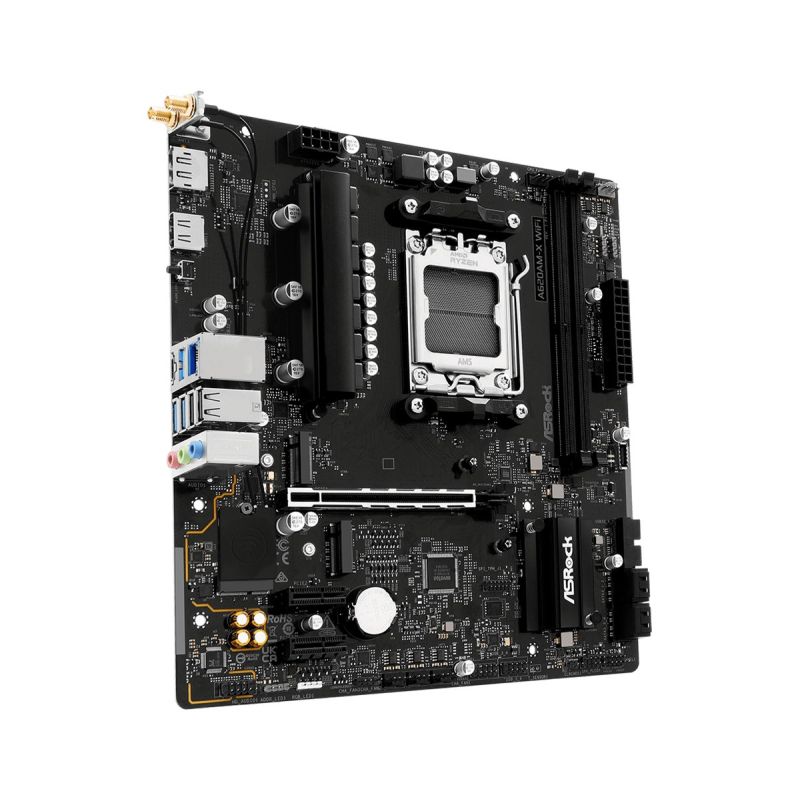

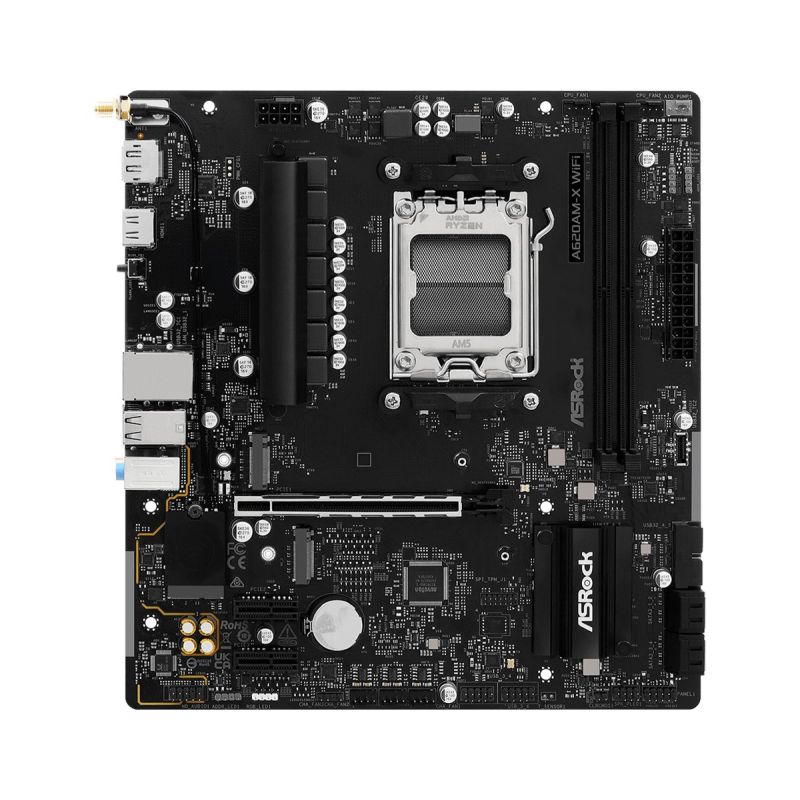

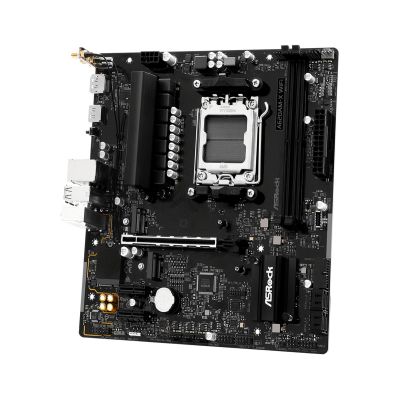

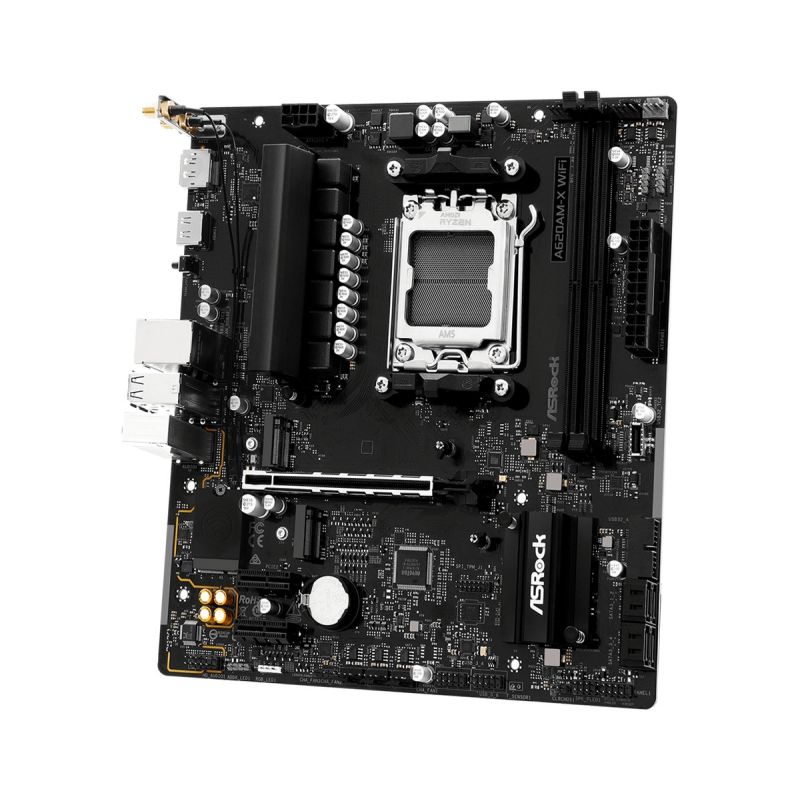

Asrock A620AM-X WIFI Motherboard
Asrock A620AM-X WIFI Motherboard
Asrock A620AM-X WIFI Motherboard
PRICE:
148,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Maximum number of SMP processors: 1
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Processor socket: Socket AM5
- Graphics
- Built-in graphics card: Yes
- HDCP: Yes
- HDCP version: 2.3
- Graphics Adapter Family: AMD
- Memory
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 128 GB
- Supported memory types: DDR5-SDRAM
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Number of memory slots: 2
- ECC Compatibility: ECC or Non-ECC
- Characteristics
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Motherboard Layout: AMD A620A
- Chipset Board Family: AMD
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Weight and dimensions
- Product depth: 226 mm
- Product width: 244 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- RGB LED: Yes
- Number of case fan connectors: 3
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of water pump connections: 1
- Number of RGB LED connectors: 4
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 1
- Network
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi: Yes
- LAN controller: Dragon RTL8125BG
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth: Yes
- Bluetooth version: 5.0
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III

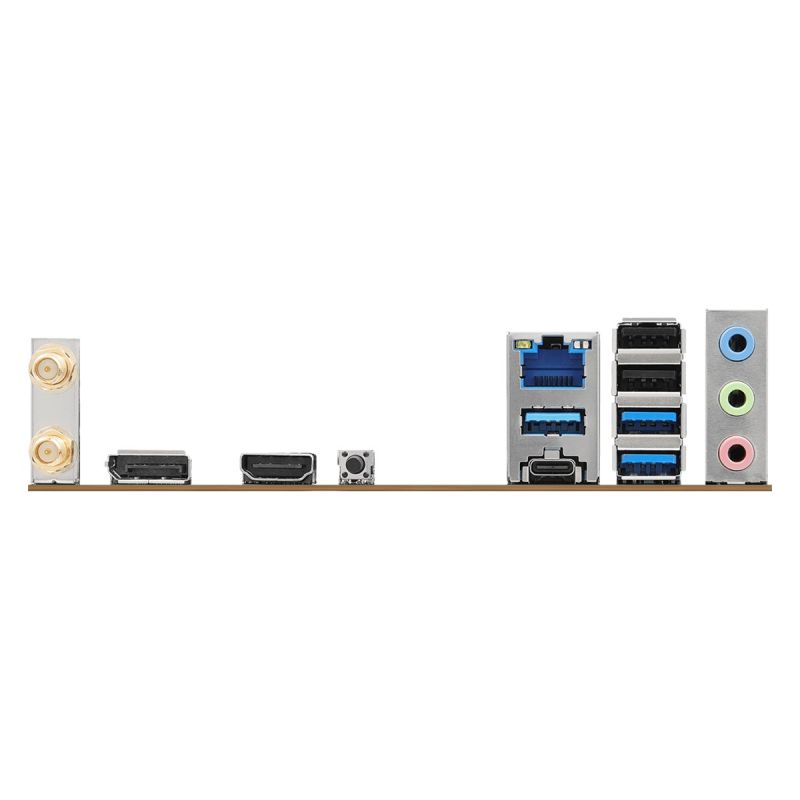

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Line Input: Yes
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 2
| Name | Details |
|---|---|
| Producer | Asrock |
