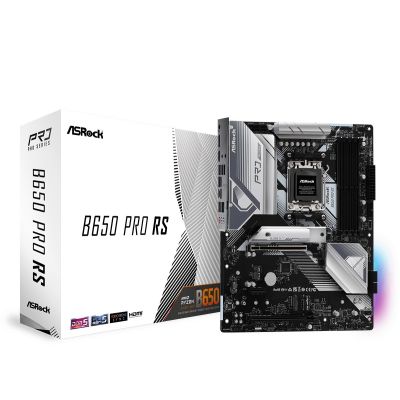

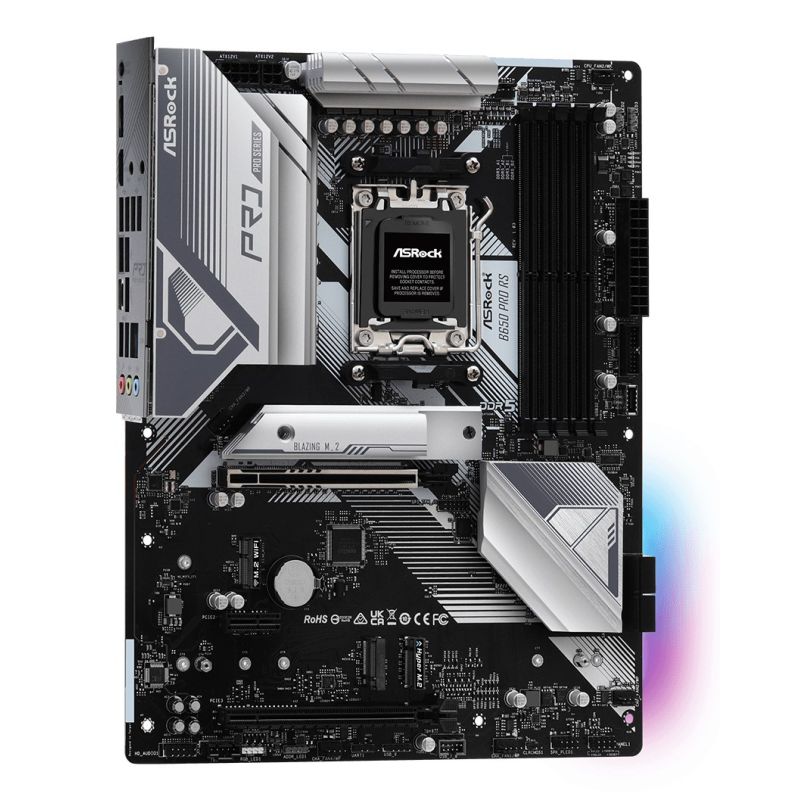

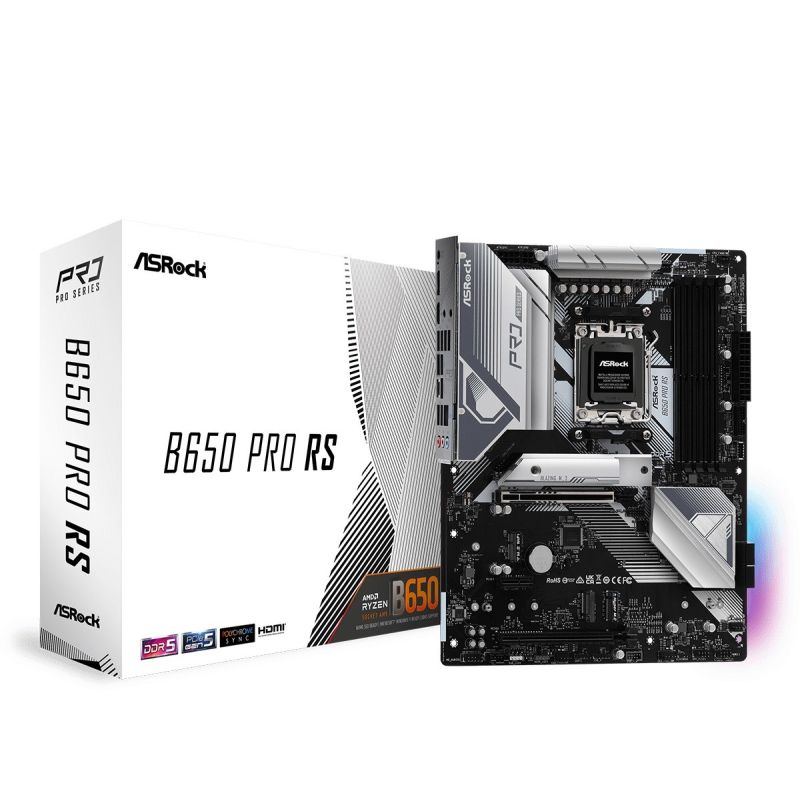

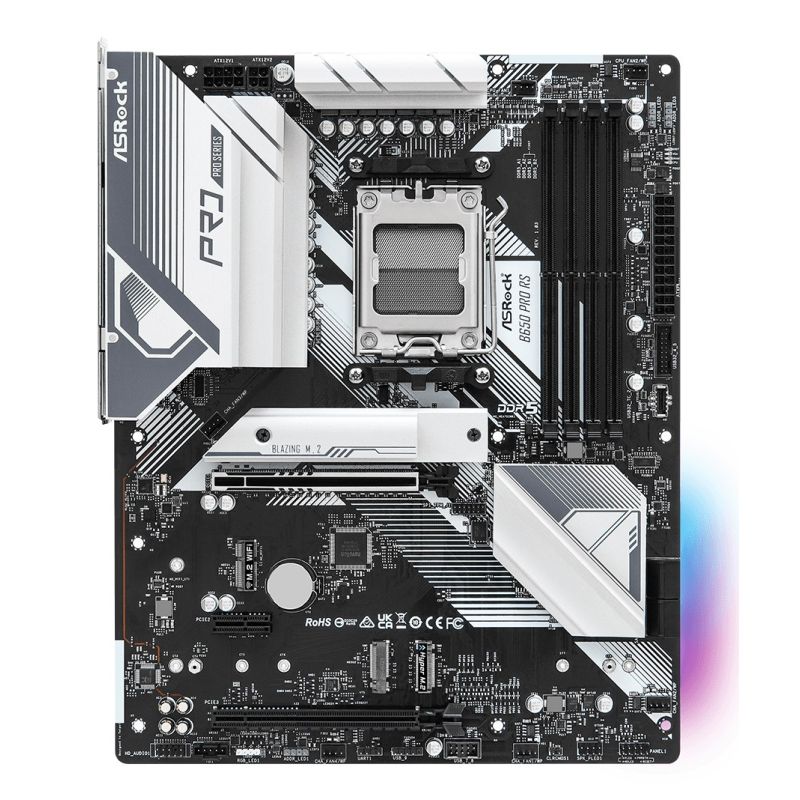

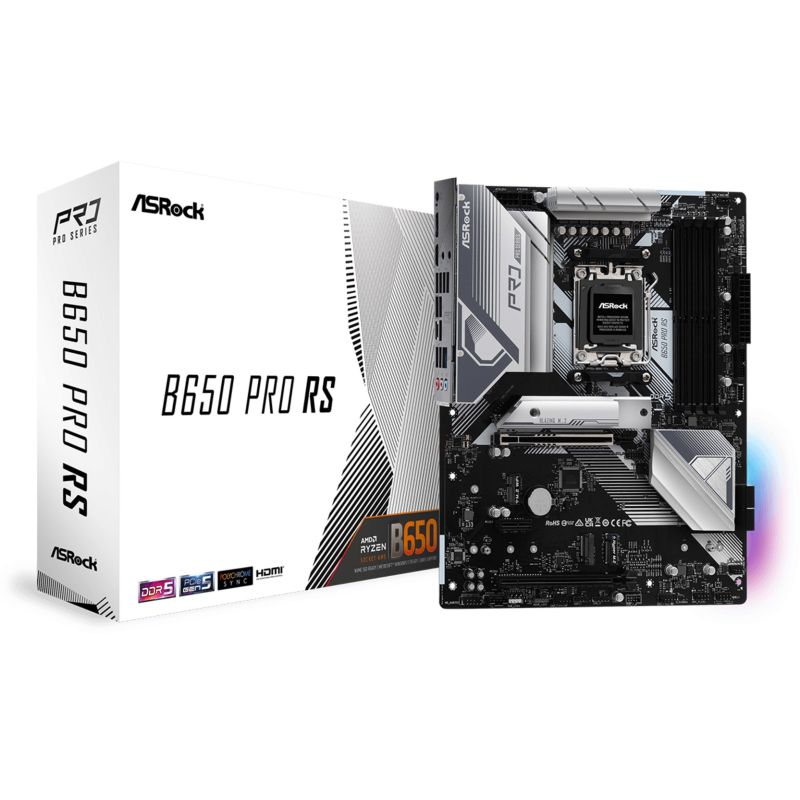

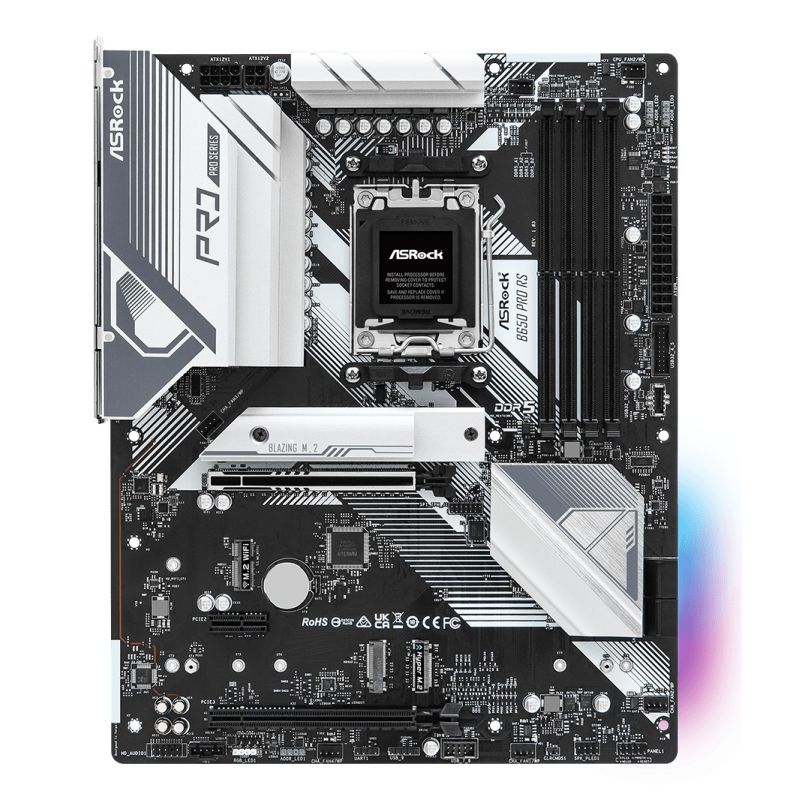

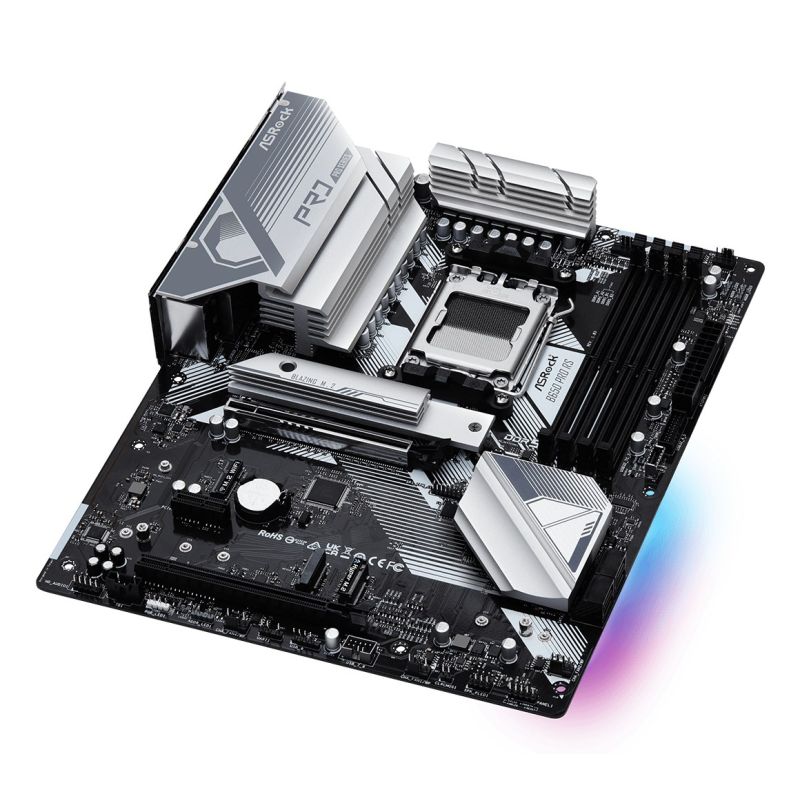

Asrock B650 PRO RS Motherboard
Asrock B650 PRO RS Motherboard
Asrock B650 PRO RS Motherboard
PRICE:
219,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor: AMD Ryzen 7000 Series
- Maximum number of SMP processors: 1
- Processor socket: Socket AM5
- Memory
- Memory Channel Support: Dual Channel
- Supported memory clock speeds: 7200
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Number of memory slots: 4
- ECC Compatibility: ECC or Non-ECC
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Characteristics
- Motherboard Layout: AMD B650
- Motherboard format: ATX
- Chipset Board Family: AMD
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 10 Pro x64
- Windows 11 x64
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- CPU fan connector: Yes
- Thunderbolt Ends: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- TPM Connector: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Network
- Wi-Fi: No
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- RAID Service: Yes
- RAID levels
- 1
- 0
- 10
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

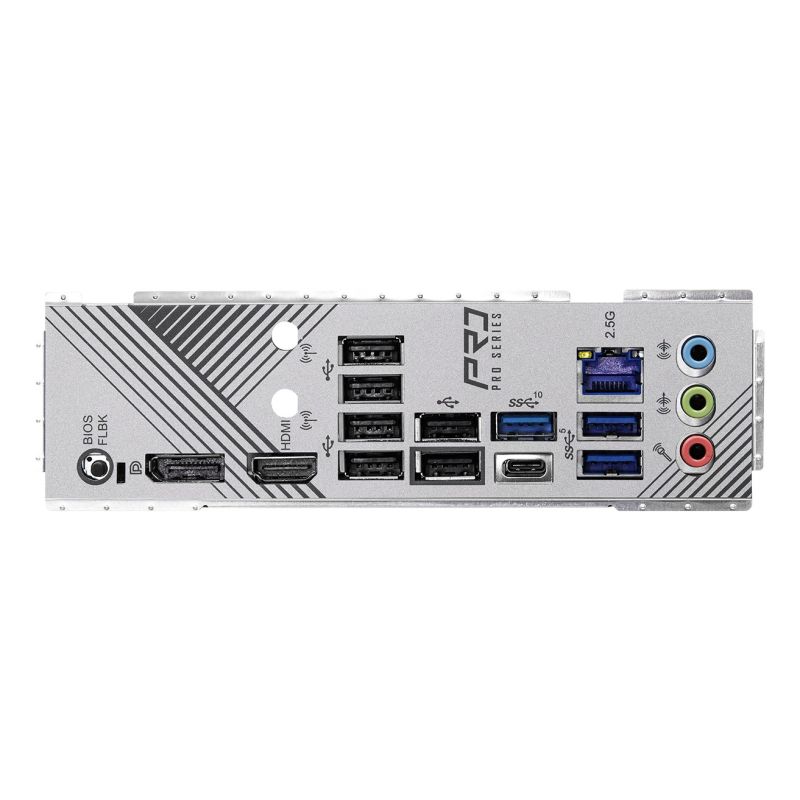

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Microphone: Yes
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 2.0 ports: 6
- Number of HDMI ports: 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- Safety warning
- Warnings
- Dispose of in accordance with local regulations for electronic waste.
- Avoid contact with liquids to prevent electronic damage.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
