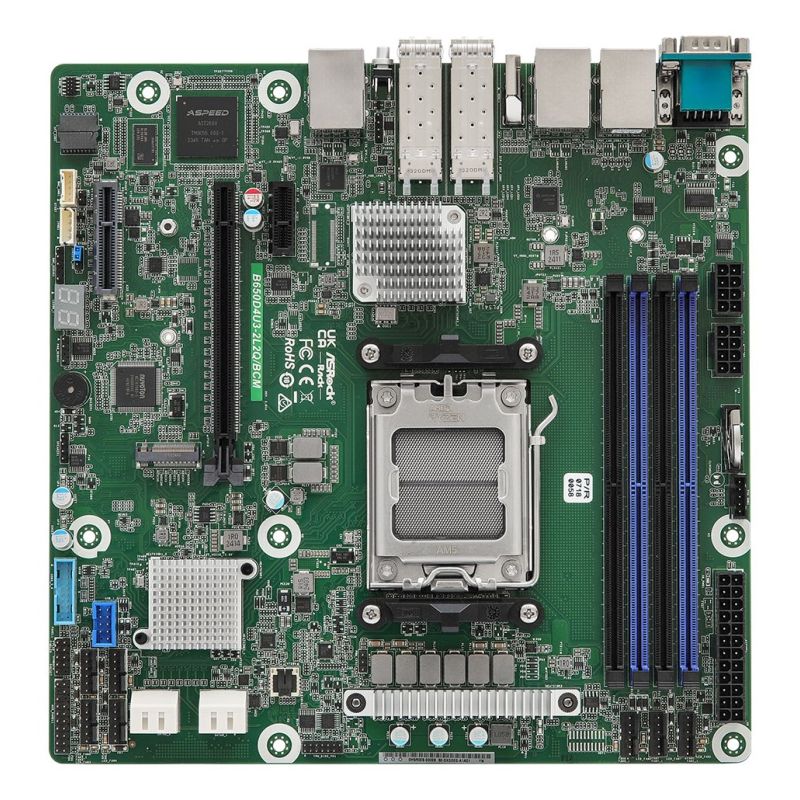

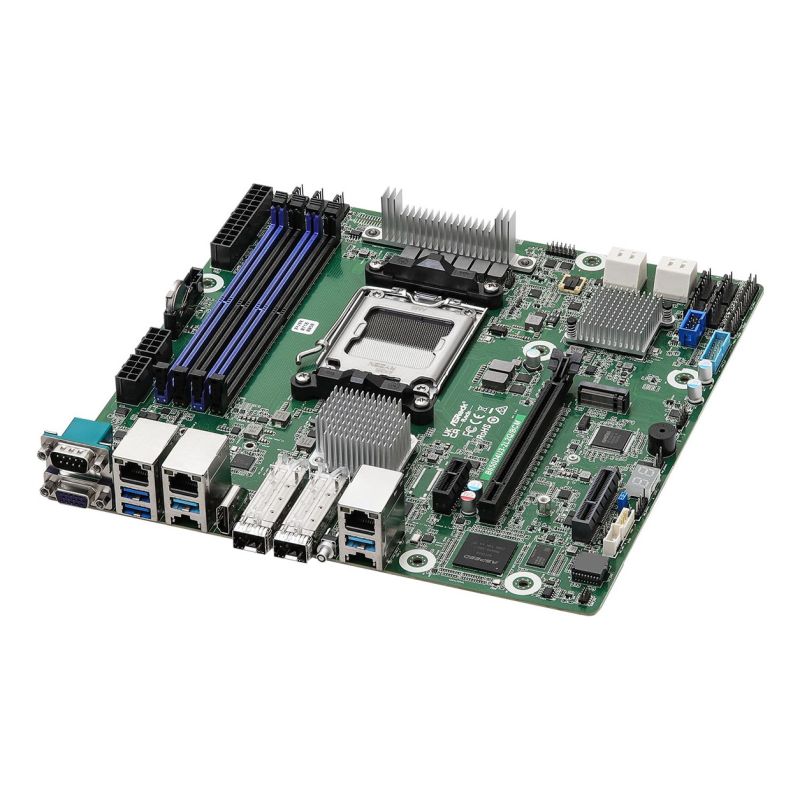

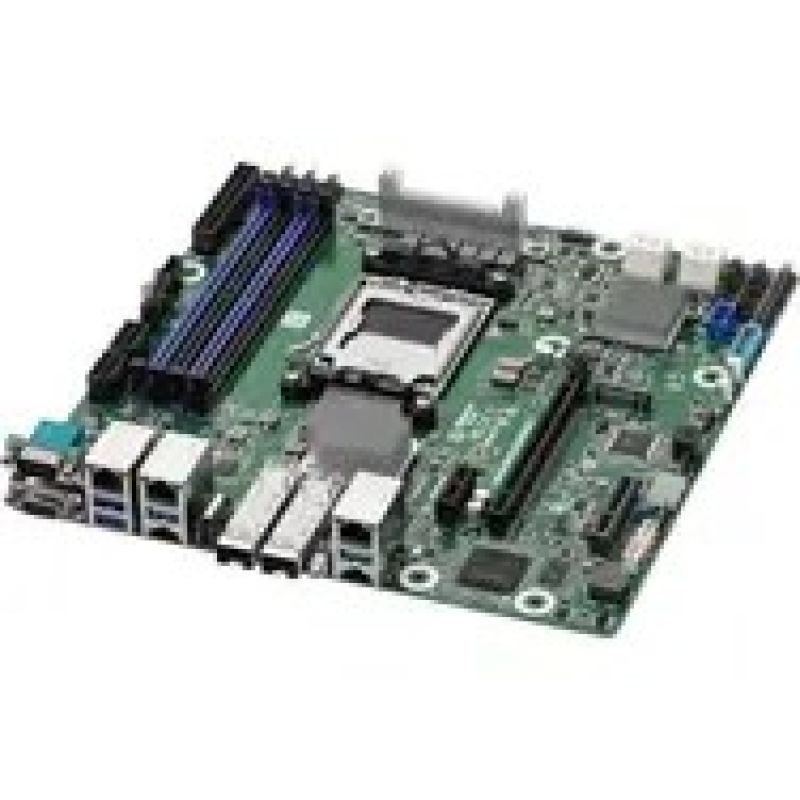

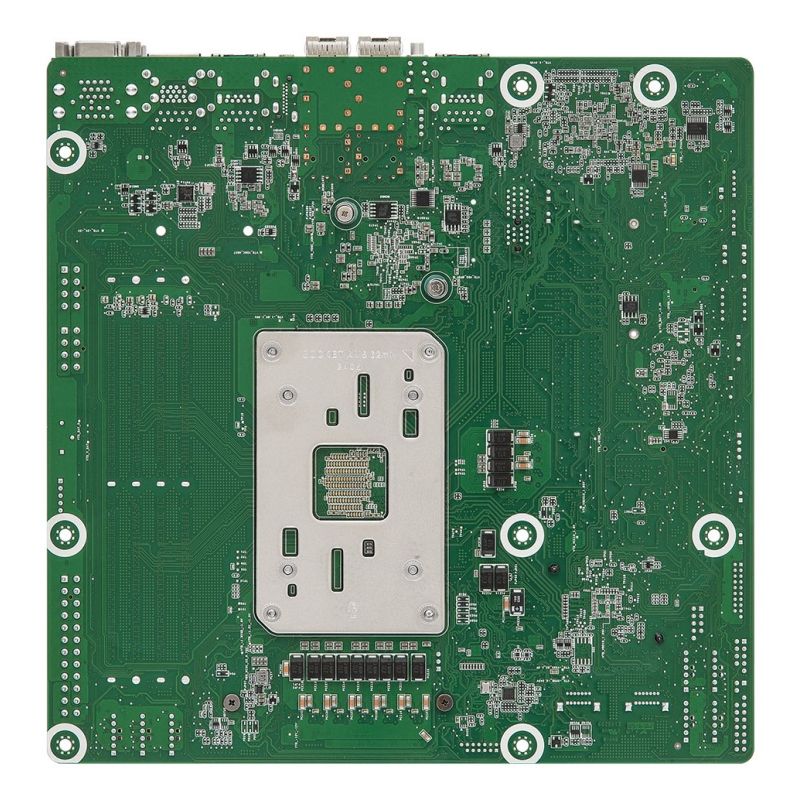

Asrock B650D4U3-2L2Q/BCM AMD B650 Express Motherboard Socket AM5 Micro ATX
Asrock B650D4U3-2L2Q/BCM AMD B650 Express Motherboard Socket AM5 Micro ATX
Asrock B650D4U3-2L2Q/BCM AMD B650 Express Motherboard Socket AM5 Micro ATX
PRICE:
999,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- AMD EPYC 4004
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Processor
- Graphics
- Built-in graphics card model: Aspeed AST2600
- Memory
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 5600 MHz
- Maximum memory capacity: 48 GB
- Supported memory clock speeds
- 5600 MHz
- 3600 MHz
- Memory voltage: 1.1 V
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Characteristics
- Motherboard Layout: AMD B650 Express
- Monitoring computer status
- Fan
- Tension
- Processor
- Chipset Board Family: AMD
- Purpose: Server
- Motherboard format: Micro ATX
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Working conditions
- Relative humidity range: 20 - 90%
- Permissible relative humidity: 20 - 90%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 10 - 35 °C
- Internal I/O
- TPM Connector: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- EPS power supply connector (8-pin): Yes
- Number of COM sockets: 1
- Serial port connector: 1
- Number of USB 2.0 ports: 1
- Network
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI
- BIOS memory size: 256 Mbit
- Clear CMOS Jumper: Yes
- System BIOS (SMBIOS) Version: 3.5
- ACPI version: 6.4
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III

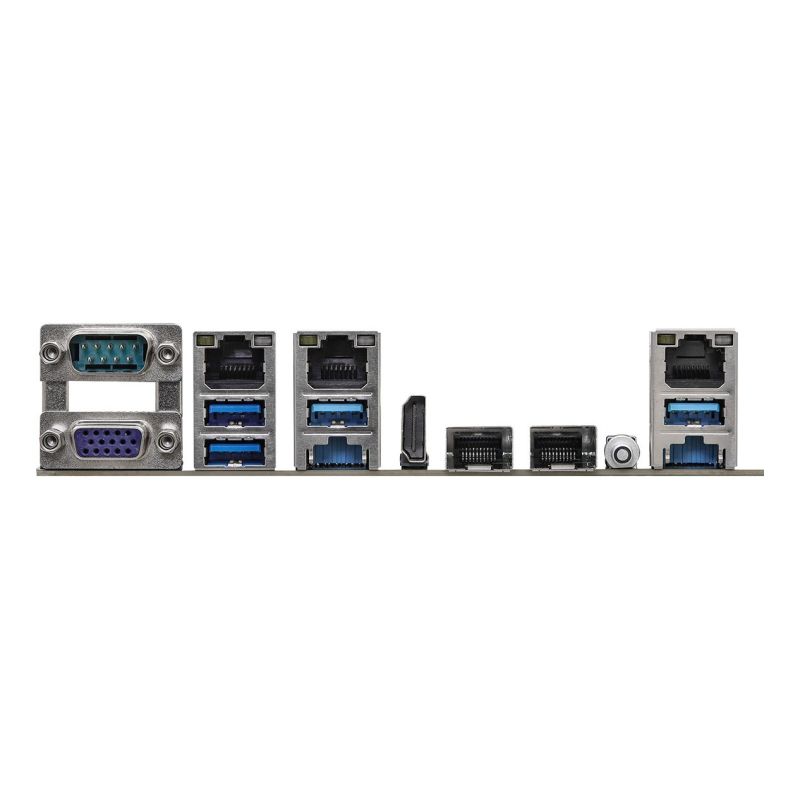

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of Ethernet LAN ports (RJ-45): 2
- IPMI LAN Port (RJ-45): Yes
- Number of HDMI ports: 1
- Number of VGA (D-Sub) ports: 1
- Expansion slots
- PCI Express x4 slots (Gen 4.x): 1
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Asrock |
| Department | Electronics |
