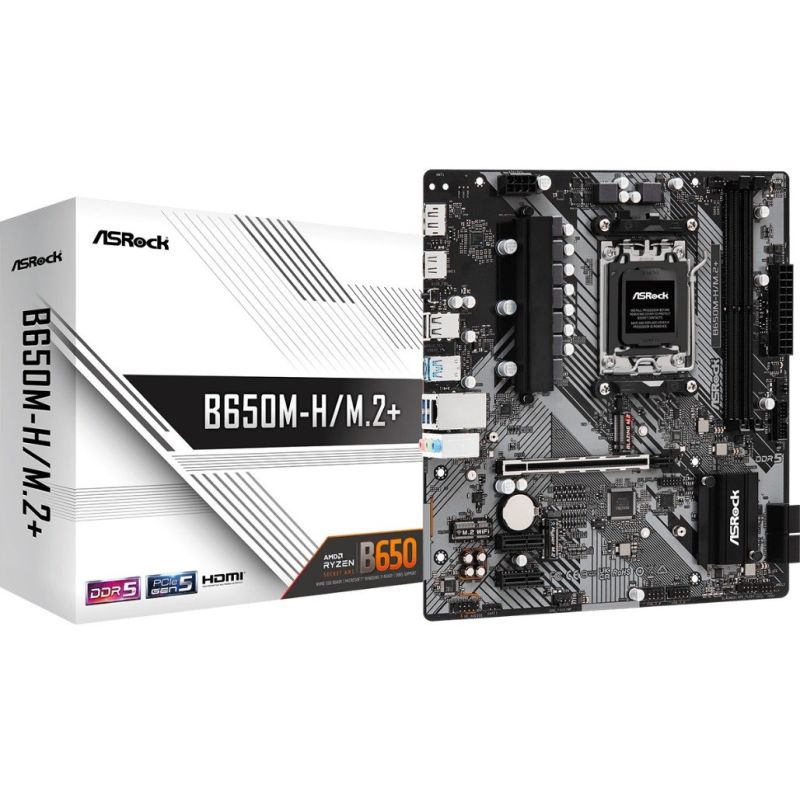

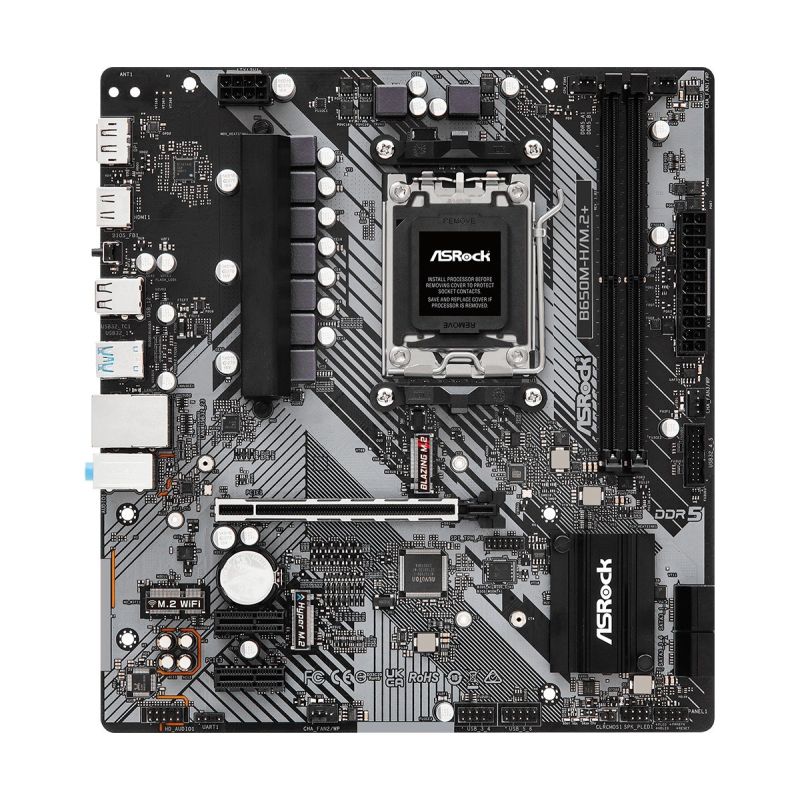

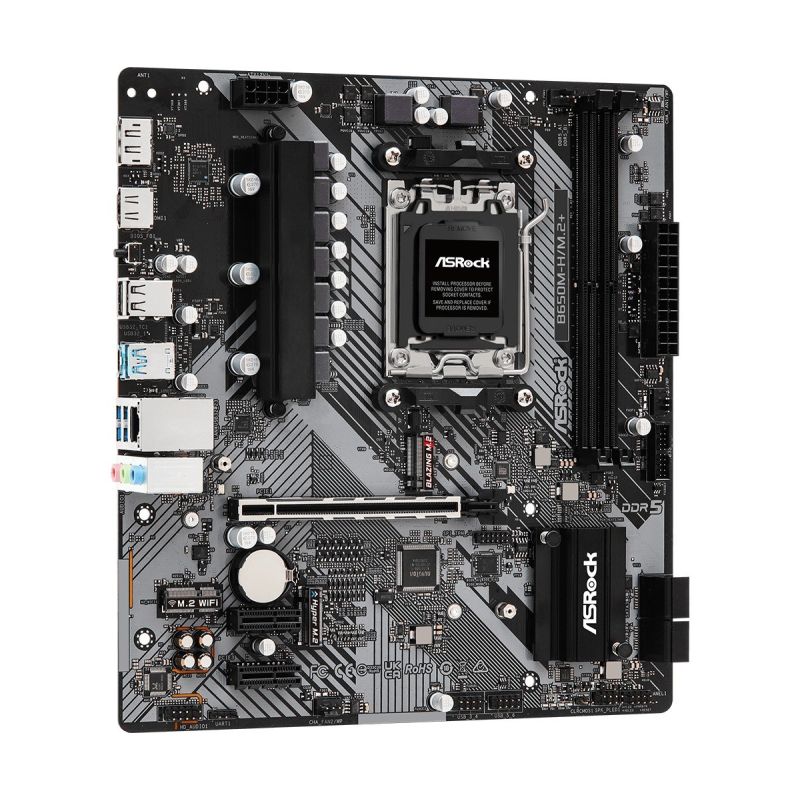

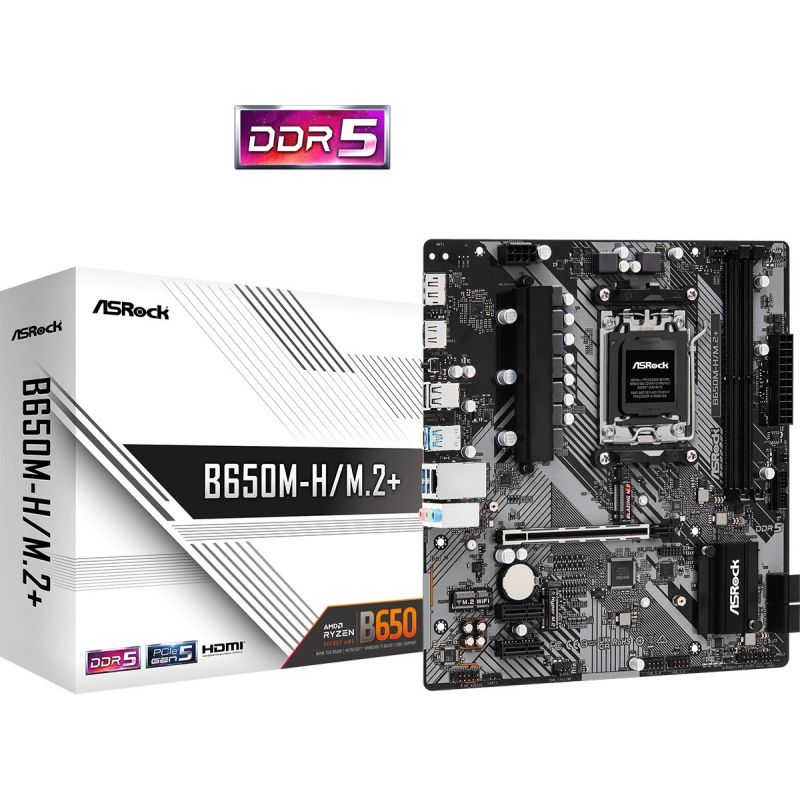

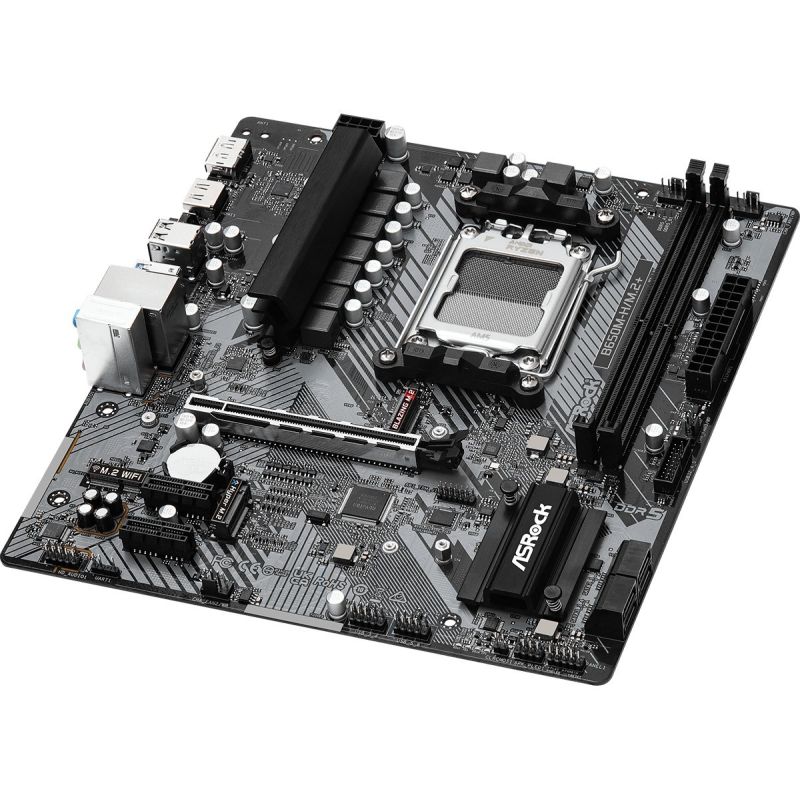

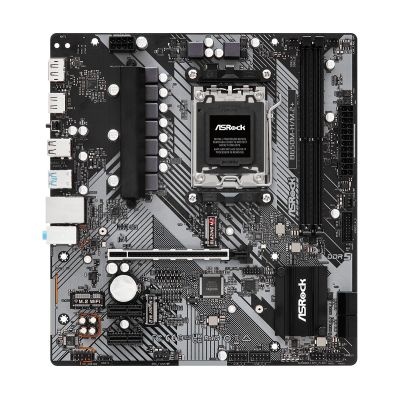

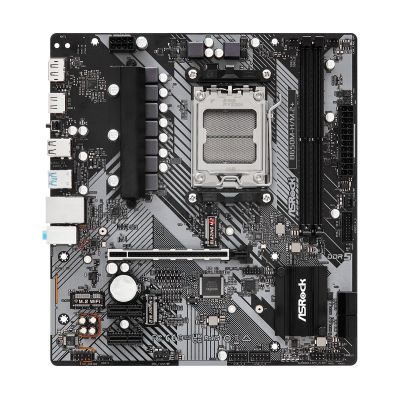

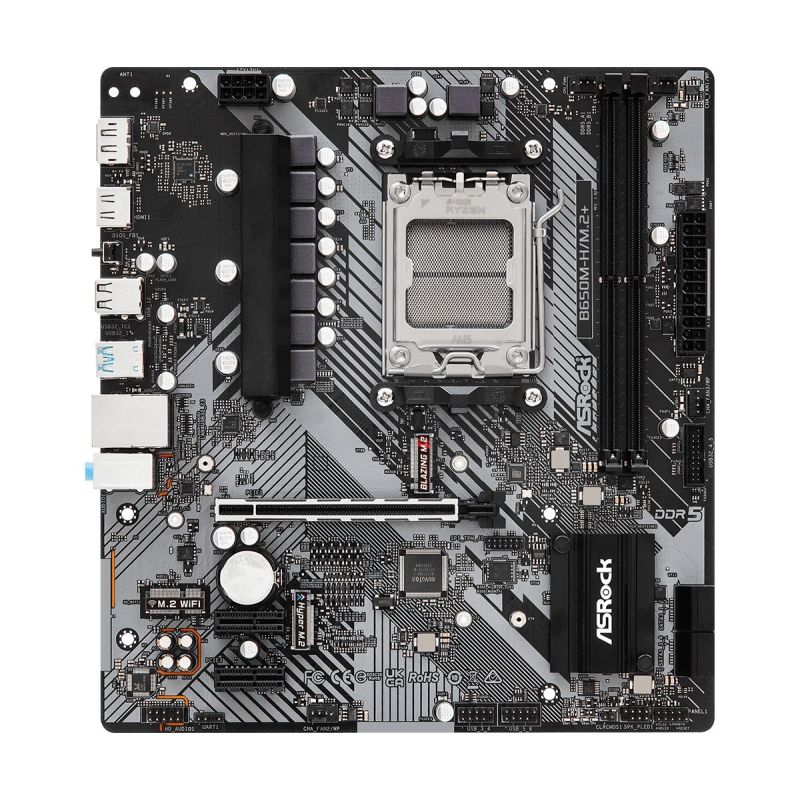

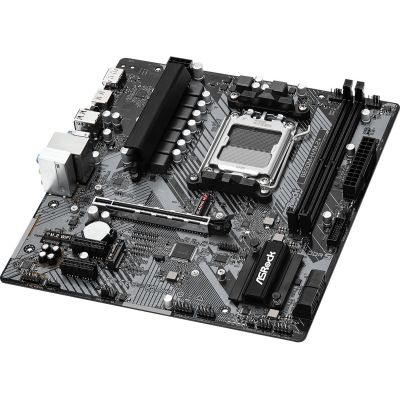

ASRock B650M-H/M.2+ motherboard
ASRock B650M-H/M.2+ motherboard
ASRock B650M-H/M.2+ motherboard
PRICE:
118,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: Socket AM5
- Processor: AMD Ryzen™ 7
- Processor manufacturer: AMD
- Memory
- Maximum memory capacity: 96 GB
- Number of memory slots: 2
- Supported memory types: DDR5-SDRAM
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Characteristics
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC897
- Chipset Board Family: AMD
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Motherboard Layout: AMD B650
- Motherboard format: Micro ATX
- Weight and dimensions
- Product depth: 226 mm
- Product width: 244 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- TPM Connector: Yes
- EPS power supply connector (8-pin): Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- Network
- Wi-Fi: No
- LAN controller: Realtek 8111H
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- RAID Service: Yes
- Supported drive types: HDD & SSD
- RAID levels
- 10
- 1
- 0
- Supported hard drive interfaces: M.2, SATA III

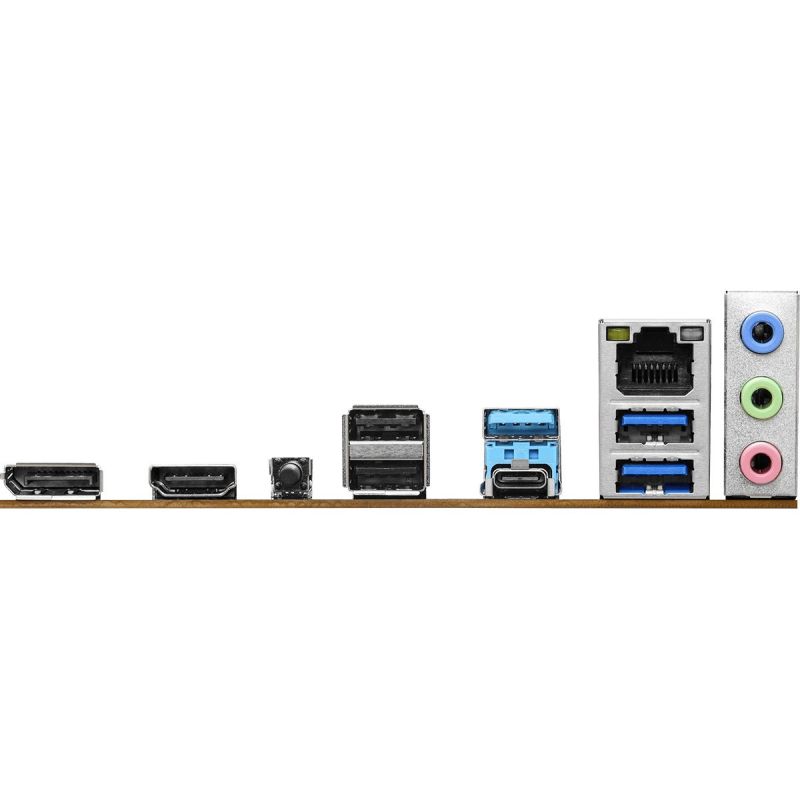

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Microphone: Yes
- Line Input: Yes
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.4
- Back-to-BIOS button: Yes
- Number of HDMI ports: 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Safety warning
- Warnings
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Dispose of in accordance with local regulations for electronic waste.
- Avoid contact with liquids to prevent electronic damage.
