Asrock B650M PRO RS motherboard
Asrock B650M PRO RS motherboard
Asrock B650M PRO RS motherboard
PRICE:
182,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen™ 5
- AMD Ryzen™ 7
- Processor socket: Socket AM5
- Memory
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 128 GB
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Characteristics
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC897
- Motherboard Layout: AMD B650
- Chipset Board Family: AMD
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Motherboard format: Micro ATX
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- CPU fan connector: Yes
- TPM Connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Thunderbolt Ends: 1
- EPS power supply connector (8-pin): Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Network
- LAN controller: Dragon RTL8125BG
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III

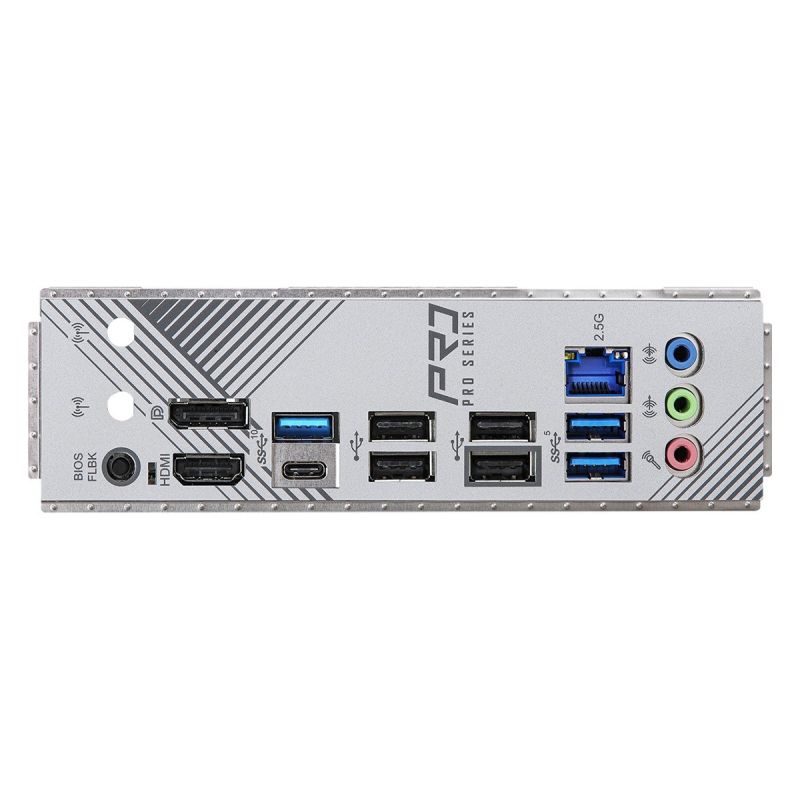

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- DisplayPort version: 1.4
- Headphone outputs: 1
- Microphone: Yes
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Safety warning
- Warnings
- Avoid contact with liquids to prevent electronic damage.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Dispose of in accordance with local regulations for electronic waste.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
