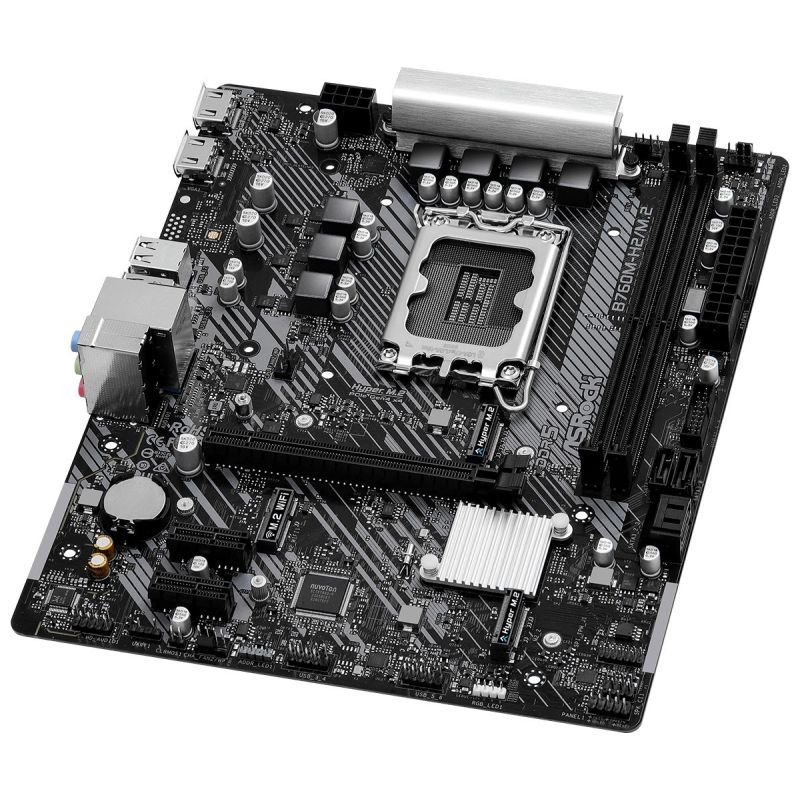

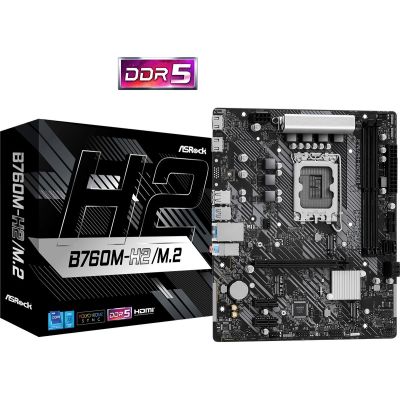

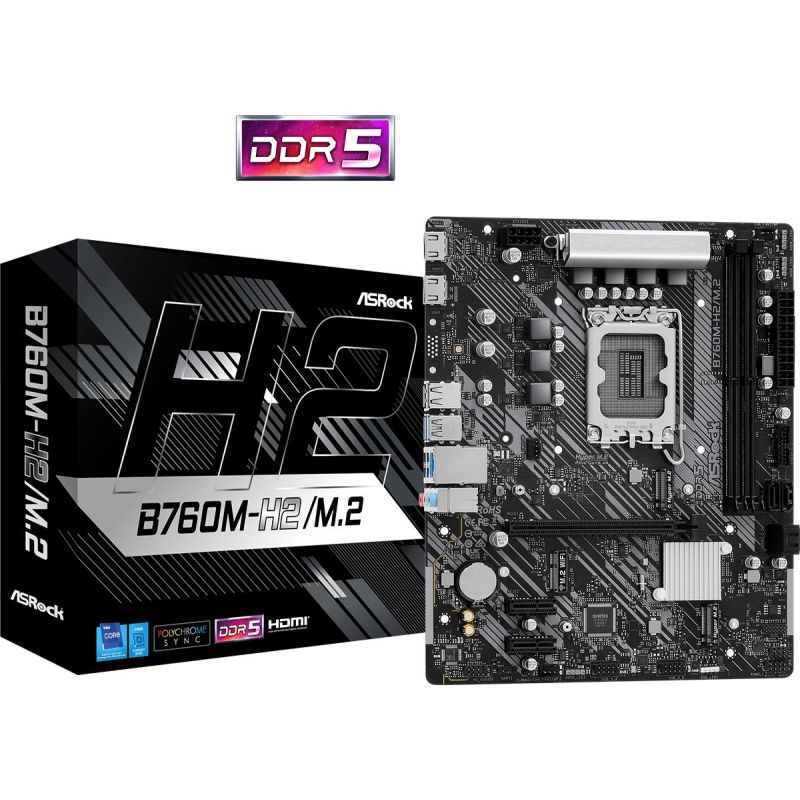

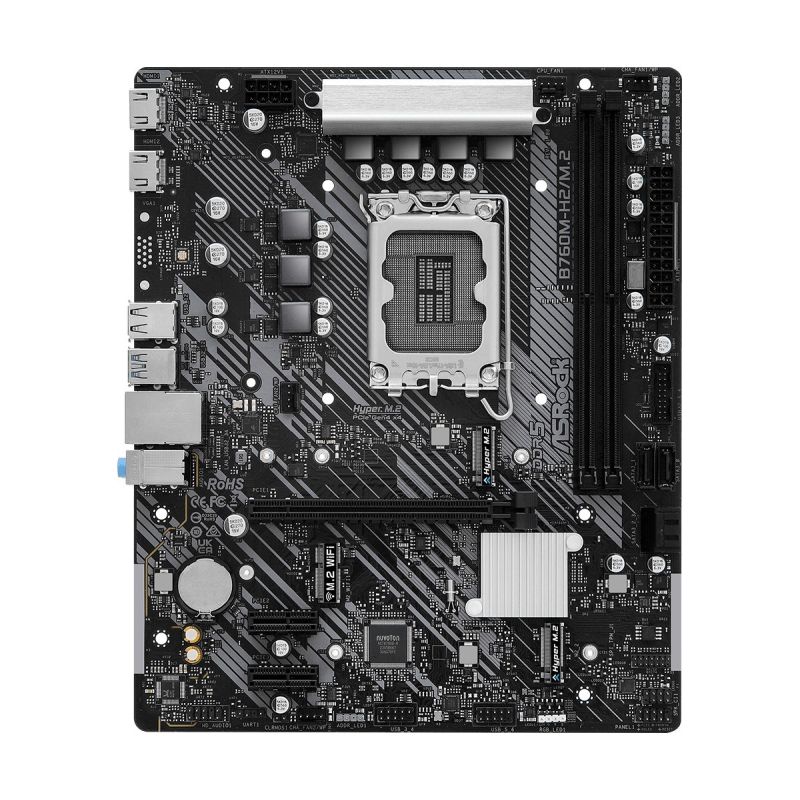

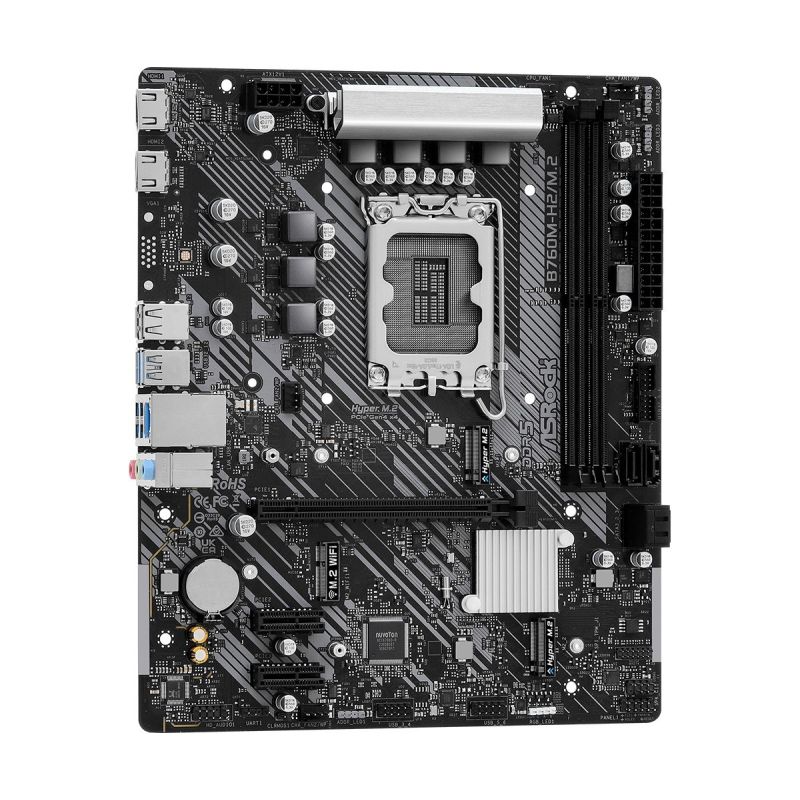

ASRock B760M-H2/M.2 motherboard
ASRock B760M-H2/M.2 motherboard
ASRock B760M-H2/M.2 motherboard
PRICE:
123,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Maximum number of SMP processors: 1
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i5
- Intel® Core™ i9
- Intel® Core™ i3
- Intel® Core™ i7
- Processor socket: LGA 1700
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Number of memory slots: 2
- Supported memory types: DDR5-SDRAM
- Maximum memory capacity: 96 GB
- Characteristics
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Audio chip: Realtek ALC897
- Motherboard Layout: Intel B760
- Weight and dimensions
- Product width: 244 mm
- Product depth: 201 mm
- Internal I/O
- LED connector: Yes
- TPM Connector: Yes
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 2
- 12V power connector (8-pin): Yes
- Front panel audio connector: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: Yes (Requires antenna)
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- RAID levels
- 0
- 5
- 10
- 1
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- RAID levels

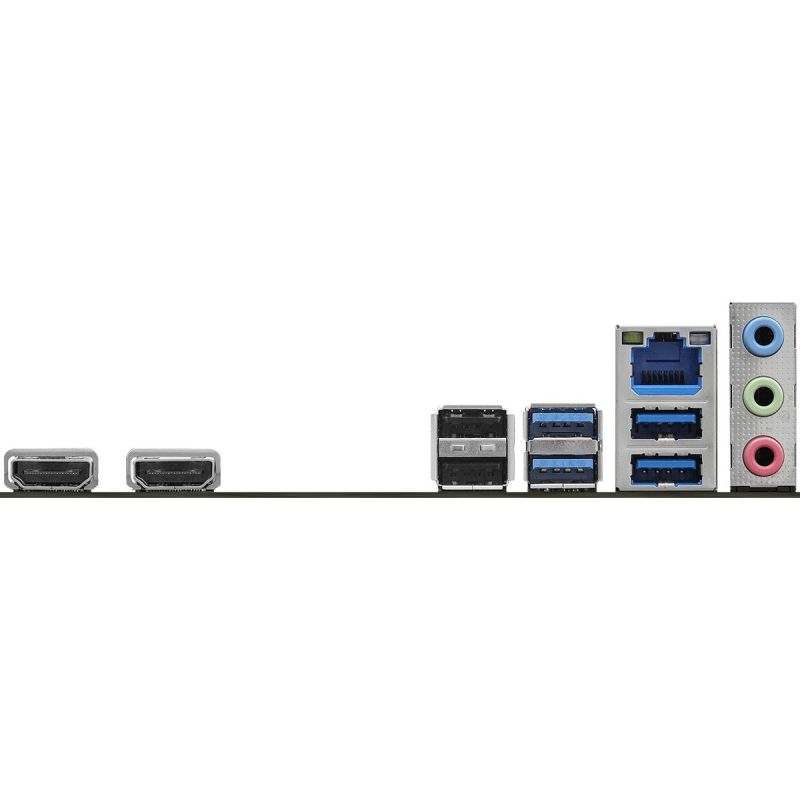

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 2
- WiFi-AP Antenna Jack Plug: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of HDMI ports: 2
- Number of audio jacks: 3
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
