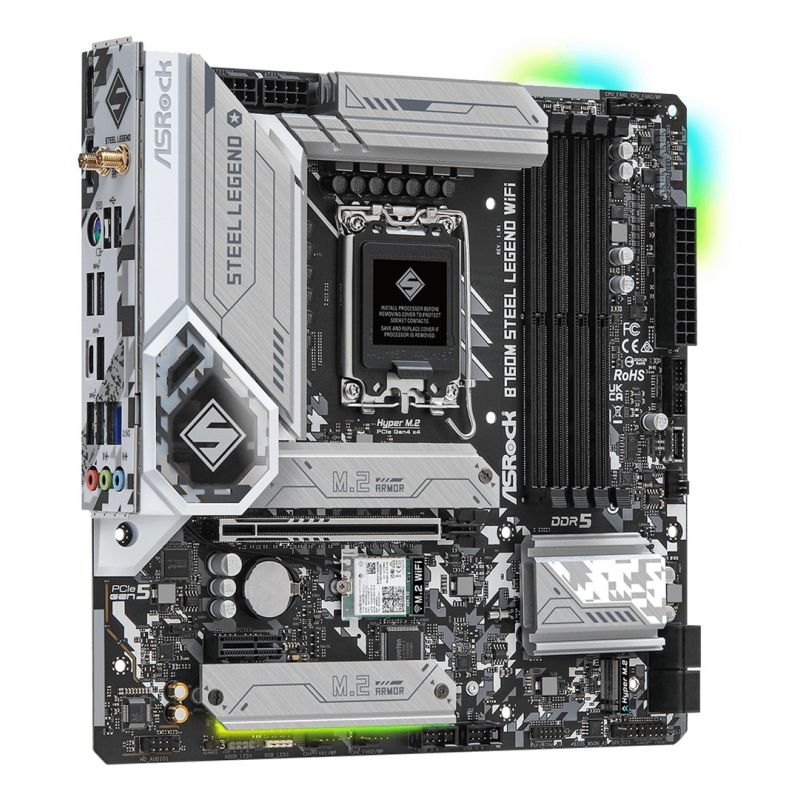

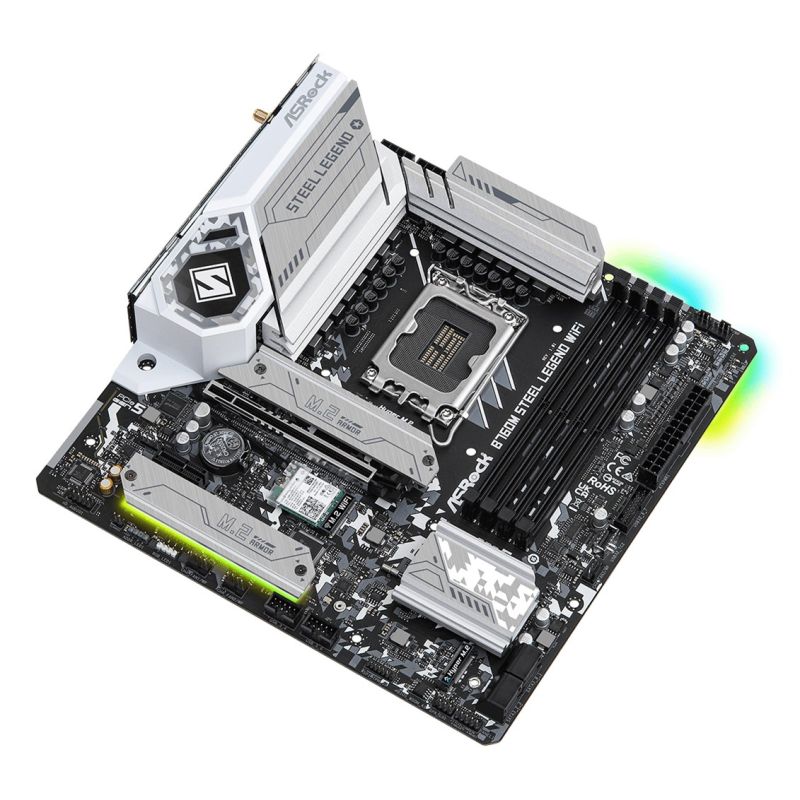

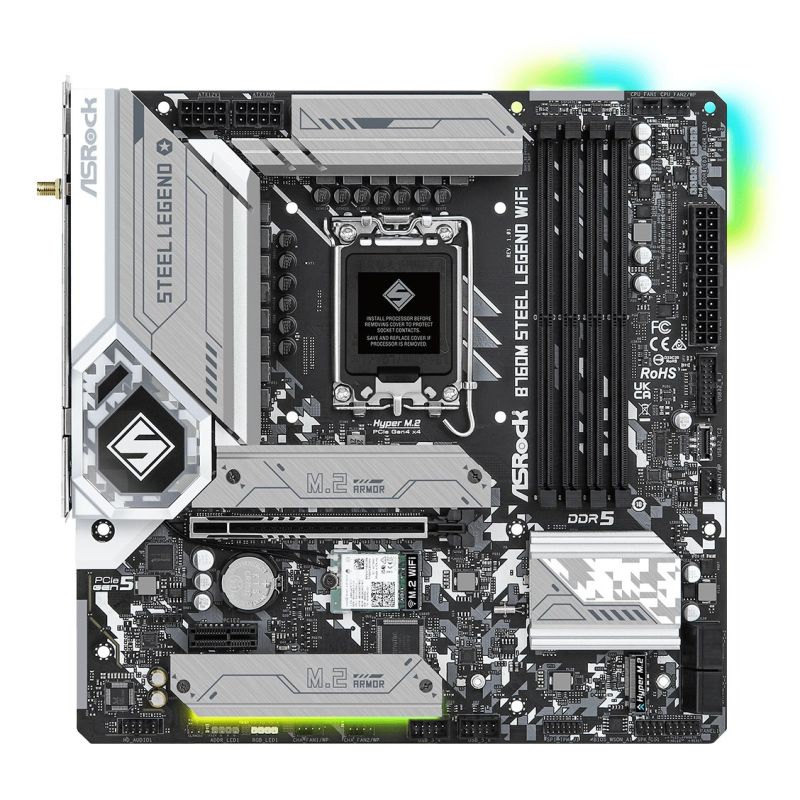

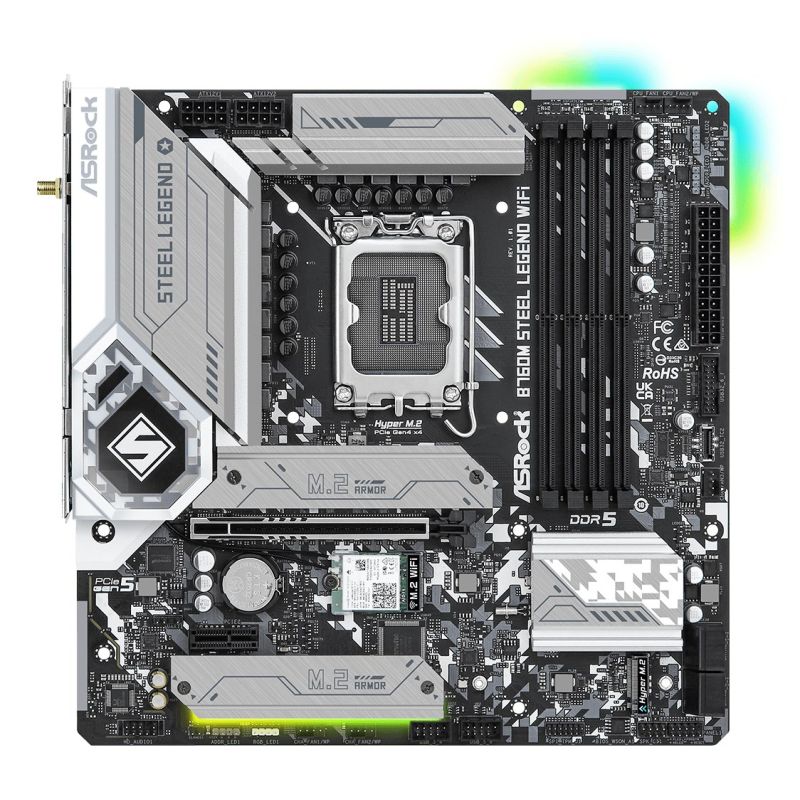

Asrock B760M STEEL LEGEND WIFI Motherboard
Asrock B760M STEEL LEGEND WIFI Motherboard
Asrock B760M STEEL LEGEND WIFI Motherboard
PRICE:
229,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Maximum number of SMP processors: 1
- Processor
- Intel® Core™ i5
- Intel® Core™ i9
- Intel® Core™ i7
- Processor socket: LGA 1700
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- ECC Compatibility: Non-ECC
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Characteristics
- Motherboard Layout: Intel B760
- Audio chip: Realtek ALC897
- Chipset Board Family: Intel
- Motherboard format: Micro ATX
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- CPU fan connector: Yes
- RGB LED: Yes
- TPM Connector: Yes
- Network
- Bluetooth: Yes
- LAN controller: Dragon RTL8125BG
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- Wi-Fi 6E (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- 802.11b
- Bluetooth version: 5.3
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD

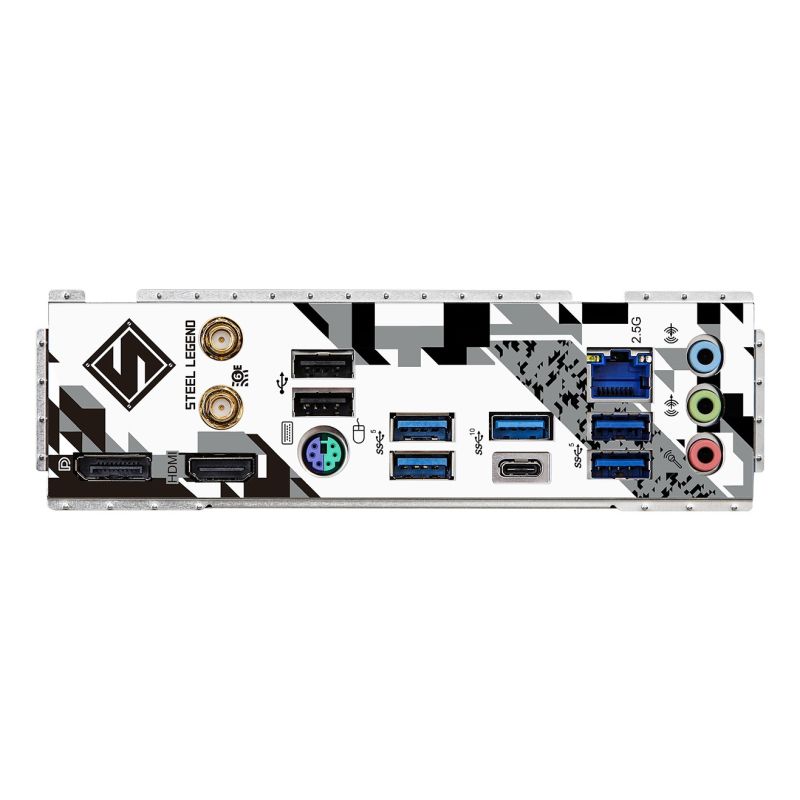

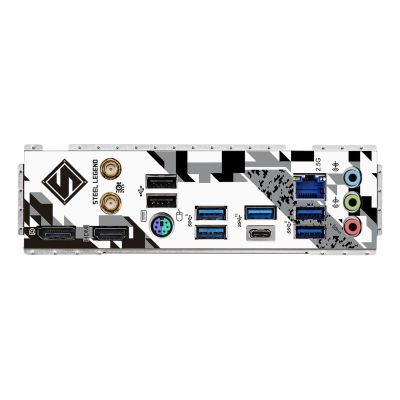

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 2
- DisplayPort version: 1.4
- DisplayPort Quantity: 1
- Microphone: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 (Gen 1.x) slots: 1
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
