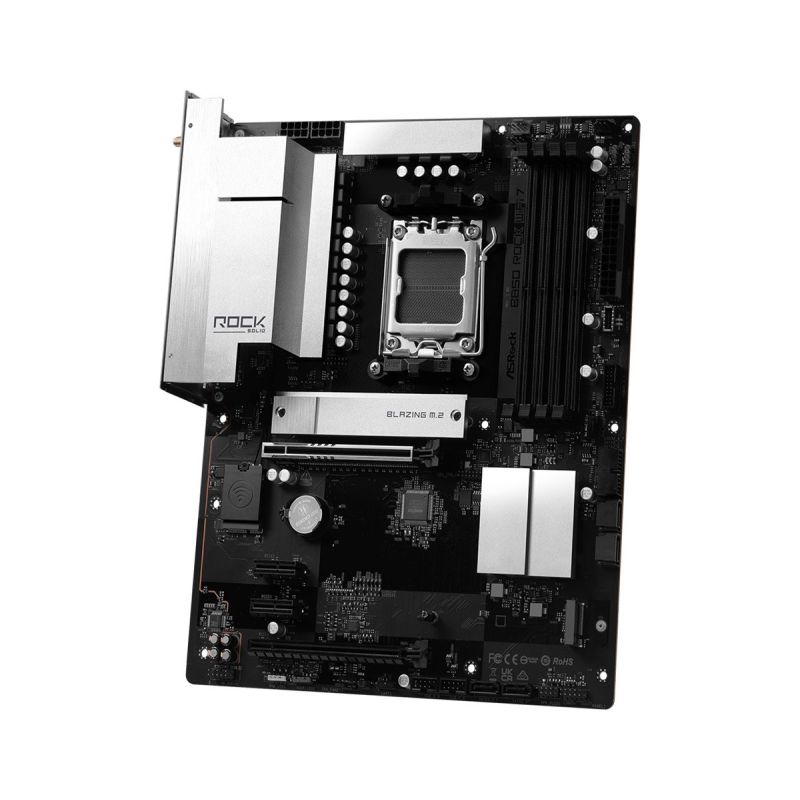

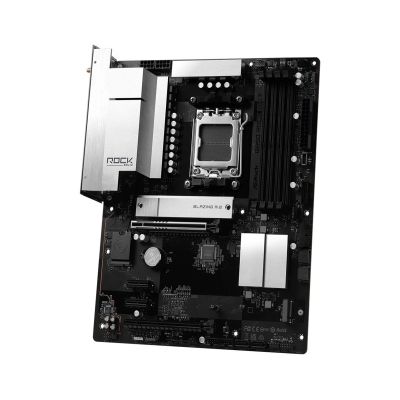

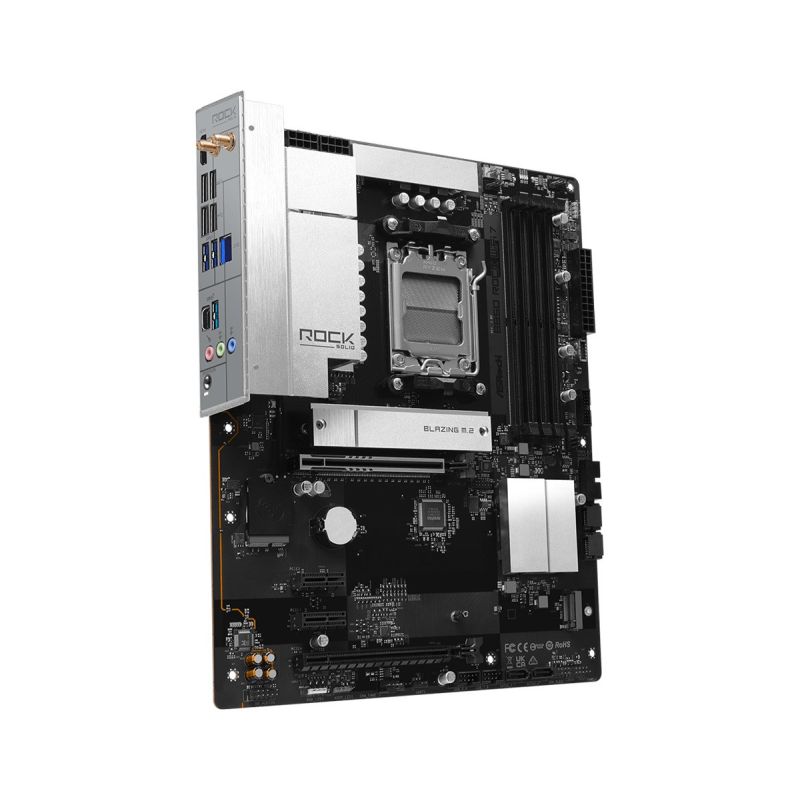

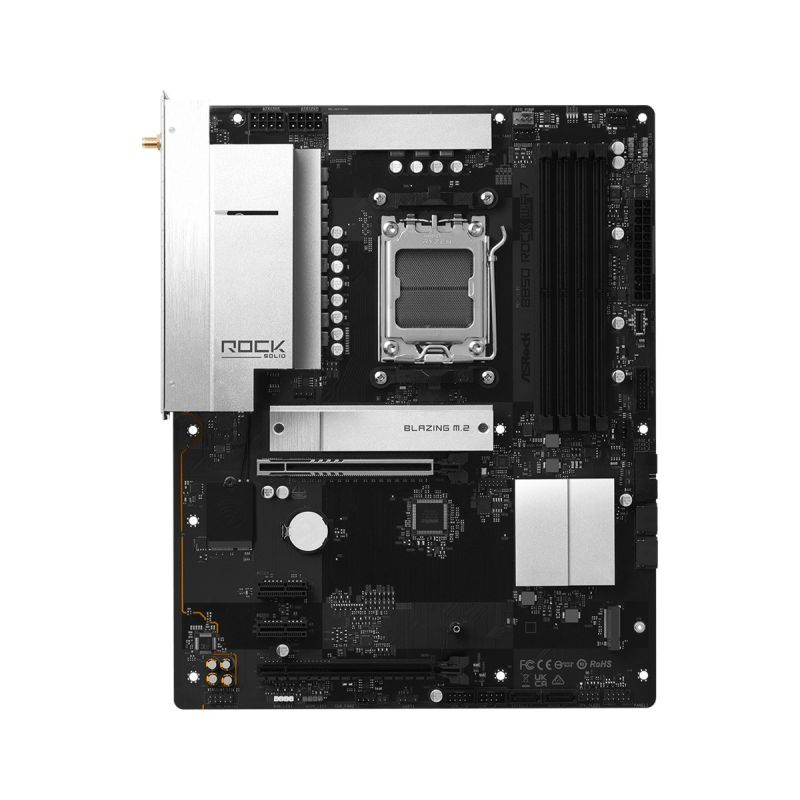

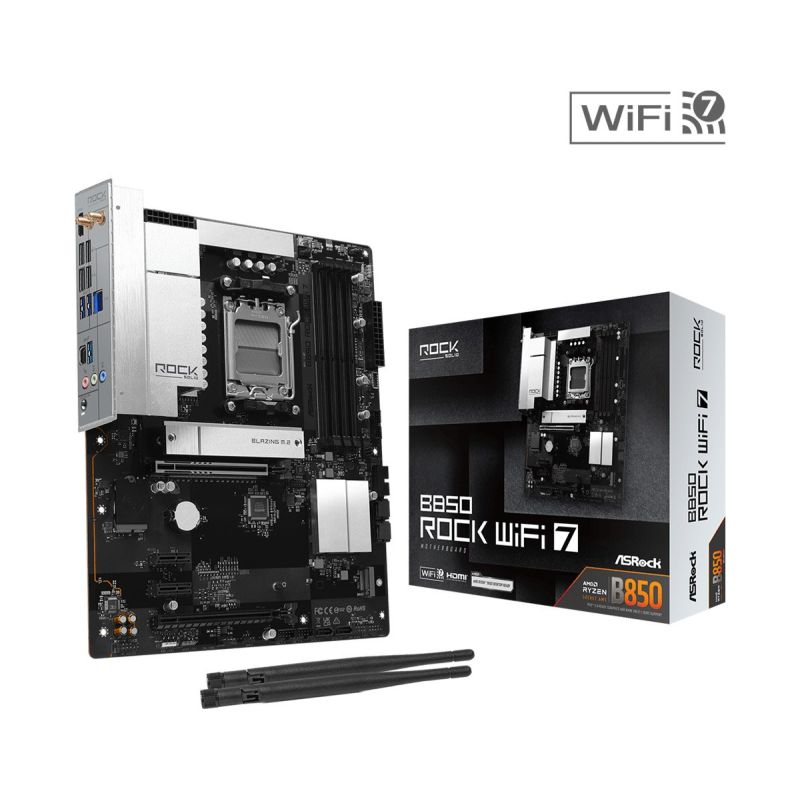

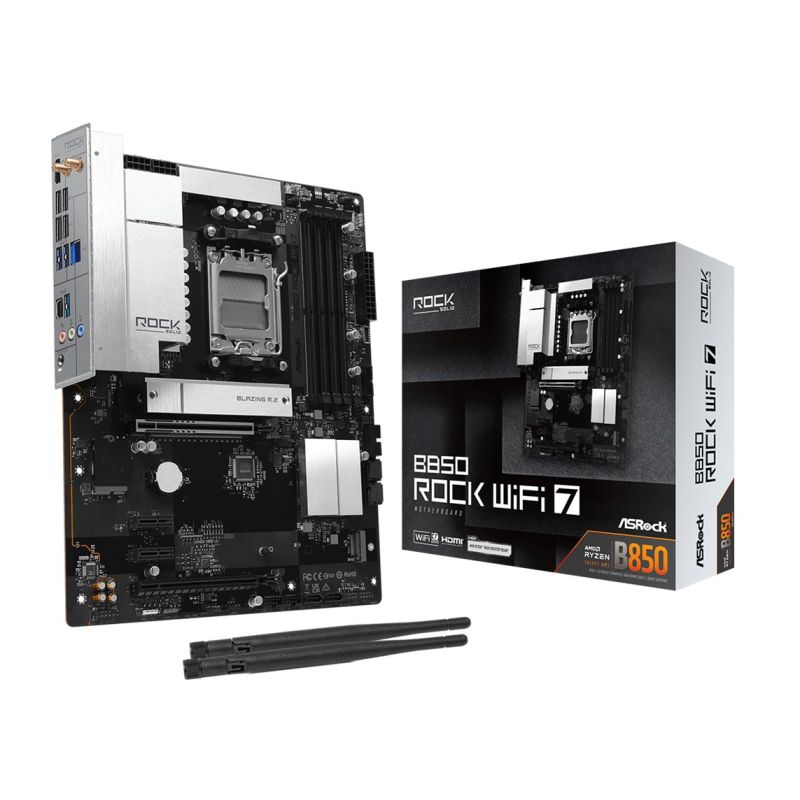

Asrock B850 ROCK WIFI 7 motherboard
Asrock B850 ROCK WIFI 7 motherboard
Asrock B850 ROCK WIFI 7 motherboard
PRICE:
243,99
€
IN A WAREHOUSE
5 pcs
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Processor manufacturer: AMD
- Graphics
- Parallel Processing Support: Not Supported
- Maximum resolution: 3840 x 2160 px
- HDCP: Yes
- Memory
- ECC Compatibility: ECC or Non-ECC
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Characteristics
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Chipset Board Family: AMD
- Motherboard Layout: AMD B850
- Motherboard format: ATX
- Product color: Black
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- Number of USB 2.0 ports: 4
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Number of RGB LED connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 5
- Front panel audio connector: Yes
- Number of SATA III connectors: 4
- Number of water pump connections: 1
- Number of CPU fan connectors: 2
- Number of case fan connectors: 3
- TPM Connector: Yes
- ATX power socket (24-pin): Yes
- Number of EPS power connectors (8-pin): 2
- RGB LED: Yes
- Network
- LAN controller: Dragon RTL8125BG
- Bluetooth: Yes
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi: Yes
- Bluetooth version: 5.4
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Antenna Included: Yes
- Memory drivers
- RAID Service: Yes
- RAID levels
- 0
- 10
- 1
- Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
- Supported drive types: HDD & SSD

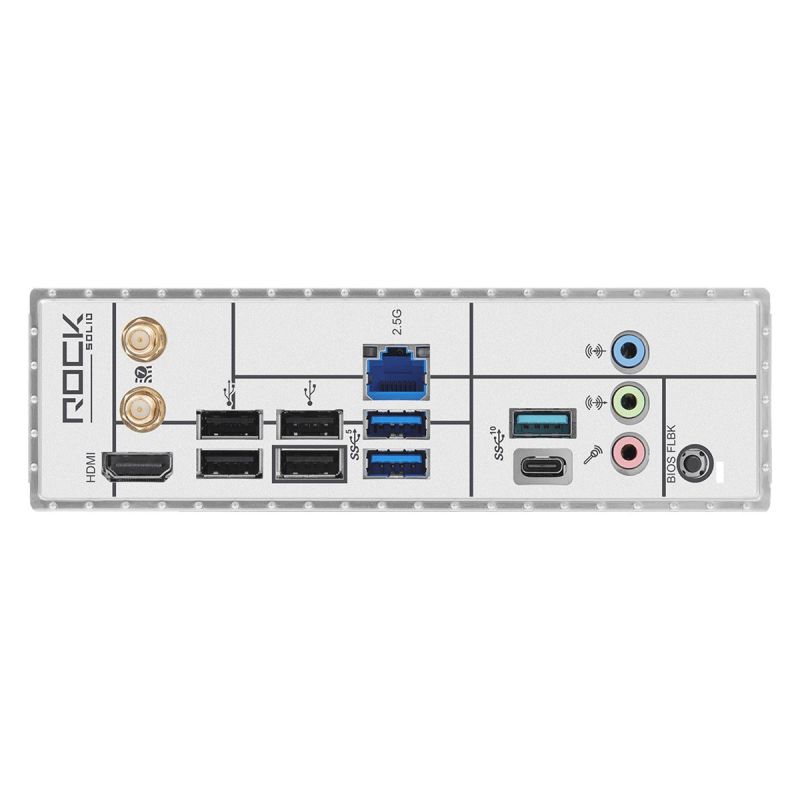

- Rear Panel I/O Ports
- Supported USB type
- USB Type-C
- USB Type-A
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- HDMI version: 2.1
- Line Input: Yes
- Microphone: Yes
- Number of HDMI ports: 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- WiFi-AP Antenna Jack Plug: 2
- Supported USB type
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
| Name | Details |
|---|---|
| Producer | Asrock |
