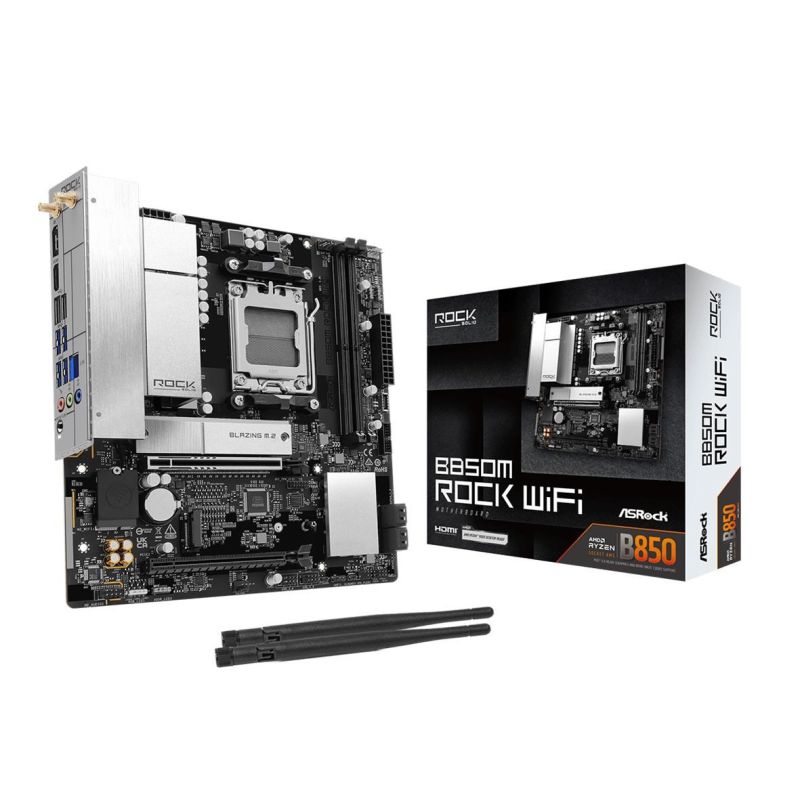

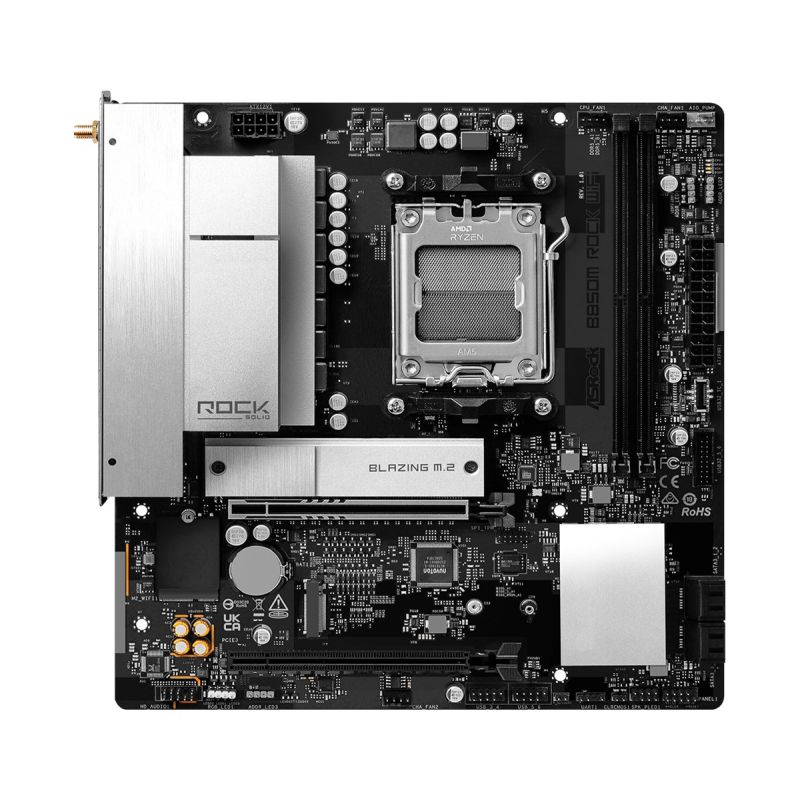

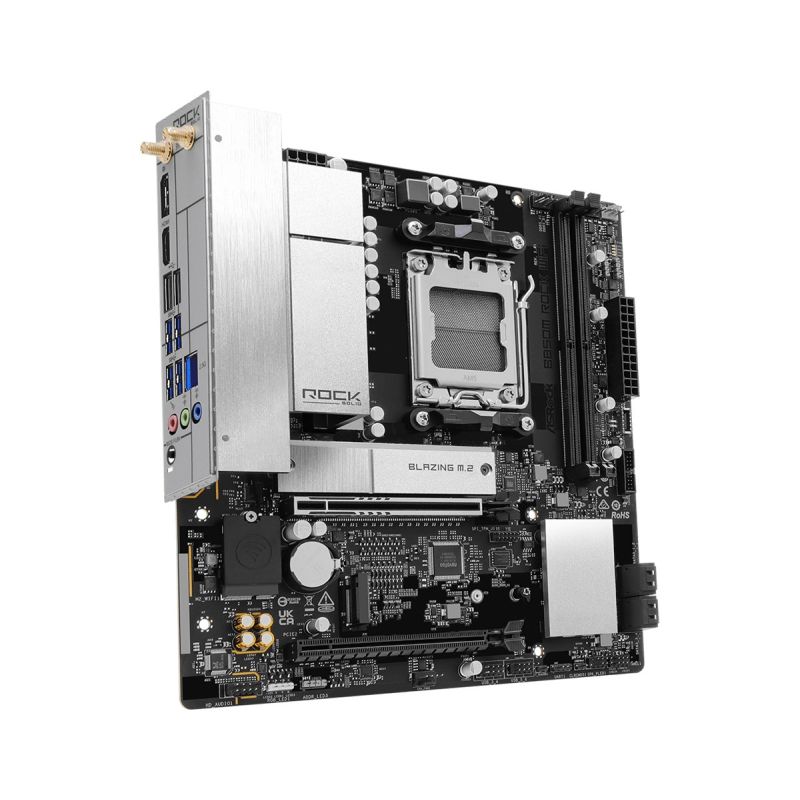

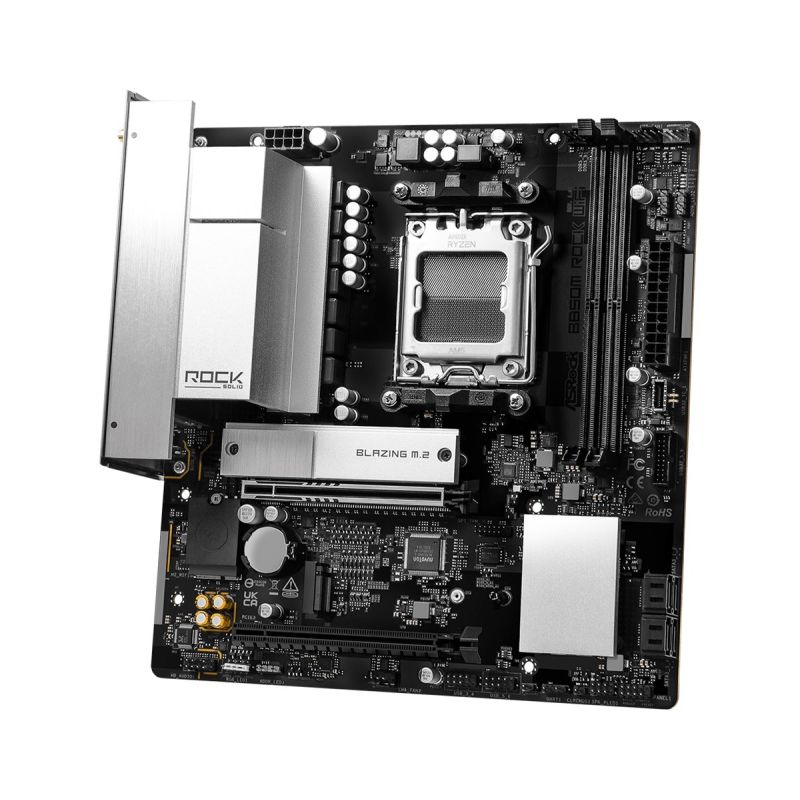

ASRock B850M Rock WiFi AM5 mATX HDMI/DP DDR5
ASRock B850M Rock WiFi AM5 mATX HDMI/DP DDR5
ASRock B850M Rock WiFi AM5 mATX HDMI/DP DDR5
PRICE:
234,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Maximum number of SMP processors: 1
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- Graphics
- HDCP version: 2.3
- HDCP: Yes
- Memory
- Number of memory slots: 2
- Supported memory types: DDR5-SDRAM
- Memory channels: Dual-channel
- Memory slot type: DIMM
- ECC compatibility: ECC or Non-ECC
- Maximum memory capacity: 128 GB
- Features
- Purpose: PC
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Motherboard form factor: Micro ATX
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC897
- Motherboard chipset family: AMD
- Audio output channels: 7.1 channels
- Weight and dimensions
- Product width: 244 mm
- Product depth: 226 mm
- Internal I/O
- Number of SATA III connectors: 4
- CPU fan connector: Yes
- ATX power connector (24-pin): Yes
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Front panel audio connector: Yes
- TPM connector: Yes
- RGB LED: Yes
- Number of CPU fan connectors: 1
- Number of EPS power connectors (8-pin): 1
- Number of USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Primary Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Bluetooth version: 5.3
- Bluetooth: Yes
- LAN controller: Dragon RTL8125BG
- BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 512 Mbit
- Packaging contents
- Cables: SATA
- Antenna included: Yes
- Storage controllers
- RAID levels
- 1
- 0
- 10
- RAID support: Yes
- Supported hard drive interfaces: M.2, SATA III
- RAID levels

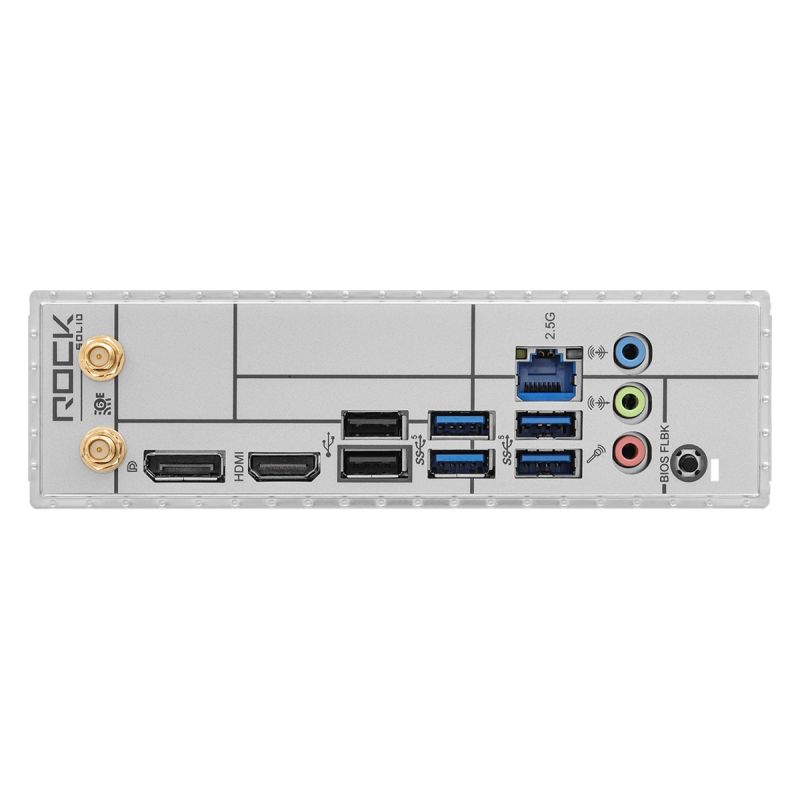

- Rear panel I/O ports
- Number of Ethernet LAN (RJ-45) ports: 1
- Number of HDMI ports: 1
- Microphone: Yes
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Line-in: Yes
- DisplayPort version: 1.4
- Number of DisplayPorts: 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | Asrock |
