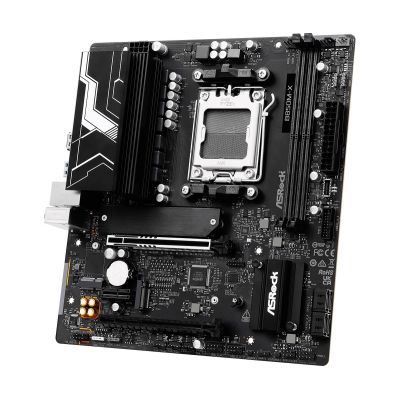

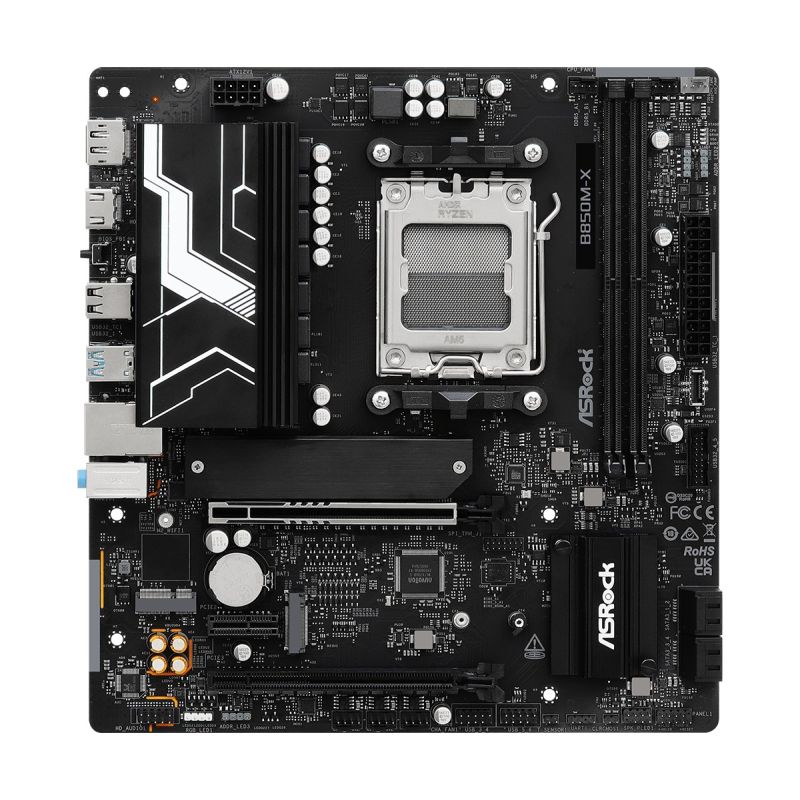

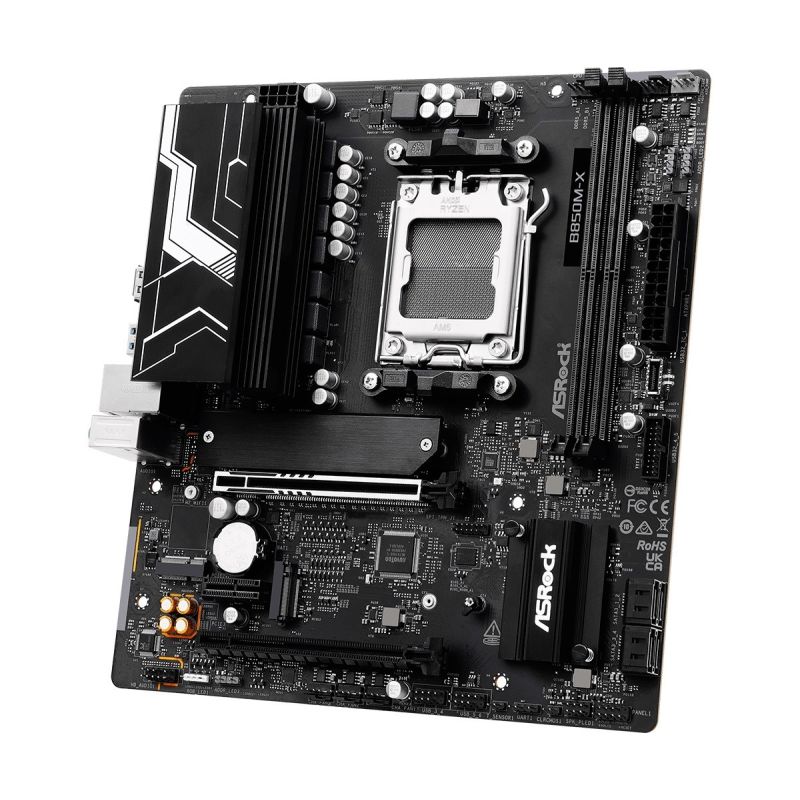

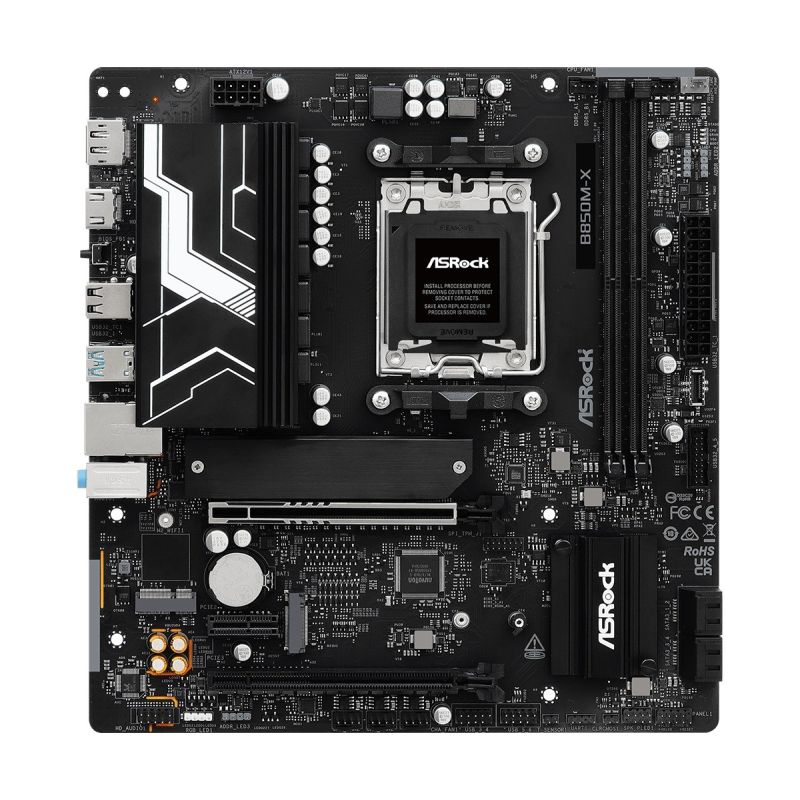

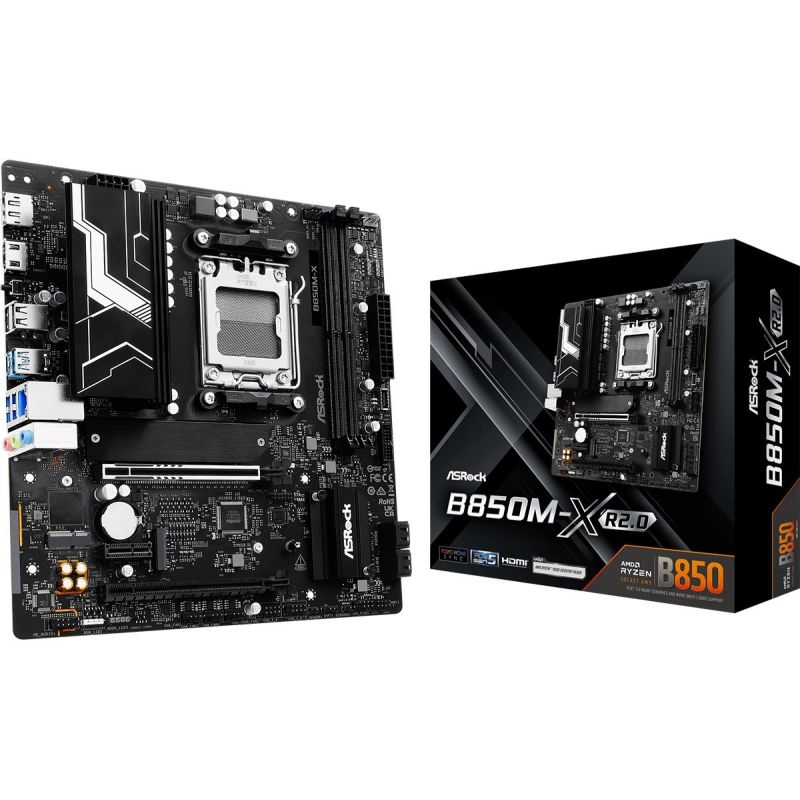

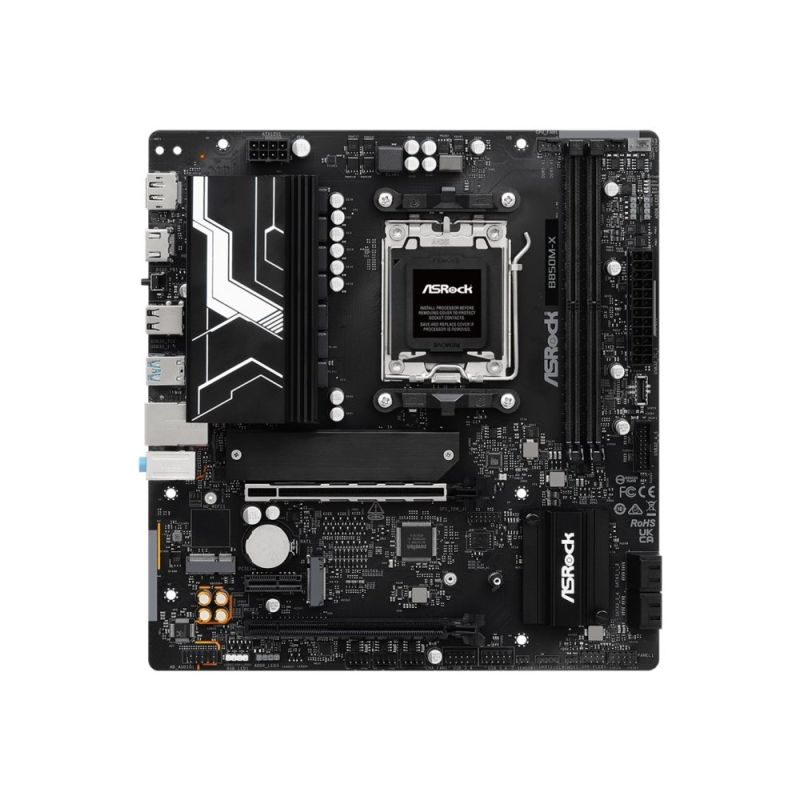

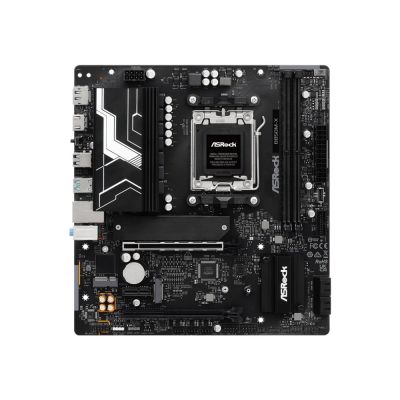

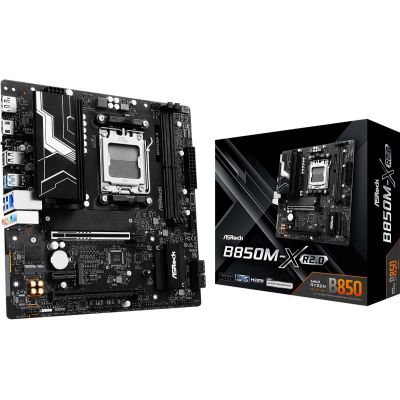

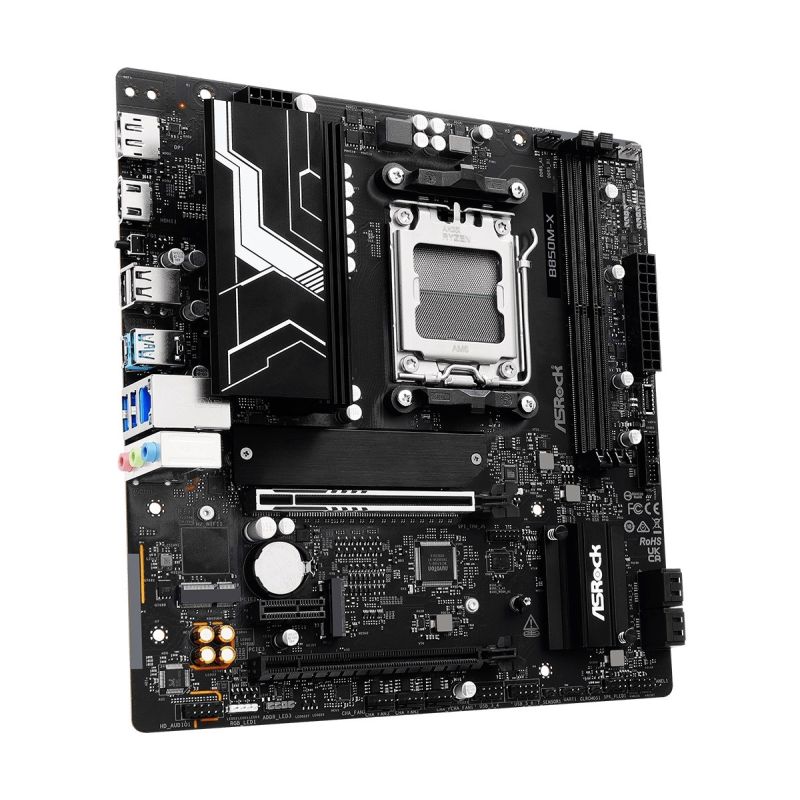

Asrock B850M-X R2.0 motherboard
Asrock B850M-X R2.0 motherboard
Asrock B850M-X R2.0 motherboard
PRICE:
165,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Graphics
- HDCP: Yes
- Maximum resolution: 3840 x 2160 px
- Parallel Processing Support: Not Supported
- Memory
- Maximum memory capacity: 128 GB
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- ECC Compatibility: ECC or Non-ECC
- Characteristics
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Motherboard Layout: AMD B850
- Motherboard format: Micro ATX
- Product color: Black
- Audio chip: Realtek ALC897
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Weight and dimensions
- Product width: 244 mm
- Product depth: 226 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of case fan connectors: 3
- Front panel audio connector: Yes
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Number of USB Type-C ports: 1
- 12V power connector: Yes
- EPS power supply connector (8-pin): Yes
- RGB LED: Yes
- TPM Connector: Yes
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED connectors: 1
- Network
- LAN controller: Dragon RTL8125BG
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Mobile network connectivity: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Screws Included: Yes
- Memory drivers
- Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- RAID levels
- 1
- 10
- 0

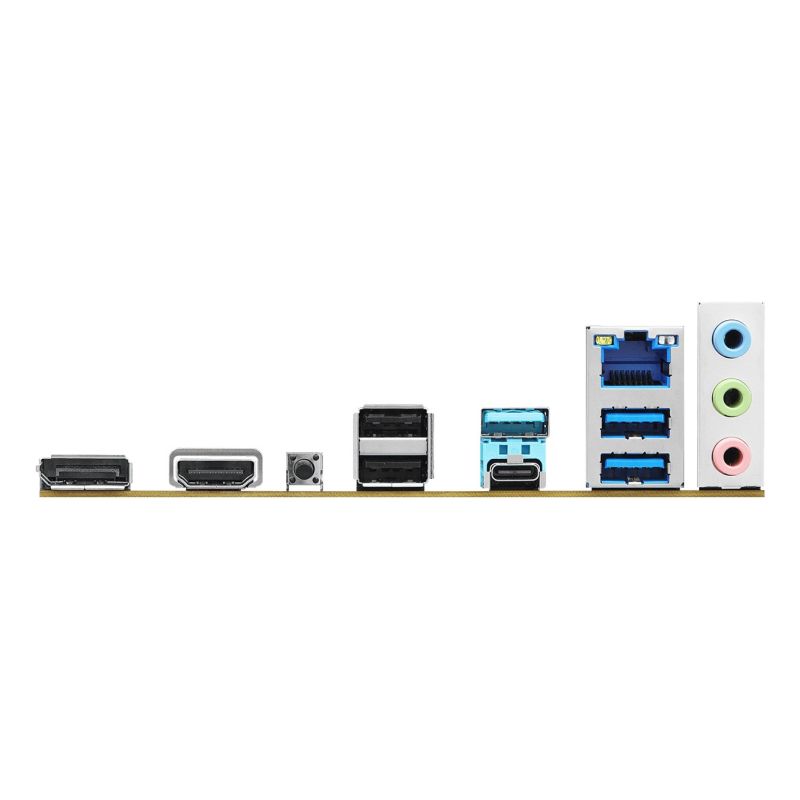

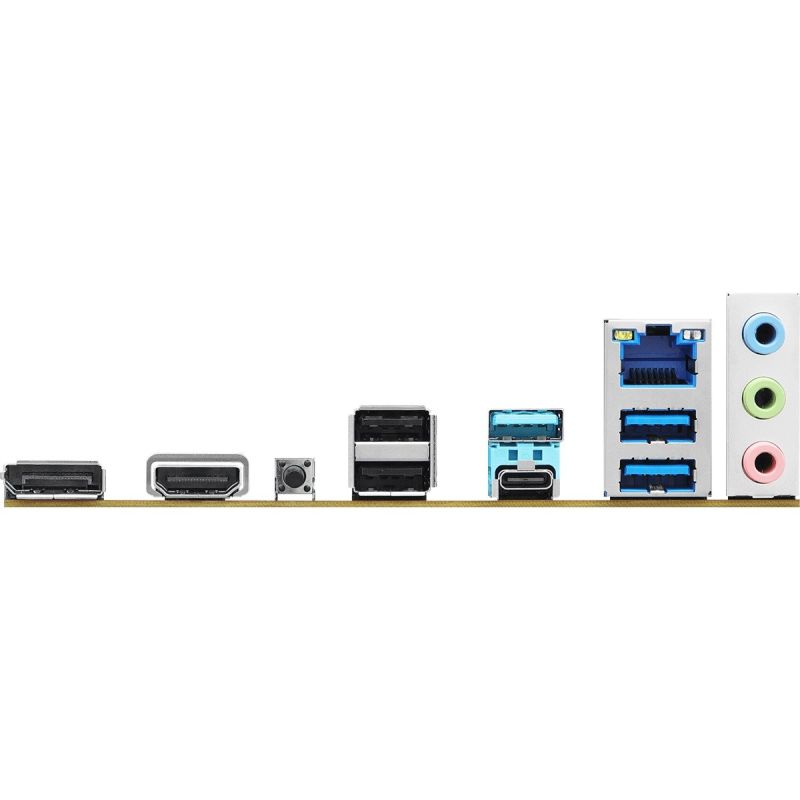

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.4
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Audio output: 3.5mm
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- HDMI version: 2.1
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (E) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- PCI Express x1 (Gen 4.x) slots: 1
- 2nd largest M.2 key size: 2280
- Safety warning
- Warnings
- Dispose of in accordance with local regulations for electronic waste.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Avoid contact with liquids to prevent electronic damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
