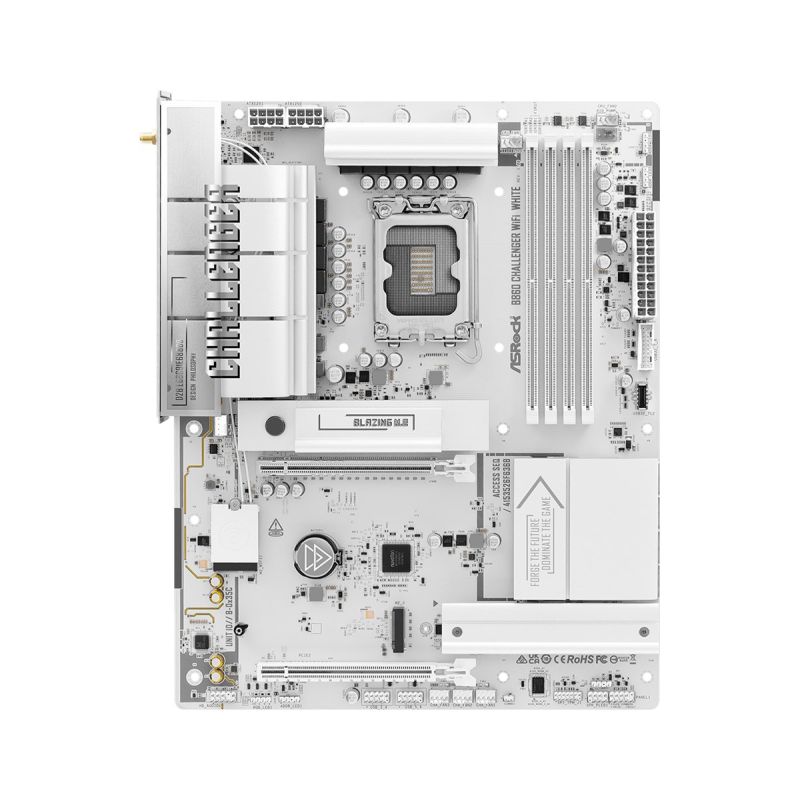

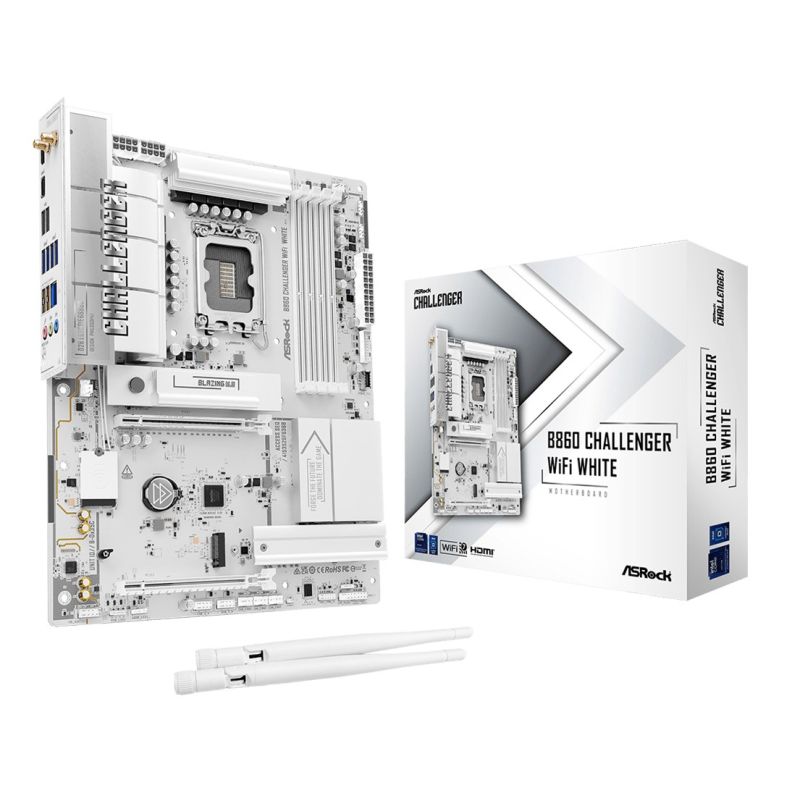

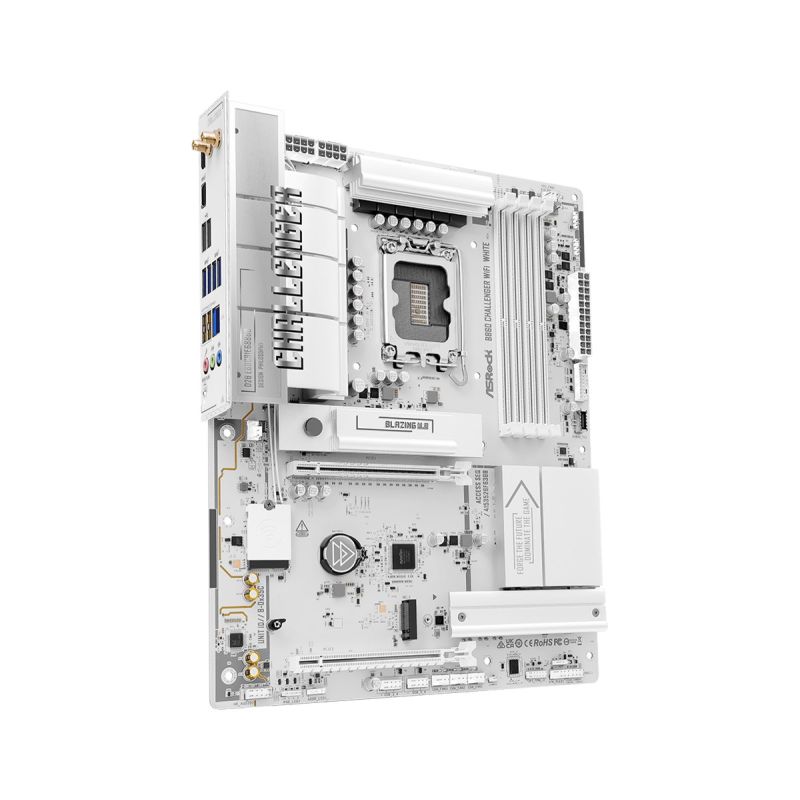

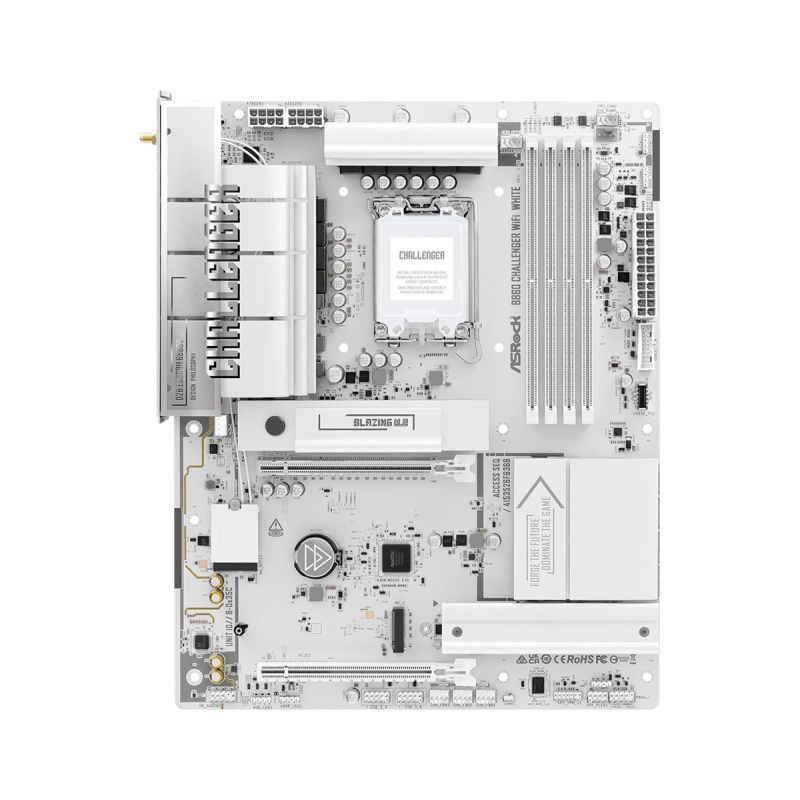

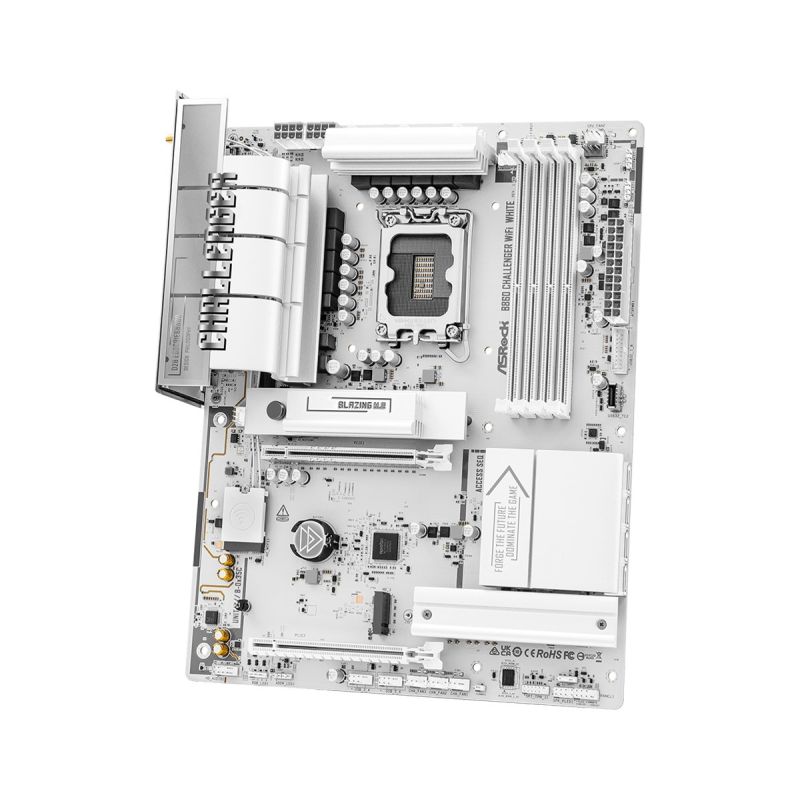

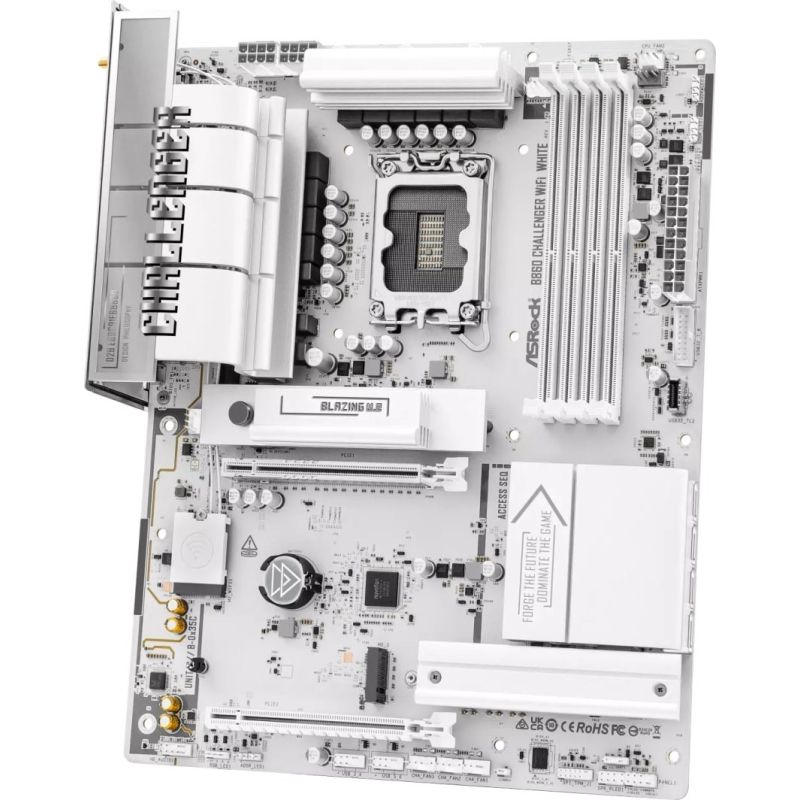

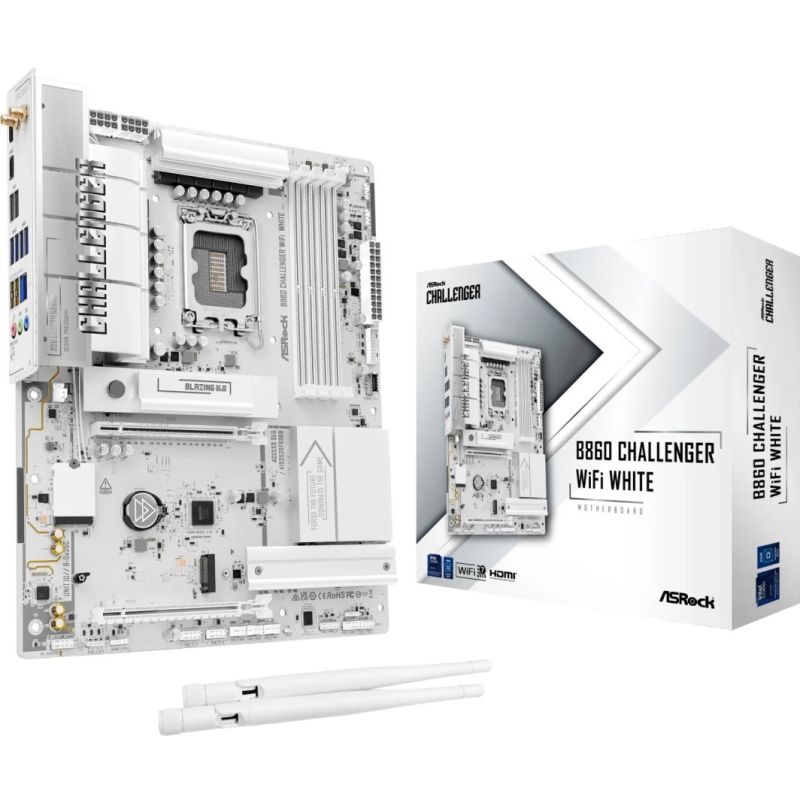

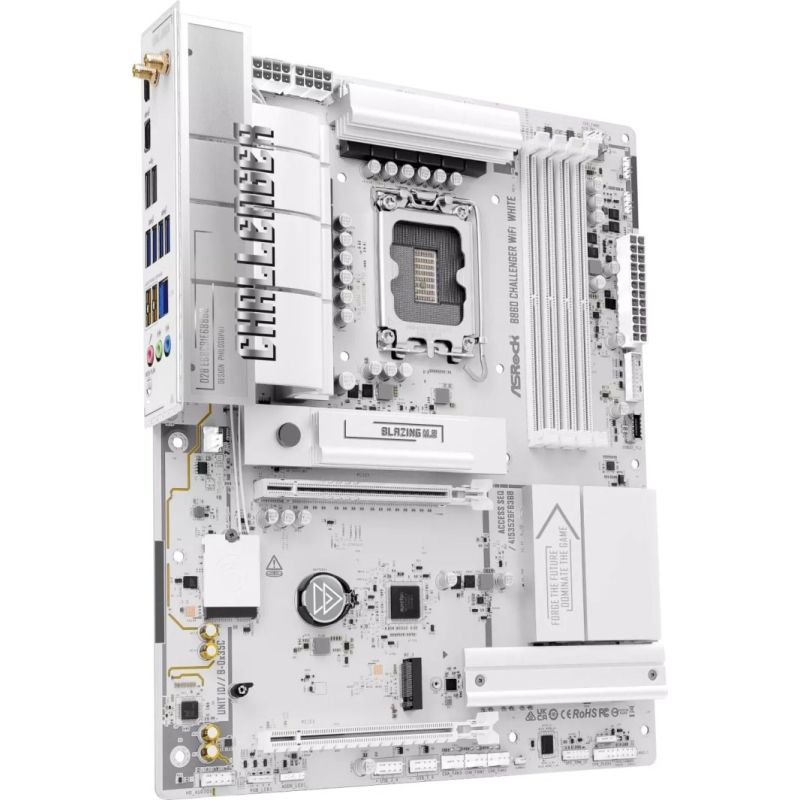

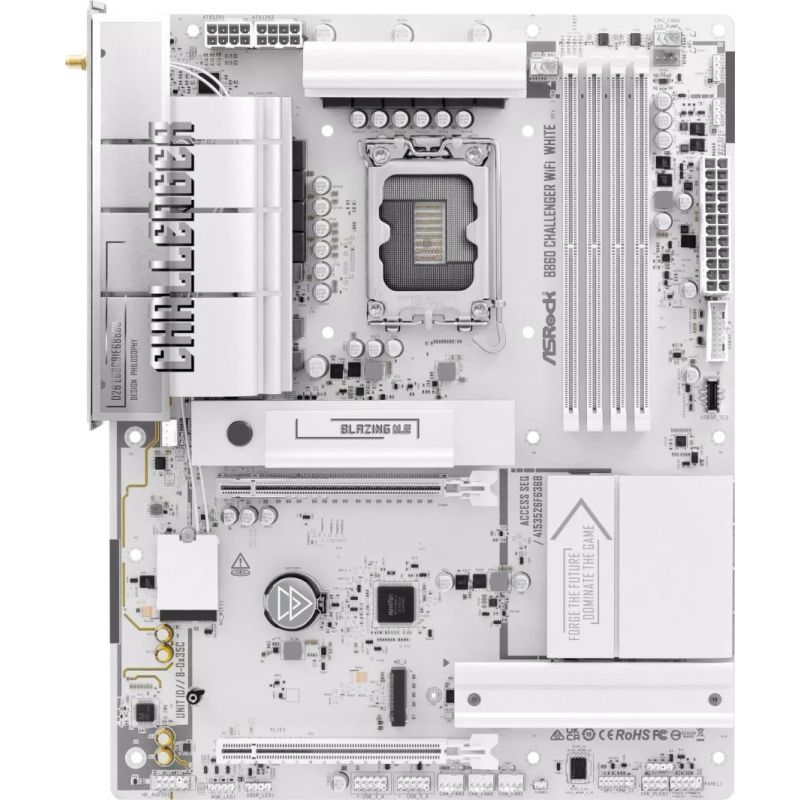

Asrock B860 Challenger WiFi White Intel B860 LGA 1851 (Socket V1) ATX
Asrock B860 Challenger WiFi White Intel B860 LGA 1851 (Socket V1) ATX
Asrock B860 Challenger WiFi White Intel B860 LGA 1851 (Socket V1) ATX
PRICE:
266,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- Environmental (sustainability) certification: ErP
- Certificates of conformity
- Processor
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Processor manufacturer: Intel
- Processor: Intel Core Ultra (Series 2)
- Graphics
- Parallel Processing Support: Not Supported
- High Dynamic Range (HDR) Support: Yes
- HDCP: Yes
- HDCP version: 2.3
- Memory
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds
- 8666 MHz
- 4400 MHz
- 5600 MHz
- 4800 MHz
- 6800 MHz
- 6533
- Maximum memory capacity: 256 GB
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory clock speed (max): 8666 MHz
- Characteristics
- Chipset Board Family: Intel
- Supported Windows operating systems: Windows 11 x64
- Product color: White
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC897
- Intended use: PC
- Motherboard Layout: Intel B860
- Motherboard format: ATX
- Weight and dimensions
- Product depth: 305 mm
- Product width: 244 mm
- Internal I/O
- Number of EATX sockets: 1
- Number of case fan connectors: 4
- TPM Connector: Yes
- RGB LED: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Front panel connector: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- 12V power connector: Yes
- Number of USB 2.0 ports: 8
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 9
- CPU fan connector: Yes
- Number of water pump connections: 1
- Number of CPU fan connectors: 2
- Network
- Ethernet network interface type
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Fast Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Bluetooth version: 5.4
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Wired LAN: Yes
- Ethernet network interface type
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- BIOS Flashback Button: Yes

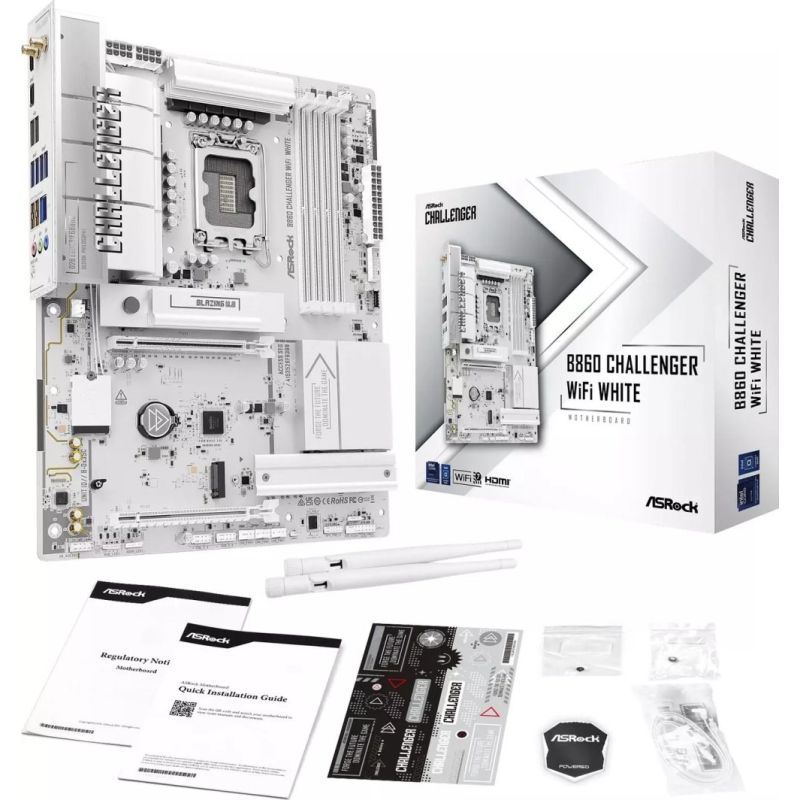

- Package contents
- Antenna Included: Yes
- M.2 Socket Included: Yes
- Cables: SATA
- Screws Included: Yes
- Memory drivers
- Number of supported HDDs: 4
- Supported hard drive interfaces: PCI Express 5.0, M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- Number of supported storage drive sizes: 7
- RAID levels
- 1
- 10
- 0
- 5

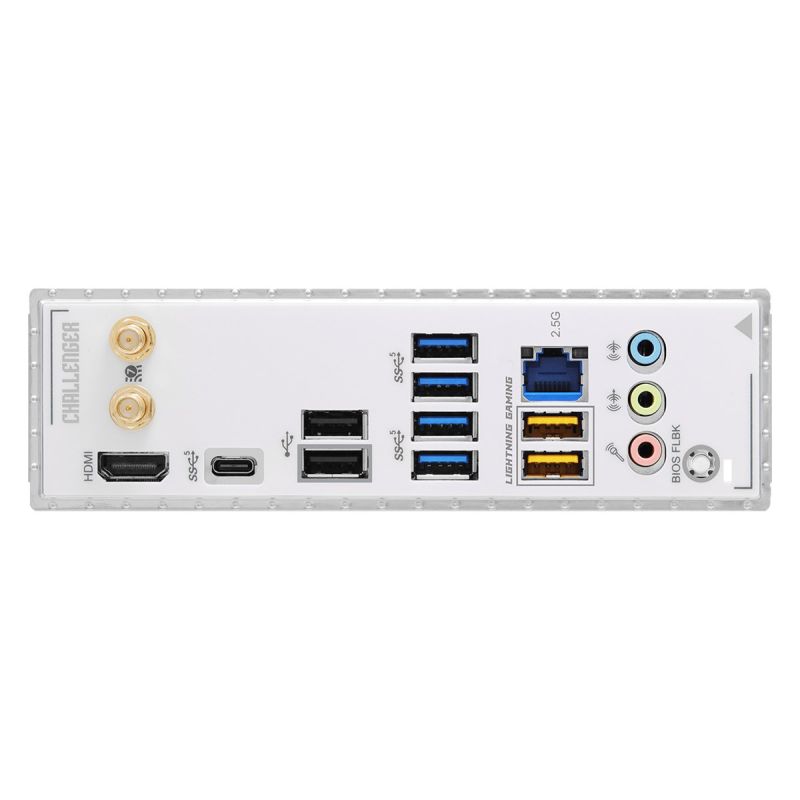

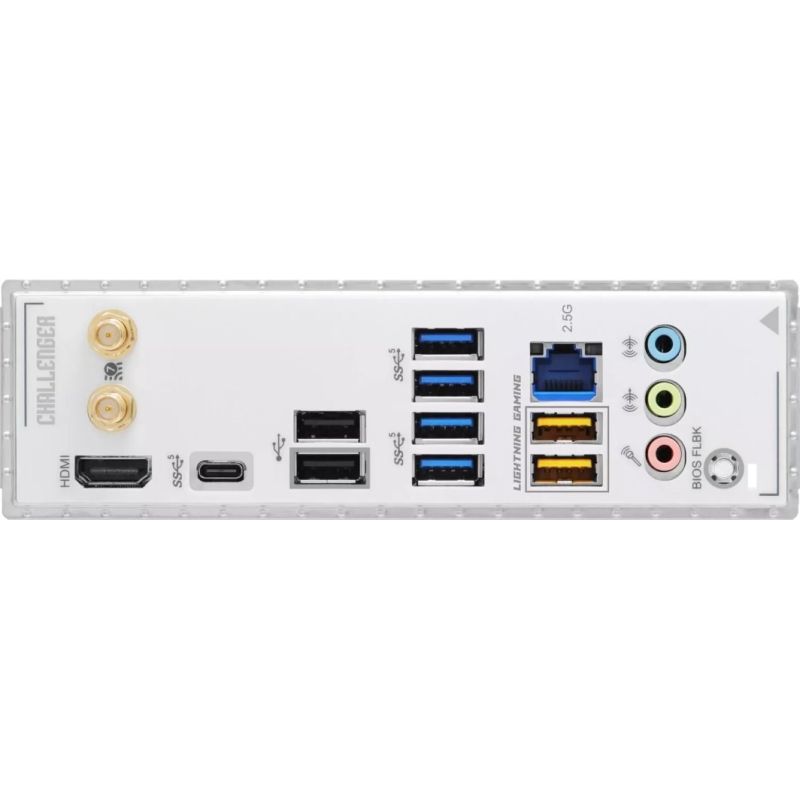

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- WiFi-AP Antenna Jack Plug: 2
- Microphone: Yes
- Number of USB 2.0 ports: 2
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 6
- Expansion slots
- Number of M.2 (M) slots: 1
- 2nd largest M.2 key size: 2280
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 3. largest M.2 key size: 2280
- Special features of the processor
- Intel® Extreme Memory Profile (XMP): Yes
| Name | Details |
|---|---|
| Producer | Asrock |
