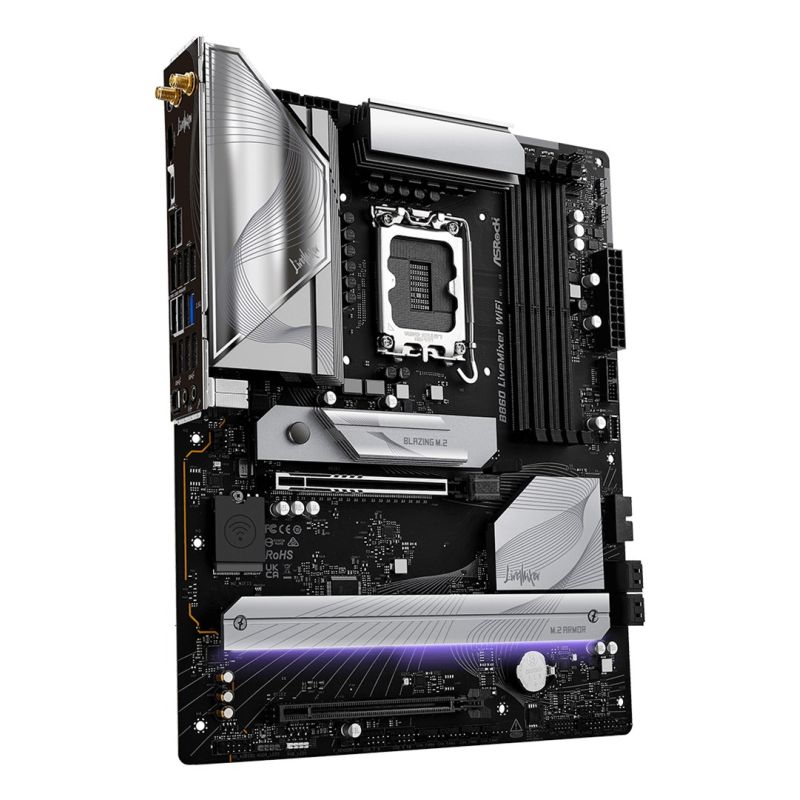

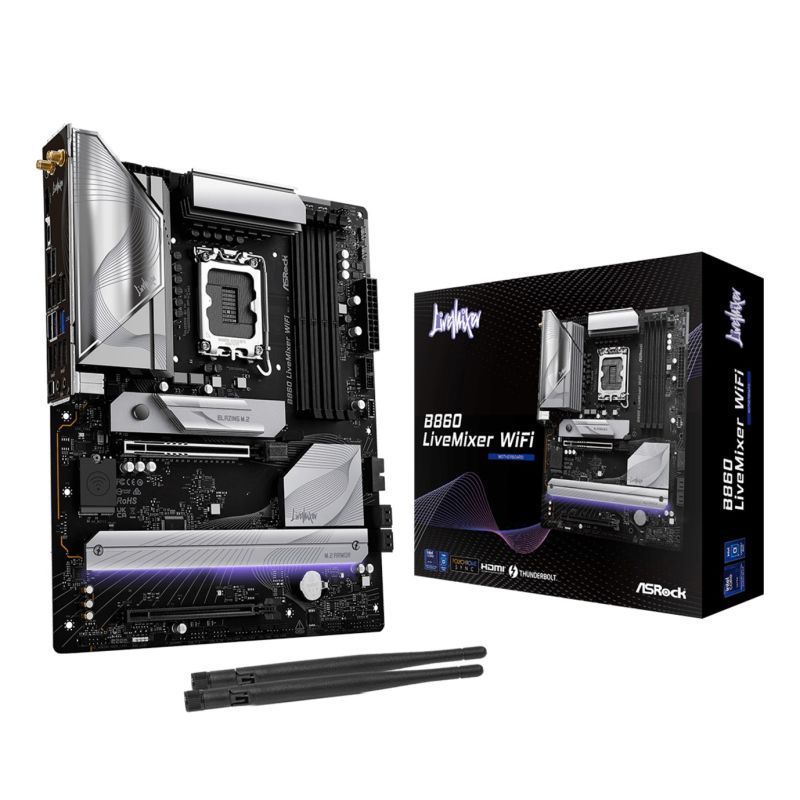

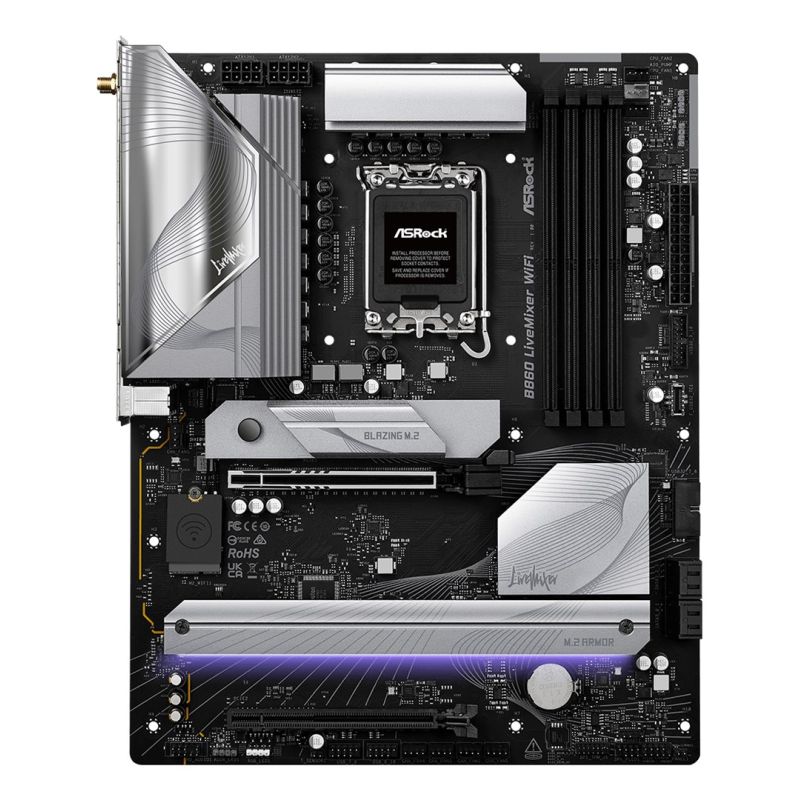

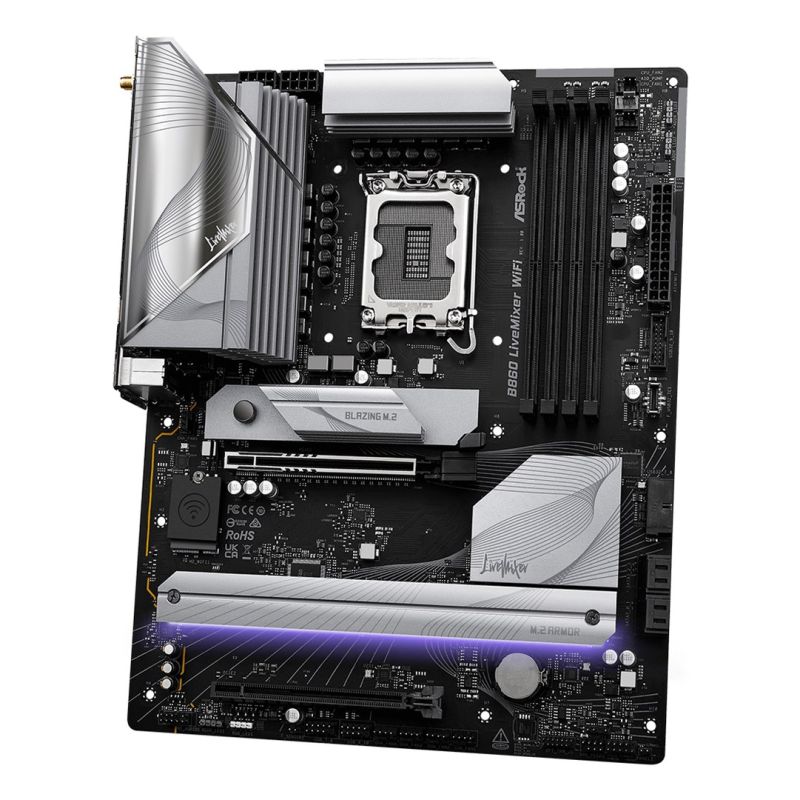

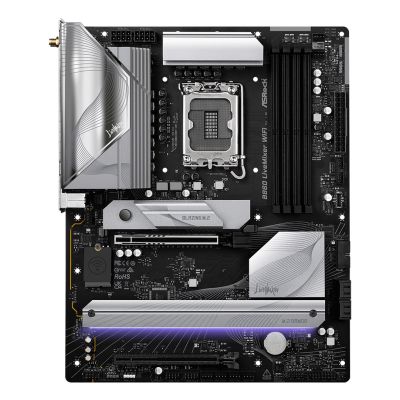

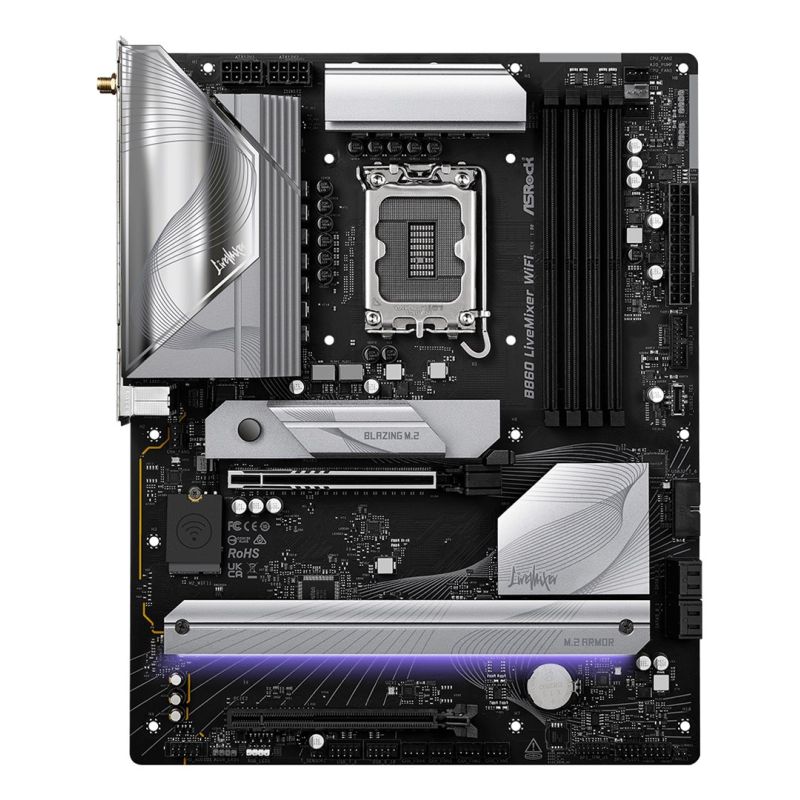

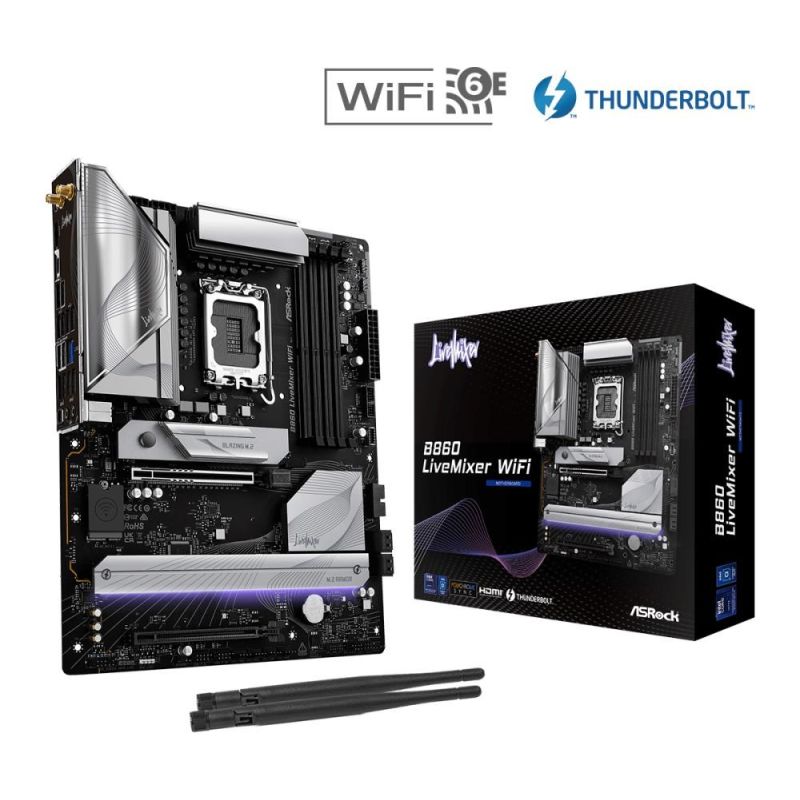

Asrock B860 LIVEMIXER WIFI Motherboard
Asrock B860 LIVEMIXER WIFI Motherboard
Asrock B860 LIVEMIXER WIFI Motherboard
PRICE:
271,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Graphics
- HDCP: Yes
- Parallel Processing Support: Not Supported
- Maximum resolution: 7680 x 4320 px
- Memory
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory Channel Support: Dual Channel
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Motherboard Layout: Intel B860
- Motherboard format: ATX
- Audio output channels: 7.1 ch.
- Product color: Black
- Chipset Board Family: Intel
- Audio chip: Realtek ALC1220
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- Number of CPU fan connectors: 2
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- 12V power connector: Yes
- TPM Connector: Yes
- Number of water pump connections: 1
- Number of case fan connectors: 5
- RGB LED: Yes
- Number of RGB LED connectors: 1
- Number of EPS power connectors (8-pin): 2
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 3
- Front panel audio connector: Yes
- Network
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- Wired LAN: Yes
- Bluetooth version: 5.3
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- LAN controller: Dragon RTL8125BG
- Wi-Fi standards
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Antenna Included: Yes
- Memory drivers
- RAID levels
- 1
- 10
- 5
- 0
- Number of supported storage drive sizes: 7
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
- RAID Service: Yes
- RAID levels

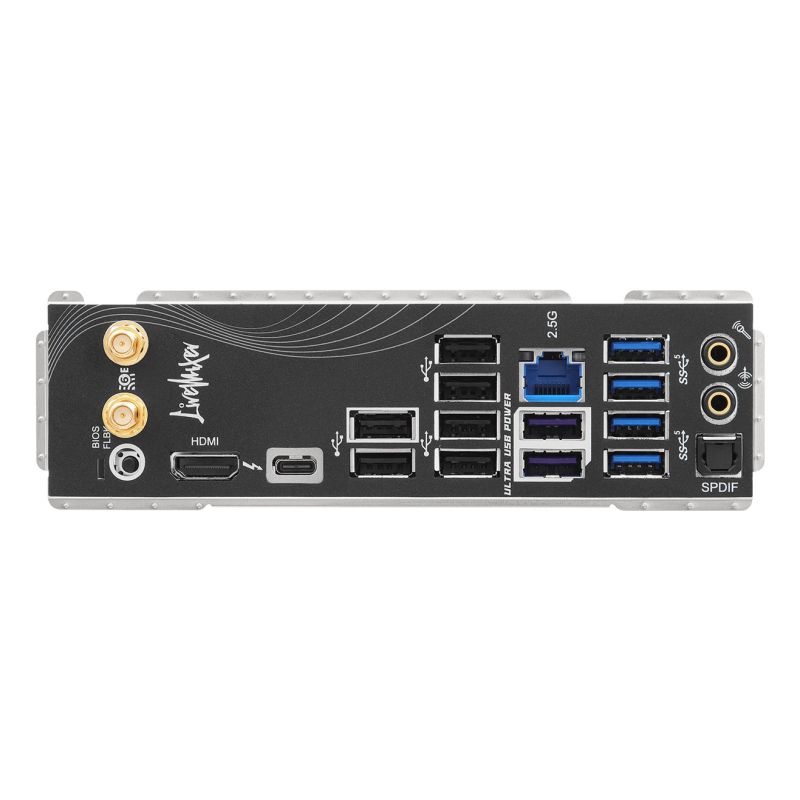

- Rear Panel I/O Ports
- Number of Thunderbolt ports: 1
- HDMI version: 2.1
- Microphone: Yes
- Headphone outputs: 1
- WiFi-AP Antenna Jack Plug: 2
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 6
- Number of Ethernet LAN ports (RJ-45): 1
- Supported USB type
- USB Type-C
- USB Type-A
- S/PDIF Output Port: Yes
- Number of USB 2.0 ports: 6
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 3
- 3. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- PCI Express x16 (Gen 4.x) slots: 1
- 1. largest M.2 key size: 2280
- 3. largest M.2 key size: 2280
- PCI Express x16 (Gen 5.x) slots: 1
- Safety warning
- Warnings
- If you experience any problems with installation, please contact a qualified service center.
- Do not open or modify the motherboard to prevent damage.
- When disposing of this product, please follow local regulations for electronics recycling.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
