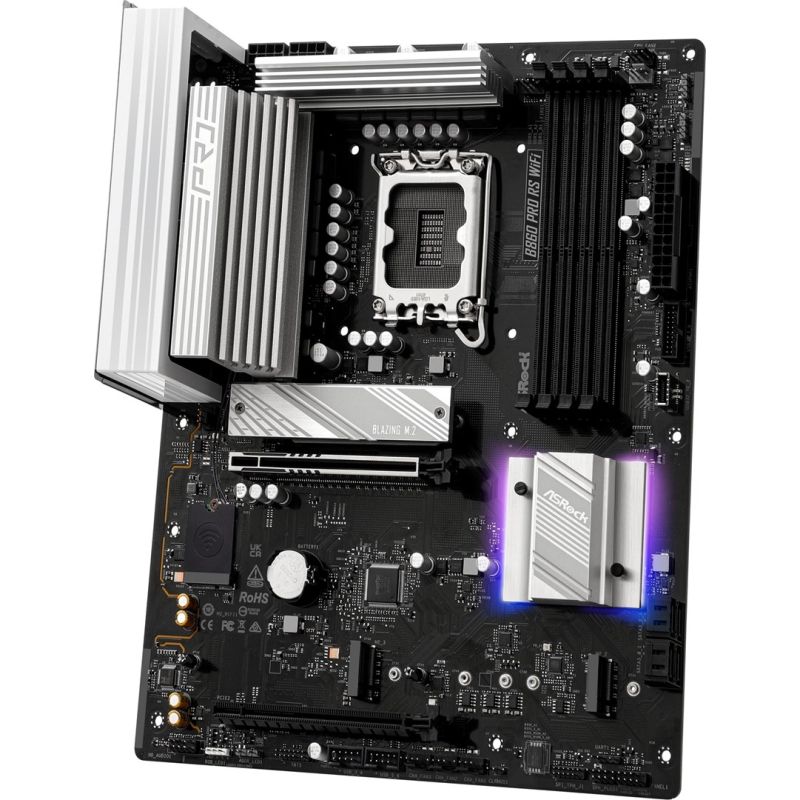

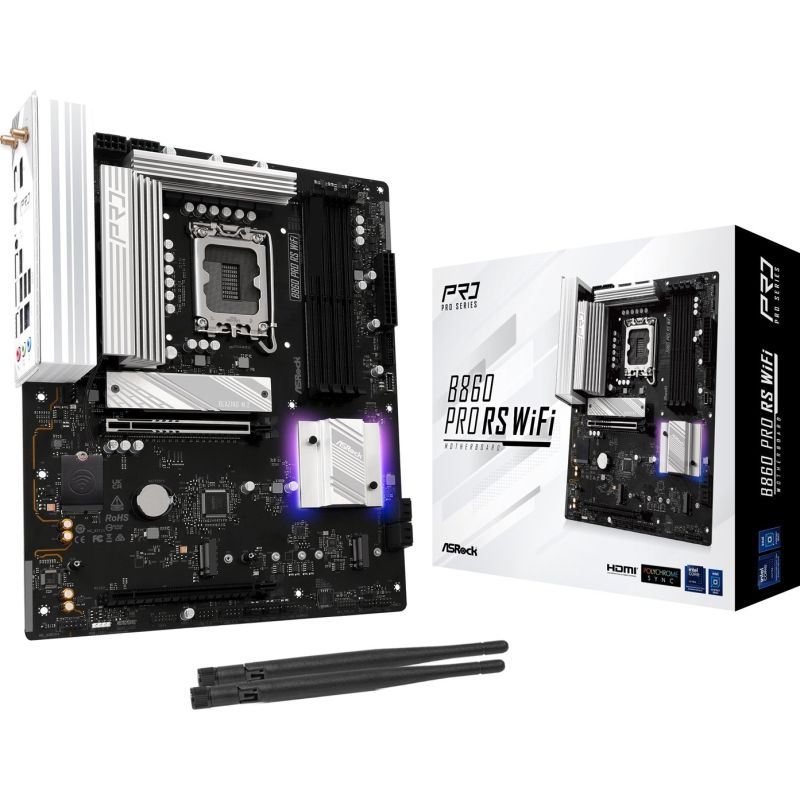

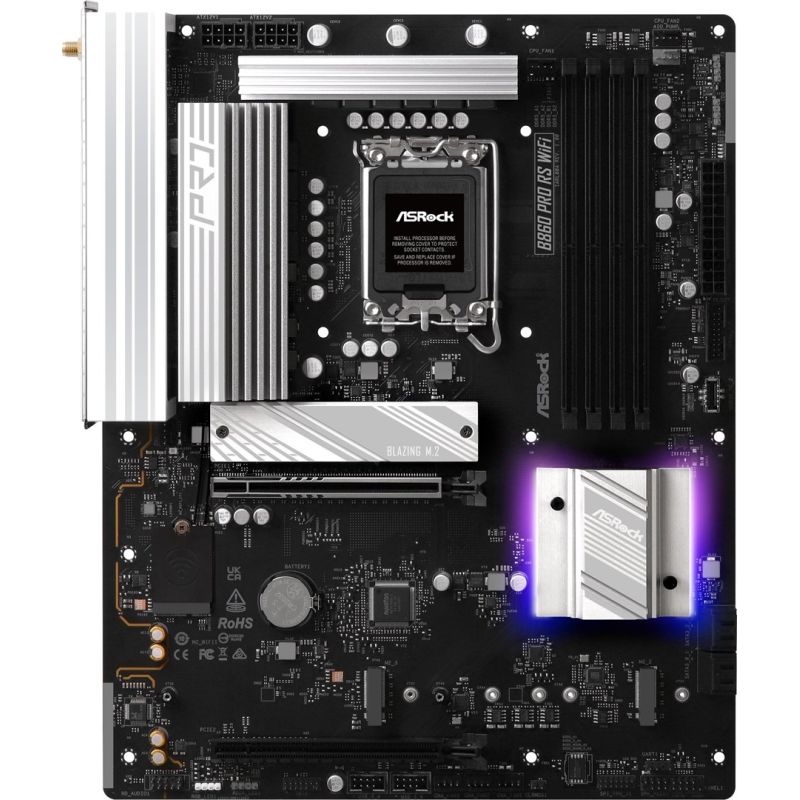

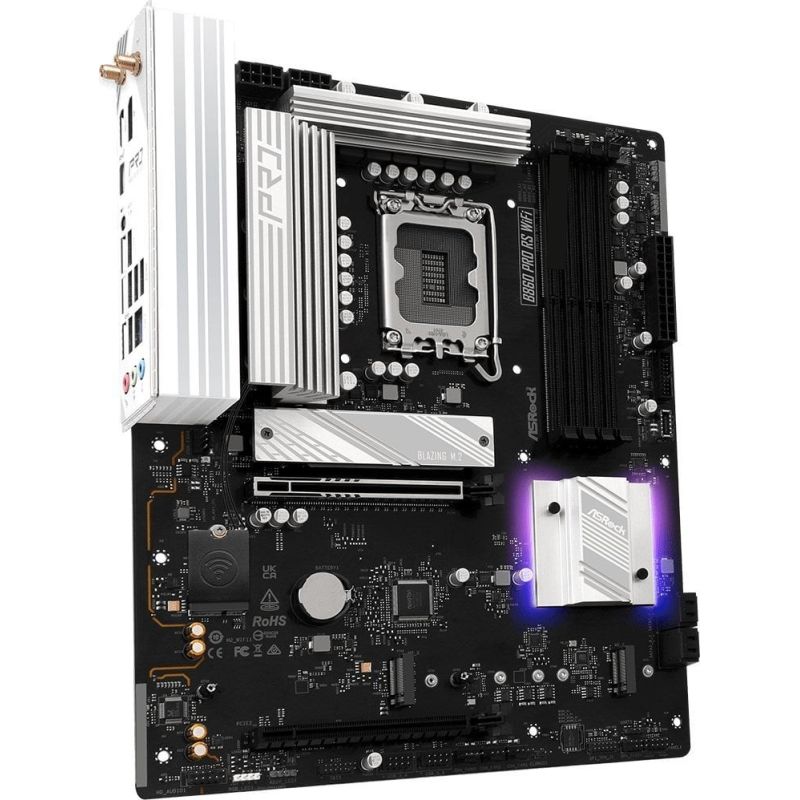

ASRock B860 Pro RS WiFi Motherboard
ASRock B860 Pro RS WiFi Motherboard
ASRock B860 Pro RS WiFi Motherboard
PRICE:
234,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Maximum number of SMP processors: 1
- Processor: Intel Core Ultra (Series 2)
- Processor socket: LGA1851
- Memory
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory clock speed (max): 8666 MHz
- Characteristics
- Audio chip: Realtek ALC897
- Motherboard Layout: Intel B860
- Motherboard format: ATX
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Supported Windows operating systems: Windows 11
- Operating system architecture: 64-bit
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 4
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- Number of USB Type-C ports: 1
- RGB LED: Yes
- Network
- LAN controller: Dragon RTL8125BG
- Basic Wi-Fi standard: Wi-Fi 6E (802.11axe)
- Wi-Fi: Yes
- Bluetooth: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Bluetooth version: 5.3
- MU-MIMO: Yes
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- Supported hard drive interfaces: Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4), SATA III
- RAID Rebuild: Yes
- Supported RAID configuration: 0,1,5,10

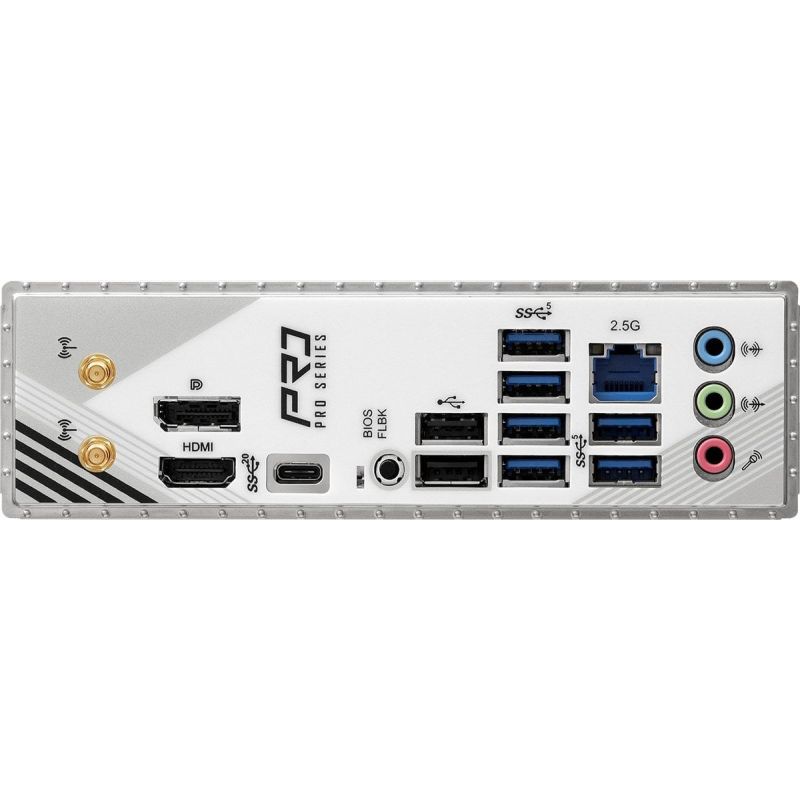

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 6
- Number of HDMI ports: 1
- DisplayPort version: 1.4
- Line Input: Yes
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Microphone input: 1
- Number of Wi-Fi antenna ports: 2
- Number of USB 2.0 Type-A ports: 2
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Safety warning
- Warnings
- Avoid contact with liquids to prevent electronic damage.
- Dispose of in accordance with local regulations for electronic waste.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
