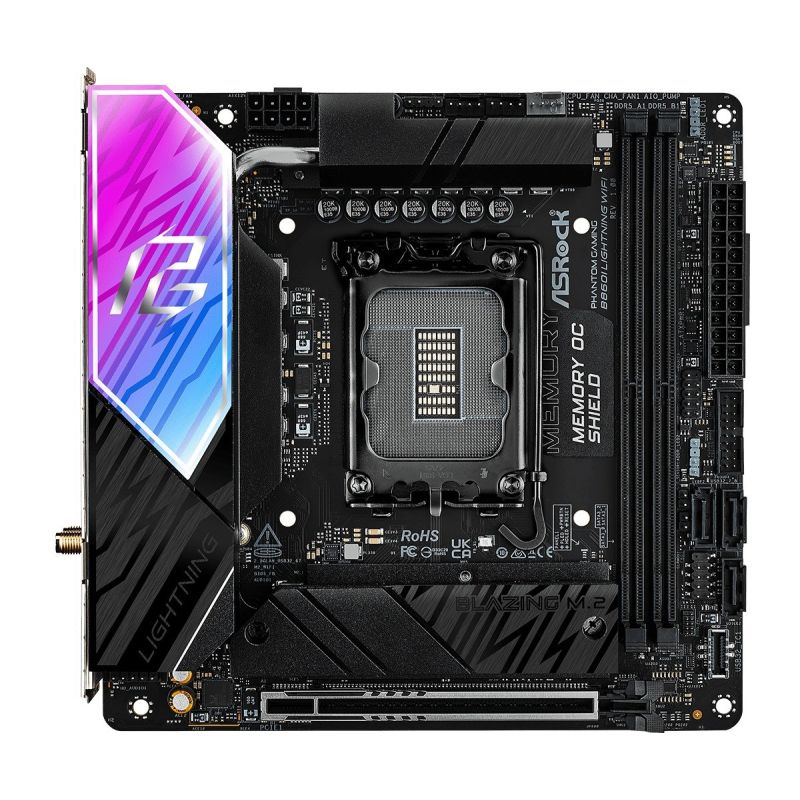

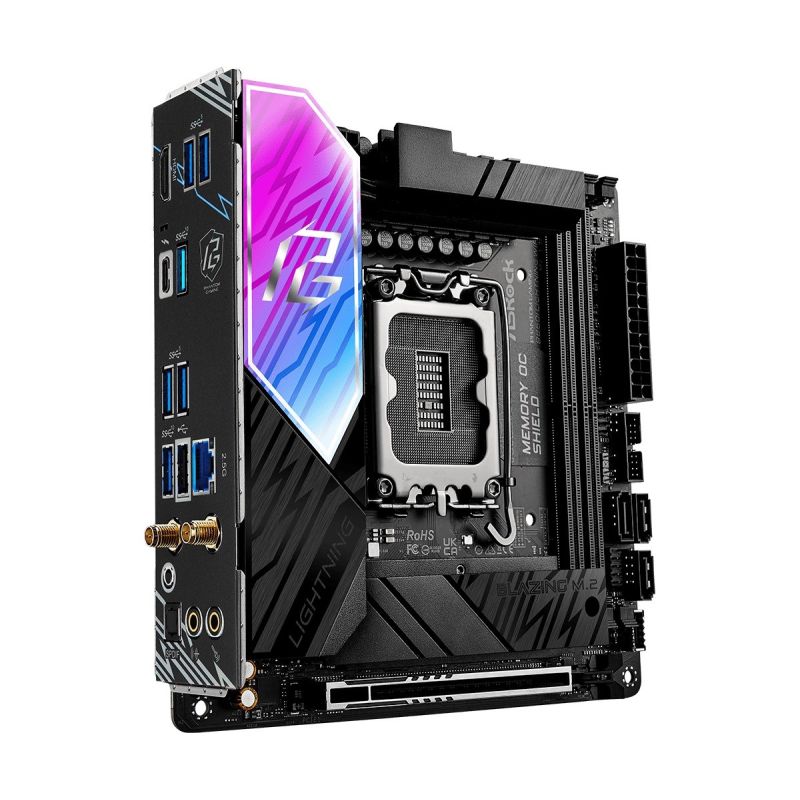

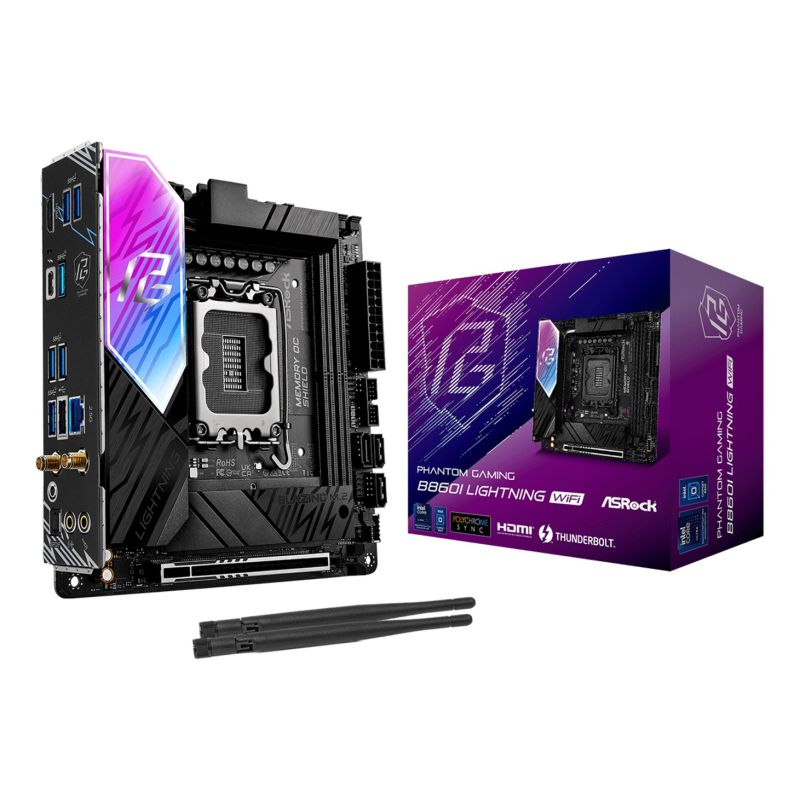

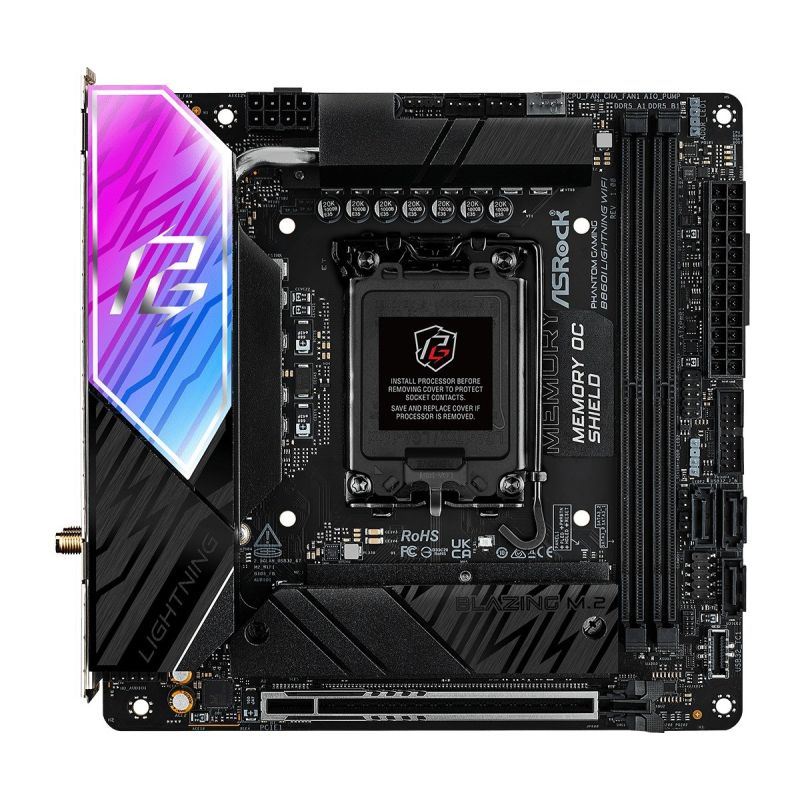

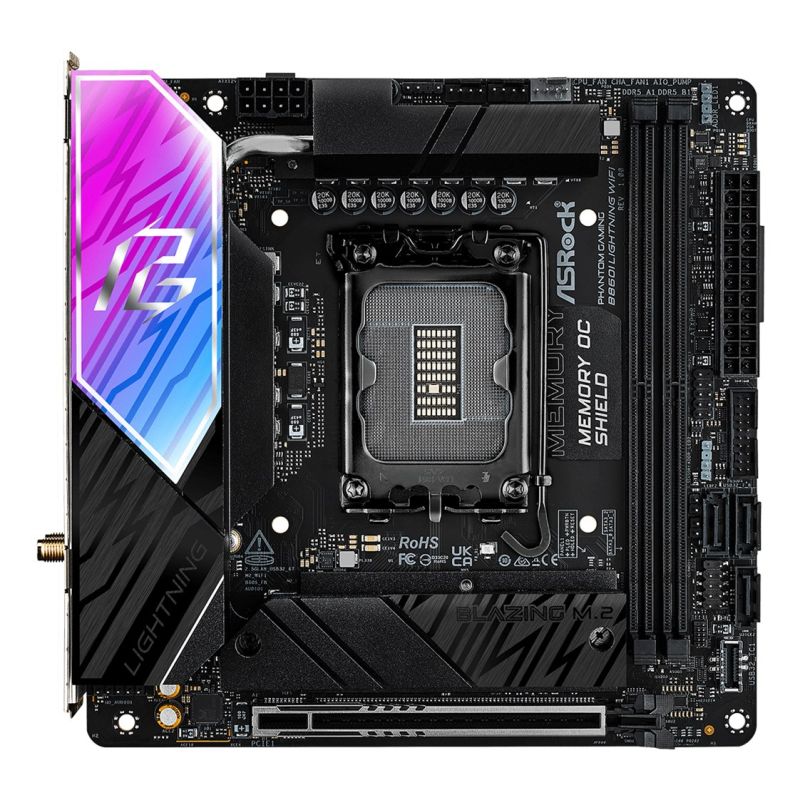

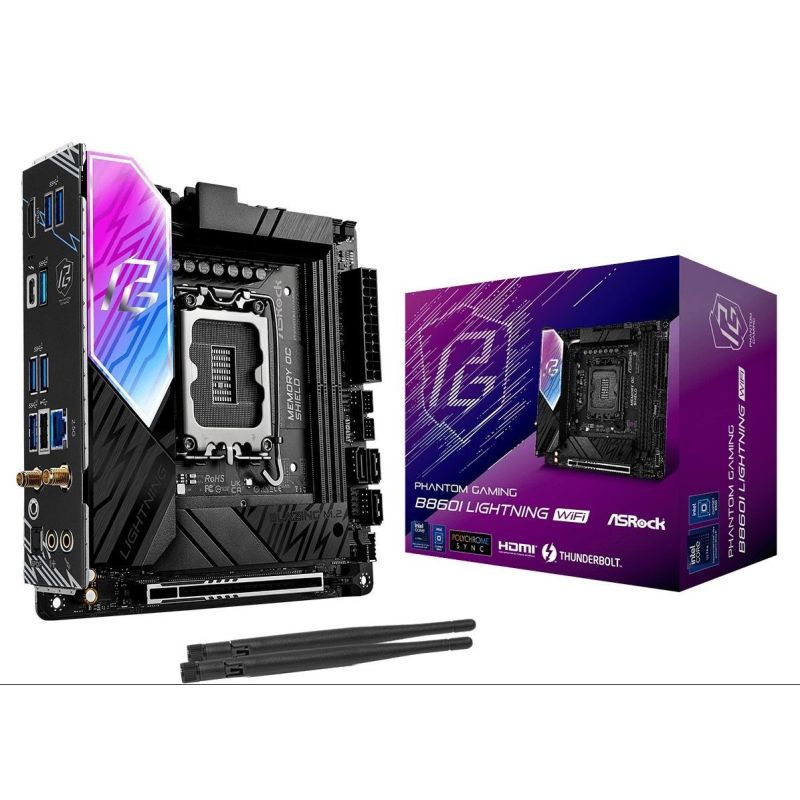

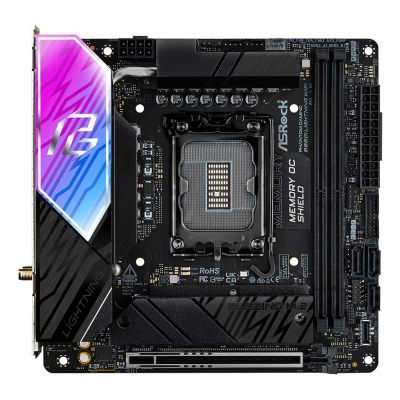

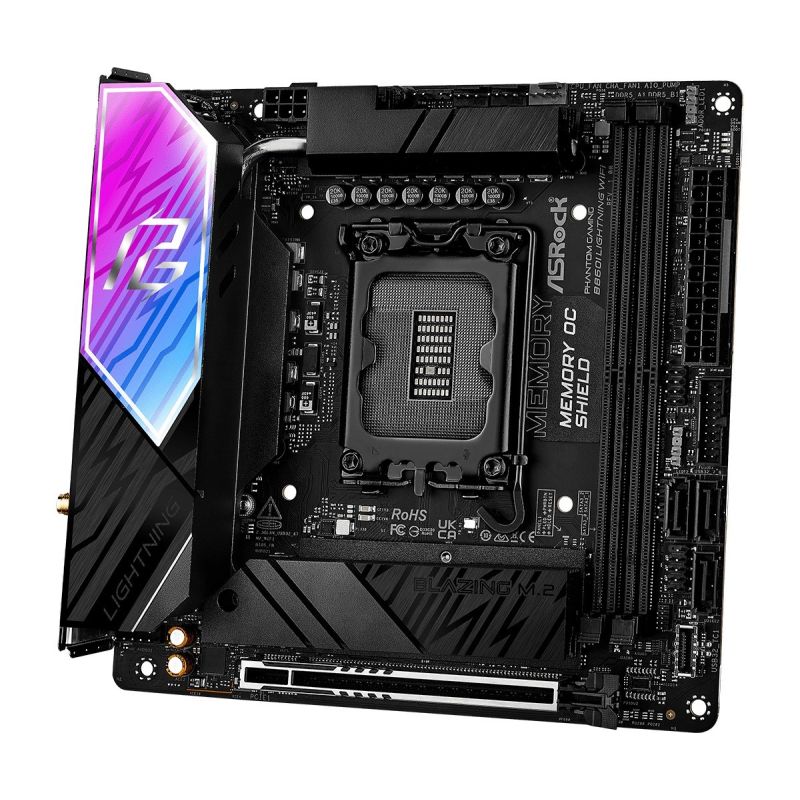

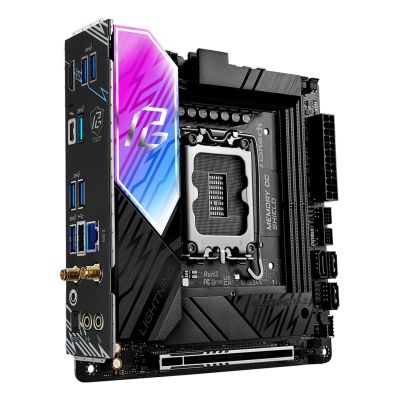

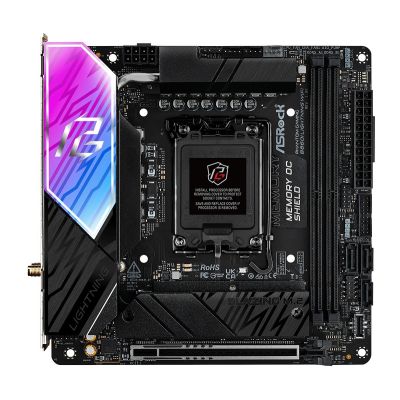

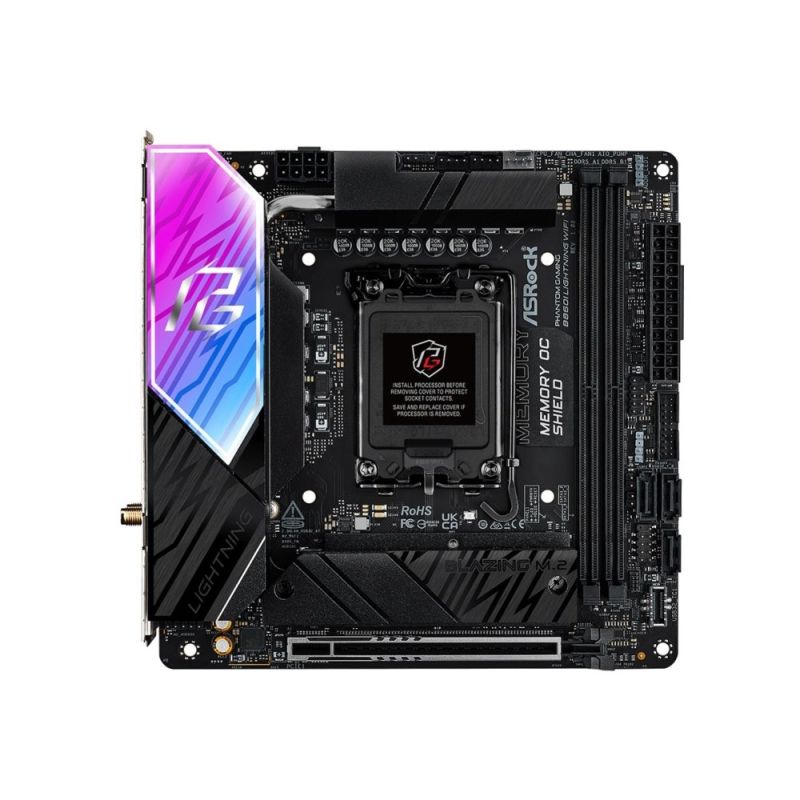

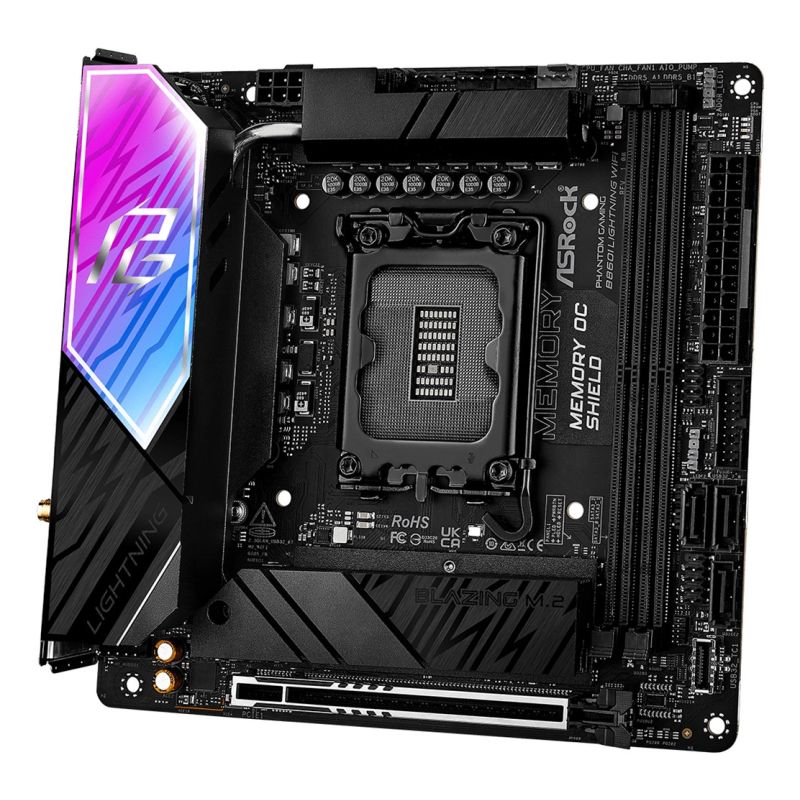

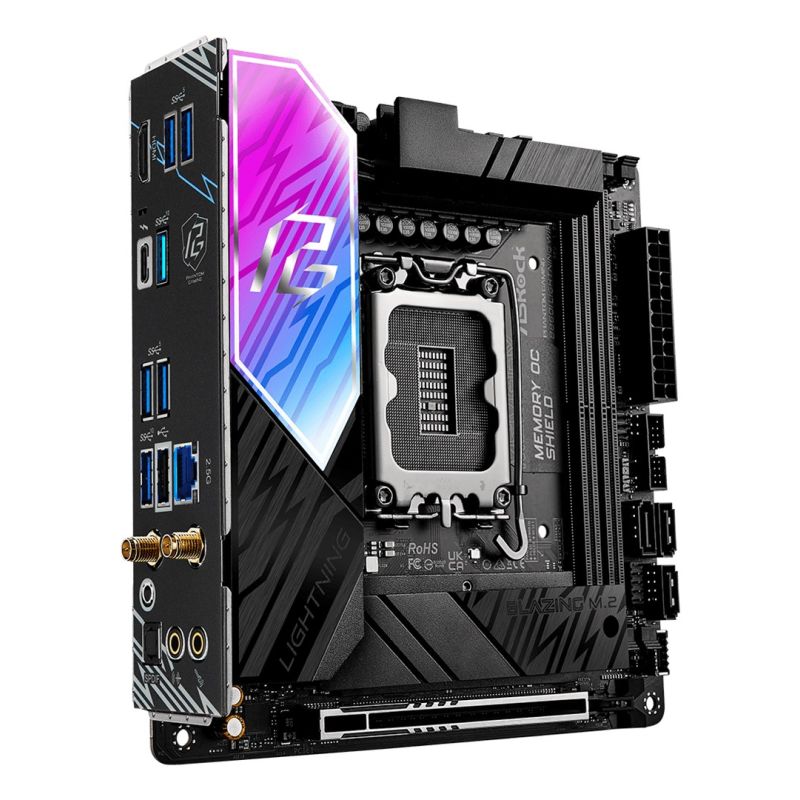

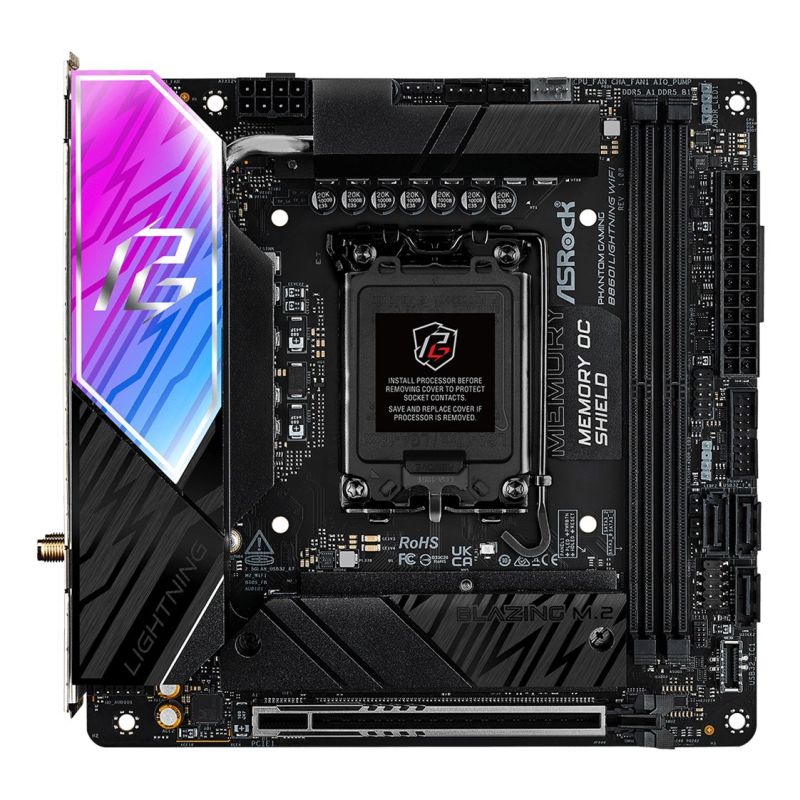

ASRock B860I Lightning WiFi Motherboard
ASRock B860I Lightning WiFi Motherboard
ASRock B860I Lightning WiFi Motherboard
PRICE:
362,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Supported CPU sockets: LGA 1851
- Processor manufacturer: Intel
- Graphics
- Integrated graphics card type: Intel Iris Xe Graphics
- Maximum resolution: 7680 x 4320 px
- HDCP: Yes
- Memory
- Supported memory types: DDR5-SDRAM
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Number of memory slots: 2
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Characteristics
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC1220
- Motherboard Layout: Intel B860
- Motherboard format: Mini-ITX
- Chipset Board Family: Intel
- Product color: White
- Supported Windows operating systems: Windows 11 x64
- Weight and dimensions
- Product depth: 170 mm
- Product width: 170 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 3
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of USB 3.2 Gen 2 Type-C ports: 1
- Number of CPU fan connectors: 1
- 12V power connector: Yes
- Number of water pump connections: 1
- Number of case fan connectors: 1
- CPU fan connector: Yes
- Network
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Bluetooth version: 5.3
- Bluetooth: Yes
- Wired LAN: Yes
- Basic Wi-Fi standard: Wi-Fi 6E (802.11axe)
- MU-MIMO: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- LAN controller: Dragon RTL8125BG
- Data transfer speed via Ethernet LAN: 10,100,1000,2500 Mbit/s
- Wi-Fi standards
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 5
- 1
- 0
- RAID Service: Yes
- Number of supported storage drive sizes: 5

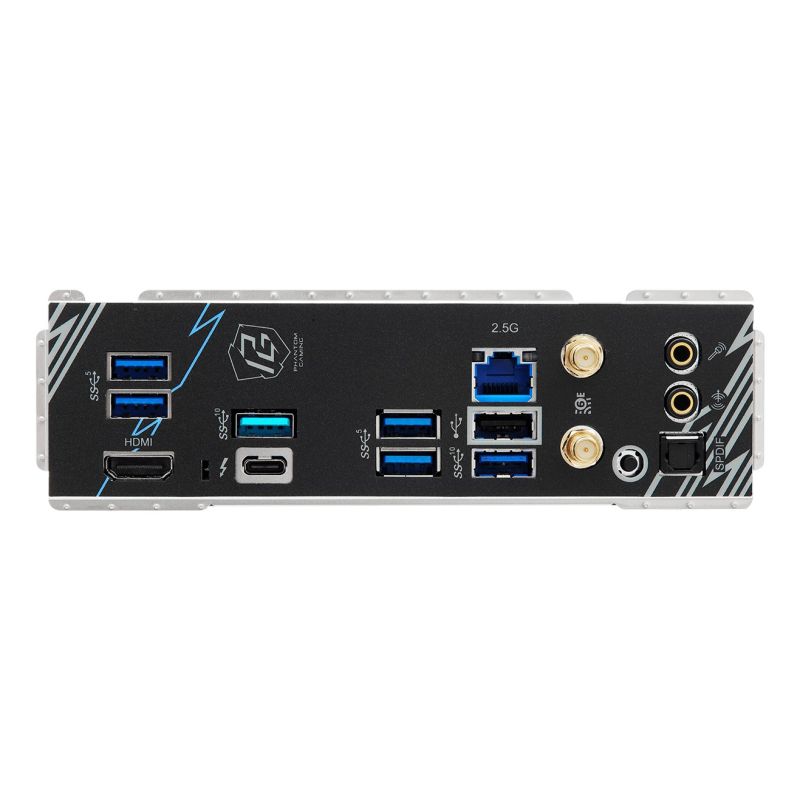

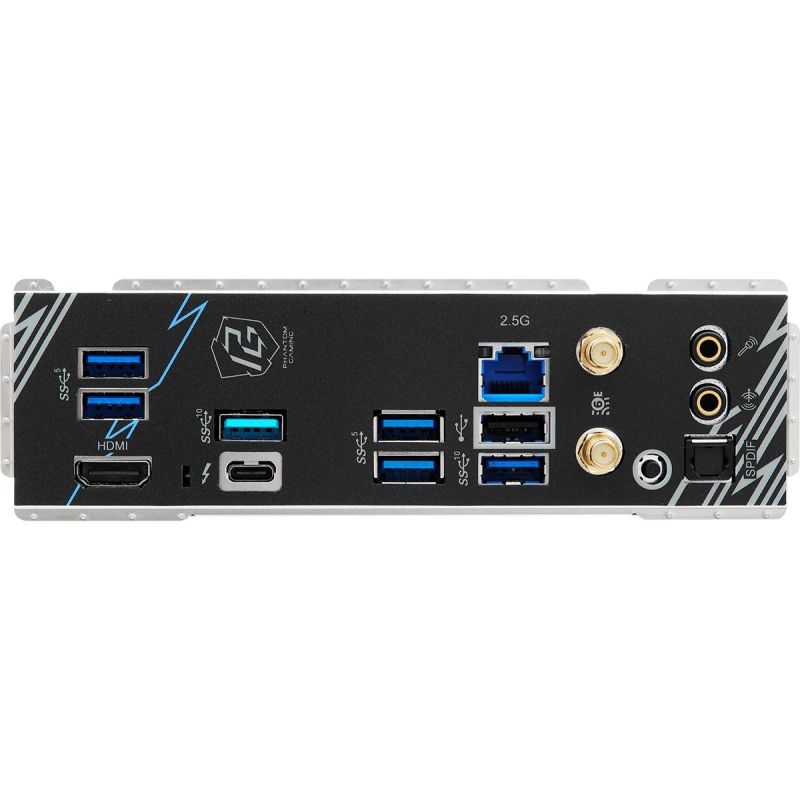

- Rear Panel I/O Ports
- Supported USB type
- USB Type-C
- USB Type-A
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 1
- BIOS Flashback Button: Yes
- Number of antennas: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of Thunderbolt ports: 1
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 1 ports: 4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Microphone input: 1
- Supported USB type
- Expansion slots
- Number of M.2 (M) slots: 4
- Number of SATA III connectors: 3
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- 2nd largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- Safety warning
- Warnings
- If you experience any problems with installation, please contact a qualified service center.
- When disposing of this product, please follow local regulations for electronics recycling.
- Do not open or modify the motherboard to prevent damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
