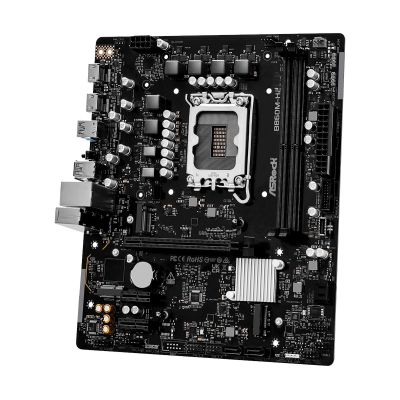

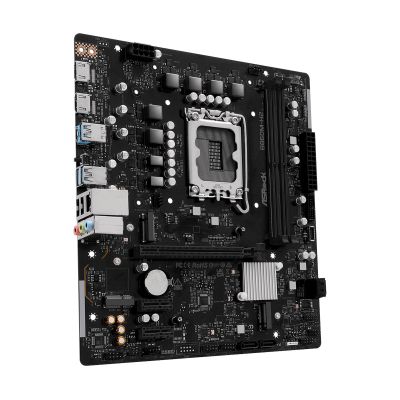

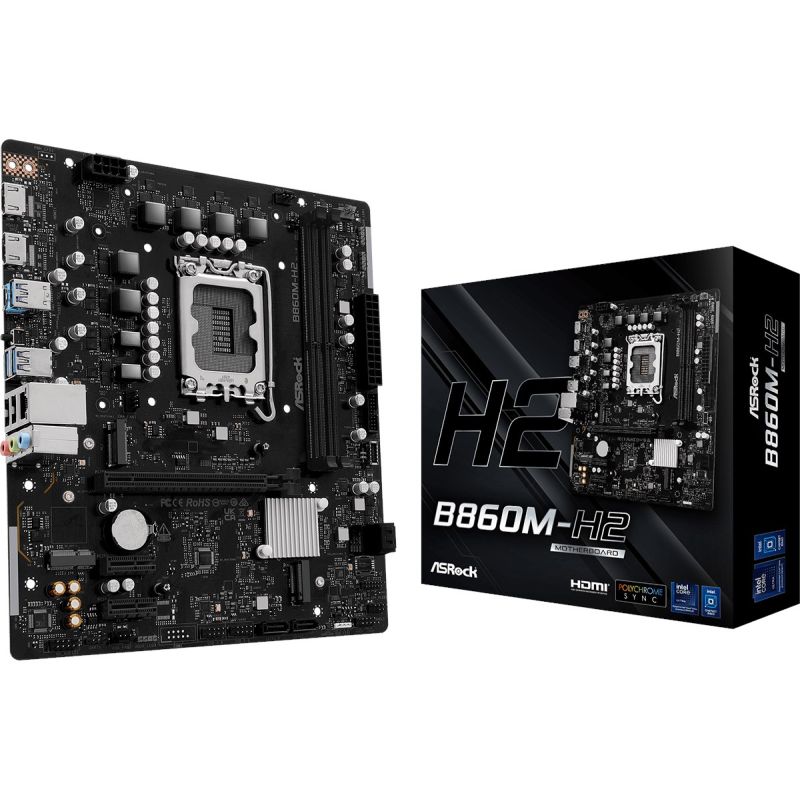

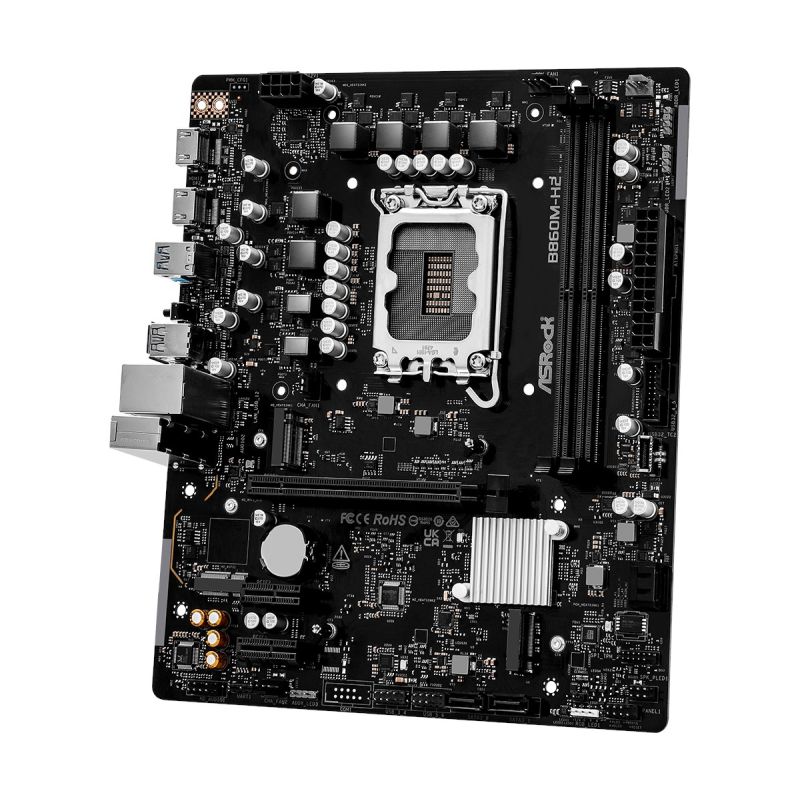

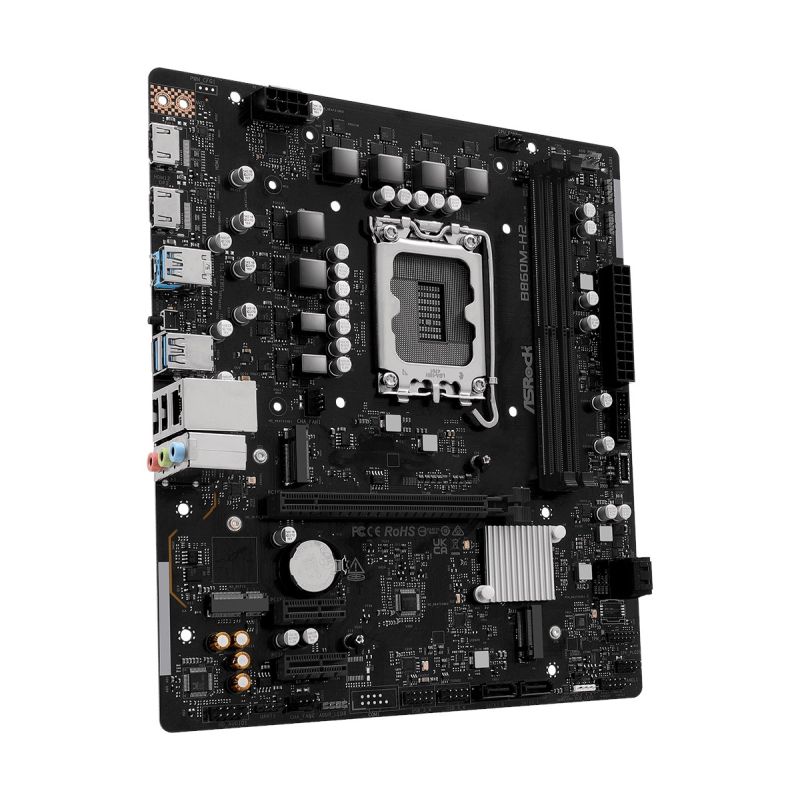

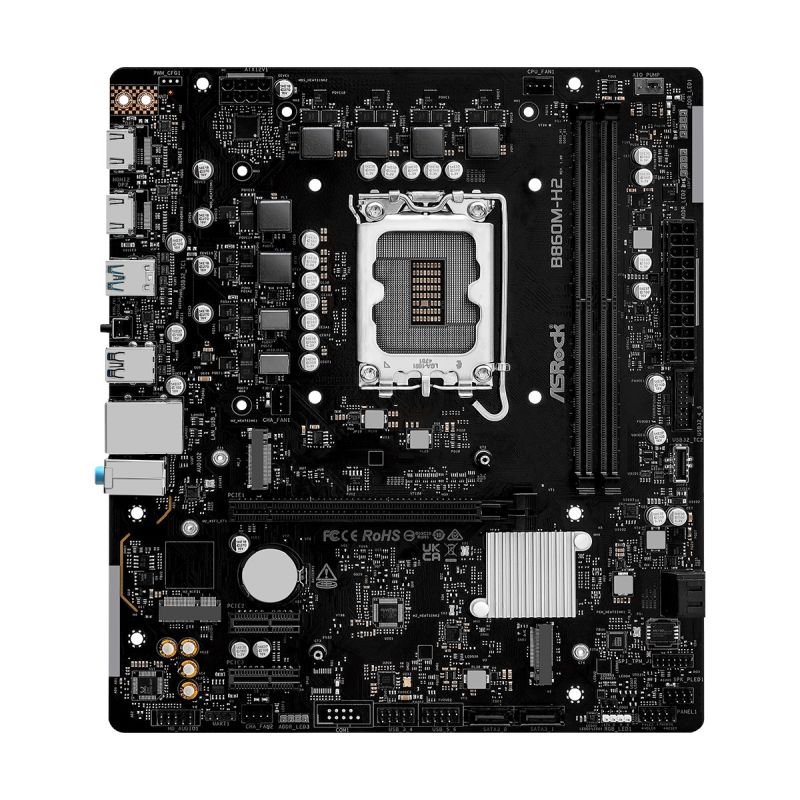

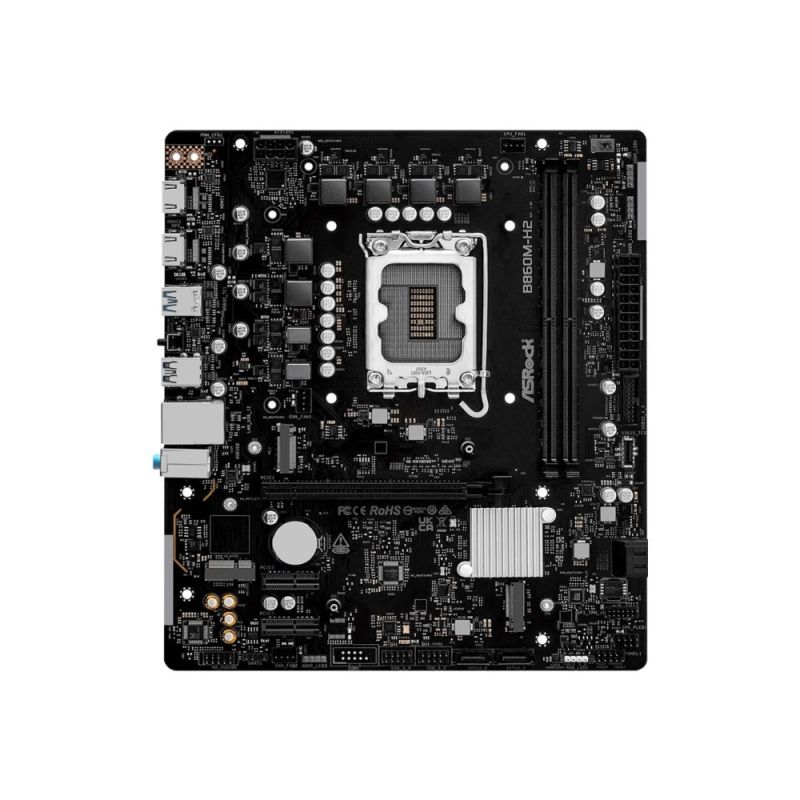

ASRock B860M-H2 motherboard
ASRock B860M-H2 motherboard
ASRock B860M-H2 motherboard
PRICE:
138,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: LGA 1851 (Socket V1)
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- ECC Compatibility: Non-ECC
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Characteristics
- Audio chip: Realtek ALC897
- Chipset Board Family: Intel
- Motherboard Layout: Intel B860
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Supported Windows operating systems: Windows 11 x64
- Weight and dimensions
- Product depth: 211 mm
- Product width: 244 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 3.2 Gen 2 Type-C ports: 1
- Number of CPU fan connectors: 1
- TPM Connector: Yes
- Number of case fan connectors: 2
- Number of RGB LED connectors: 1
- RGB LED: Yes
- Number of water pump connections: 1
- CPU fan connector: Yes
- 12V power connector: Yes
- Network
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Bluetooth: No
- LAN controller: Realtek 8111H
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- RAID Service: Yes
- Supported drive types: HDD & SSD
- RAID levels
- 0
- 1
- 10
- 5
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III

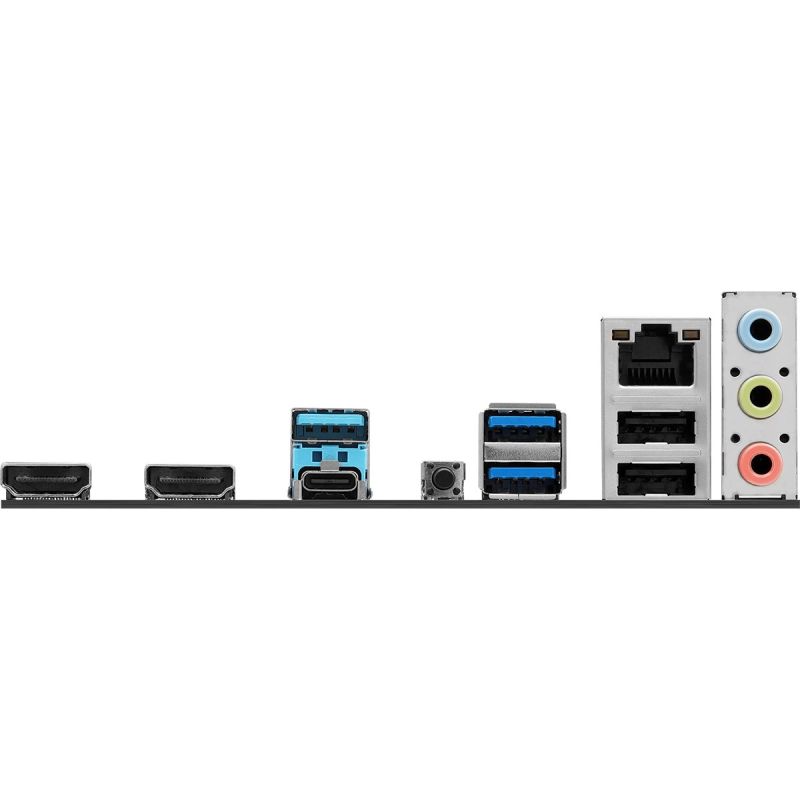

- Rear Panel I/O Ports
- Supported USB type
- USB Type-A
- USB Type-C
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 2
- HDMI version: 2.1
- Number of HDMI ports: 2
- Number of antennas: 2
- BIOS Flashback Button: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3
- Supported USB type
- Expansion slots
- Number of SATA III connectors: 4
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 4.0
- Safety warning
- Warnings
- When disposing of this product, please follow local regulations for electronics recycling.
- Do not open or modify the motherboard to prevent damage.
- If you experience any problems with installation, please contact a qualified service center.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
