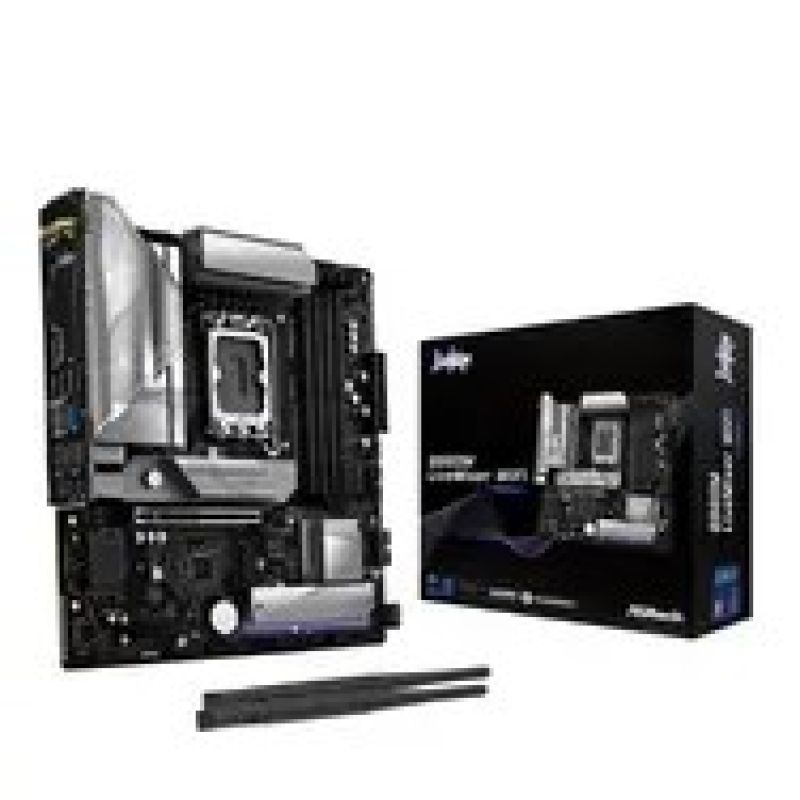

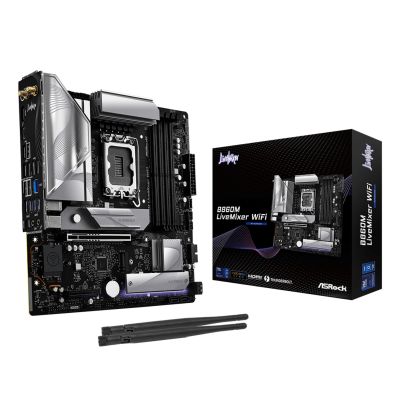

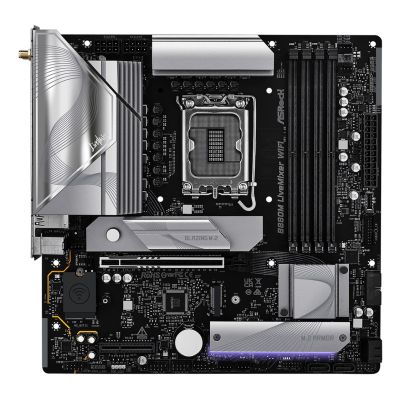

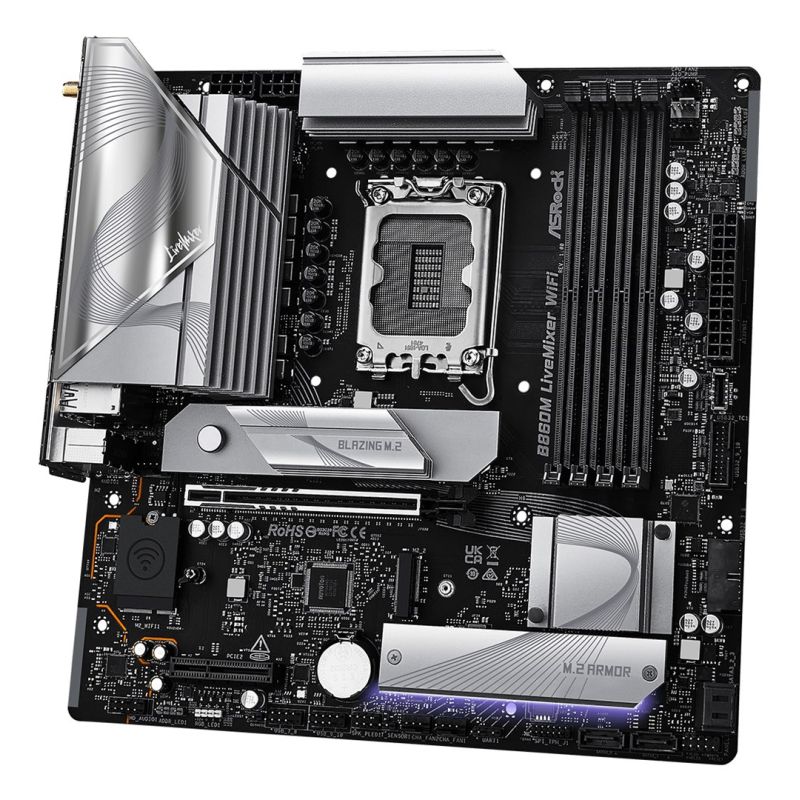

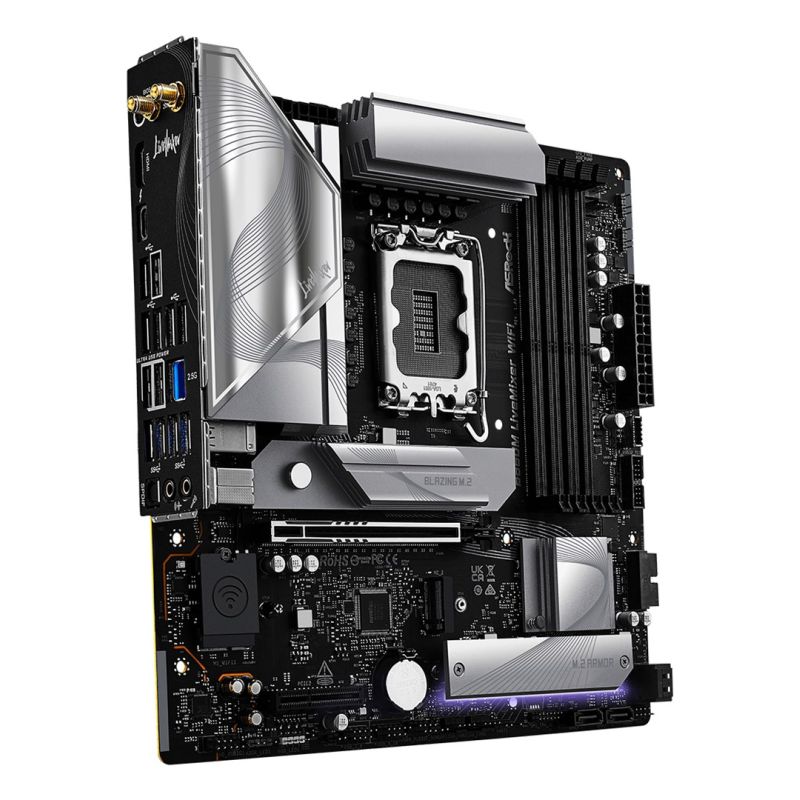

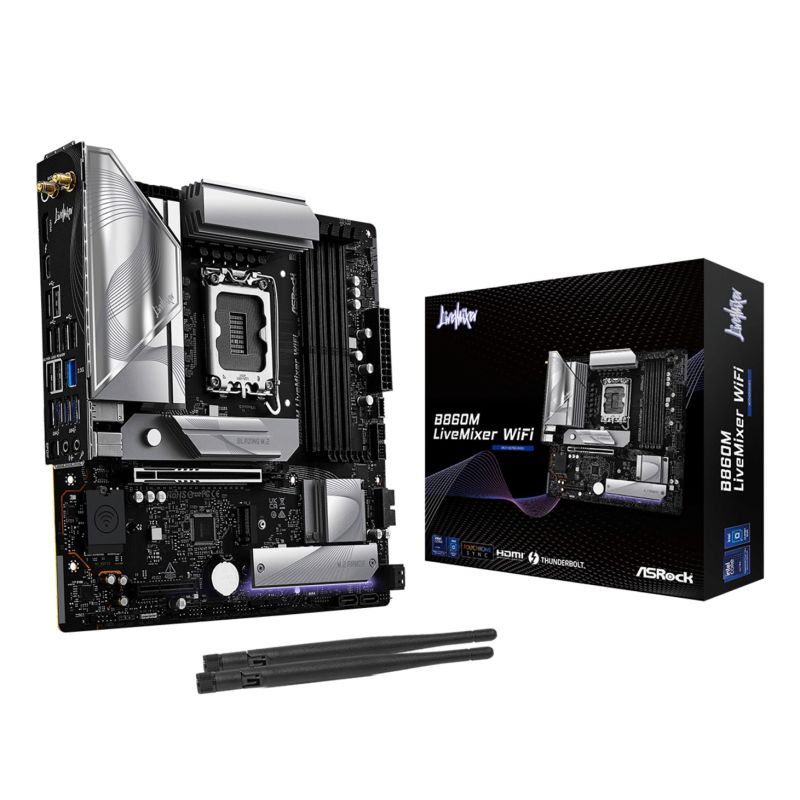

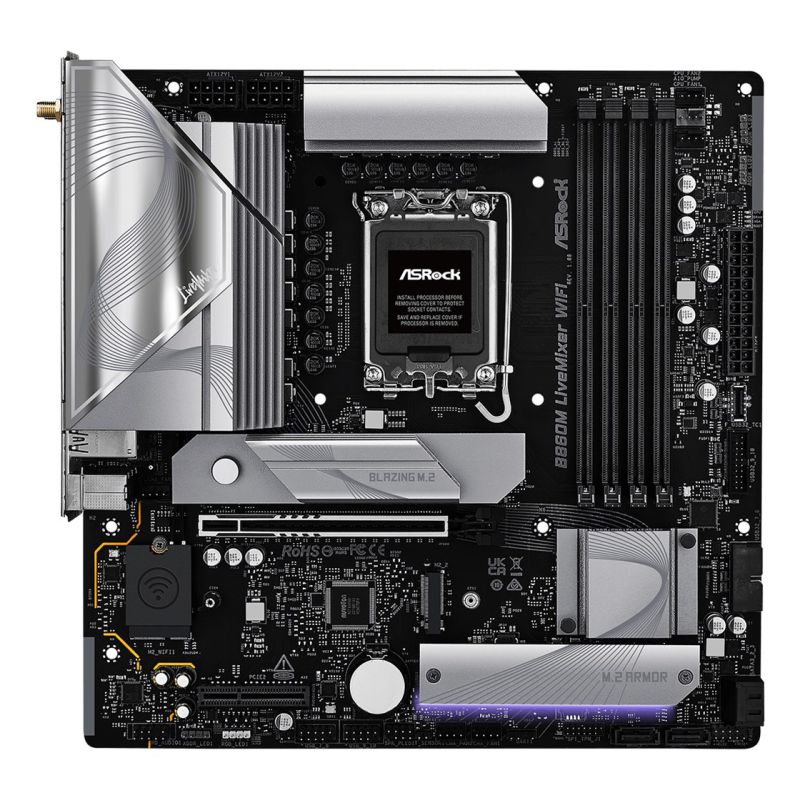

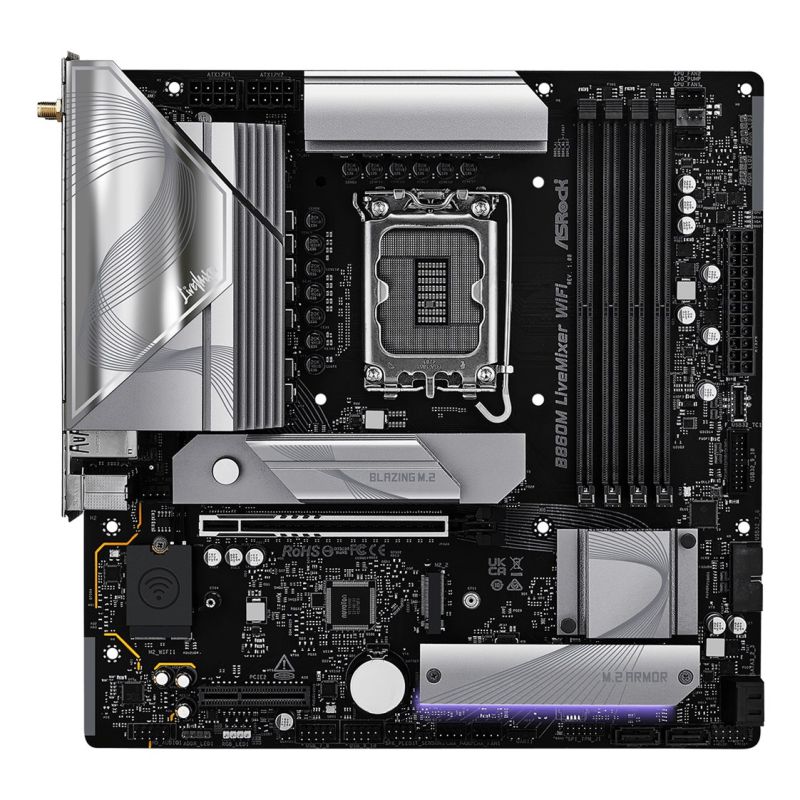

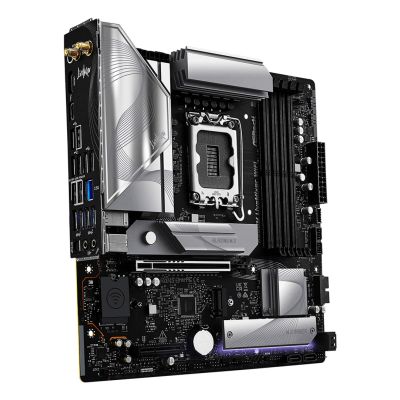

ASRock B860M LiveMixer WiFi Motherboard
ASRock B860M LiveMixer WiFi Motherboard
ASRock B860M LiveMixer WiFi Motherboard
PRICE:
254,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Graphics
- Built-in graphics card: Yes
- Graphics Adapter Family: Intel
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Memory Channel Support: Dual Channel
- ECC Compatibility: Non-ECC
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Characteristics
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC1220
- Chipset Board Family: Intel
- Motherboard Layout: Intel B860
- Supported Windows operating systems: Windows 11 x64
- Motherboard format: Micro ATX
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Internal I/O
- Number of SATA III connectors: 4
- TPM Connector: Yes
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 3
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Number of EPS power connectors (8-pin): 2
- Number of RGB LED connectors: 5
- Number of CPU fan connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Network
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- LAN controller: Dragon RTL8125BG
- Wi-Fi standards
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Bluetooth version: 5.3
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Memory drivers
- RAID Service: Yes
- RAID levels
- 0
- 10
- 5
- 1
- Supported hard drive interfaces: M.2, SATA III

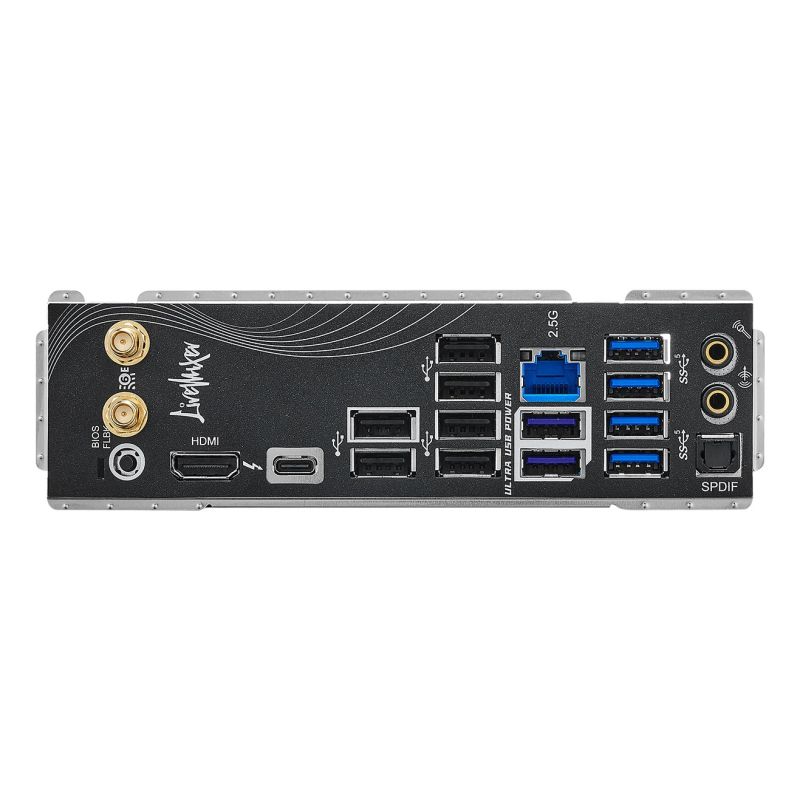

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 6
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 6
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- S/PDIF Output Port: Yes
- Number of Thunderbolt ports: 1
- Microphone: Yes
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 1
- Safety warning
- Warnings
- When disposing of this product, please follow local regulations for electronics recycling.
- If you experience any problems with installation, please contact a qualified service center.
- Do not open or modify the motherboard to prevent damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
