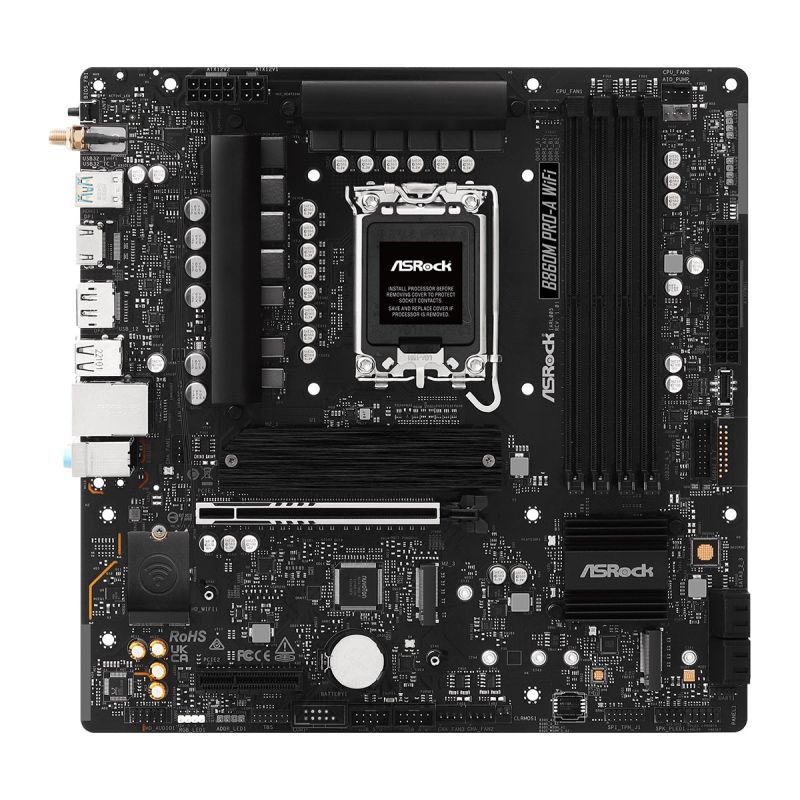

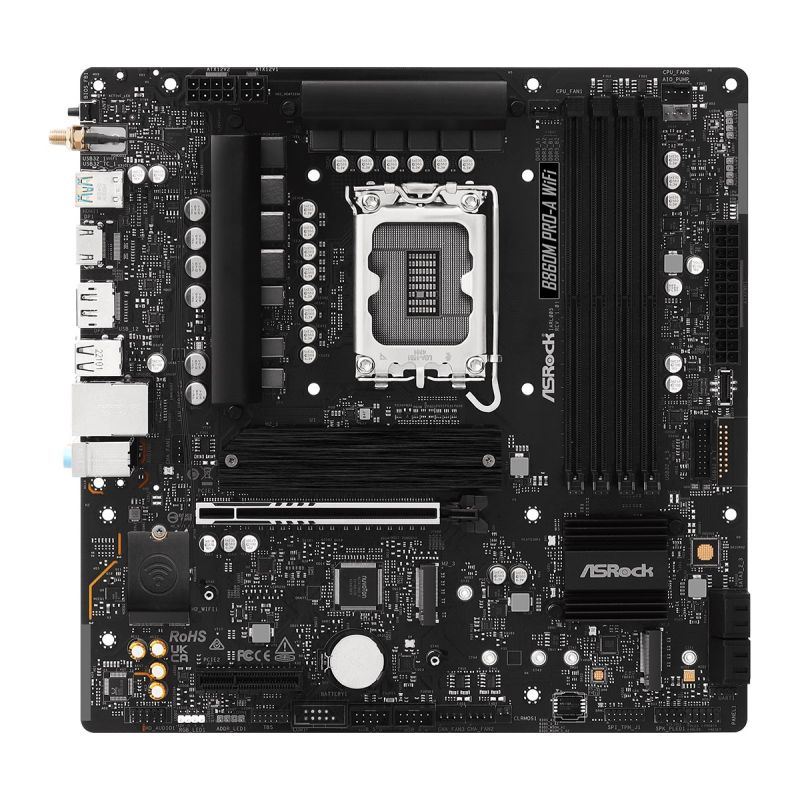

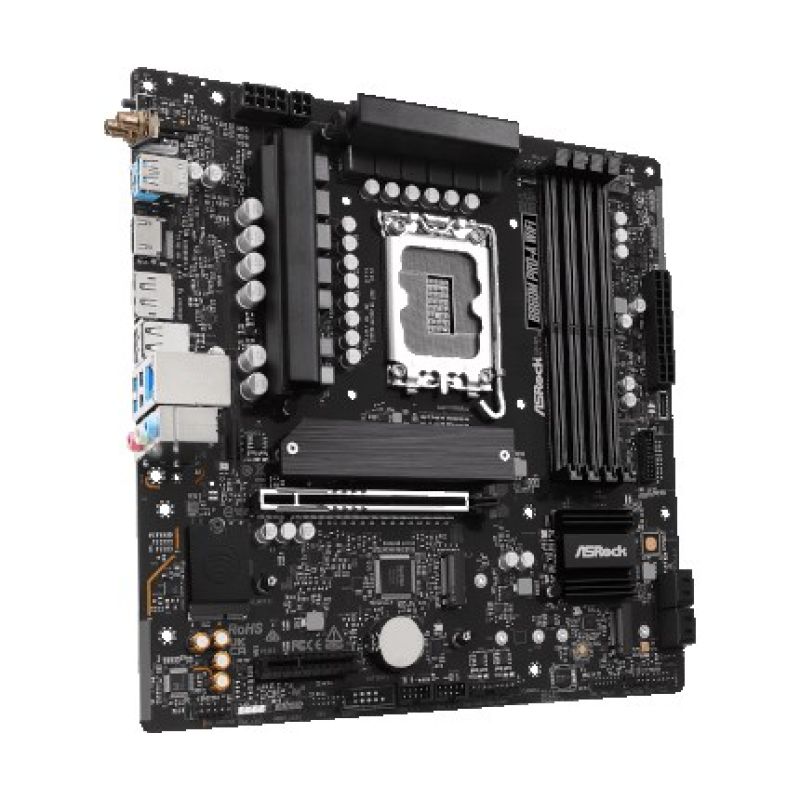

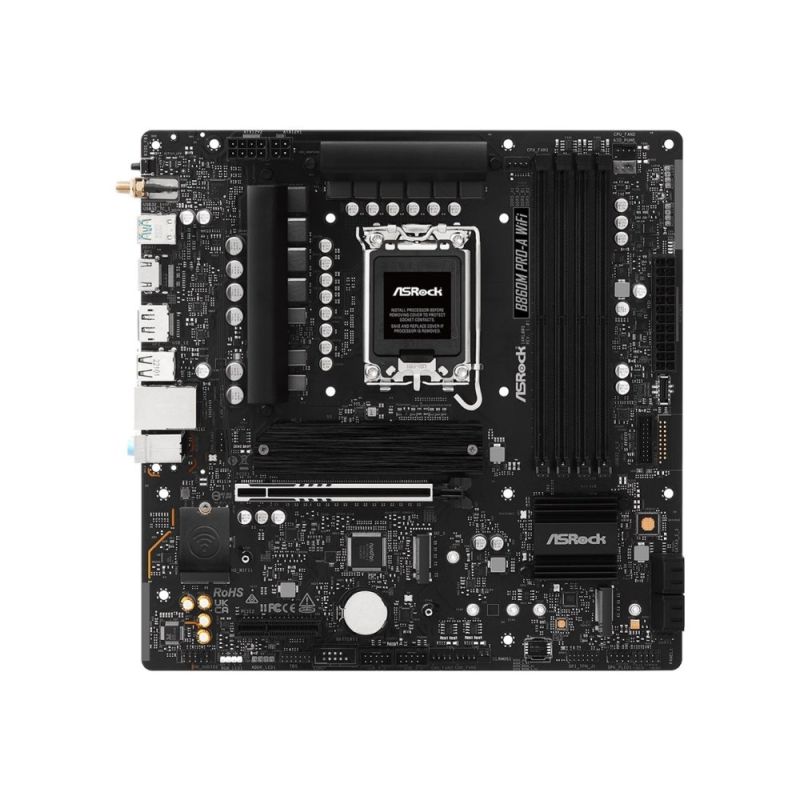

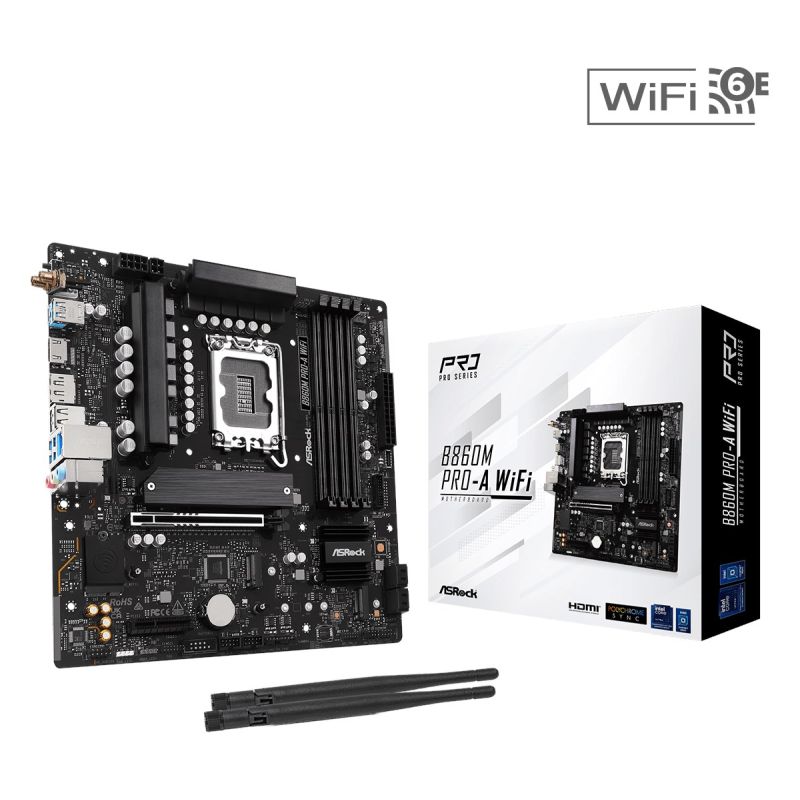

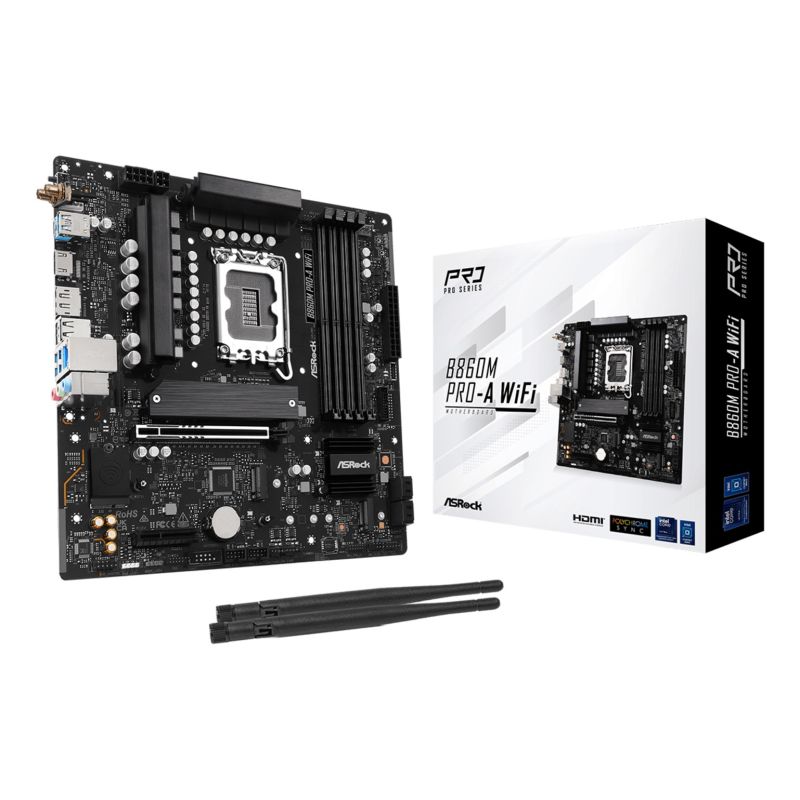

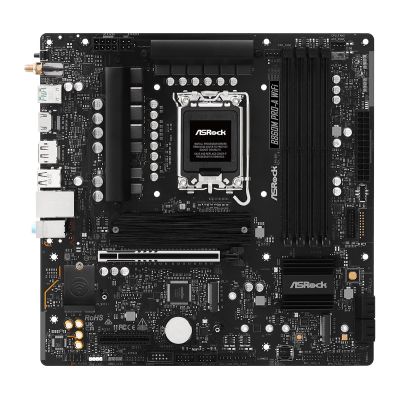

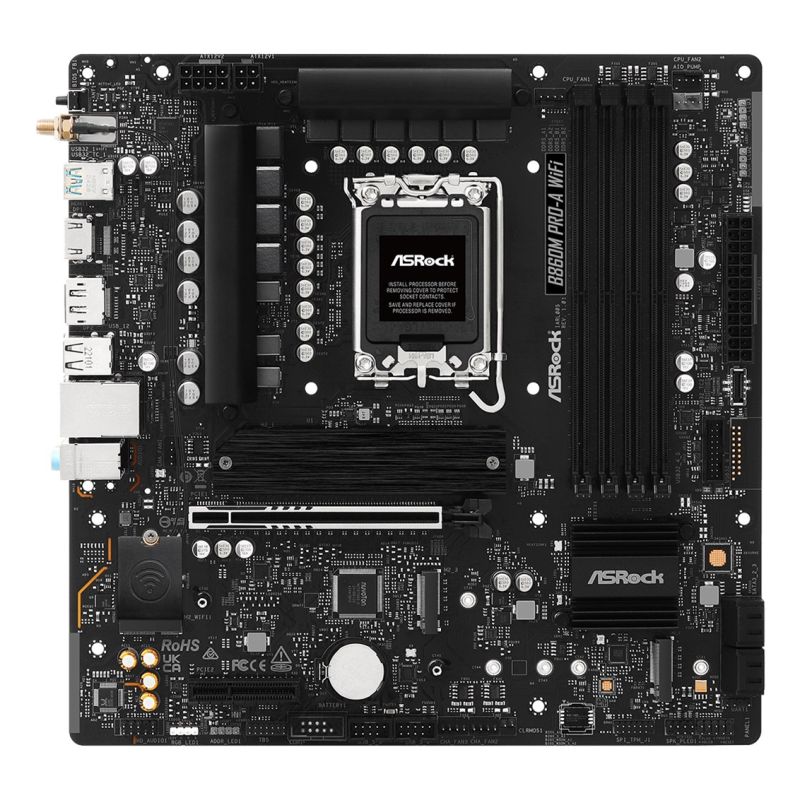

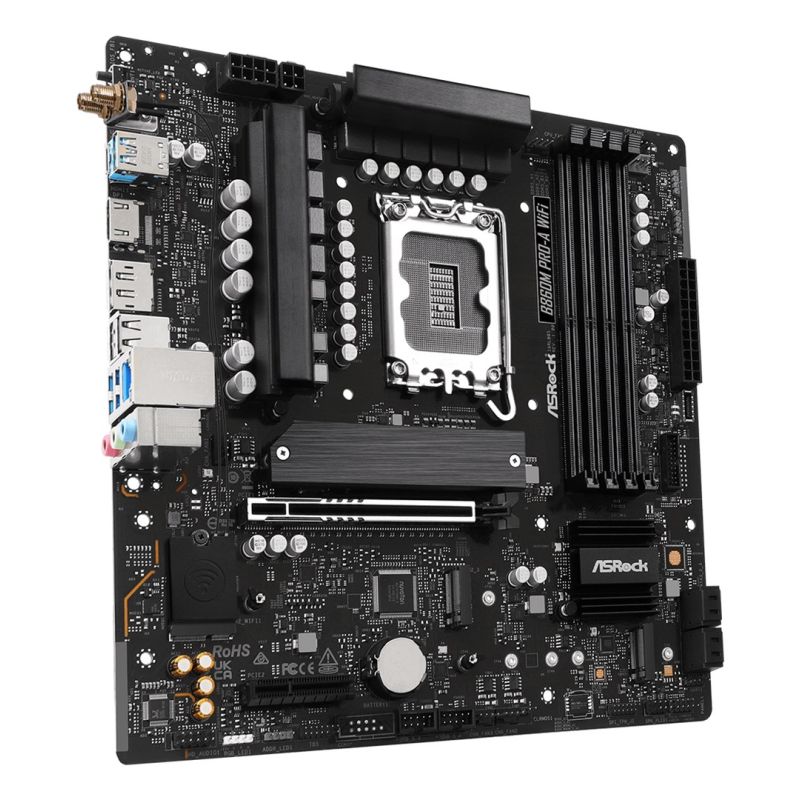

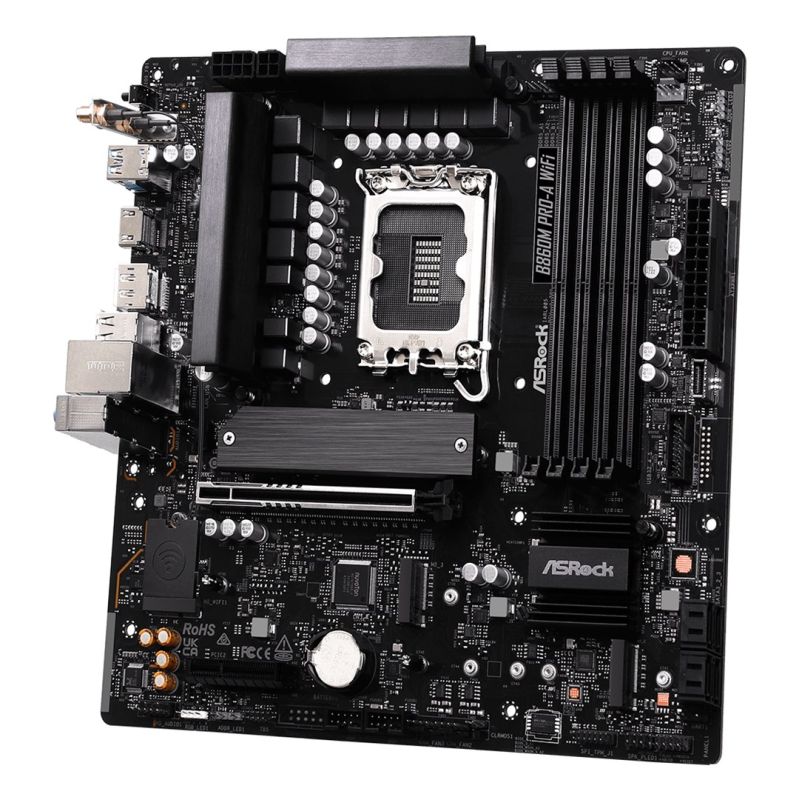

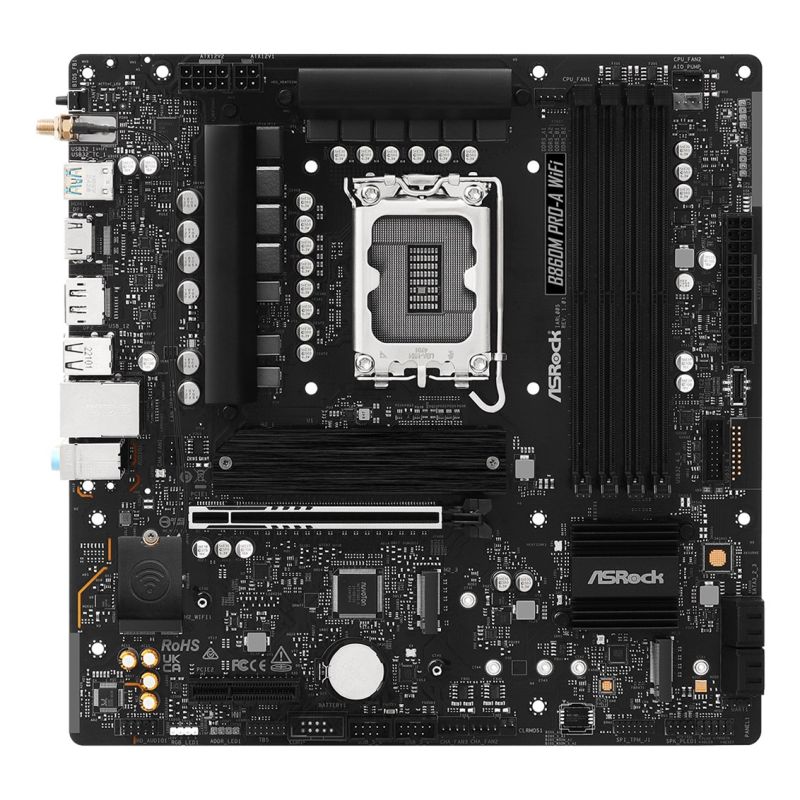

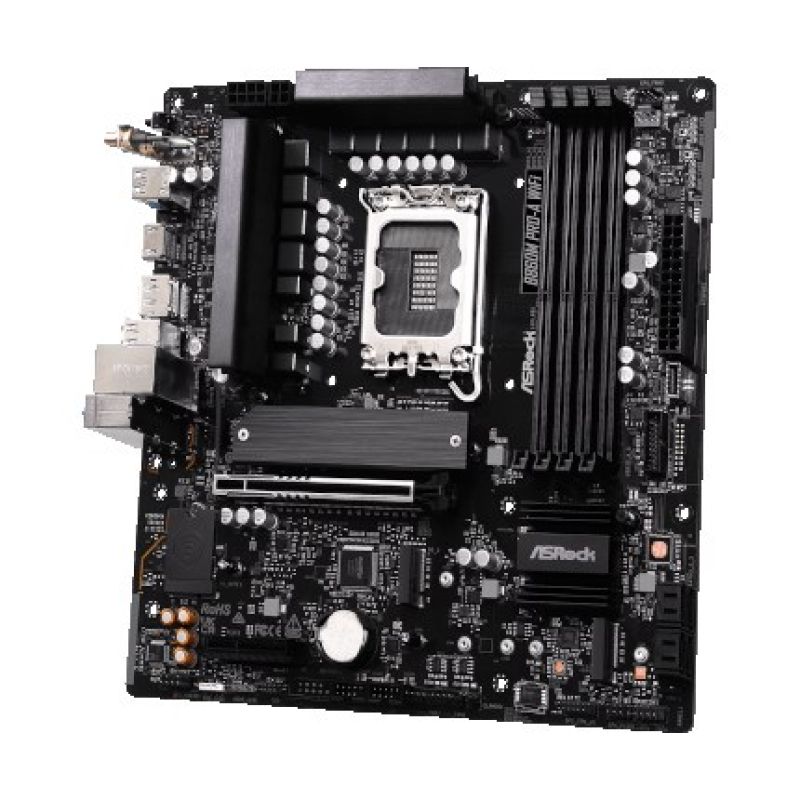

ASRock B860M Pro-A WiFi Motherboard
ASRock B860M Pro-A WiFi Motherboard
ASRock B860M Pro-A WiFi Motherboard
PRICE:
195,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Supported CPU sockets: LGA 1851
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Memory Channel Support: Dual Channel
- ECC Compatibility: Non-ECC
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Audio chip: Realtek ALC897
- Chipset Board Family: Intel
- Motherboard Layout: Intel B860
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- ATX power socket (24-pin): Yes
- TPM Connector: Yes
- Number of SATA III connectors: 4
- CPU fan connector: Yes
- Number of case fan connectors: 3
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of CPU fan connectors: 2
- Number of water pump connections: 1
- 12V power connector: Yes
- RGB LED: Yes
- Network
- Bluetooth: Yes
- Wi-Fi: Yes
- Data transfer speed via Ethernet LAN: 10,100,1000,2500 Mbit/s
- LAN controller: Dragon RTL8125BG
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- RAID levels
- 0
- 5
- 10
- 1
- RAID Service: Yes
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- Rear Panel I/O Ports
- Number of antennas: 2
- Number of HDMI ports: 2
- Supported USB type
- USB Type-A
- USB Type-C
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 2
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 ports: 3
- BIOS Flashback Button: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Expansion slots
- Number of SATA III connectors: 4
- Number of M.2 (M) slots: 3
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
- Safety warning
- Warnings
- Do not open or modify the motherboard to prevent damage.
- When disposing of this product, please follow local regulations for electronics recycling.
- If you experience any problems with installation, please contact a qualified service center.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
