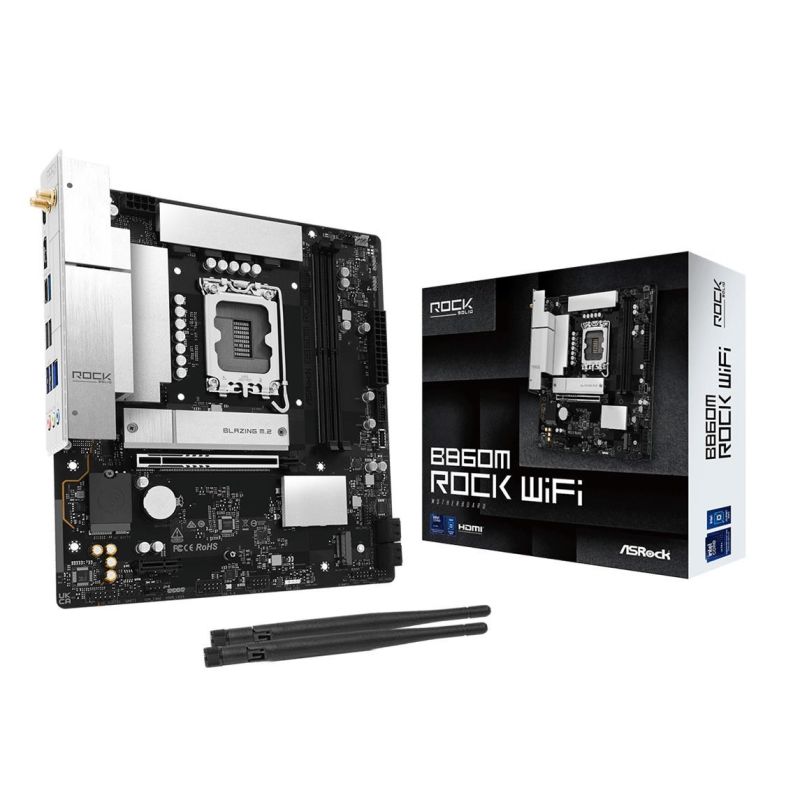

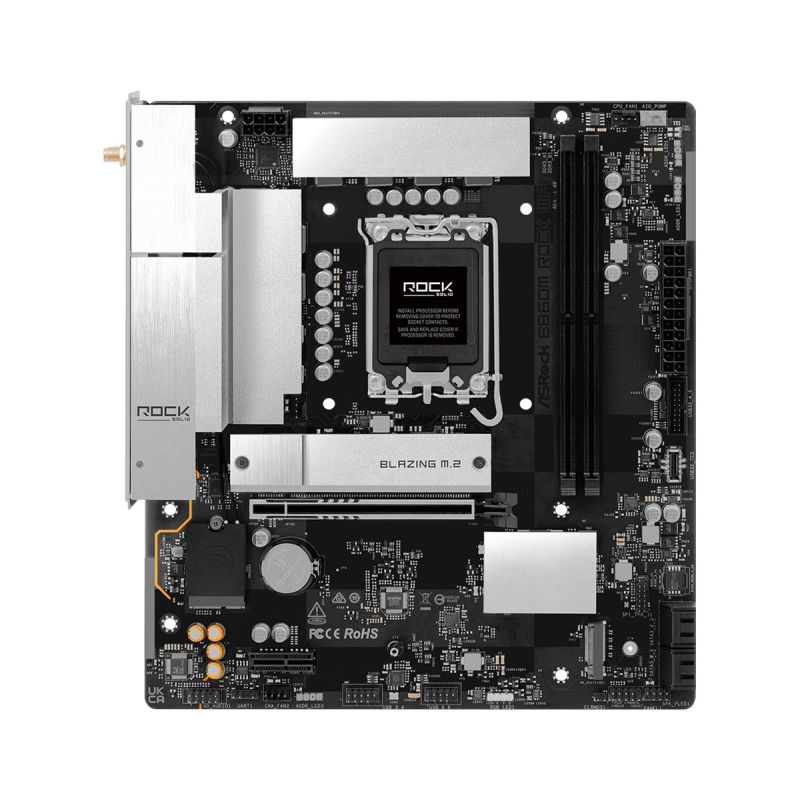

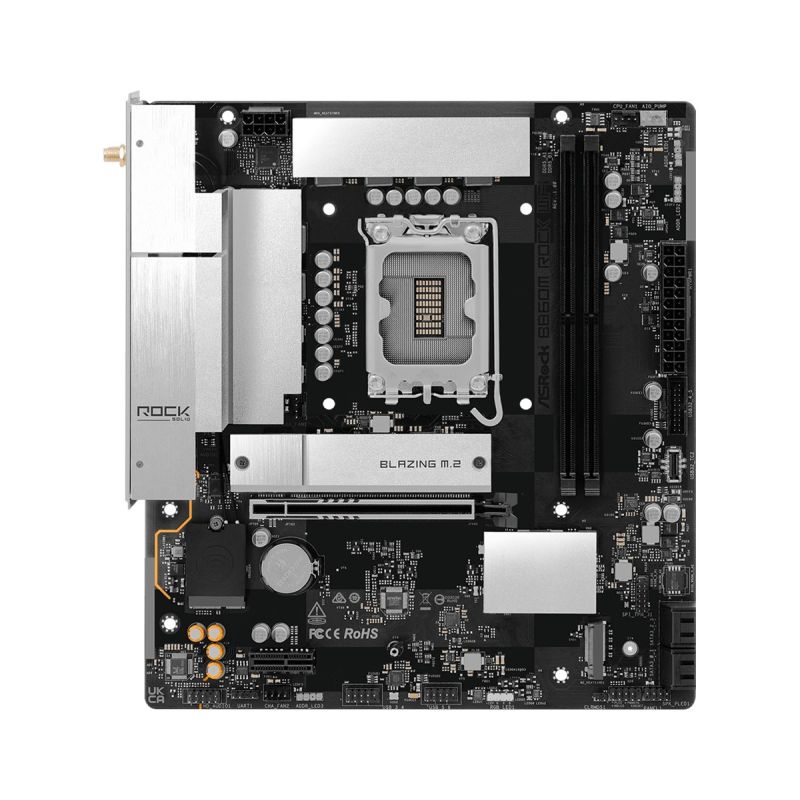

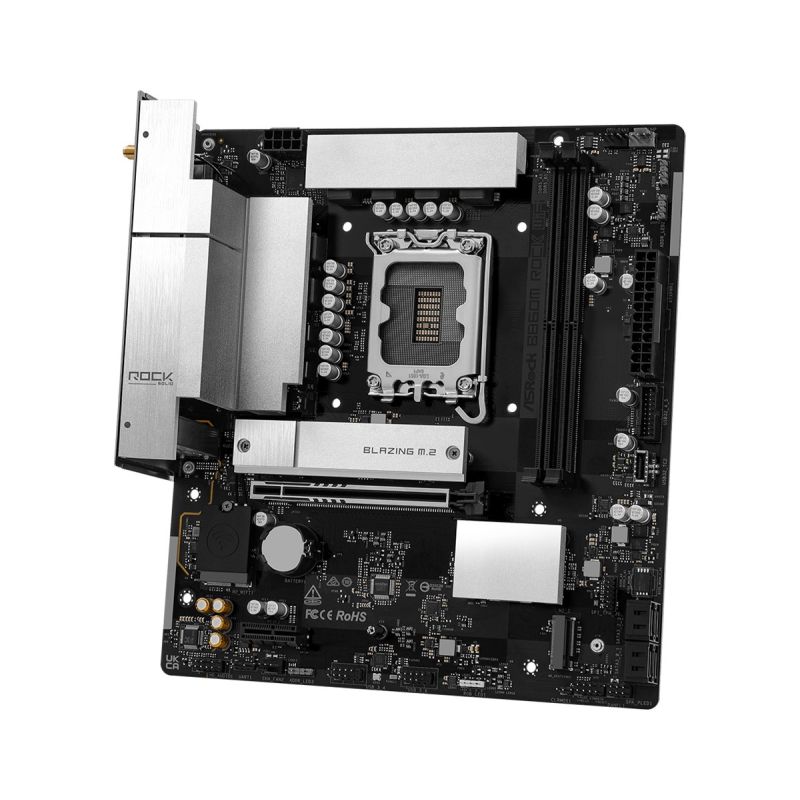

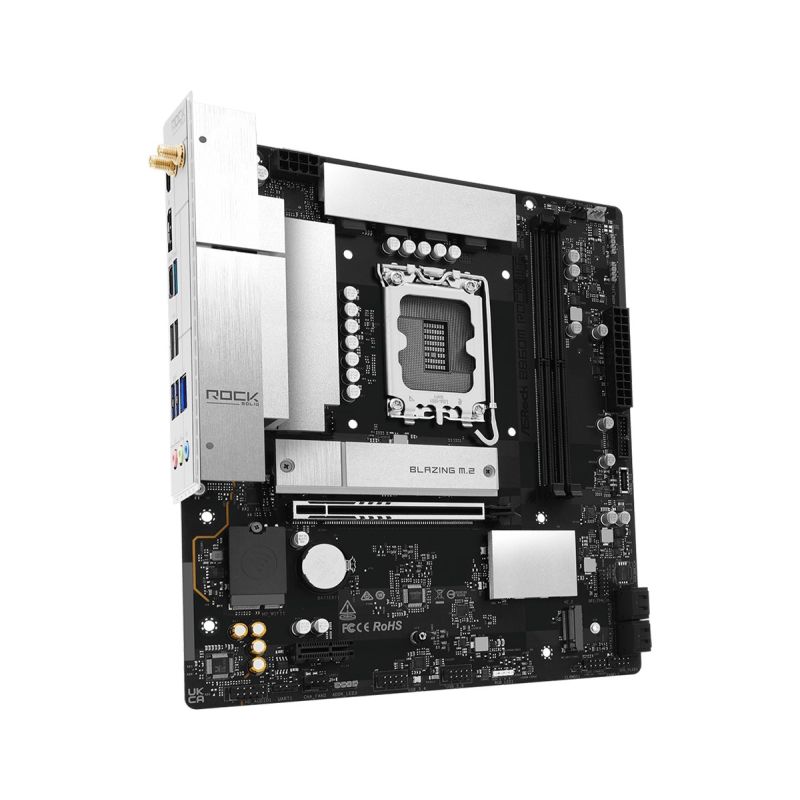

Asrock B860M Rock WiFi Intel B860 LGA 1851 (Socket V1) micro ATX
Asrock B860M Rock WiFi Intel B860 LGA 1851 (Socket V1) micro ATX
Asrock B860M Rock WiFi Intel B860 LGA 1851 (Socket V1) micro ATX
PRICE:
222,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor: Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Processor manufacturer: Intel
- Graphics
- HDCP version: 2.3
- HDCP: Yes
- Memory
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- ECC Compatibility: Non-ECC
- Characteristics
- Chipset Board Family: Intel
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Intended use: PC
- Supported Windows operating systems: Windows 11 x64
- Motherboard Layout: Intel B860
- Motherboard format: Micro ATX
- Weight and dimensions
- Product width: 244 mm
- Product depth: 218 mm
- Internal I/O
- CPU fan connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of USB 2.0 ports: 2
- TPM Connector: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- RGB LED: Yes
- Number of case fan connectors: 2
- Number of CPU fan connectors: 1
- Number of RGB LED connectors: 1
- Network
- Wi-Fi standards
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 6E (802.11ax)
- Wi-Fi 5 (802.11ac)
- Wi-Fi: Yes
- Wired LAN: Yes
- Bluetooth version: 5.3
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Wi-Fi standards
- BIOS
- BIOS memory size: 256 Mbit
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Antenna Included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III

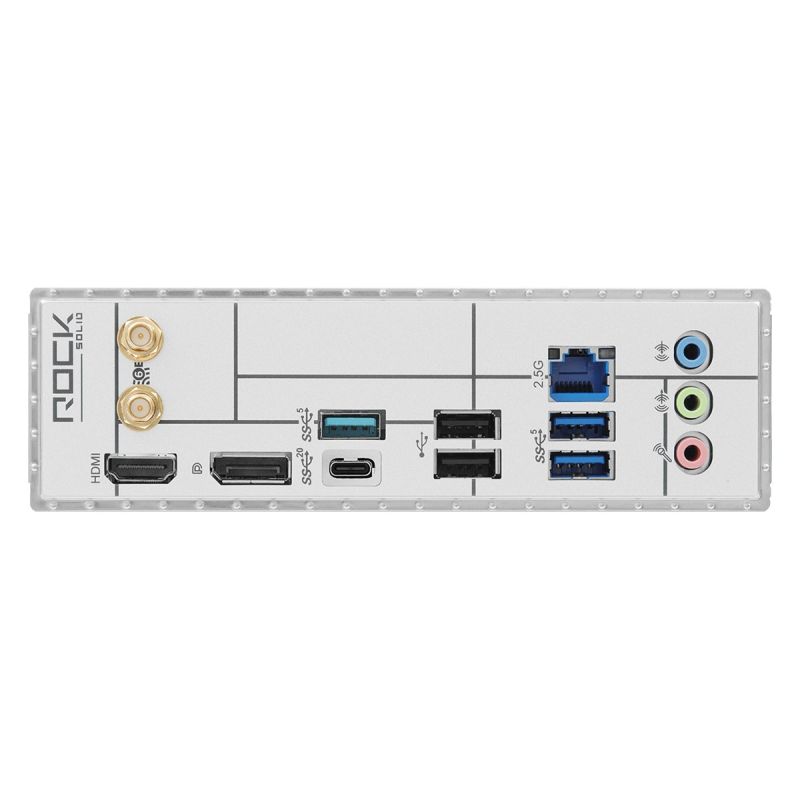

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Microphone: Yes
- Line Input: Yes
- Number of USB 2.0 ports: 2
- DisplayPort version: 1.4
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
| Name | Details |
|---|---|
| Producer | Asrock |
