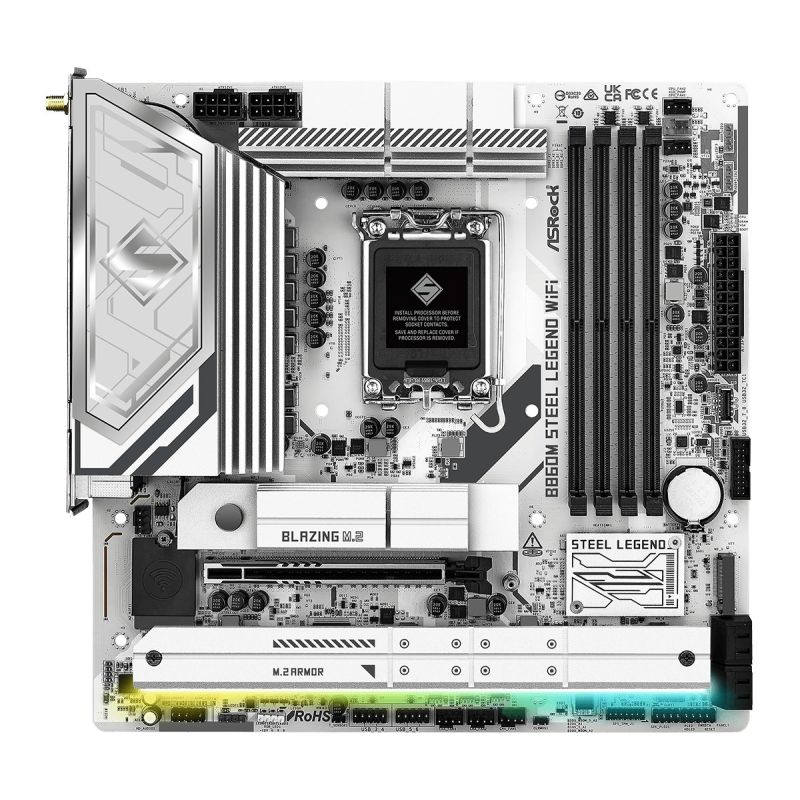

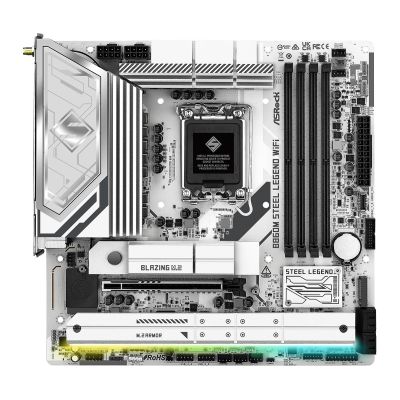

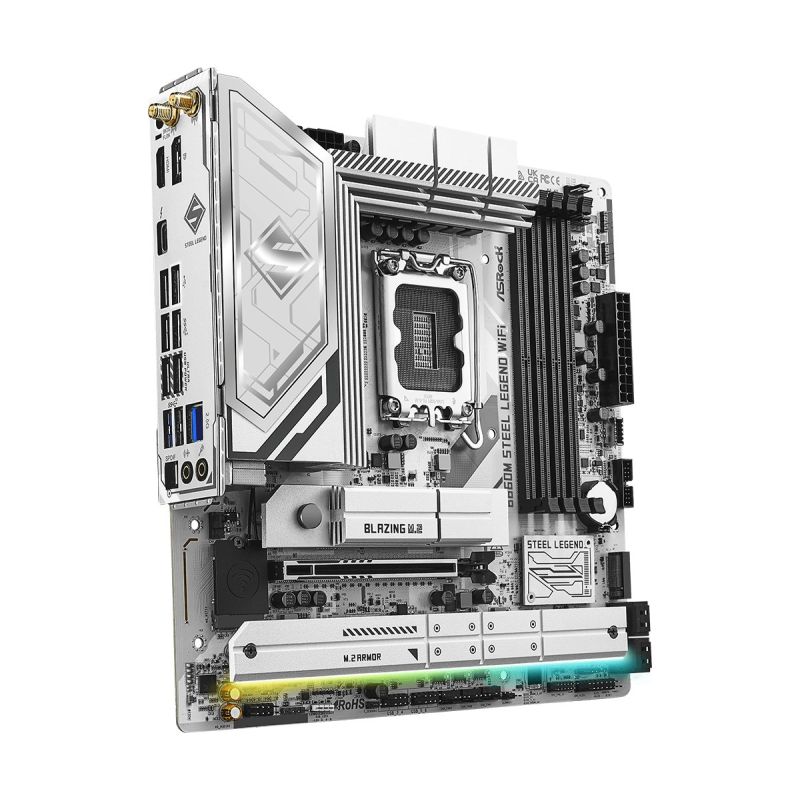

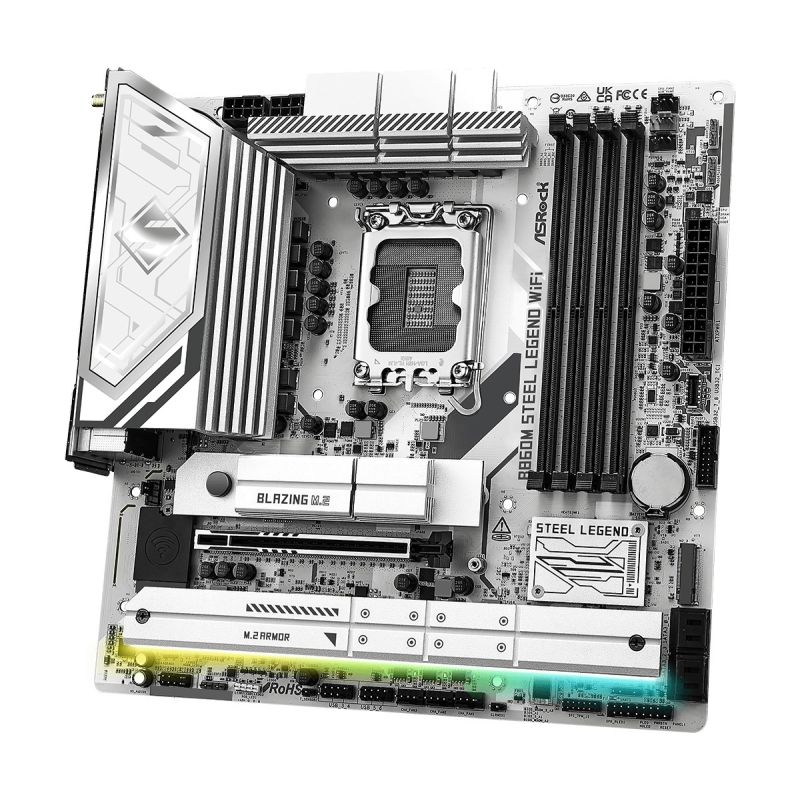

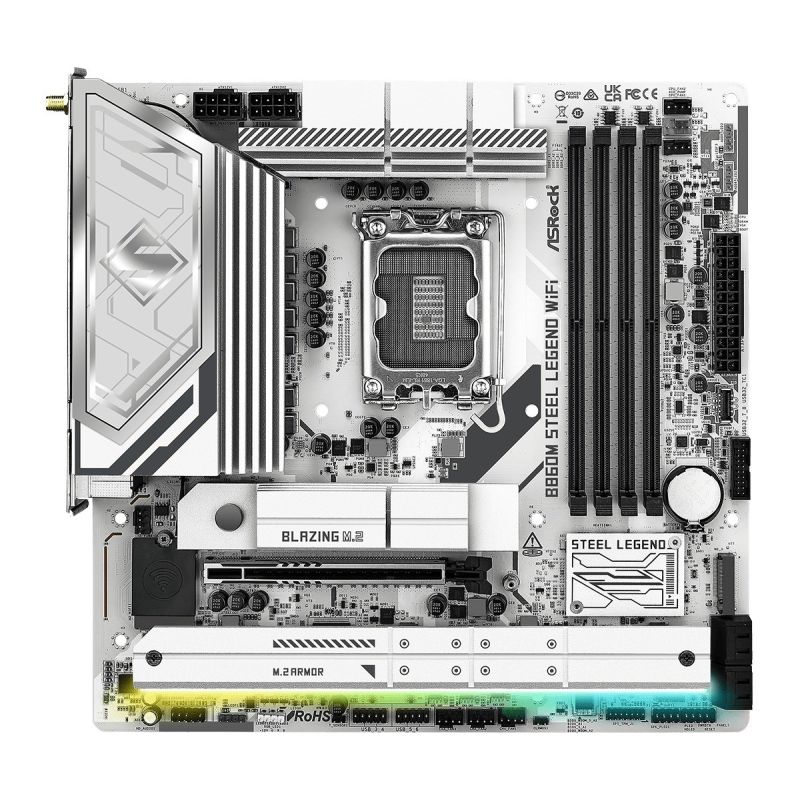

ASRock B860M Steel Legend WiFi Motherboard
ASRock B860M Steel Legend WiFi Motherboard
ASRock B860M Steel Legend WiFi Motherboard
PRICE:
308,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported processor sockets: LGA 1851
- Processor: Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Graphics
- HDCP: Yes
- Maximum resolution: 7680 x 4320 px
- Integrated graphics card type: Intel Iris Xe Graphics
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Memory channel support: Dual-channel
- ECC compatibility: Non-ECC
- Number of memory slots: 4
- Features
- Chipset family: Intel
- Motherboard form factor: Micro ATX
- Motherboard chipset: Intel B860
- Product colour: White
- Audio chip: Realtek ALC1220
- Audio output channels: 7.1 channels
- Supported Windows operating systems: Windows 11 x64
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- Number of USB 2.0 ports: 4
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 connectors (3.1 Gen 1): 2
- Number of chassis fan connectors: 4
- ATX power connector (24-pin): Yes
- Number of USB 3.2 Gen 2 Type-C ports: 1
- Number of water pump connectors: 1
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Addressable LED connectors: 3
- TPM connector: Yes
- Number of CPU fan connectors: 2
- Number of EPS power connectors (8-pin): 2
- Front panel audio connector: Yes
- 12V power connector: Yes
- Number of RGB LED connectors: 1
- Network
- Bluetooth: Yes
- LAN controller: Dragon RTL8125BG
- Ethernet LAN data transfer rate: 10,100,1000,2500 Mbit/s
- Ethernet network interface type: 2.5 Gigabit Ethernet
- Wi-Fi standard: Wi-Fi 6E (802.11axe)
- Wi-Fi: Yes
- Wi-Fi standards
- 802.11b
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- Bluetooth version: 5.3
- Wired LAN: Yes
- MU-MIMO: Yes
- BIOS
- BIOS type: UEFI AMI
- Storage drives
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
- RAID support: Yes
- Number of supported storage drive sizes: 8
- RAID levels
- 5
- 1
- 10
- 0

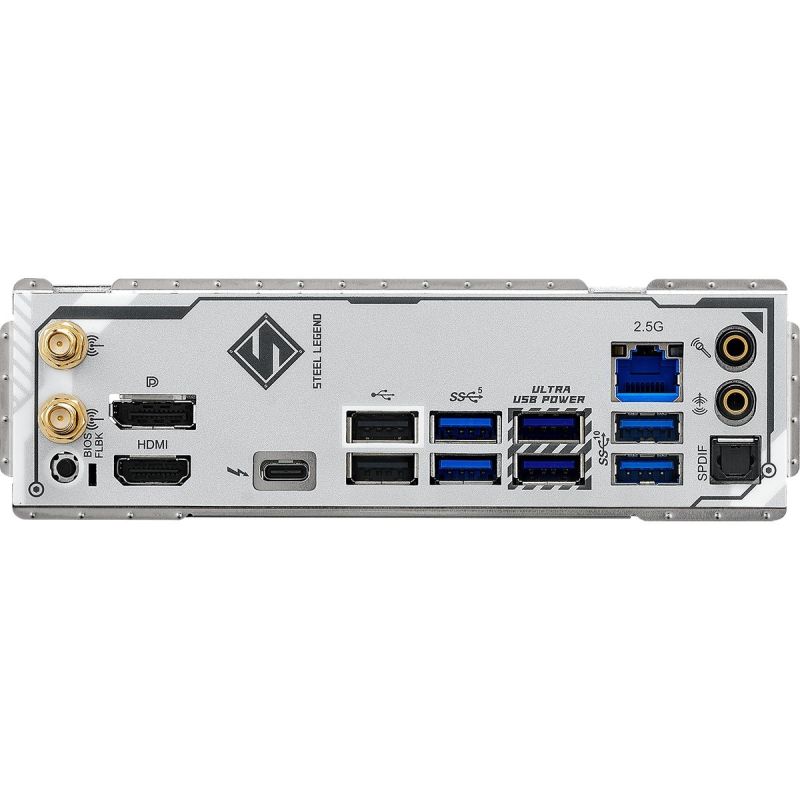

- Rear panel I/O ports
- S/PDIF output port: Yes
- Number of DisplayPorts: 1
- DisplayPort version: 1.4
- Number of antennas: 2
- Supported USB types
- USB Type-A
- USB Type-C
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- BIOS Flashback button: Yes
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 ports: 4
- Microphone input: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- HDMI version: 2.1
- Number of Thunderbolt ports: 1
- Headphone outputs: 1
- Expansion slots
- Number of SATA III connectors: 4
- Number of M.2 slots (M): 4
- PCI Express x16 slots (Gen 4.x): 1
- PCI Express x16 slots (Gen 5.x): 1
- 1st maximum M.2 key size: 2280
- 3rd highest M.2 PCI Express generation: 4.0
- 3rd maximum M.2 key size: 2280
- 4th highest M.2 PCI Express generation: 4.0
- 4th maximum M.2 key size: 2280
- 2nd highest M.2 PCI Express generation: 4.0
- 2nd maximum M.2 key size: 2280
- 1st highest M.2 PCI Express generation: 5.0
- Safety warning
- Warnings
- If you experience installation problems, contact a qualified service centre.
- When disposing of the product, follow local regulations regarding the recycling of electronics.
- Do not open or modify the motherboard to prevent damage.
- Warnings
