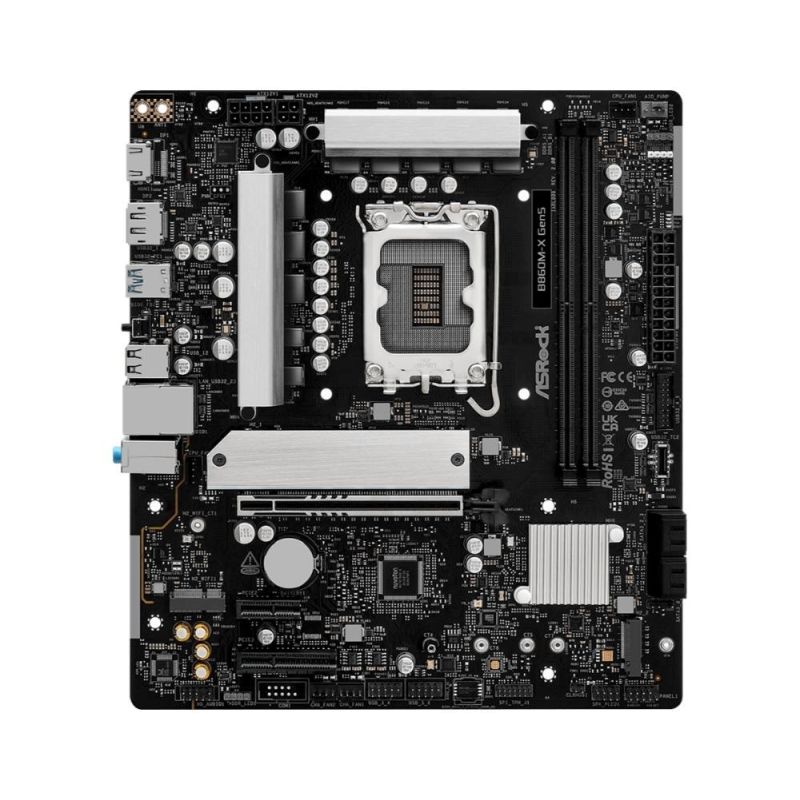

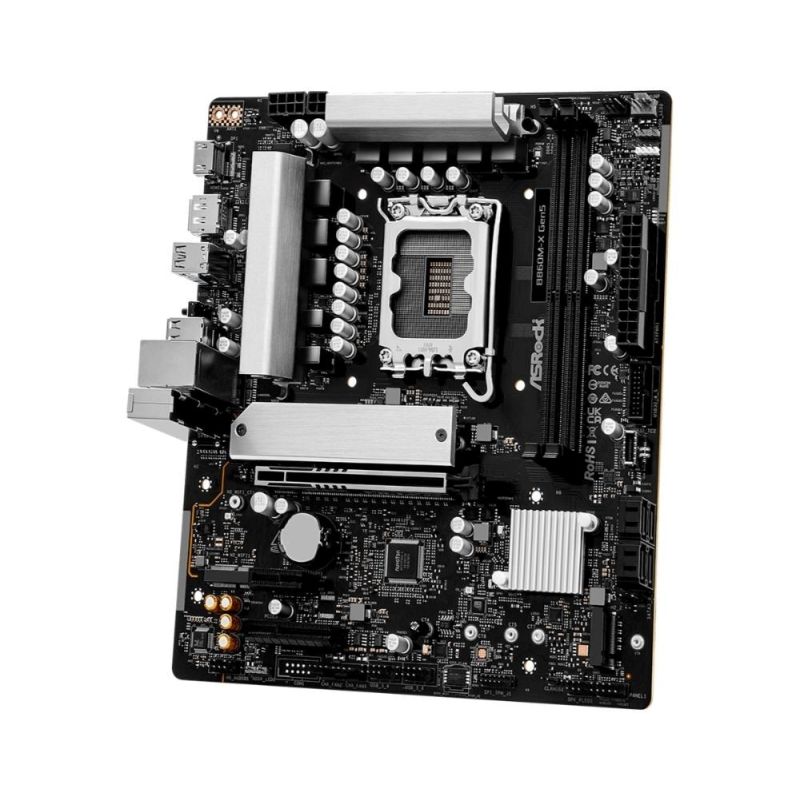

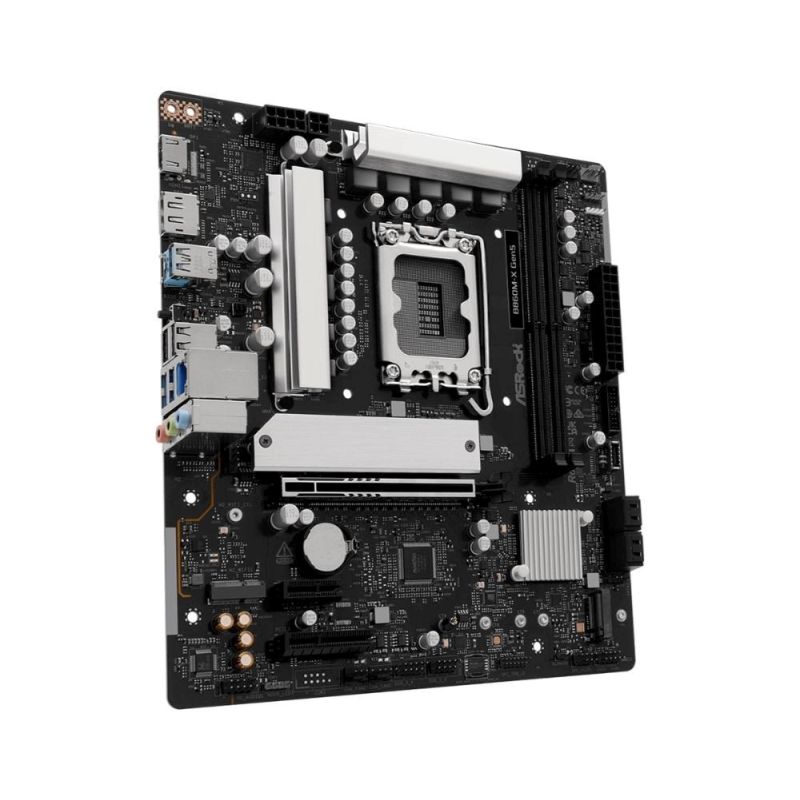

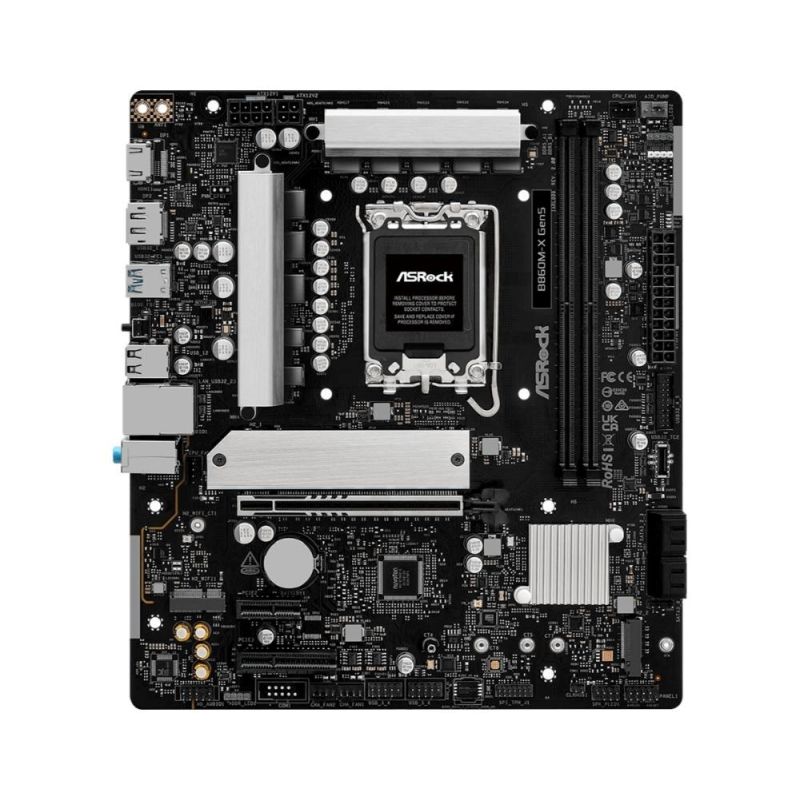

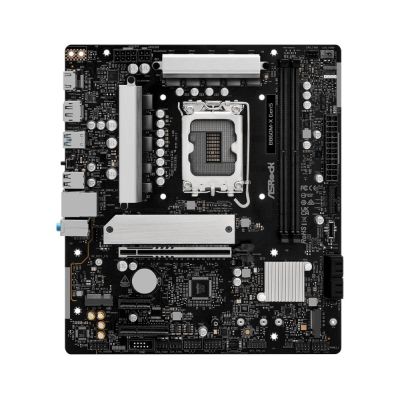

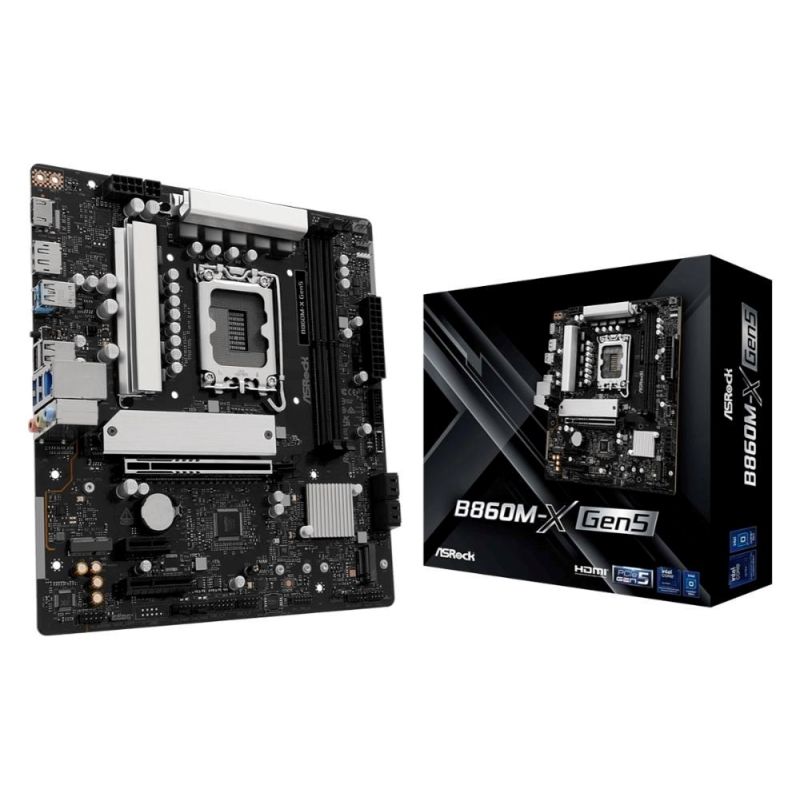

Asrock B860M-X GEN5 motherboard
Asrock B860M-X GEN5 motherboard
Asrock B860M-X GEN5 motherboard
PRICE:
172,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Memory
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 128 GB
- Supported memory types: DDR5 DIMM
- Memory slot type: DIMM
- Number of memory slots: 2
- Supported memory clock speed (max): 9066 MHz
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Audio chip: Realtek ALC897
- Product color: Black
- Chipset Board Family: Intel
- Motherboard Layout: Intel B860
- Motherboard format: Micro ATX
- Audio output channels: 7.1 ch.
- Design
- Number of USB 3.2 Gen 1 ports: 5
- BIOS Flashback Button: Yes
- Number of SATA III connectors: 4
- Number of M.2 (M) slots: 2
- TPM Connector: Yes
- Number of USB 2.0 ports: 6
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- RGB LED: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Number of M.2 (E) slots: 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Weight and dimensions
- Product width: 244 mm
- Product depth: 218 mm
- Network
- LAN controller: Dragon RTL8125BG
- Wired LAN: Yes
- Wi-Fi: No
- Ethernet interface type: 2.5 Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Screws Included: Yes
- Memory drivers
- RAID Service: Yes
- RAID levels
- 5
- 0
- 10
- 1
- Supported hard drive interfaces: M.2, SATA III
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 1
| Name | Details |
|---|---|
| Producer | Asrock |
