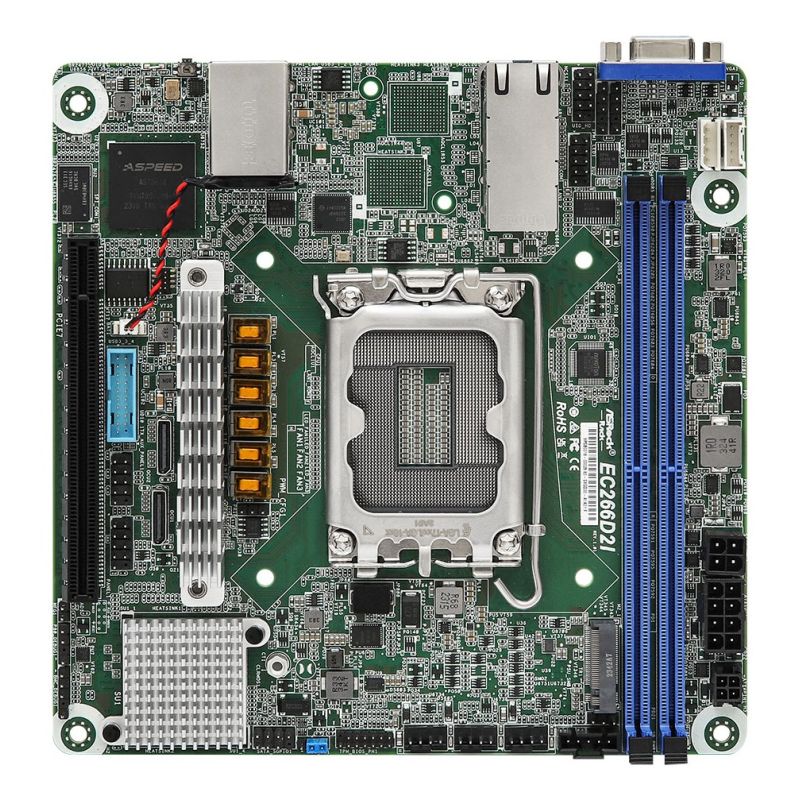

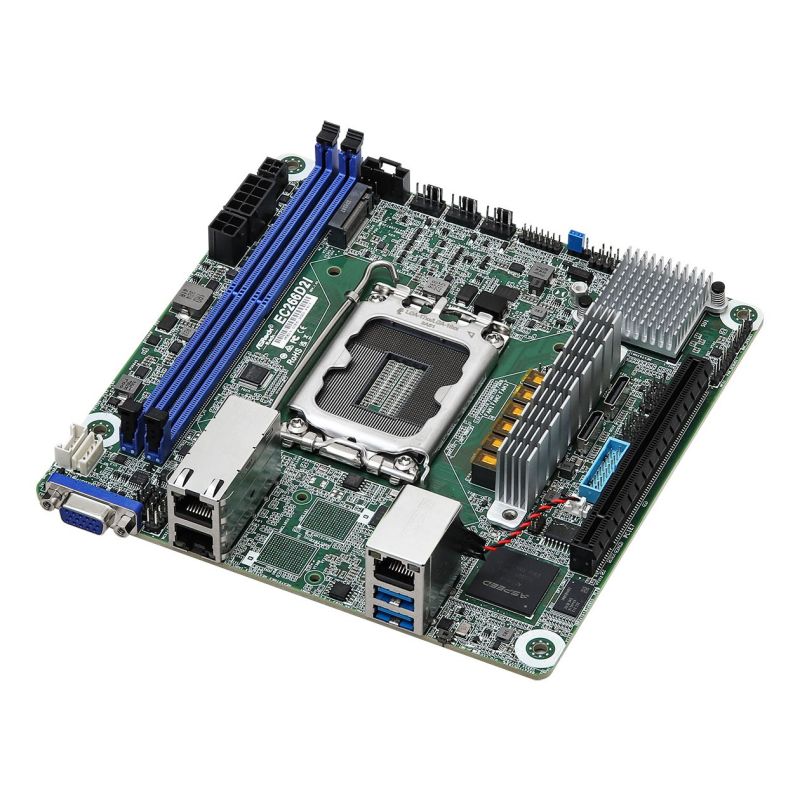

AsRock EC266D2I LGA1700 Intel Motherboard
AsRock EC266D2I LGA1700 Intel Motherboard
AsRock EC266D2I LGA1700 Intel Motherboard
PRICE:
528,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor
- Intel Xeon E
- Intel® Xeon®
- Intel® Pentium® Gold
- Processor socket: LGA 1700
- Supported CPU sockets: LGA 1700
- Graphics
- Built-in graphics card model: Aspeed AST2600
- Memory
- Memory voltage: 1.1 V
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Maximum memory capacity: 32 GB
- Supported memory clock speed (max): 4800 MHz
- ECC Compatibility: ECC
- Characteristics
- Monitoring computer status
- Processor
- Fan
- Motherboard format: Mini ITX
- Chipset Board Family: Intel
- Motherboard Layout: Intel C266
- Monitoring computer status
- Weight and dimensions
- Product depth: 170.2 mm
- Product width: 170.2 mm
- Working conditions
- Permissible relative humidity: 20 - 90%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 10 - 35 °C
- Internal I/O
- Number of SATA III connectors: 8
- EPS power supply connector (8-pin): Yes
- ATX power socket (24-pin): Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 3
- Number of COM sockets: 1
- TPM Connector: Yes
- Network
- Wired LAN: Yes
- Wi-Fi: No
- BIOS
- System BIOS (SMBIOS) version: 2.8
- BIOS Type: AMI
- ACPI version: 6.4
- BIOS memory size: 256 Mbit
- Memory drivers
- RAID levels
- 1
- 5
- 10
- 0
- RAID Service: Yes
- RAID levels

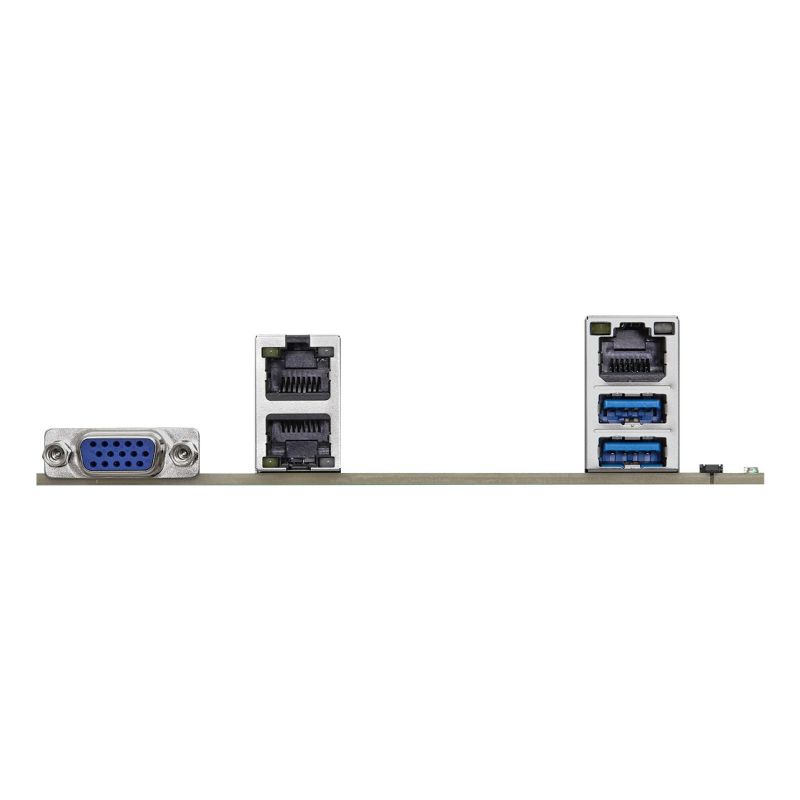

- Rear Panel I/O Ports
- IPMI LAN Port (RJ-45): Yes
- Number of VGA (D-Sub) ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 2
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express OCuLink connectors (NVMe support): 2
- PCI Express x16 (Gen 5.x) slots: 1
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | Asrock |
| Department | Electronics |
