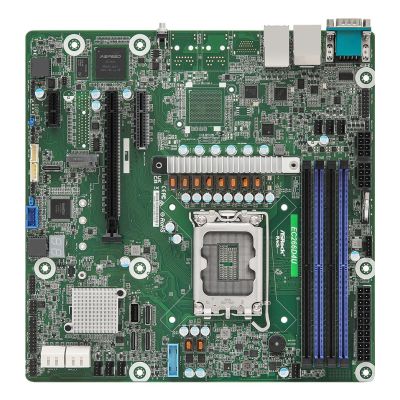

AsRock EC266D4U Motherboard 1x LGA1700 Intel Xeon E-2400 C266 (4x DIMM, 8x SATA, 4xOCiLink, 1xM.2, 2x1Gbe, IPMI, mATX)
AsRock EC266D4U Motherboard 1x LGA1700 Intel Xeon E-2400 C266 (4x DIMM, 8x SATA, 4xOCiLink, 1xM.2, 2x1Gbe, IPMI, mATX)
AsRock EC266D4U Motherboard 1x LGA1700 Intel Xeon E-2400 C266 (4x DIMM, 8x SATA, 4xOCiLink, 1xM.2, 2x1Gbe, IPMI, mATX)
PRICE:
538,99
€
IN A WAREHOUSE
above 10 pcs
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1700
- Processor
- Intel® Xeon®
- Intel Xeon E
- Intel® Pentium® Gold
- Processor socket: LGA 1700
- Graphics
- Built-in graphics card model: Aspeed AST2600
- Memory
- Memory voltage: 1.1 V
- Supported memory types: DDR5-SDRAM
- Maximum memory capacity: 32 GB
- Number of memory slots: 4
- ECC Compatibility: ECC
- Supported memory clock speed (max): 4400 MHz
- Characteristics
- Monitoring computer status
- Processor
- Fan
- Motherboard Layout: Intel C266
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Monitoring computer status
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Working conditions
- Temperature range (operation): 10 - 35 °C
- Permissible relative humidity: 20 - 90%
- Temperature range (storage): -40 - 70 °C
- Internal I/O
- Number of USB 2.0 ports: 3
- ATX power socket (24-pin): Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- Number of SATA III connectors: 8
- TPM Connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- BIOS
- BIOS memory size: 256 Mbit
- System BIOS (SMBIOS) version: 2.8
- BIOS Type: AMI
- ACPI version: 6.4

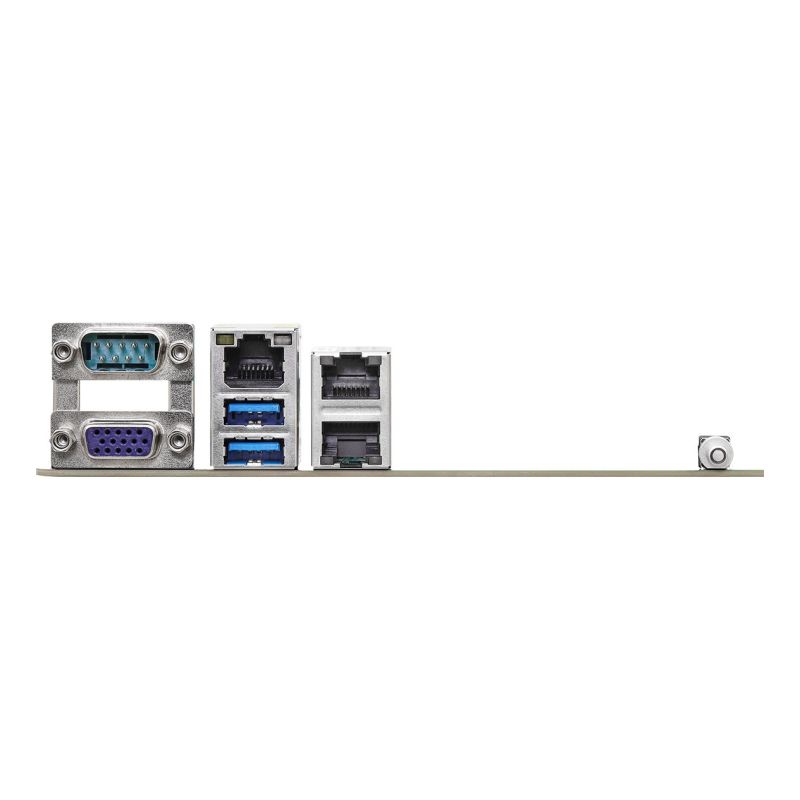

- Rear Panel I/O Ports
- Number of VGA (D-Sub) ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 2
- Serial communication ports: 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express OCuLink connectors (NVMe support): 3
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 1
| Name | Details |
|---|---|
| Producer | Asrock |
