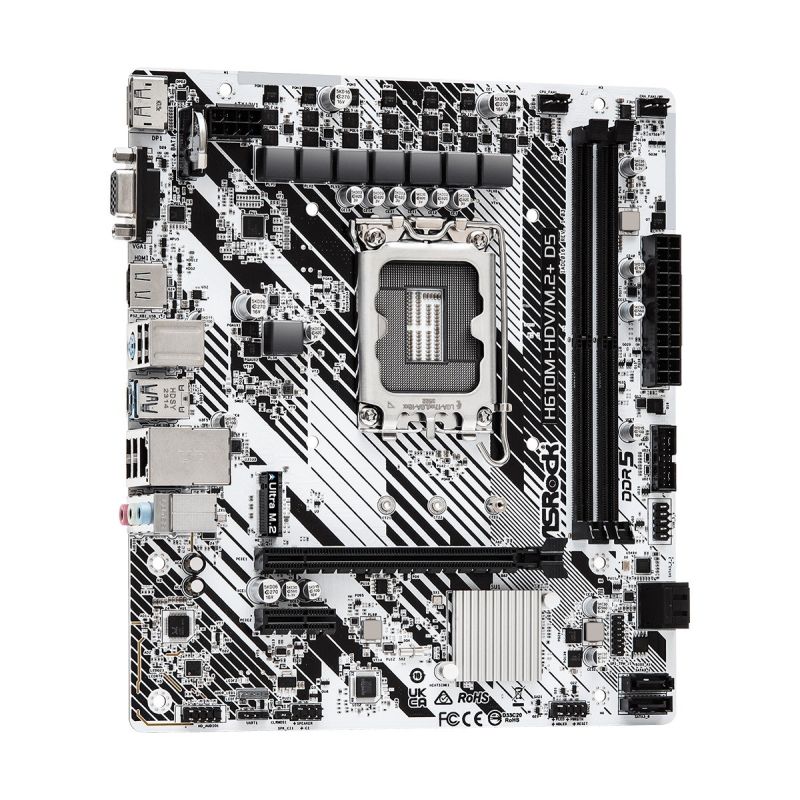

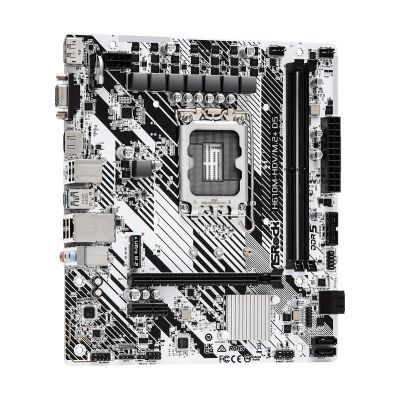

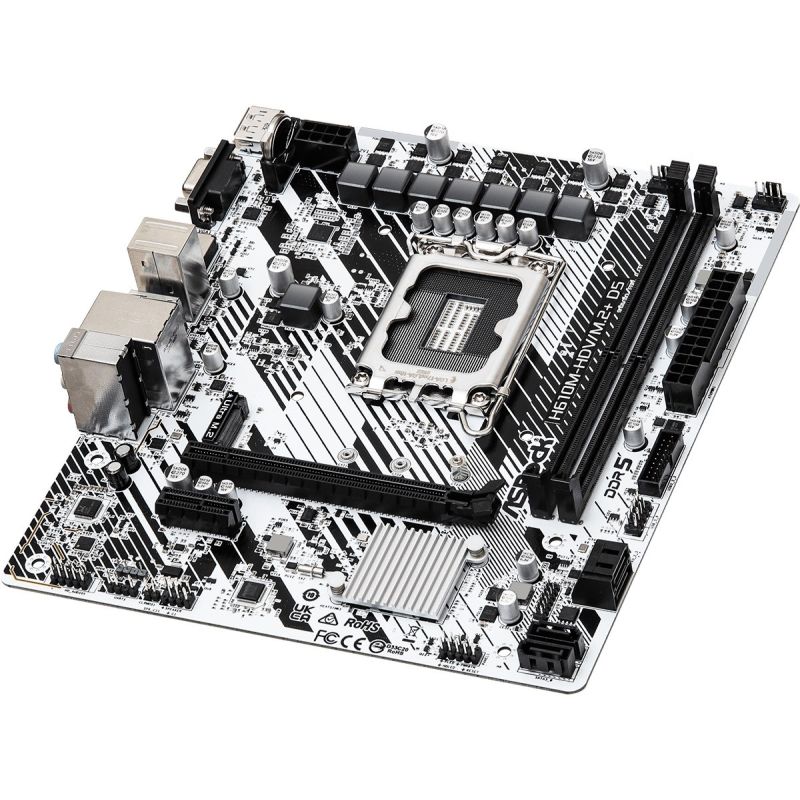

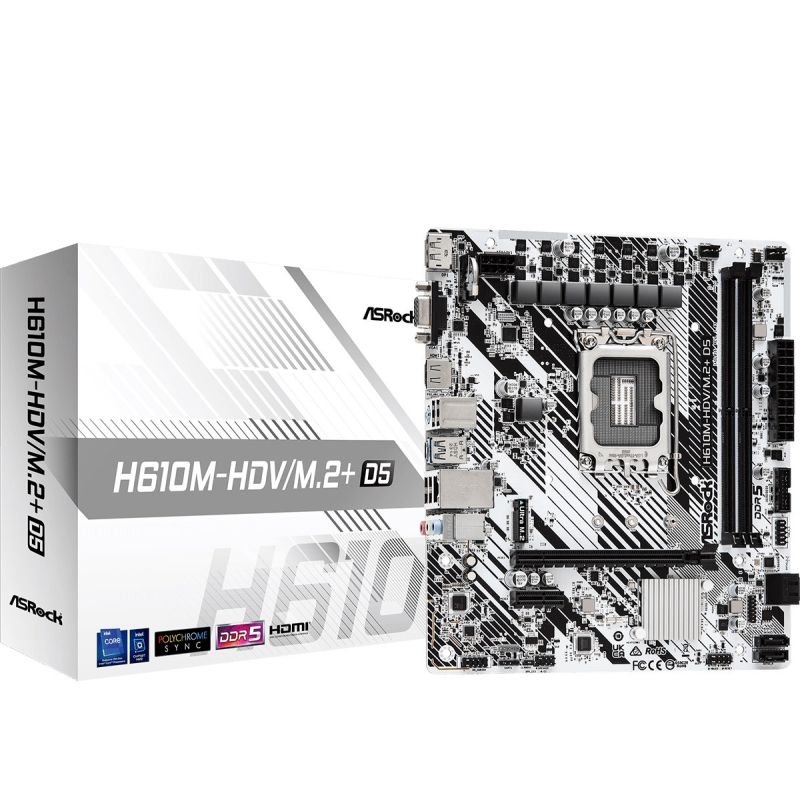

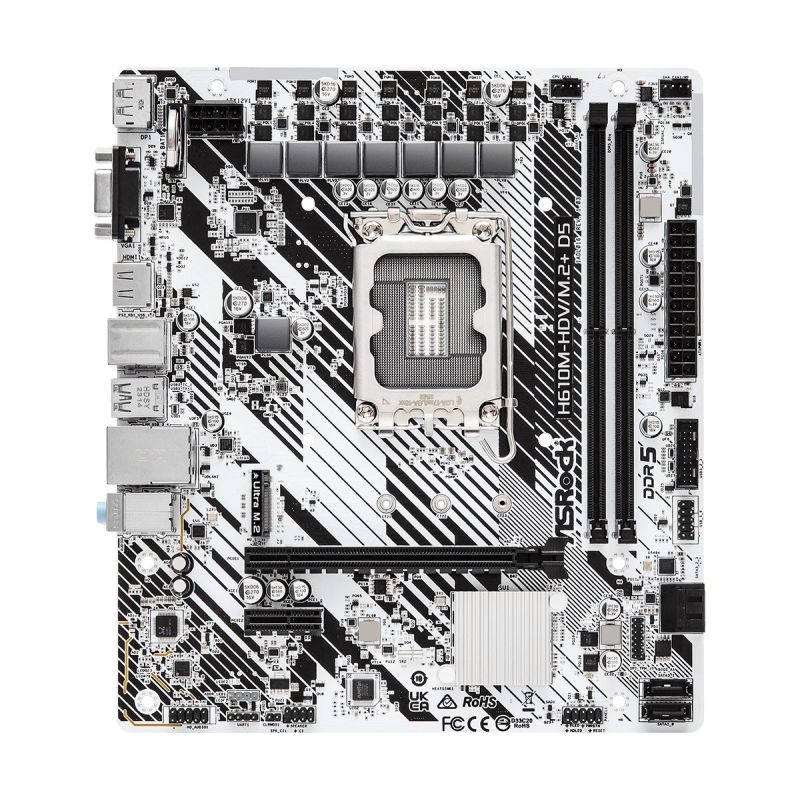

Asrock H610M-HDV/M.2+ D5 motherboard
Asrock H610M-HDV/M.2+ D5 motherboard
Asrock H610M-HDV/M.2+ D5 motherboard
PRICE:
64,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Maximum number of SMP processors: 1
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i9
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i3
- Intel® Pentium®
- Intel® Core™ i7
- Processor socket: LGA 1700
- Graphics
- Parallel Processing Support: Not Supported
- HDCP: Yes
- Maximum resolution: 7680 x 4320 px
- Memory
- Number of memory slots: 2
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 96 GB
- Unbuffered memory: Yes
- Supported memory clock speeds: 5600 MHz
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Monitoring computer status
- Processor
- Tension
- Fan
- Temperature
- Motherboard format: Micro ATX
- Audio chip: Realtek ALC897
- Chipset Board Family: Intel
- Motherboard Layout: Intel H610
- Supported Windows operating systems
- Weight and dimensions
- Product width: 220 mm
- Product depth: 193 mm
- Internal I/O
- Housing intrusion sensor connector: Yes
- Number of case fan connectors: 1
- TPM Connector: Yes
- 12V power connector: Yes
- CPU fan connector: Yes
- RGB LED: Yes
- Number of USB 2.0 ports: 1
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- Wake-On-LAN: Yes
- LAN controller: Realtek 8111H
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: No
- Supported drive types: HDD & SSD

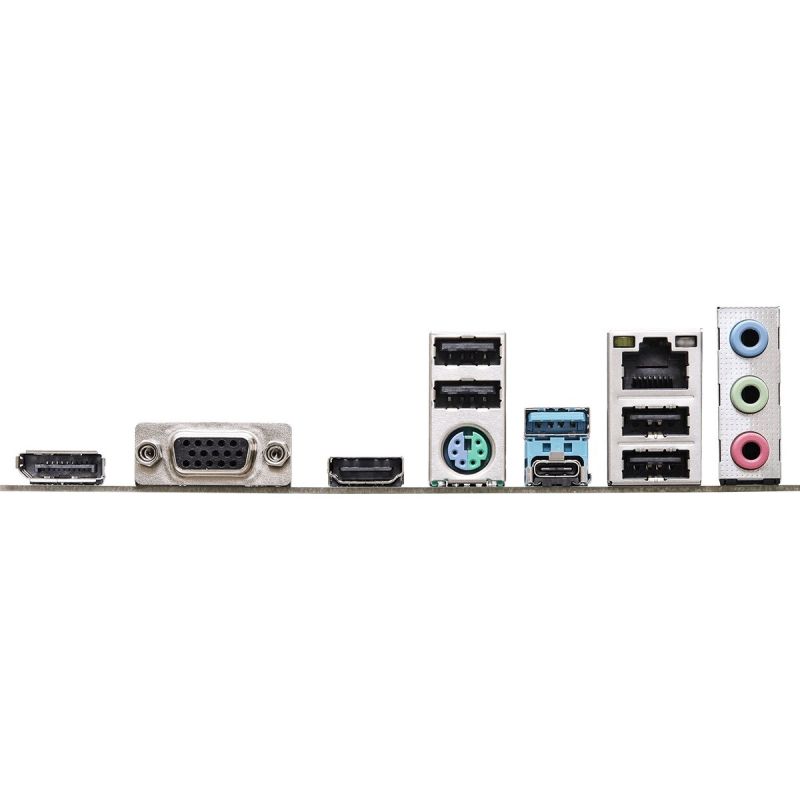

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- HDMI version: 2.1
- Number of HDMI ports: 1
- Number of VGA (D-Sub) ports: 1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- DisplayPort Quantity: 1
- DisplayPort version: 1.4
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- Safety warning
- Warnings
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
